Mi Home Camera 360 support (Xiaomi)

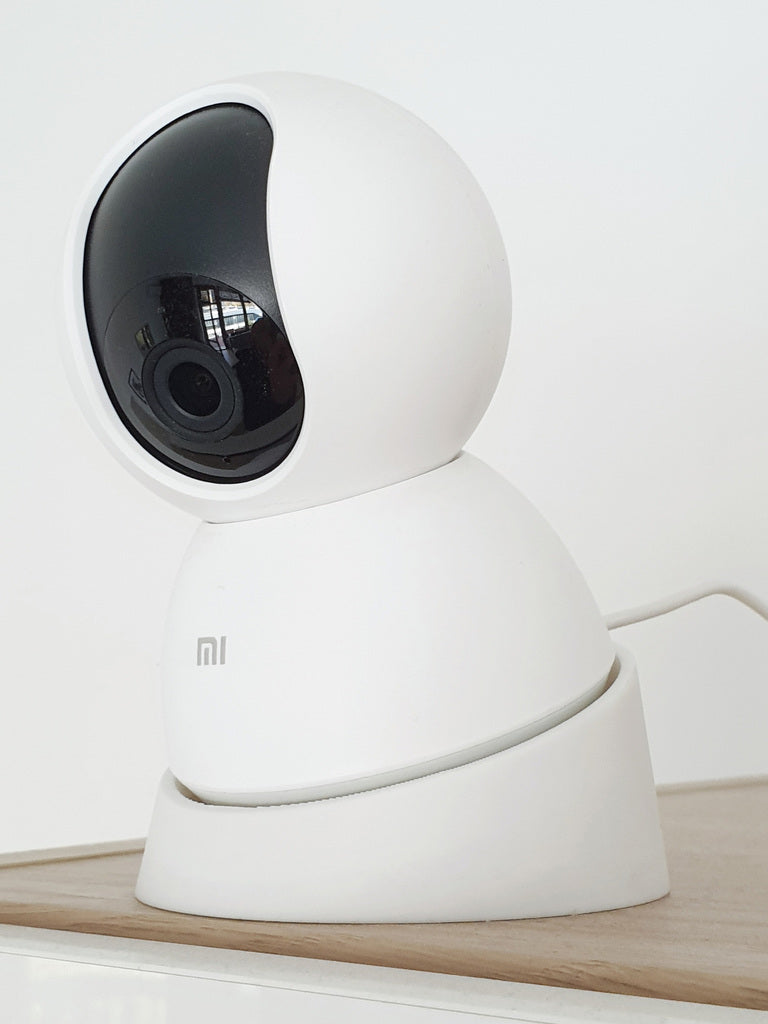

I put my security camera on a tall closet, but I couldn't see the whole room, so I made a 20° support to compensate the missing angle.

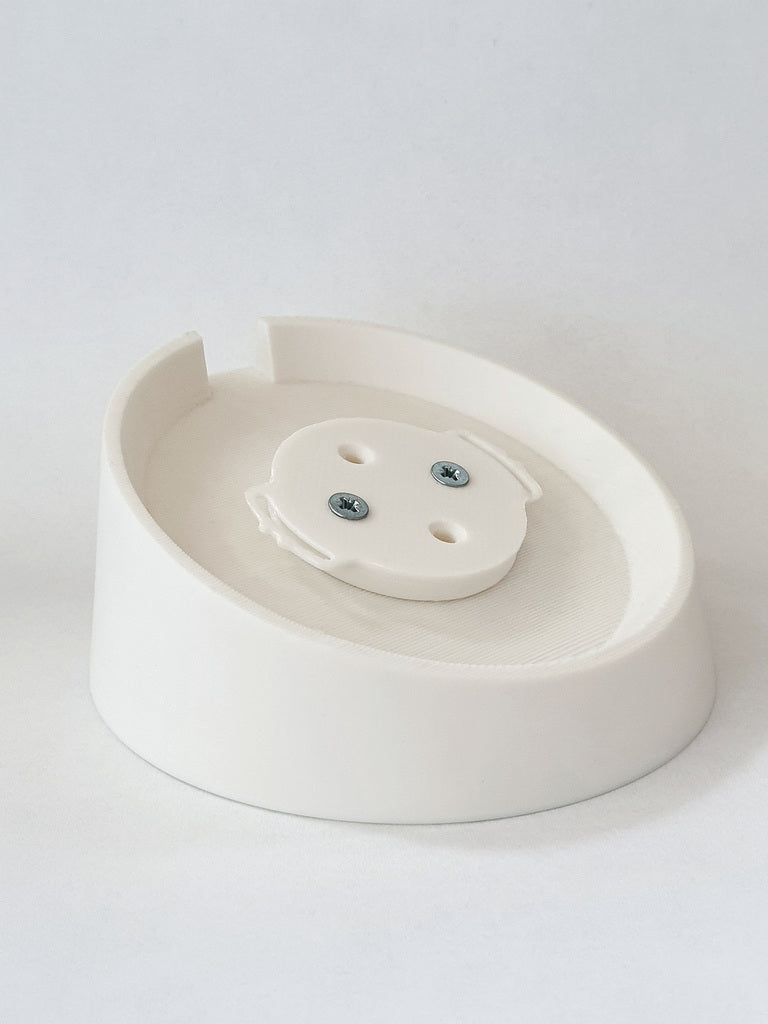

All you need is the two printed components and 2 wood 3x16mm screws.

Note: the lock has 4 holes in order to be repurposed. For this mount you only need two.

Slicer Settings

Support

• 0.3mm layer thickness
• 1.2mm walls
• 0.9mm top/bottom
• 20% infill for the support
• speed 60mm/s (30mm/s on the walls)

Lock

• 0.15mm layer thickness with adaptive layers
• 1.2mm walls
• 0.9mm top/bottom
• 30% infill
• speed 40mm/s (20mm/s on the walls)
• Brim

Print Settings

Printer:

Eryone Thinker SE

Rafts:

No

Supports:

No

Filament:

Eryone PLA

White

Category: Camera

Design by lucabartoli.00 on MakerWorld (license: BY-SA).
