Microwave turntable coupling

microwave turntable coupling provides a practical solution for repairing broken turntables in microwaves. Originally designed for LG microwaves, this model can also fit other appliances, provided the dimensions match.

Features:

1. Precise Fit:
   • The coupling is specifically designed to drive the turntable in microwaves reliably. Its universal shape makes it compatible with various microwave models.
2. High Temperature Resistance:
   • Since the coupling must withstand extreme temperatures, it’s important to use a material that is heat-resistant and won’t melt or deform under heat.
3. Cost-Effective Alternative:

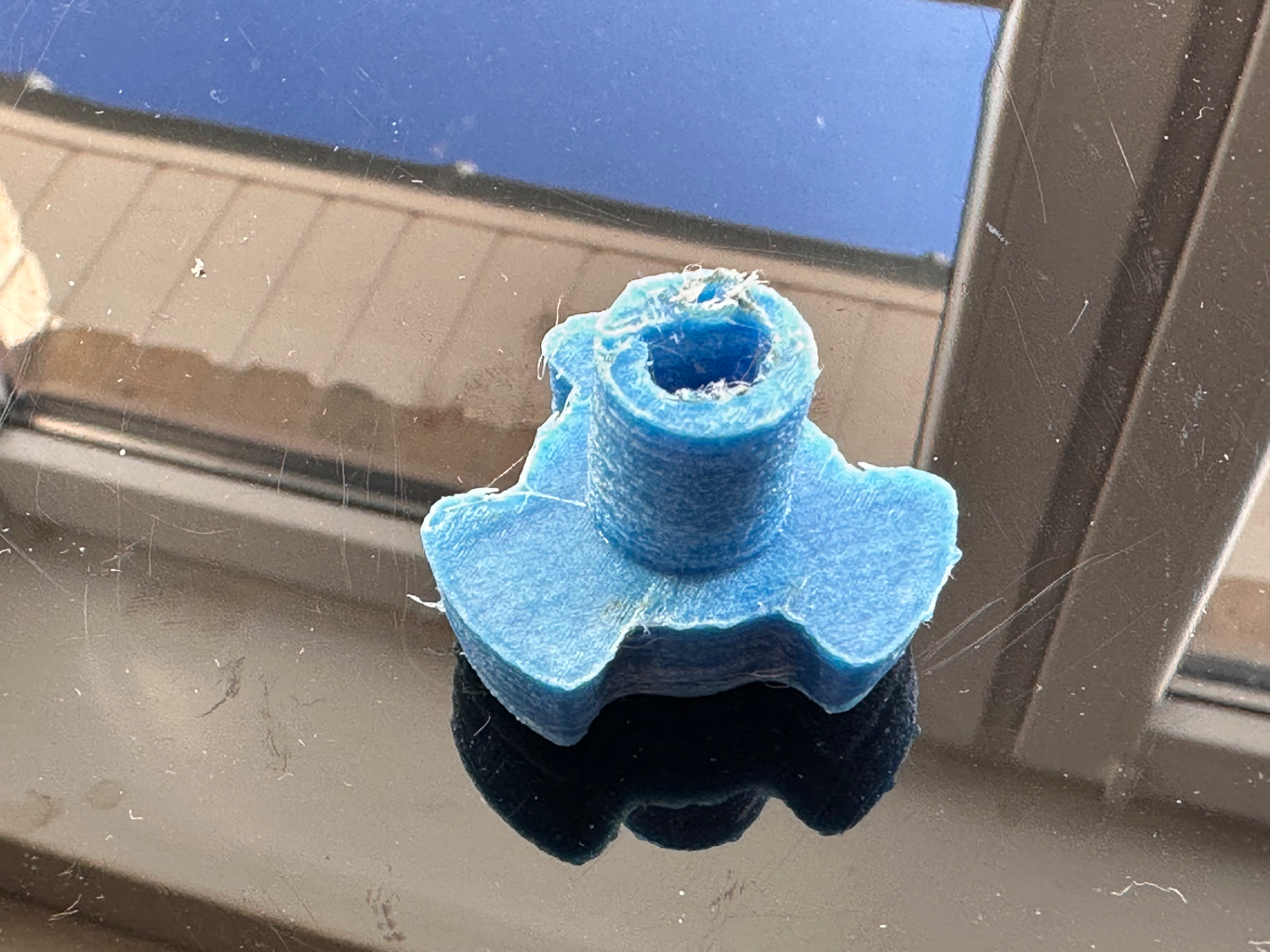

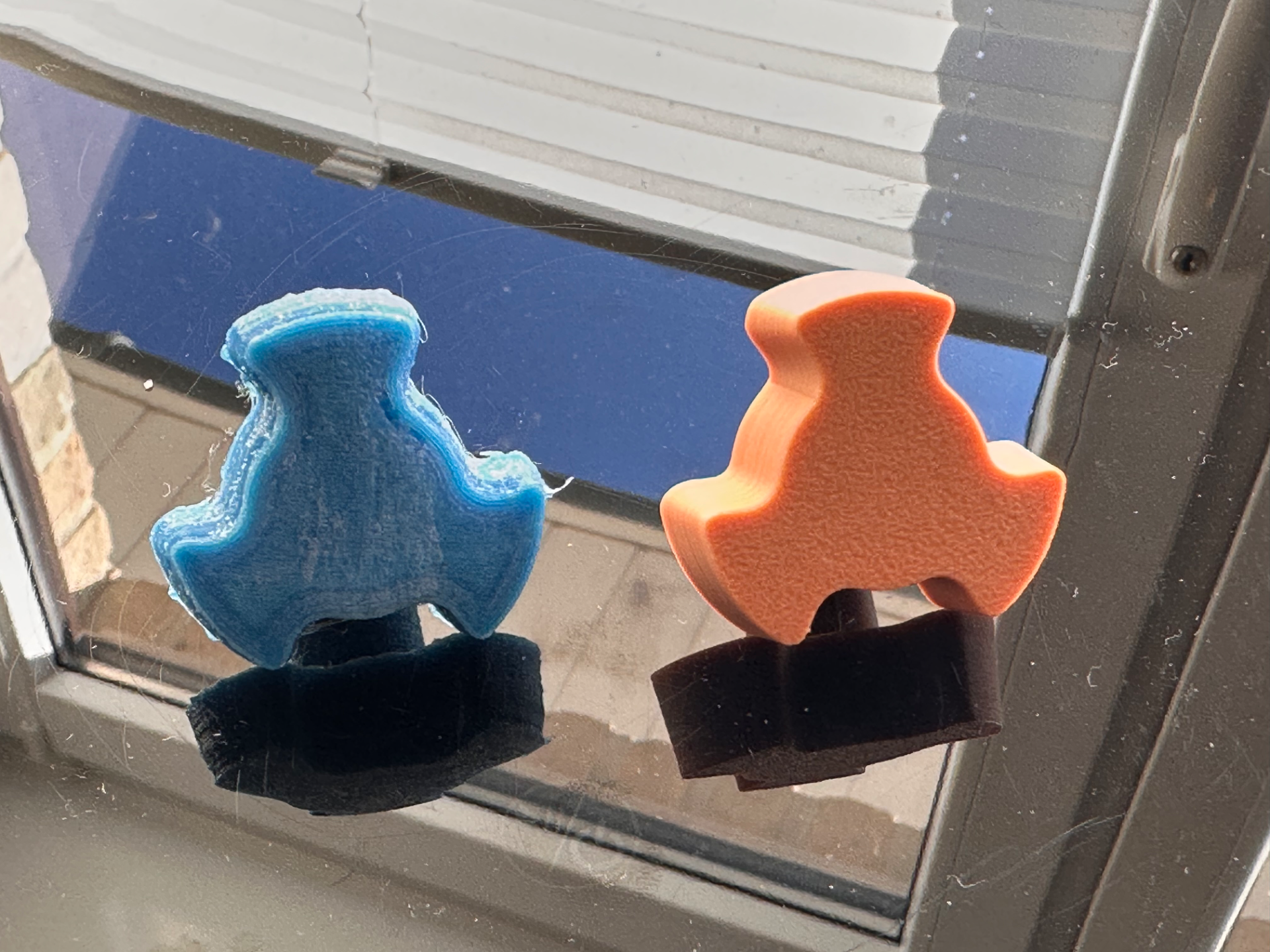

   • If Nylon or similar high-temperature materials are unavailable, a trimmer line for a grass trimmer can be used as a printing material. It is cost-effective and works surprisingly well if properly dried beforehand.

Printing Specifications:

• Recommended Material: Nylon, PEEK, PC, or other heat-resistant filaments.
  • Alternative: Grass trimmer line (must be dried before printing).
• Nozzle Size: 0.4 mm
• Layer Height: 0.2 mm for a good balance between detail and strength.
• Infill: 100% (recommended for maximum strength).
• Support: Not required, as the model is optimized for easy printing without supports.

Printing Instructions:

1. Model Preparation:
   • Load the 3D model of the microwave turntable coupling into your slicer software. Adjust the size if necessary to ensure a perfect fit for your microwave.
2. Material Preparation:
   • If using a trimmer line, ensure it is thoroughly dried before printing to avoid moisture issues that can negatively affect print quality.
3. Print Settings:
   • Choose a printing temperature appropriate for the material. For Nylon, the optimal temperature ranges between 250°C and 270°C.
4. Printing:
   • Start the print and monitor the first few layers to ensure proper adhesion to the print bed.

Post-Processing:

• After printing, remove any excess material using fine sandpaper. This is particularly important to ensure the coupling fits perfectly with the turntable mechanism.

Installation:

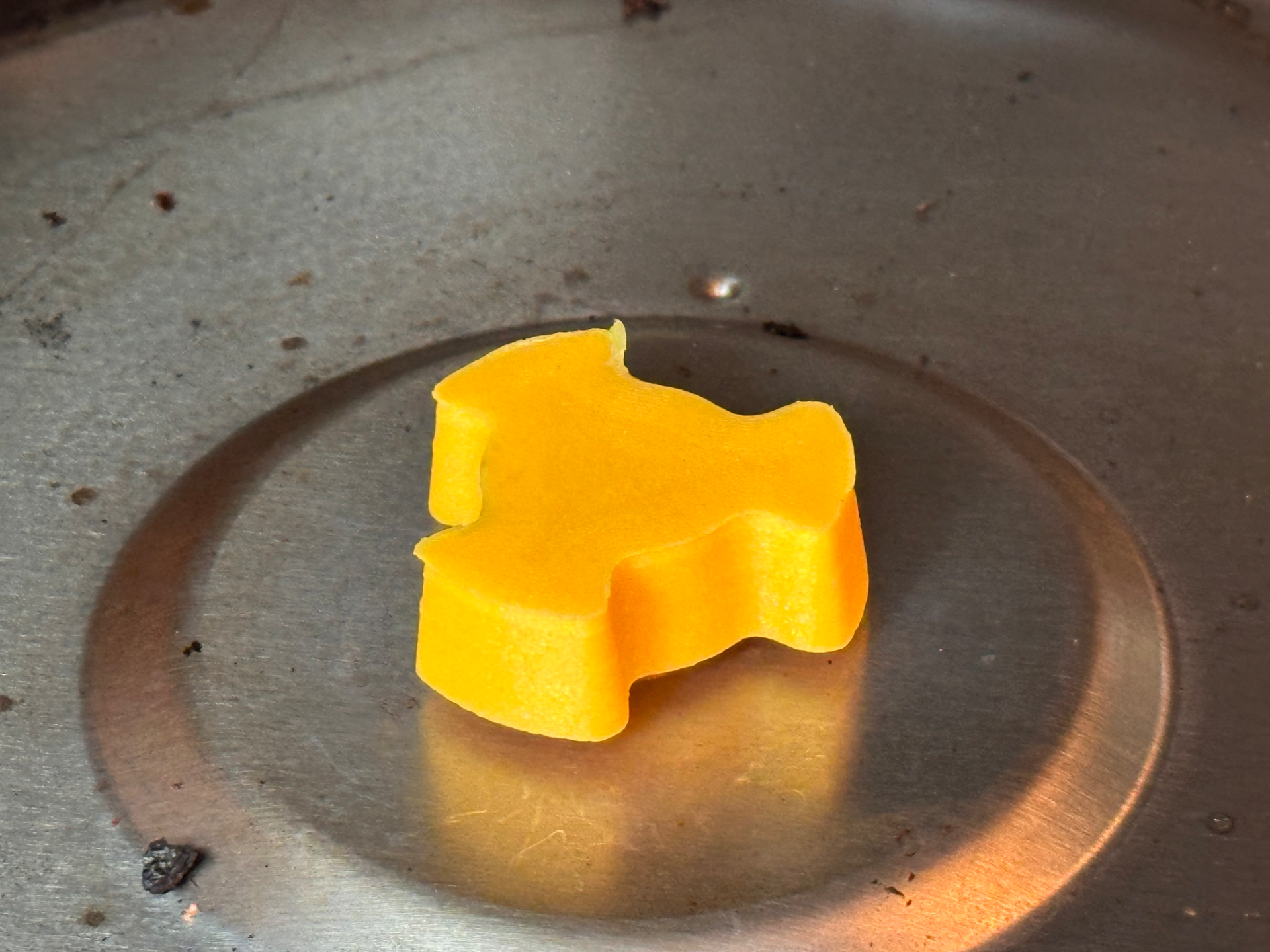

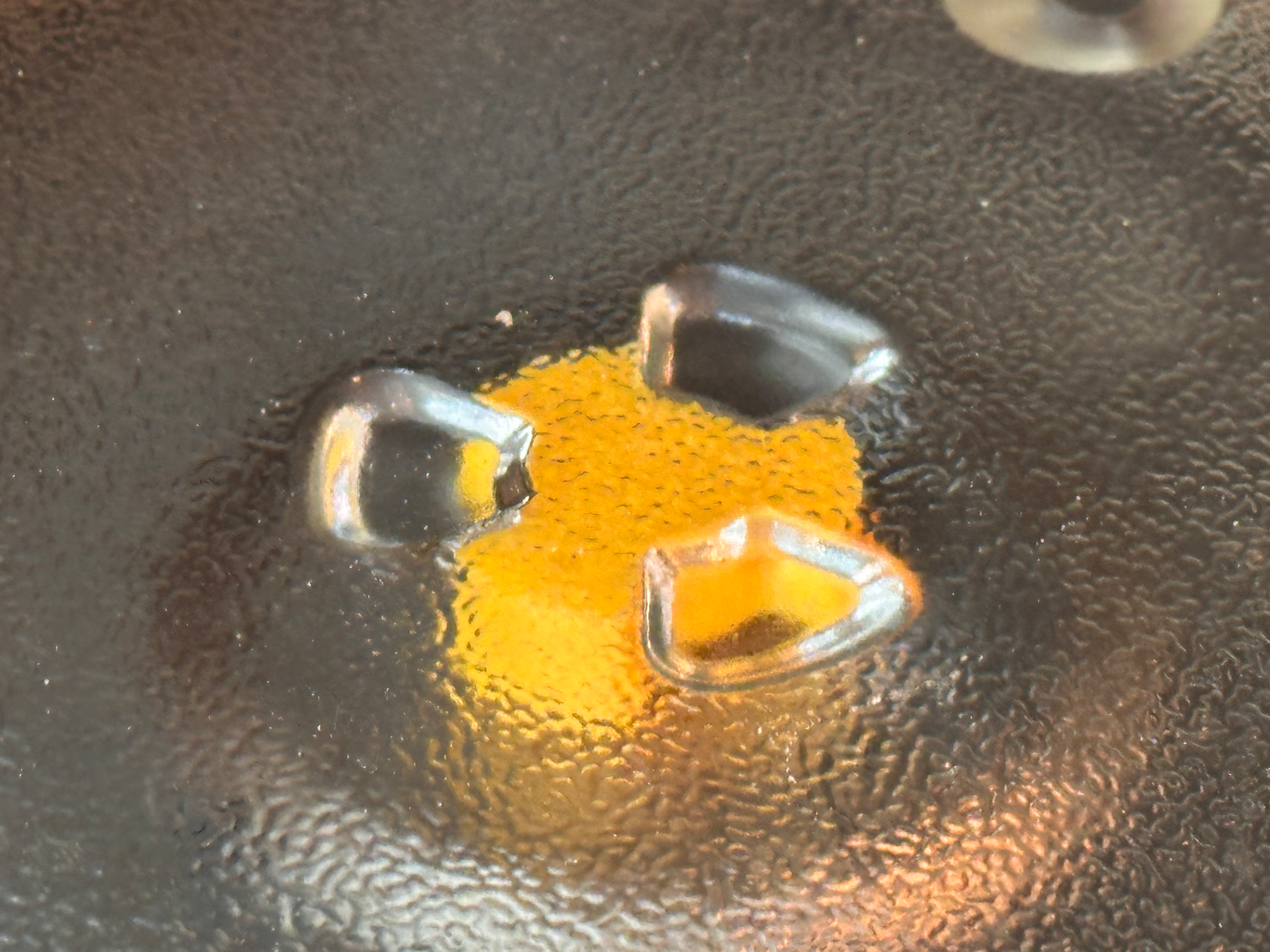

• Insert the coupling into the microwave and test the turntable to ensure smooth operation. If the fit is too tight, you can make slight adjustments by removing excess material.

Conclusion:

This 3D print offers a cost-effective and flexible way to replace a broken microwave turntable coupling. With the right material selection and preparation, the printed coupling can be durable and heat-resistant. Even using an alternative material like grass trimmer line, you can achieve a functional and stable solution.

Design by JAV-3D on MakerWorld (license: CC0).
