Mini Gearbox Signaler Dishwasher Sign

Mini Gearbox Signaler

As you can see, this is not a simple remix, it's a completely new design. But I must give credit where credit is due. After all, I couldn't have built this without the gear box on which it was based.

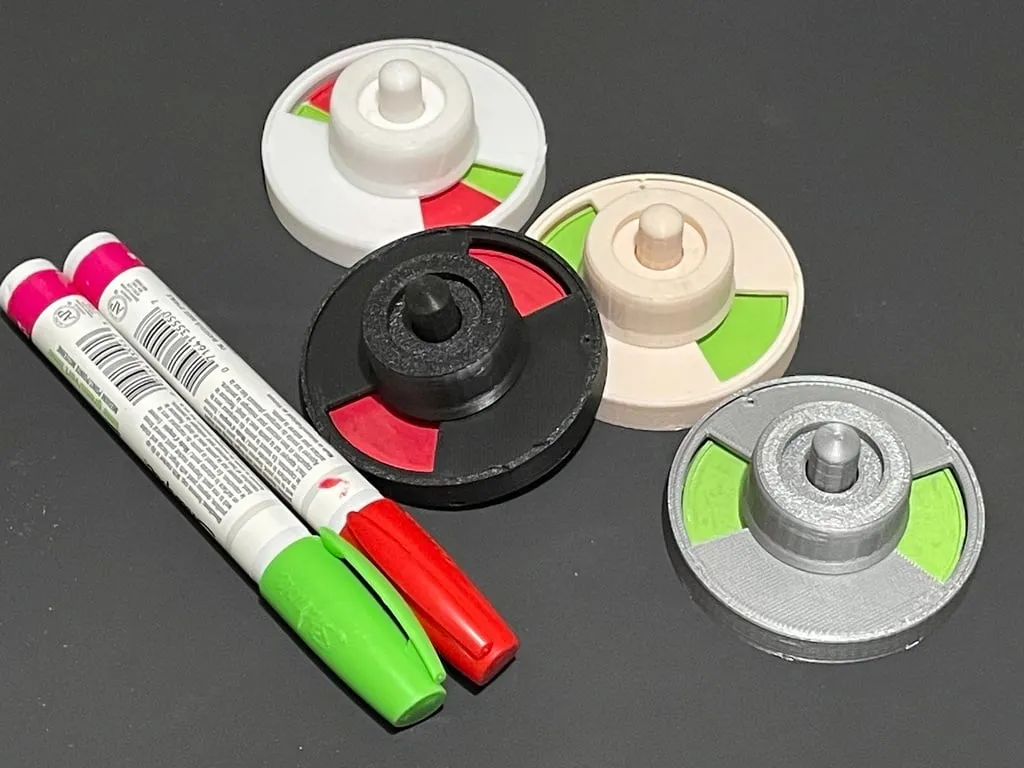

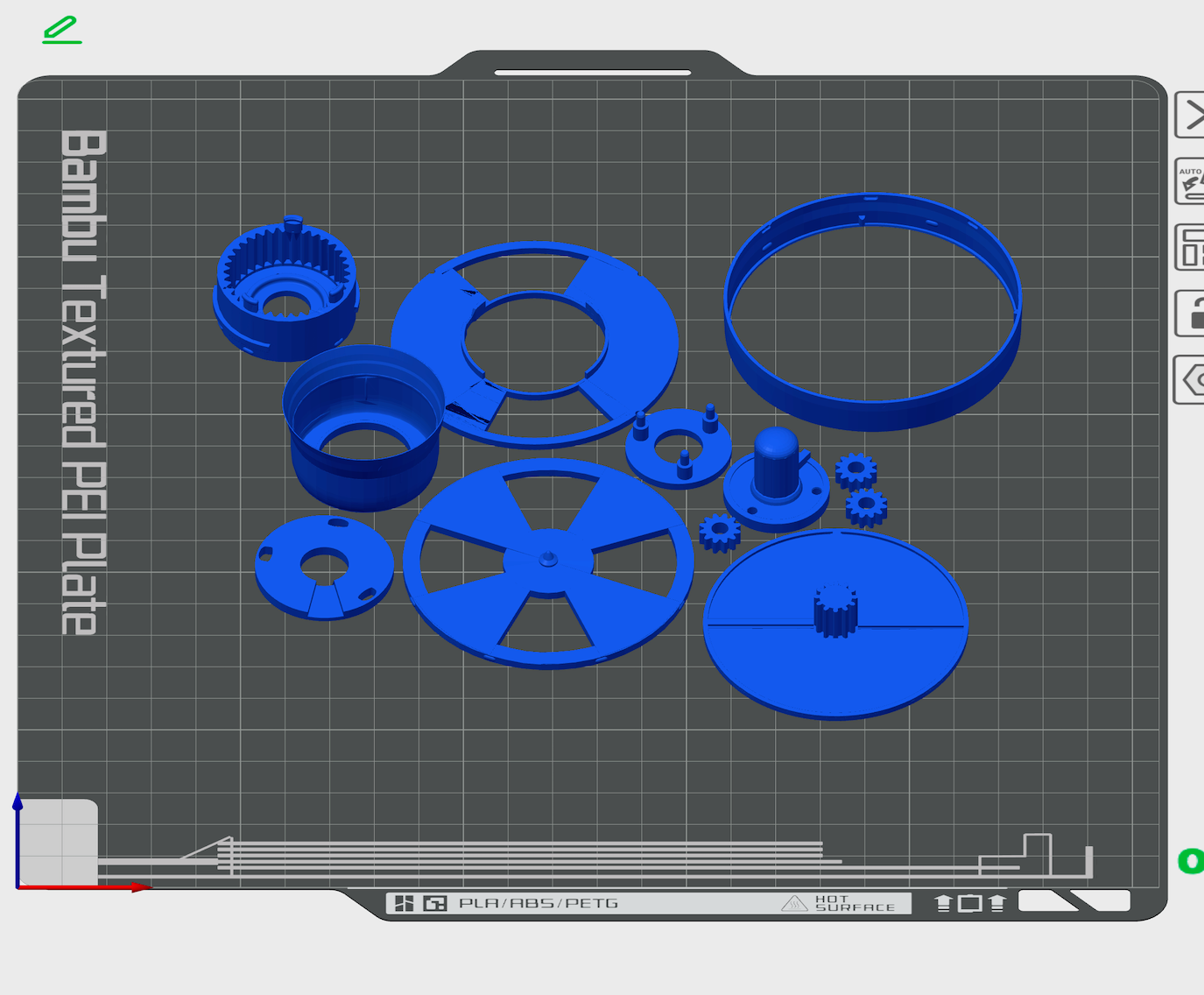

Coming soon to a dishwasher door near you. High resolution is required. The only preset I've used is PLA "0.12mm Fine @BBL X1C" or Generic PLA with 0.12 mm layer height. Several parts are small and the device may require some dexterity to assemble. Some present a choking hazard, so please carefully supervise small children who participate. Neutral colors for the gearbox are recommended so there won't be too much clashing against the red/green sign. My favorite is matte black.

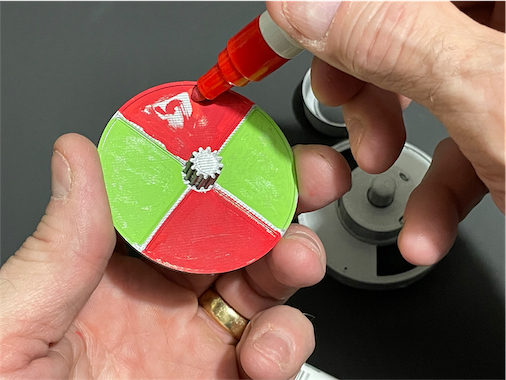

To complete the project you will need one red permanent marker and one green permanent marker. Paint markers work best. You may alternatively use anything you like to make the message sign.

Possible uses include:

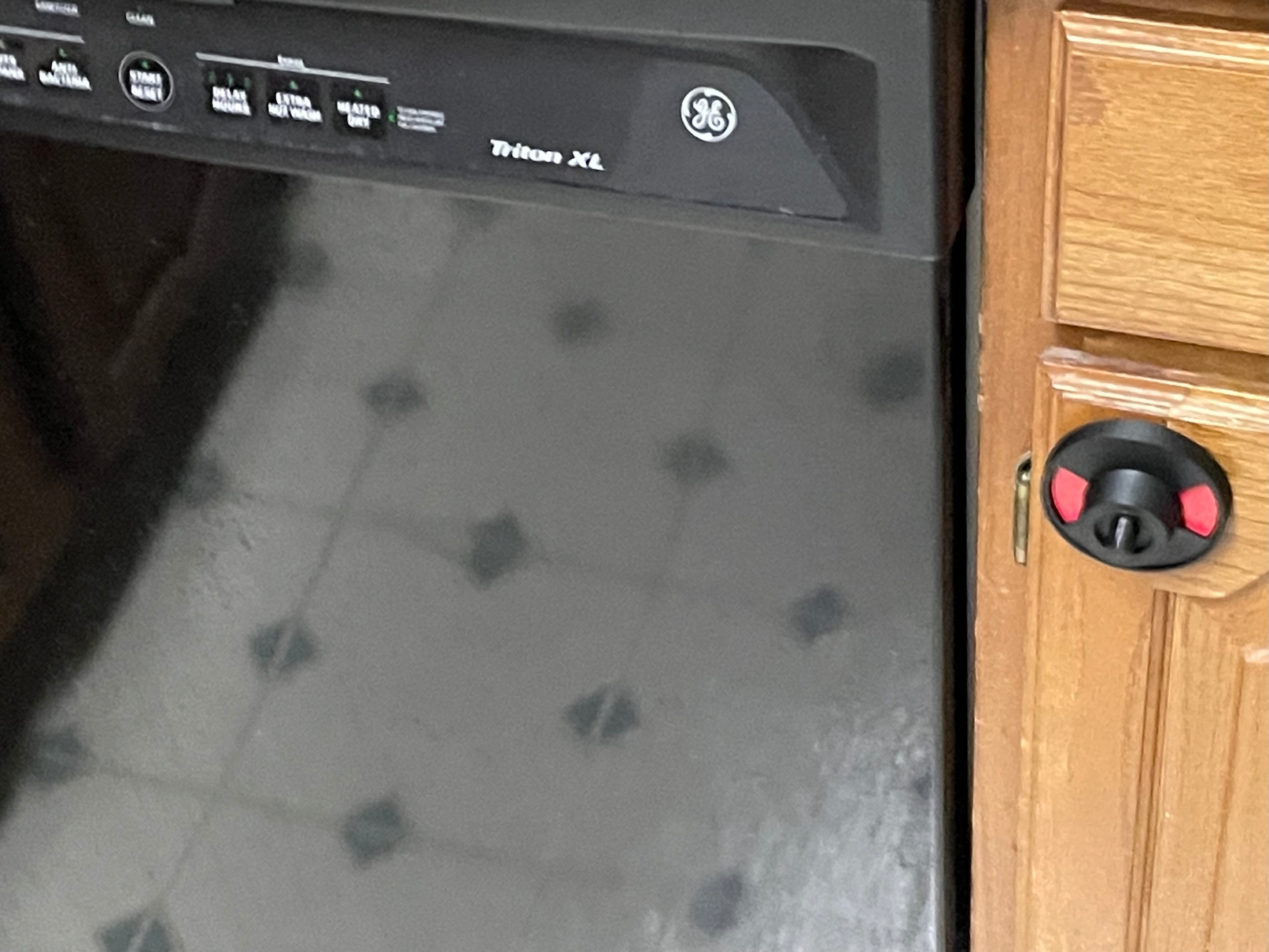

Dishwasher sign - attach to many surfaces using double-sided non-adhesive tape

Darkroom

Do not Disturb

Coast is clear (for diversionary tactics)

Psychiatric Help 5₵ - The Doctor is IN/OUT

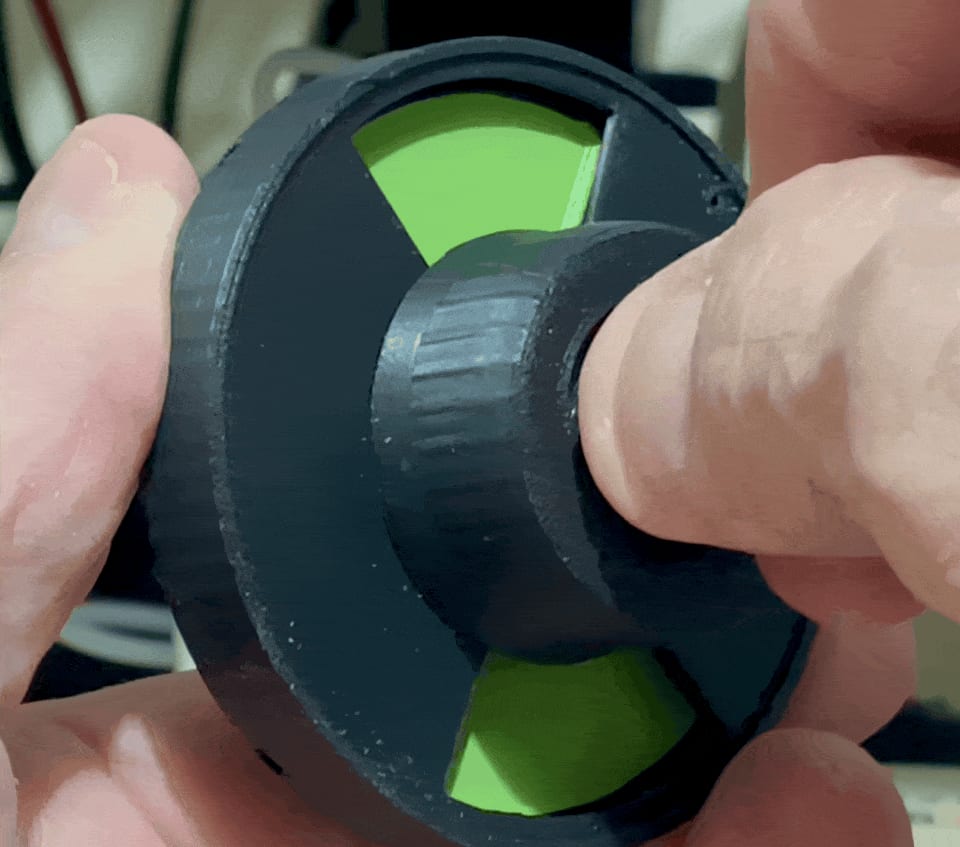

Castanet (enticing "snick" sound of the gearbox engaging)

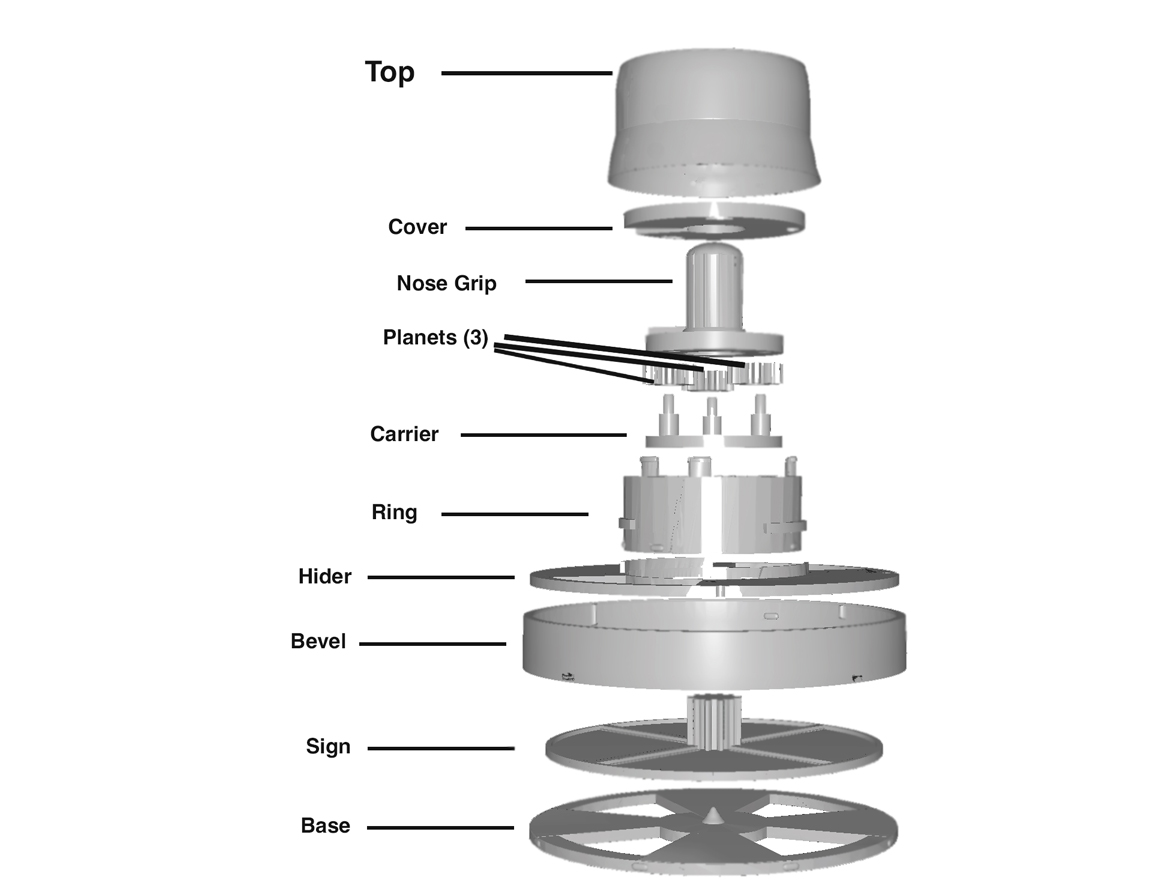

Please see Mini Gearbox Signaler Assembly Instructions for more information. AMS users: I've added a red and green sign profile so you won't have to use markers to make the sign.

Design by laine.lee on MakerWorld (license: BY).
