I have .step files over at Printables for you if you want to change anything.
To split the model into each individual object:
(In slicer) Right-click model → split → to object

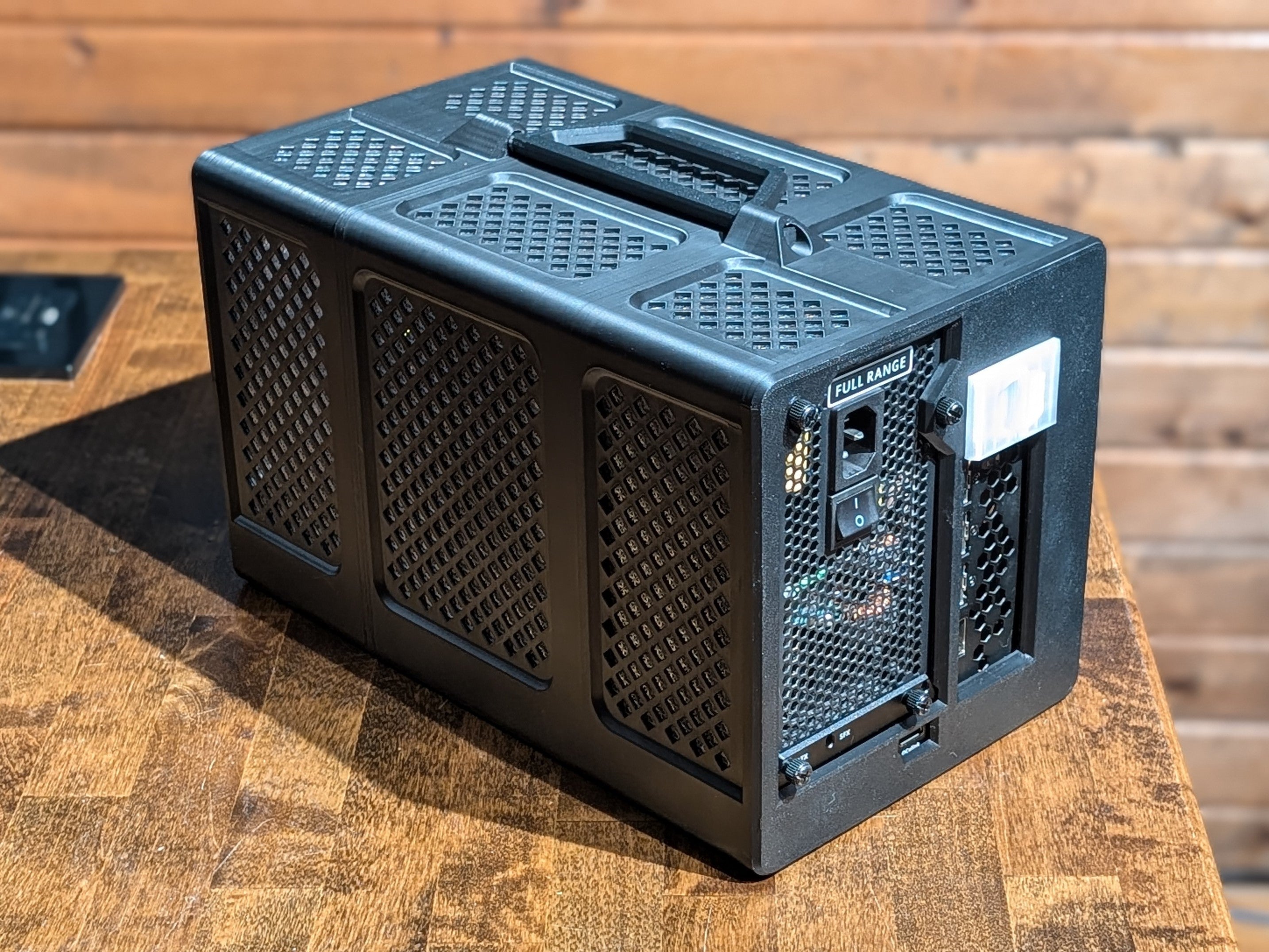

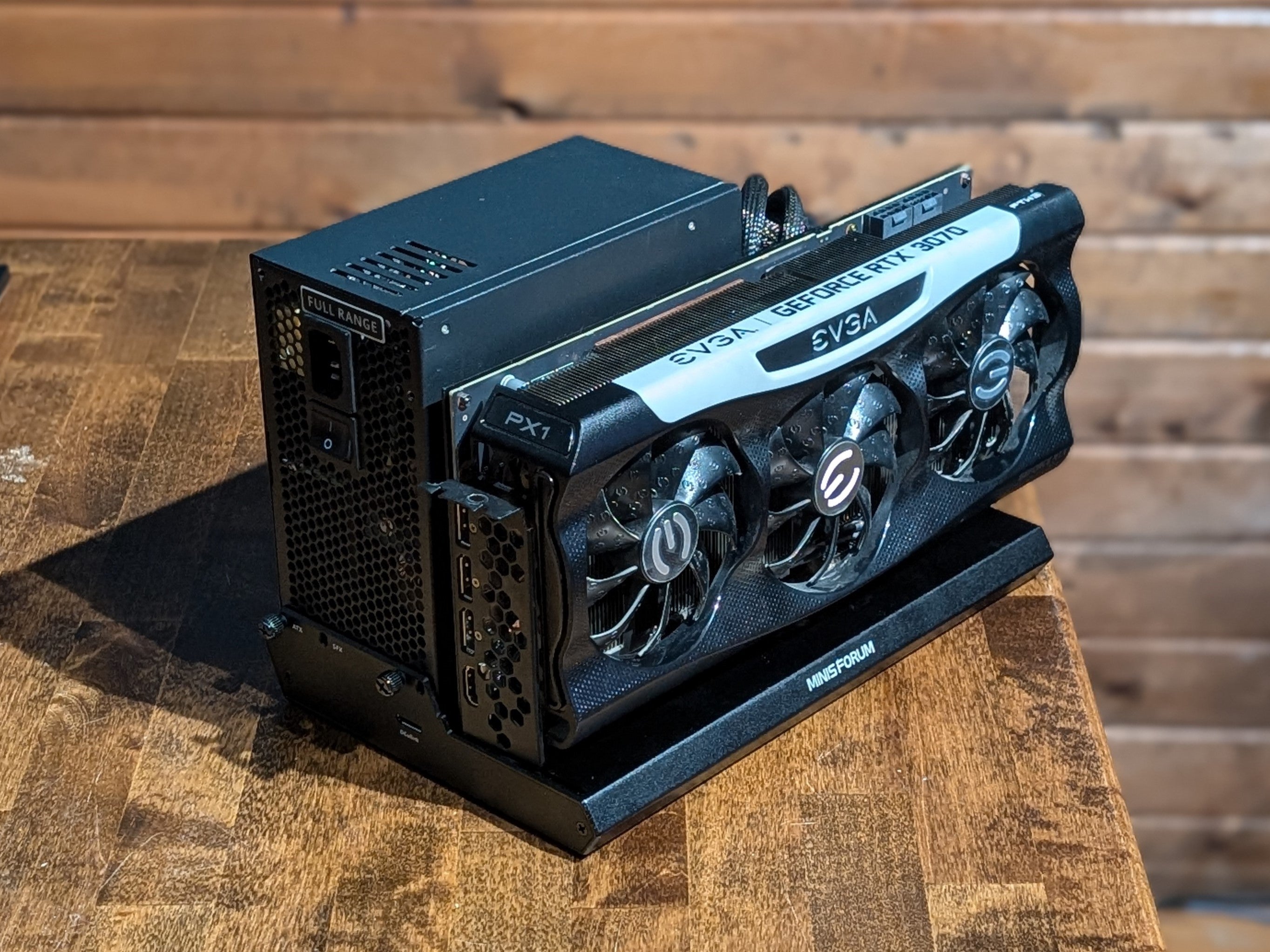

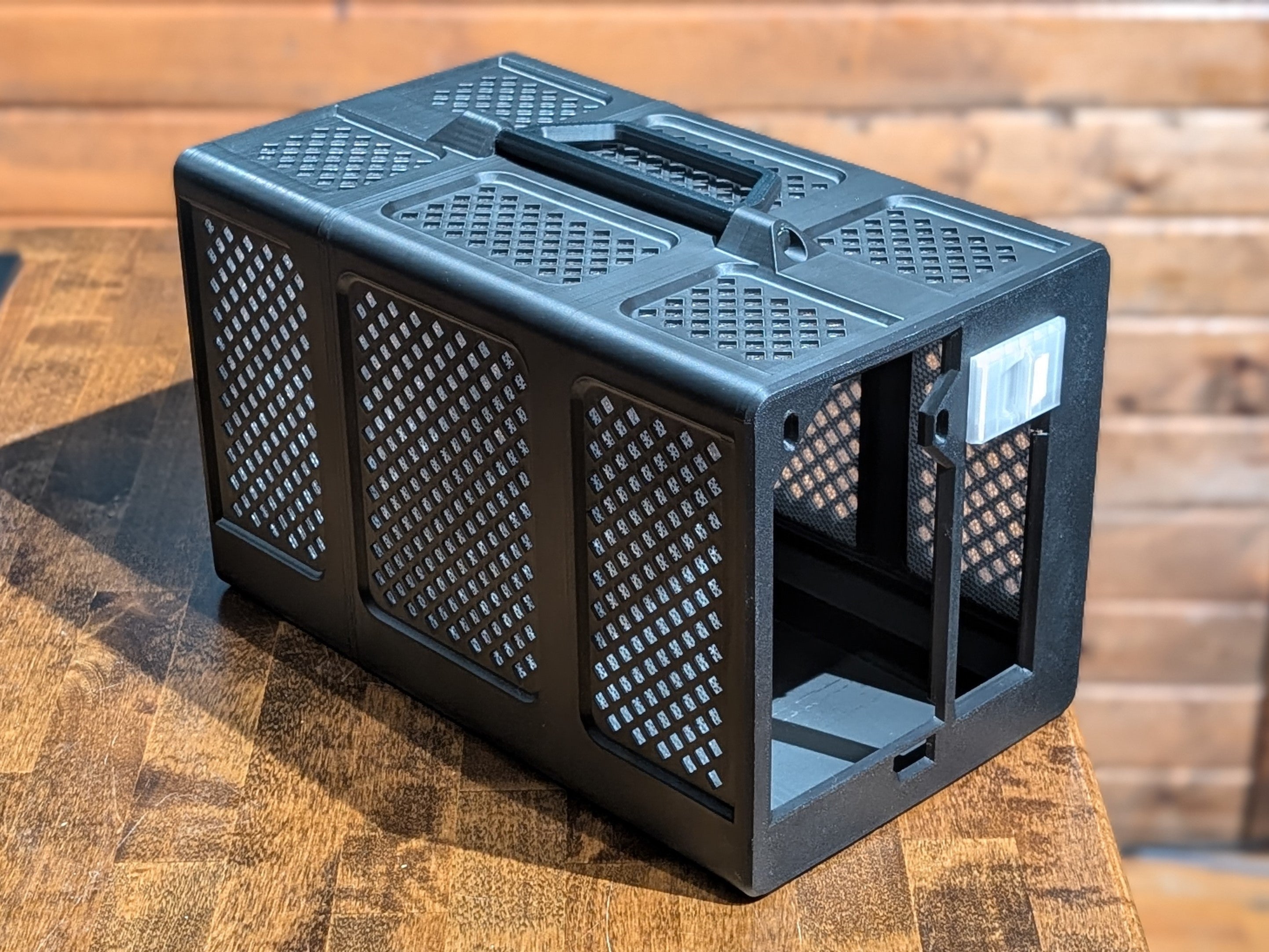

Designed for a full size ATX PSU and a dual PCIe bracket GPU
GPU size restrictions in pictures

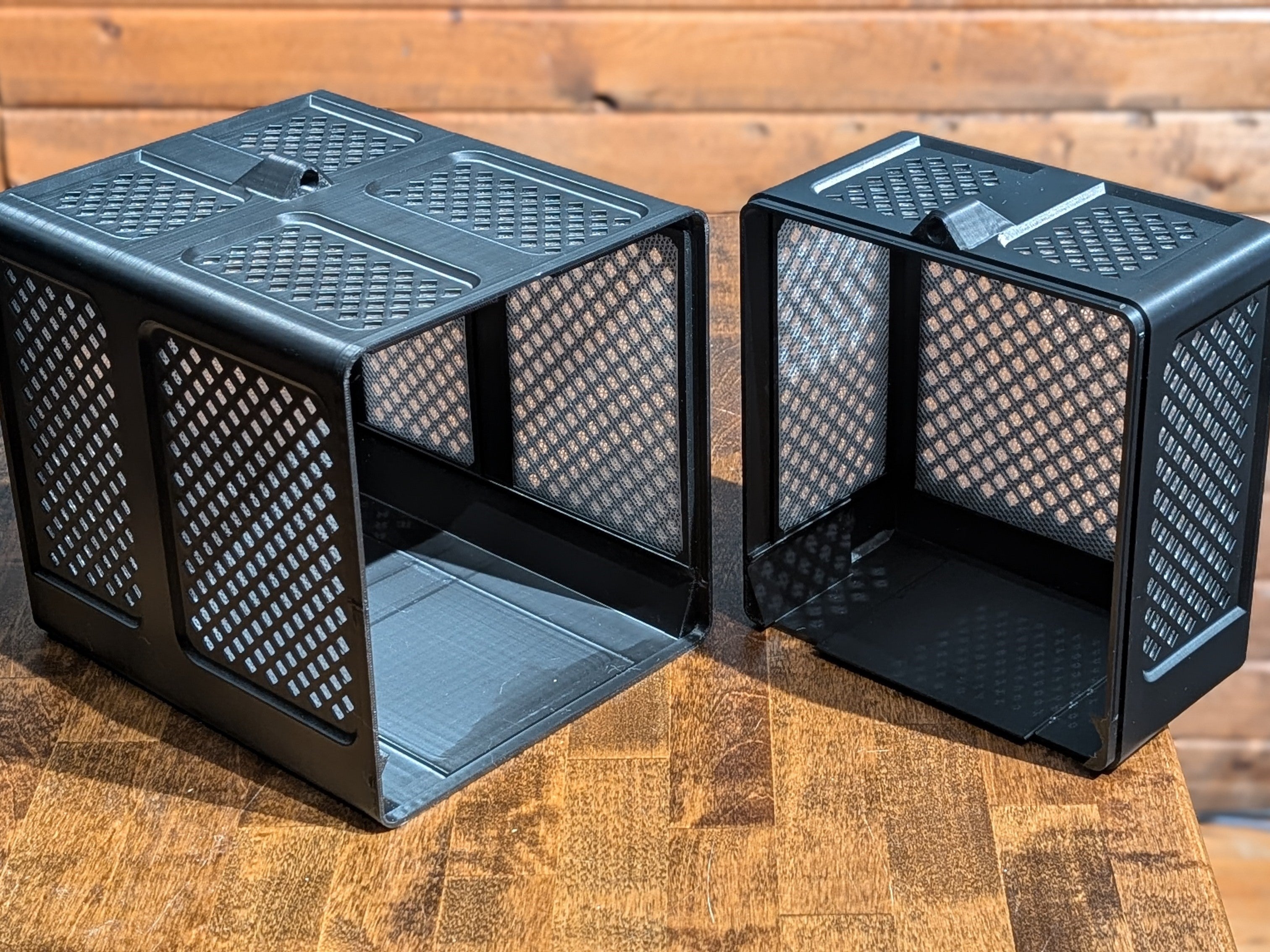

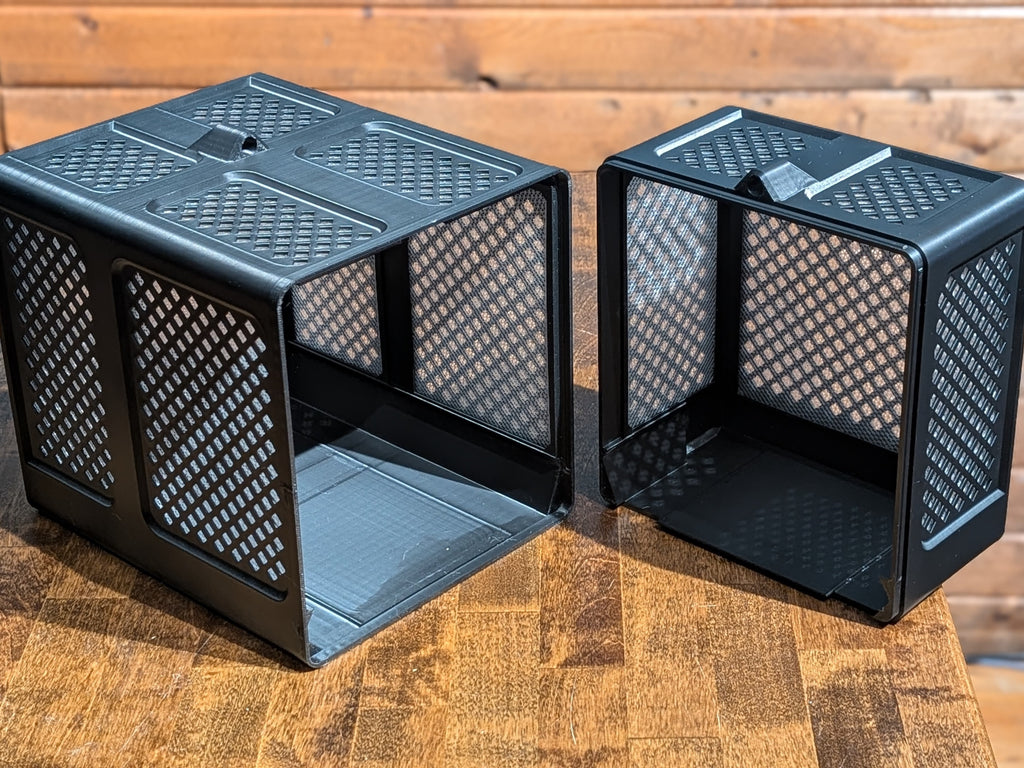

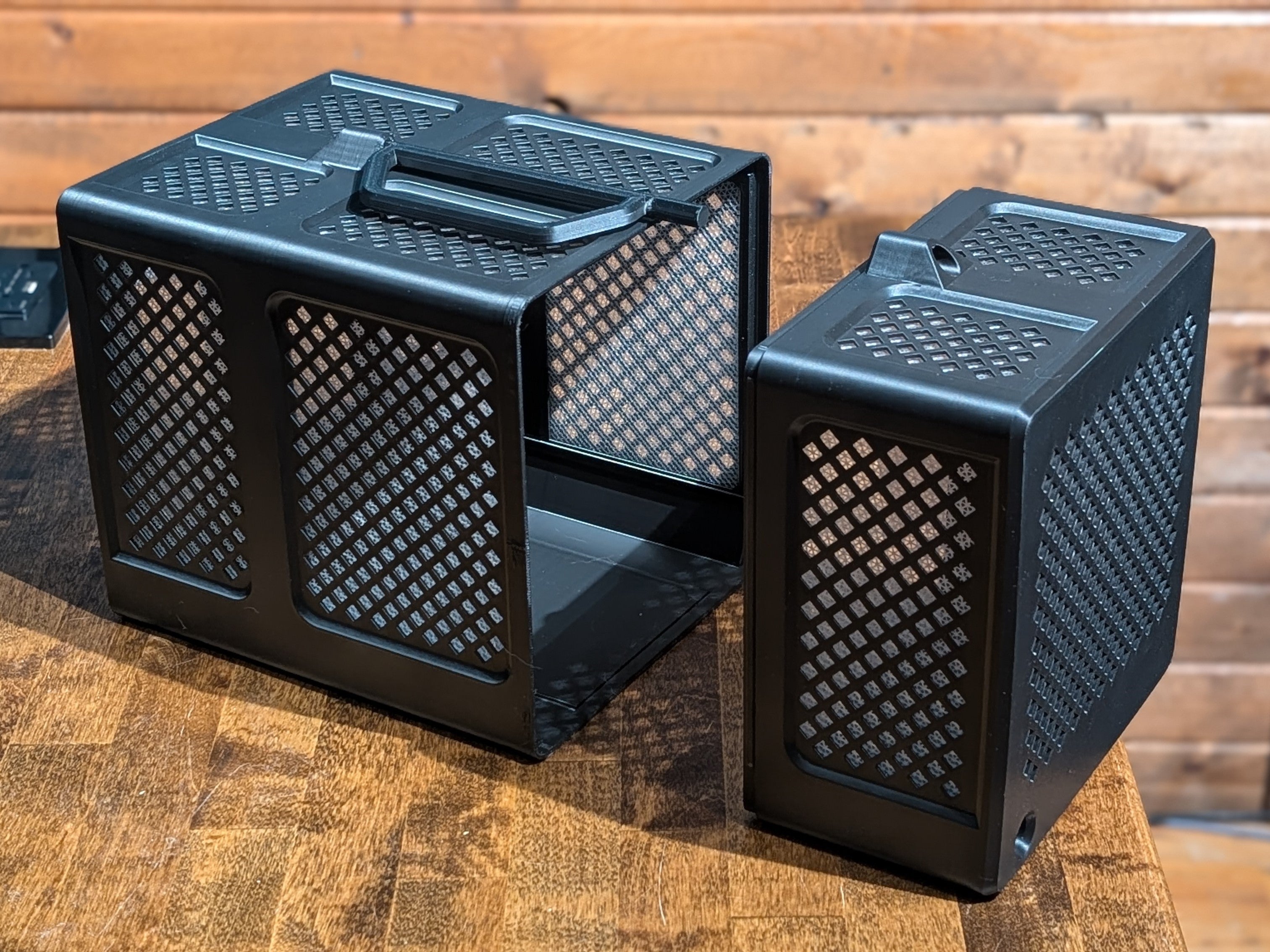

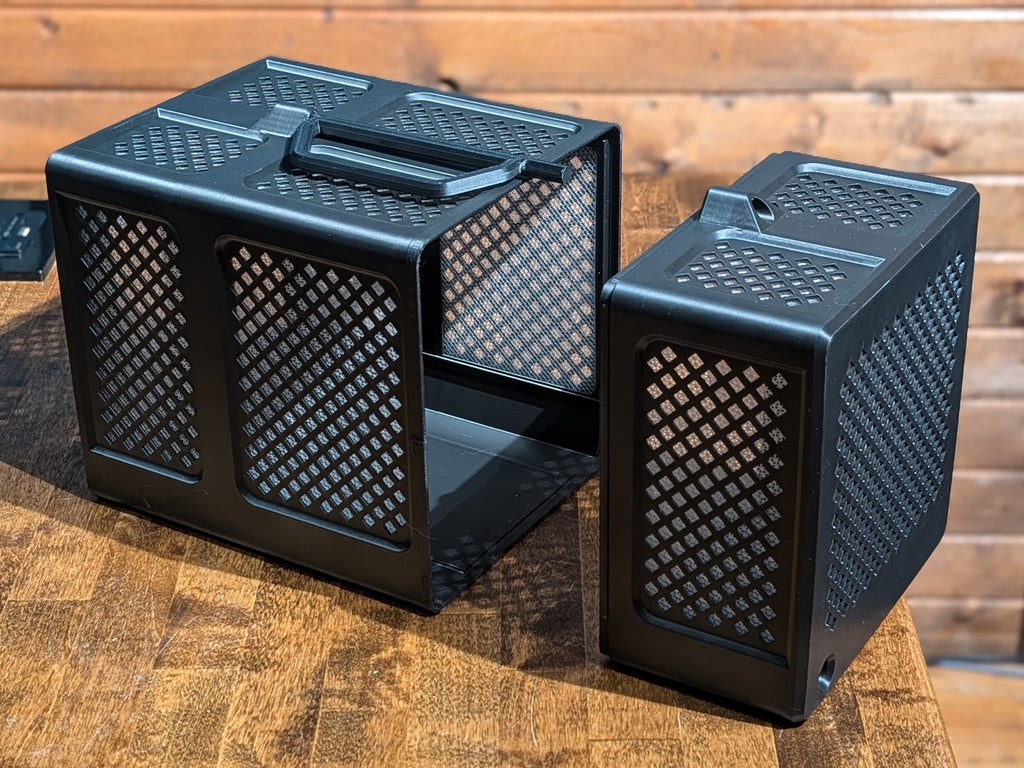

Both enclosure halves snap-fit together
PRINT SETTINGS I'VE USED:
Nozzle: 0.4mm
Layer Height: 0.2mm
(Feel free to experiment and change what you like)
Any setting not listed below are assumed to be default
| Enclosure | ||
| Material | ABS |
I'd recommend a filament with higher heat resistance. I used ABS just because I had some lying around but PETG among others should be fine |
| Walls | 3 | |
| Brim Type | Outer Brim Only | I used a brim because of the ABS |

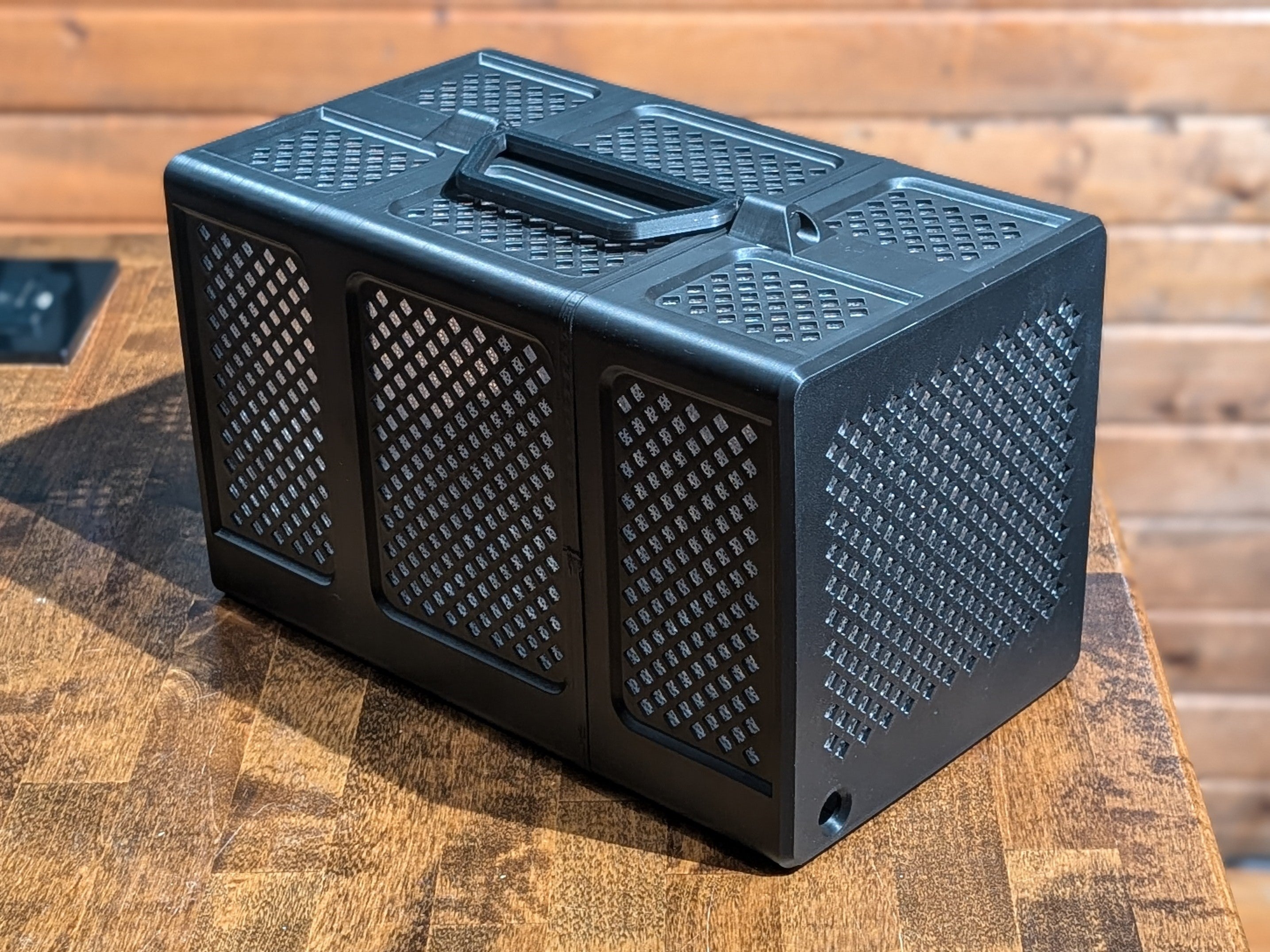

| Enclosure Handle | ||
| Material | ABS | I used ABS |
| Walls | 20 |
The handle NEEDS to be strong. This essentially prints it at 100% infill concentrically |

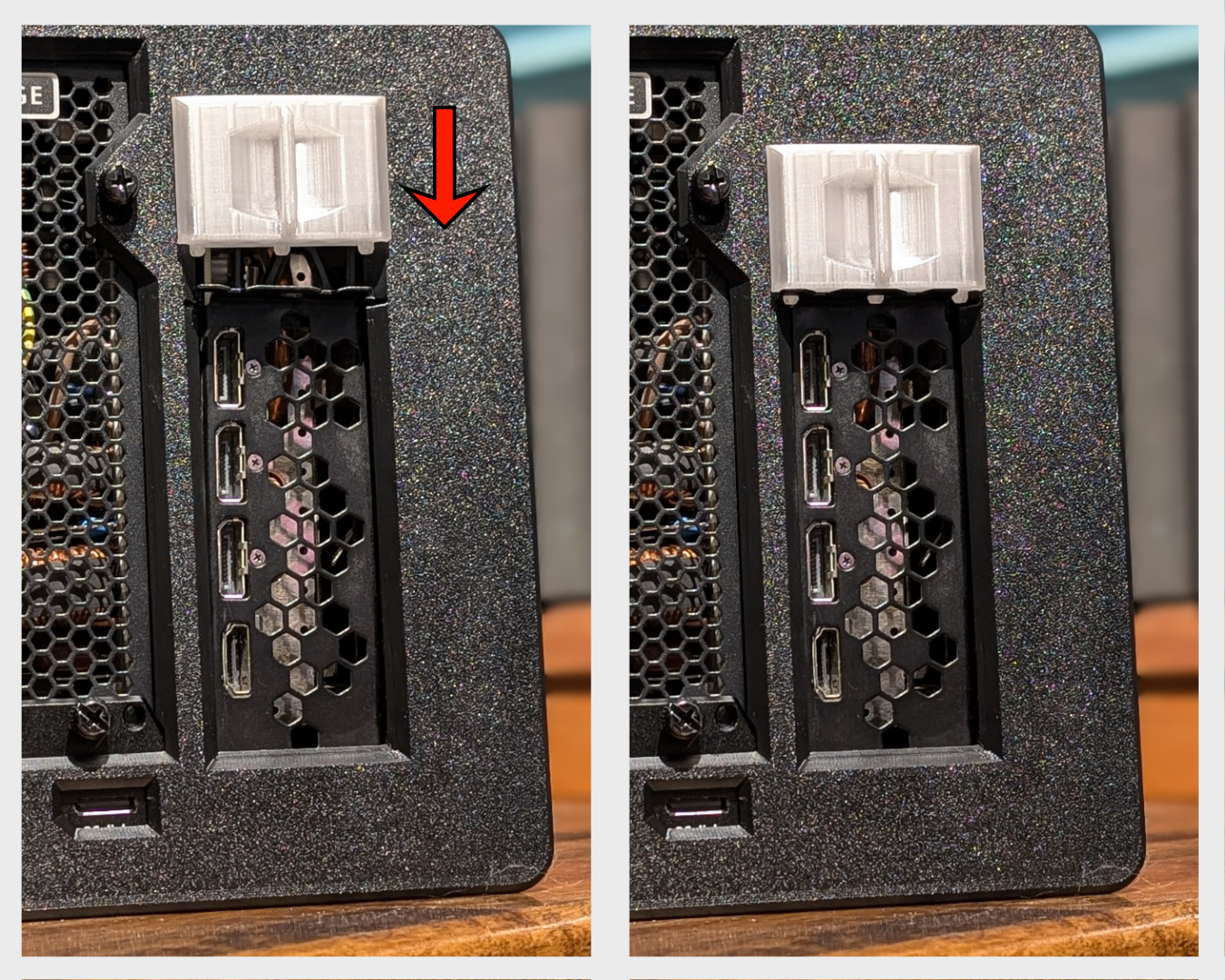

| PCIe Bracket Lock | ||
| Material | PETG | can be whatever |
| Dust Filters | ||
| Material | PETG | can be whatever |
| Top Shell Layers | 0 | required for infill pattern to be visible |
| Bottom Shell Layers | 0 | required for infill pattern to be visible |
| Sparse Infill Density | 50% | change to your desired infill pattern |
| Sparse Infill Pattern | Triangles | change to your desired infill pattern |
Current Version: v1.1
| v1 | |
| v1.1 |
-Expanded oculink port to accommodate bigger oculink cables -Longer lugs on PCIe lock |
**I'm not certain if other Minisforum DEG1 eGPU docks are the same dimensions as mine. Result may vary. USE THE HANDLE ON THE ENCLOSURE AT YOUR OWN RISK. **
