Motorized 2 Post Lift for 1/10 RC Cars

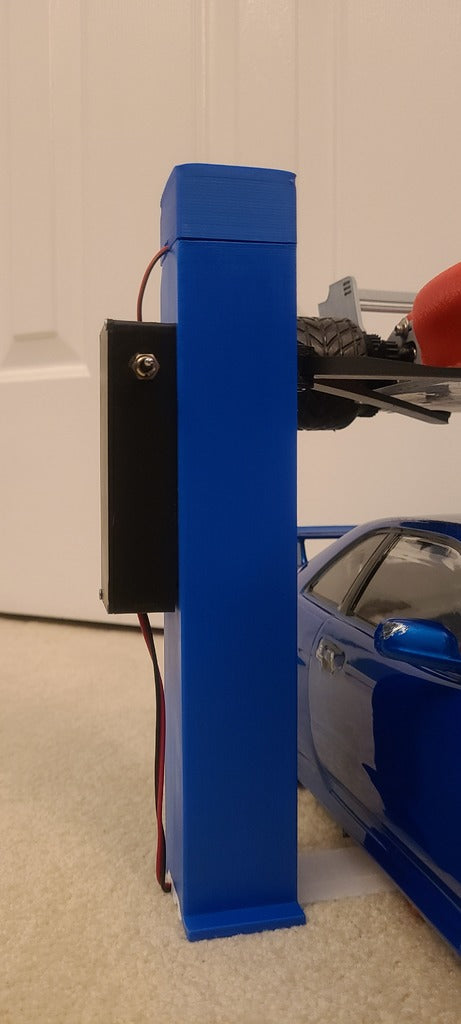

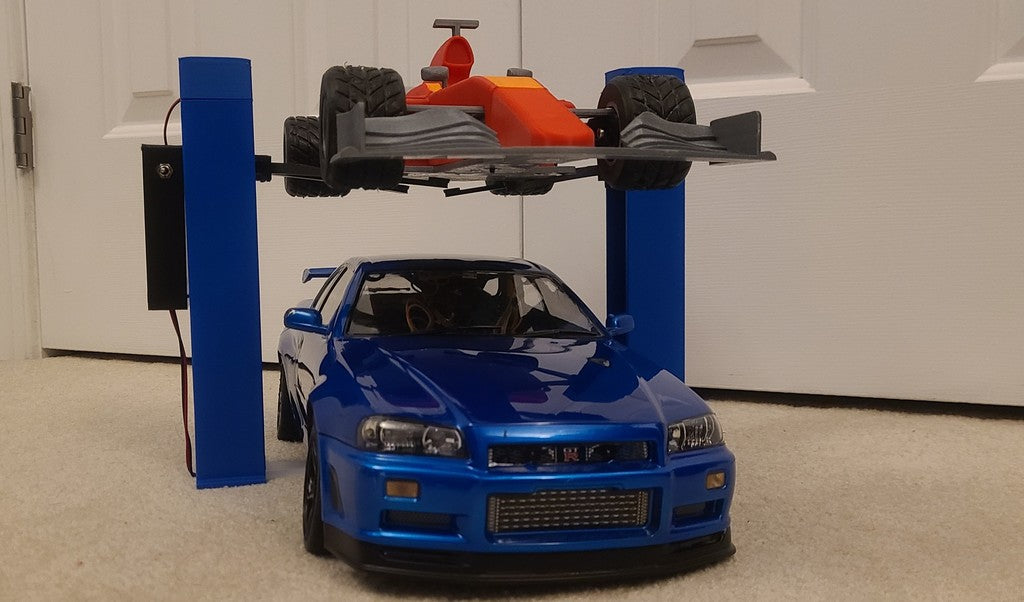

This is a motorized 2 post car lift meant for 1/10 scale RC cars. Still a WIP as I still improve it.

Parts needed:

• M3 nuts / bolts, countersunk m3 for bottom plate.
• 3 Position Switch
• 18650 Battery and charging board (or substitute for 9v battery)
• Mini Gear Motor 100-150RPM (https://www.amazon.com/gp/product/B083GLYZCK/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1)
• Motor coupler 3mm to 8mm https://www.amazon.com/gp/product/B08H24YHCW/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

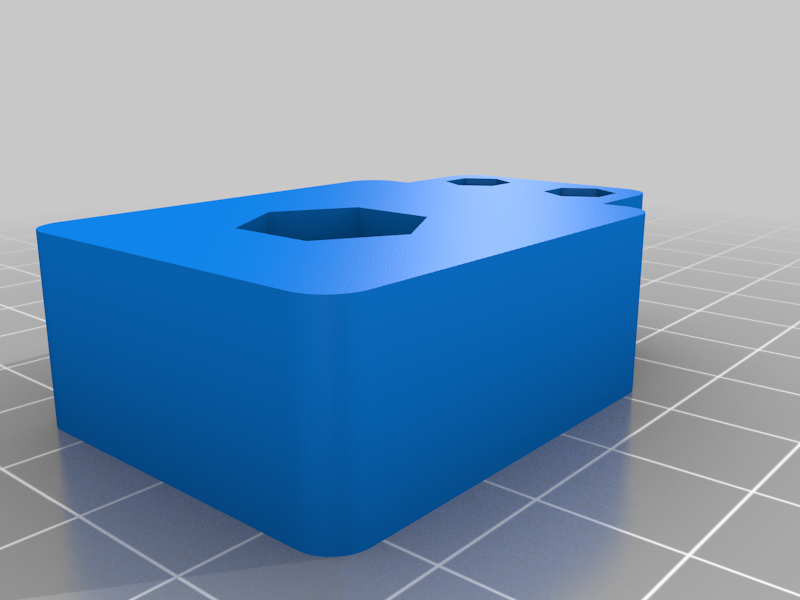

• 2x M8 threaded rod / nut

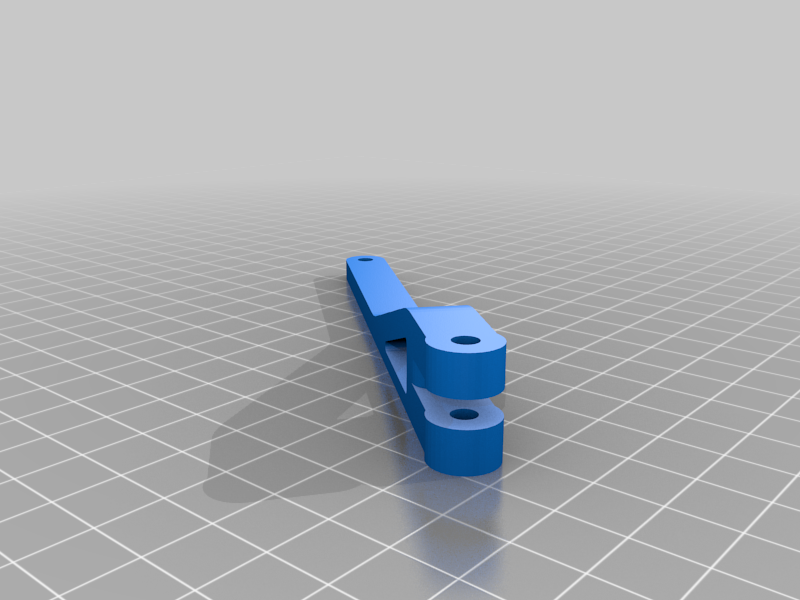

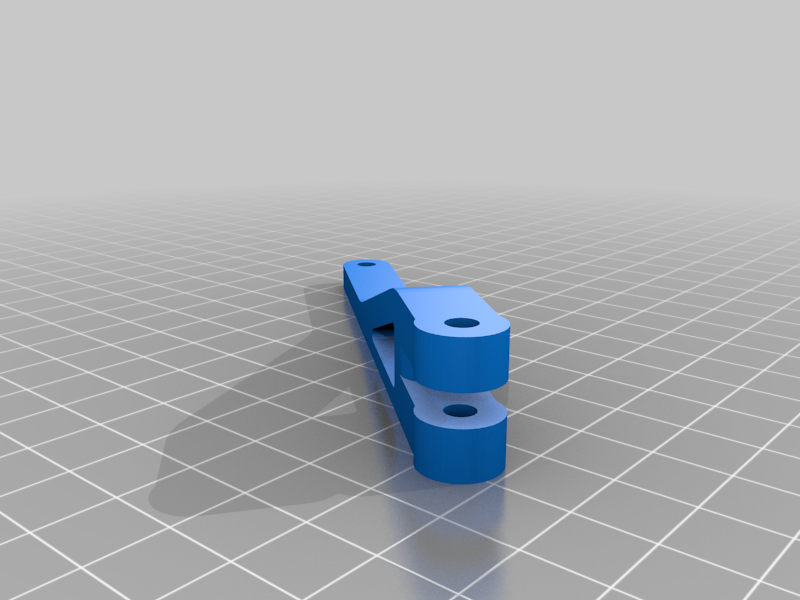

Assemble as shown in the fusion model. There are two styles of lift arms, the reinforced / long short arms are the better option for heavier cars.

Current issues: with heavier RC cars the lift wobbles quite a bit while going up. Need to find a better motor solution.

Design by TheBasedDoge on MakerWorld (license: BY).
