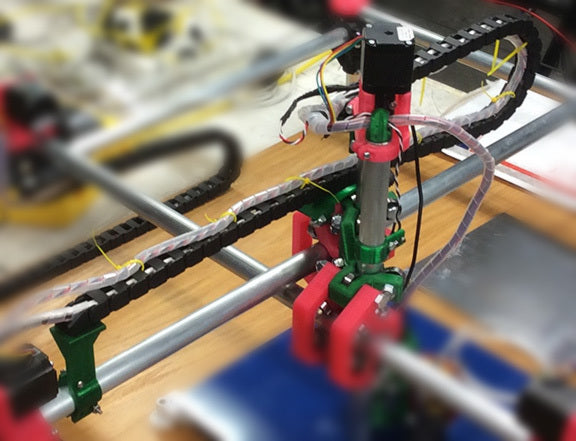

This is the Z-axis drag chain mount that matches the XY-axis set I designed here. http://www.thingiverse.com/thing:1272581

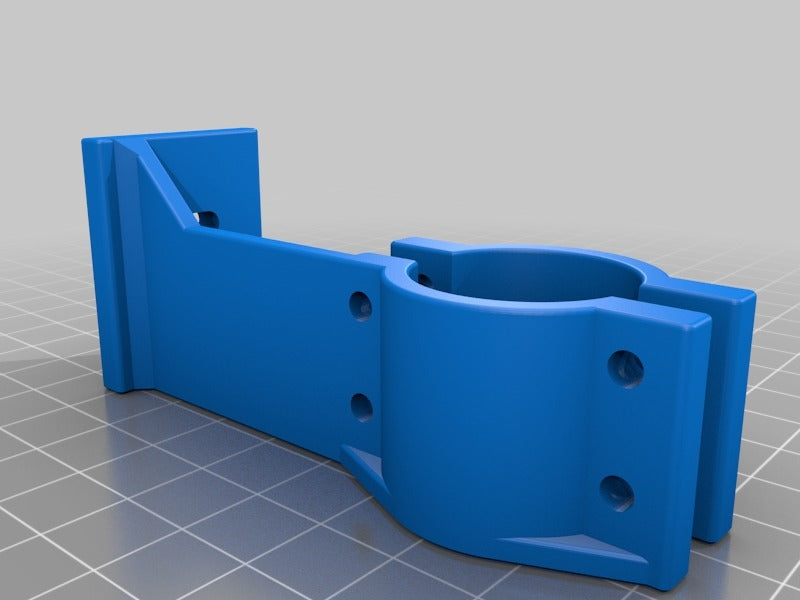

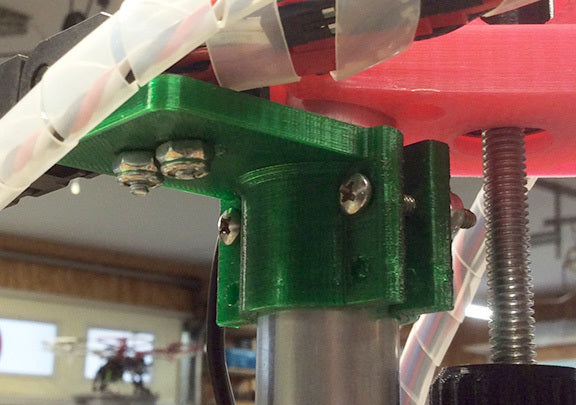

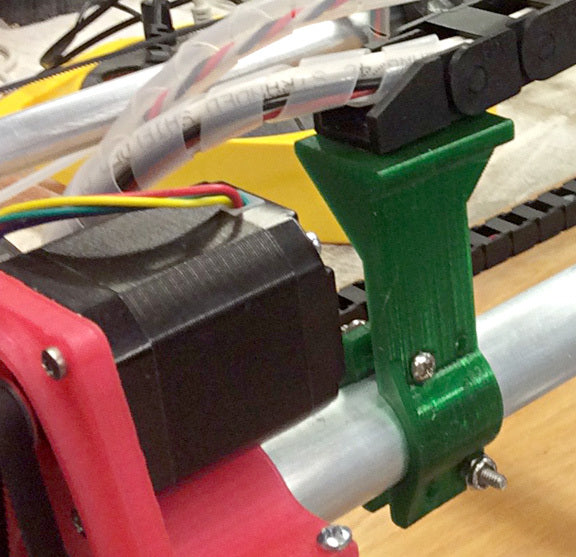

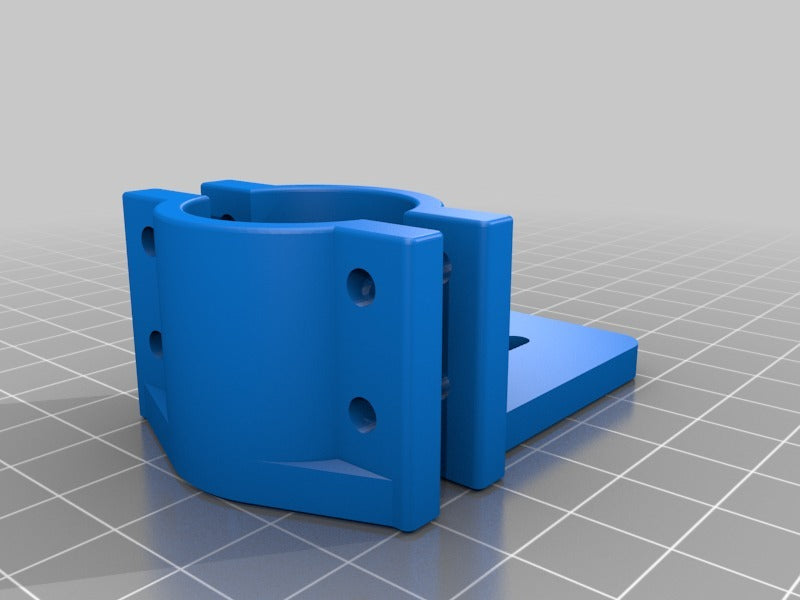

I made EMT clampholes for 4 bolts and nuts, but you only need to use two in each one. No seriously, stop tightening it. :) You need four to eight 6-32 x1 bolts and matching locknuts. I also used four 6-32 x .5" flat head screws and lock nuts to mount my drag chain, your chain may be different.

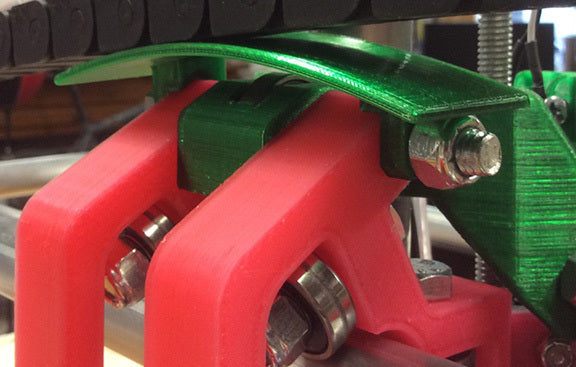

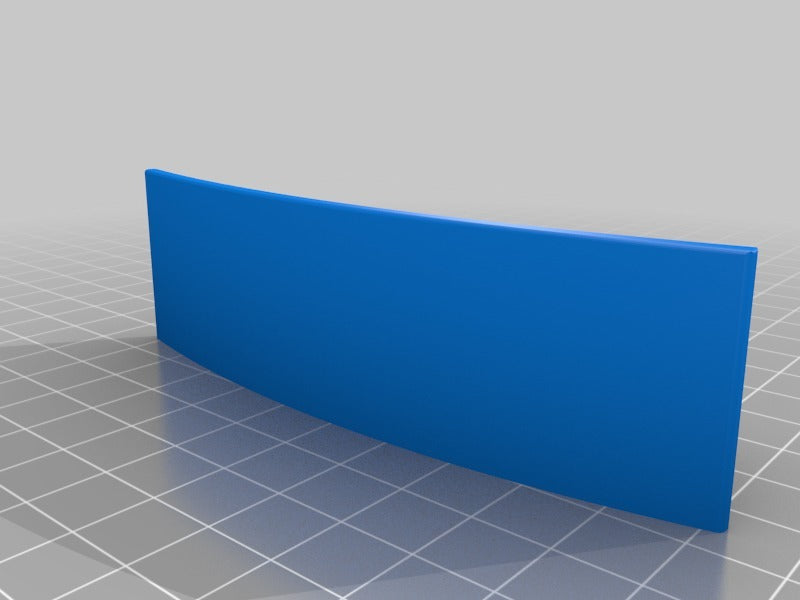

It fits this drag chain from Amazon,but you can attach something close to this size, as it is just a flat plate mount. http://www.amazon.com/Black-Plastic-Chain-Carrier-Router/dp/B00880AVL2/ref=zg_bs_16412411_1
Make sure that your chain will support itself.
Print Settings
Printer Brand:
MakerGear
Printer:
M2
Rafts:
Doesn't Matter
Supports:
No
Resolution:
.25mm layers
Infill:
50%
Design by ronindesu on MakerWorld (license: BY).
