Use multiconnect to hang anything you want (you need to be able to put a screw in) onto your multiconnect connector. Can be used with multiboard, honeycomb storage wall (HSW) or directly mounted to any wall. You may also add this connector to any of your own models.

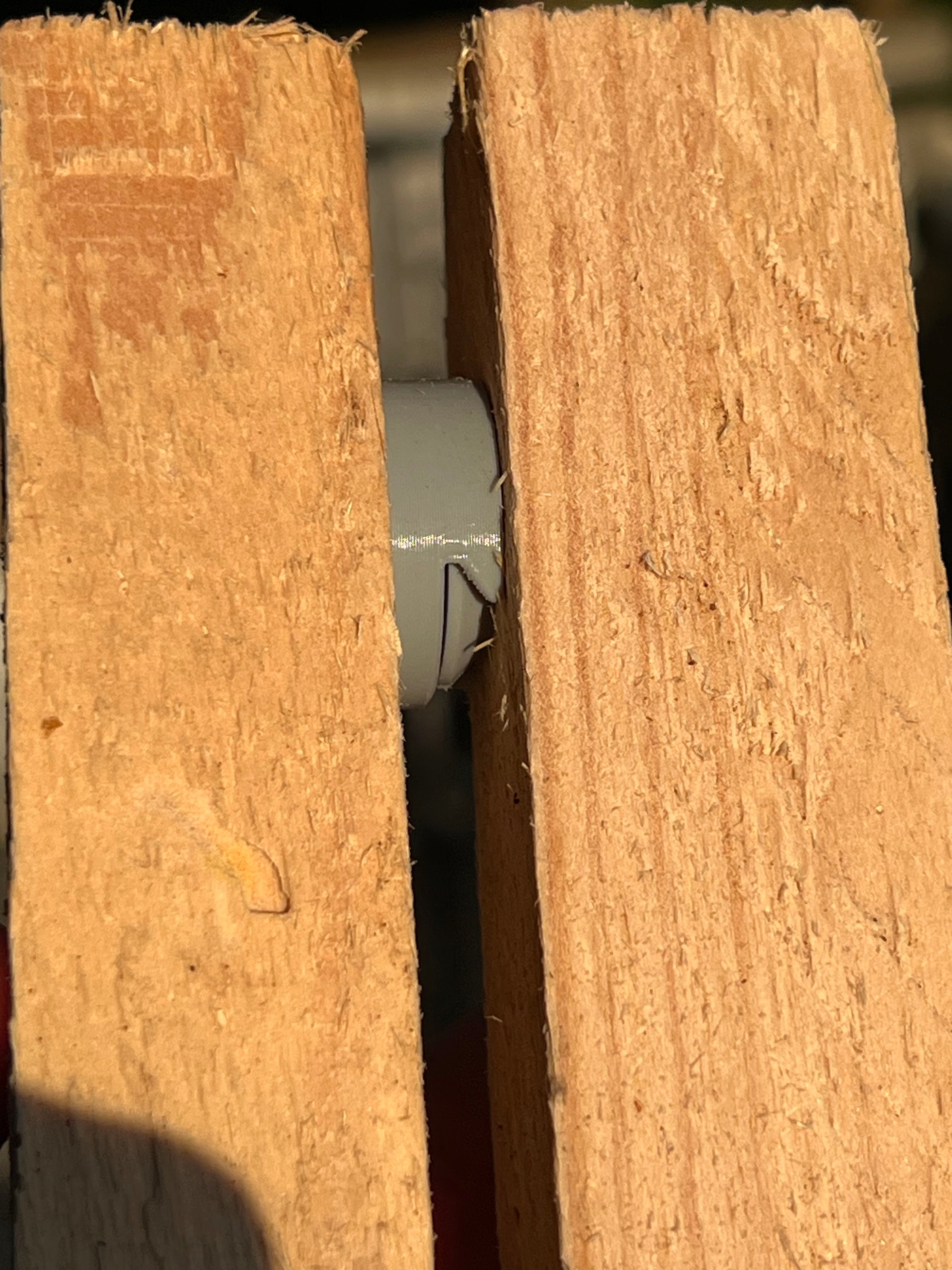

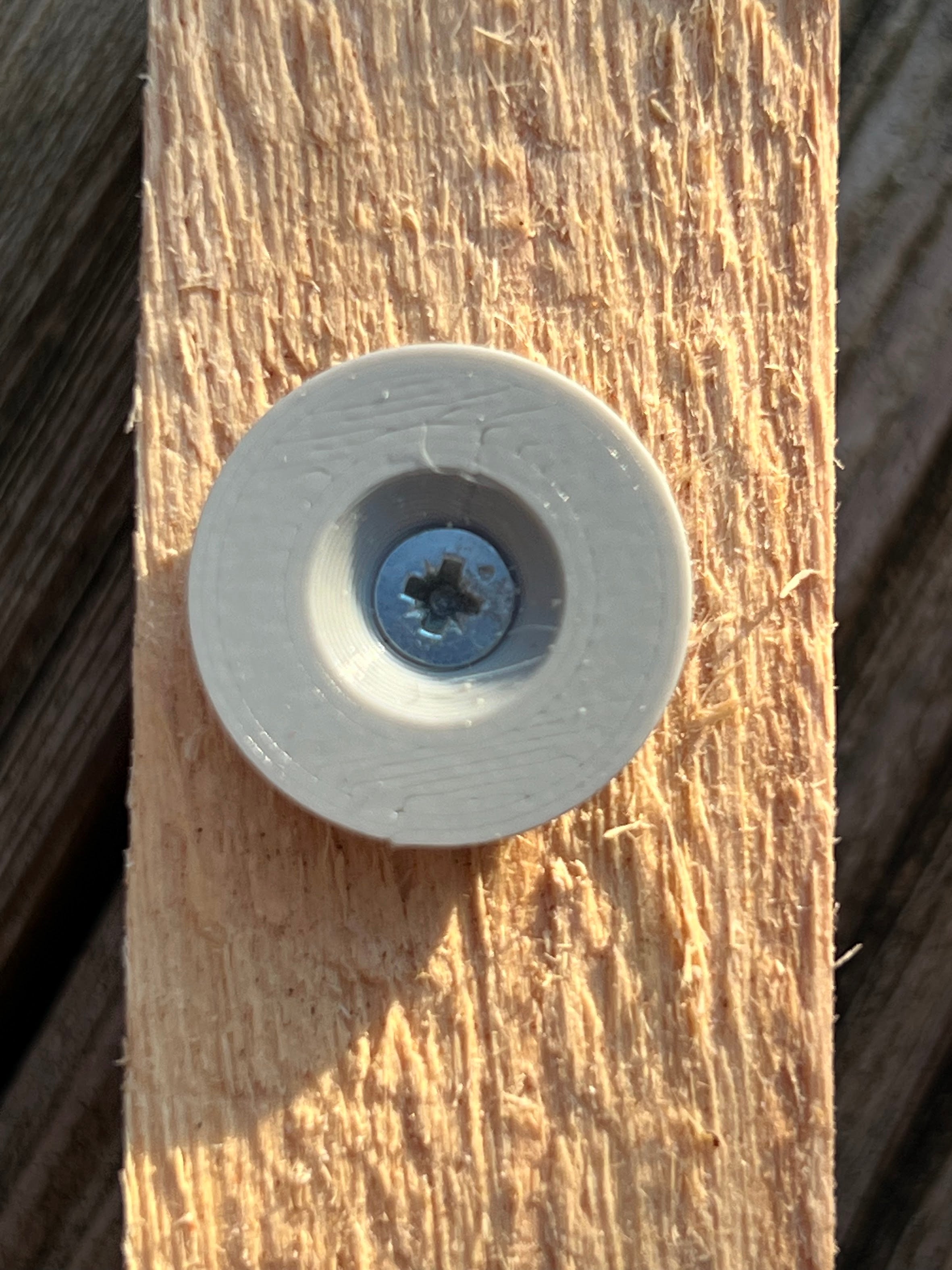

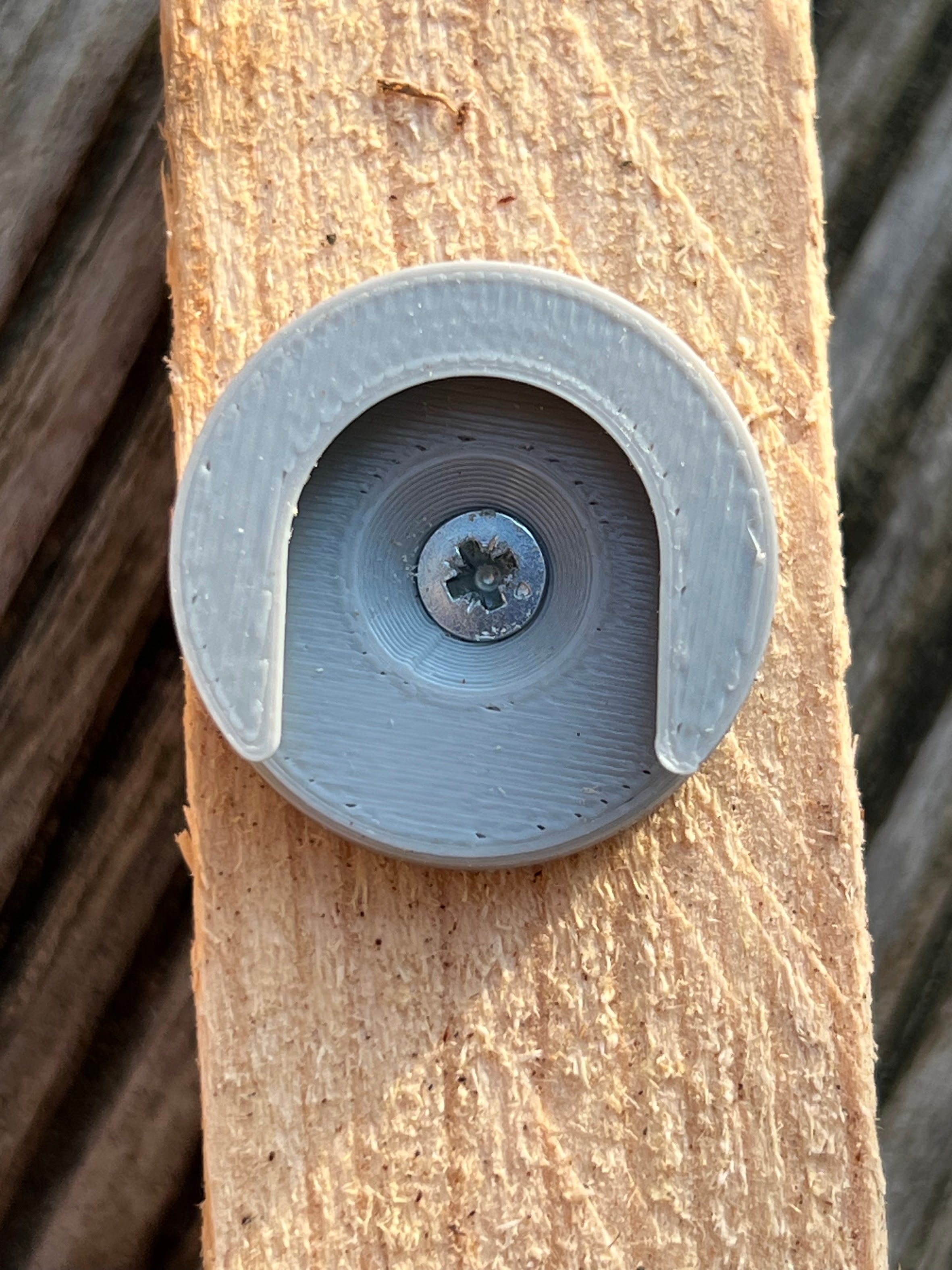

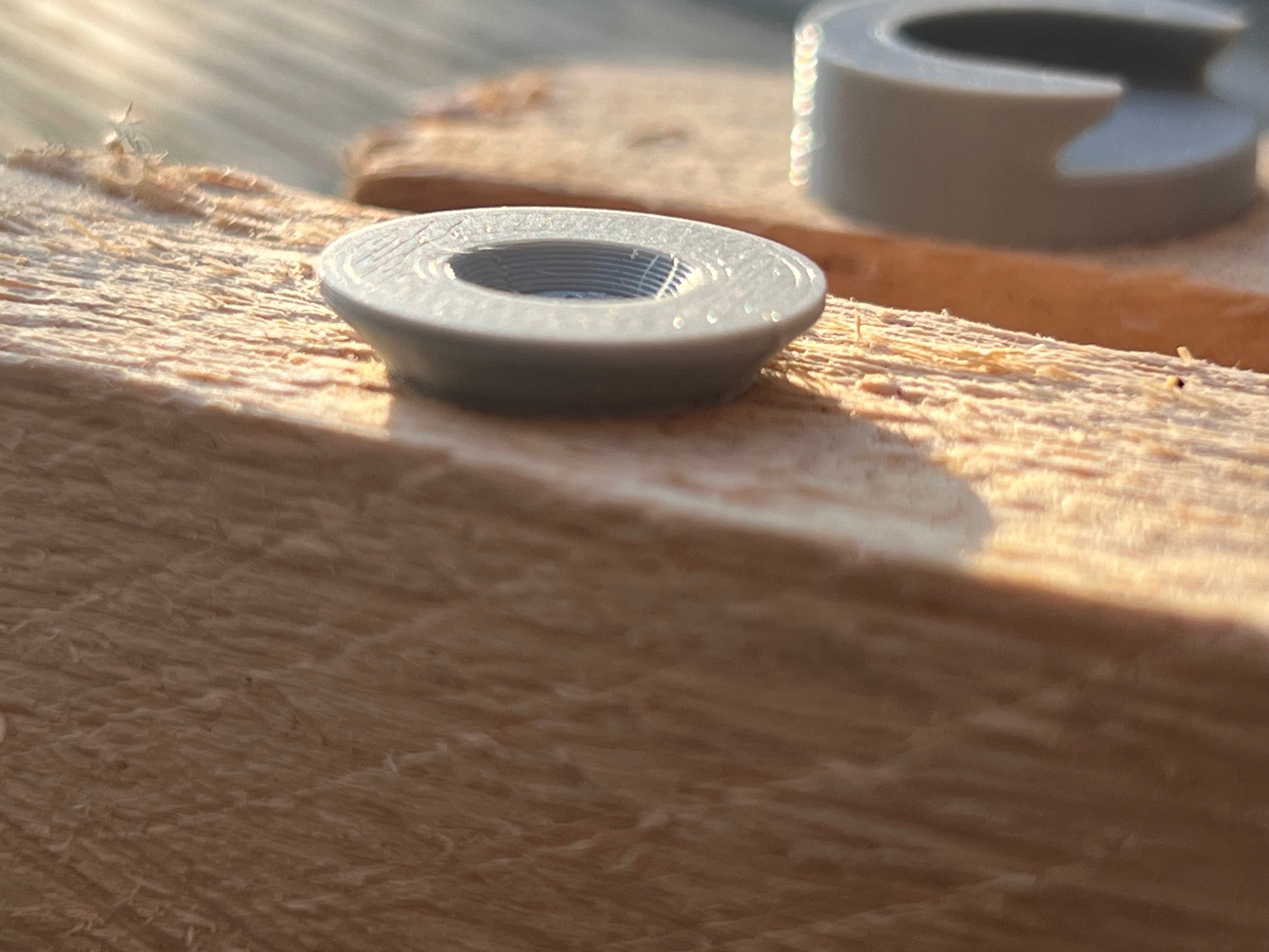

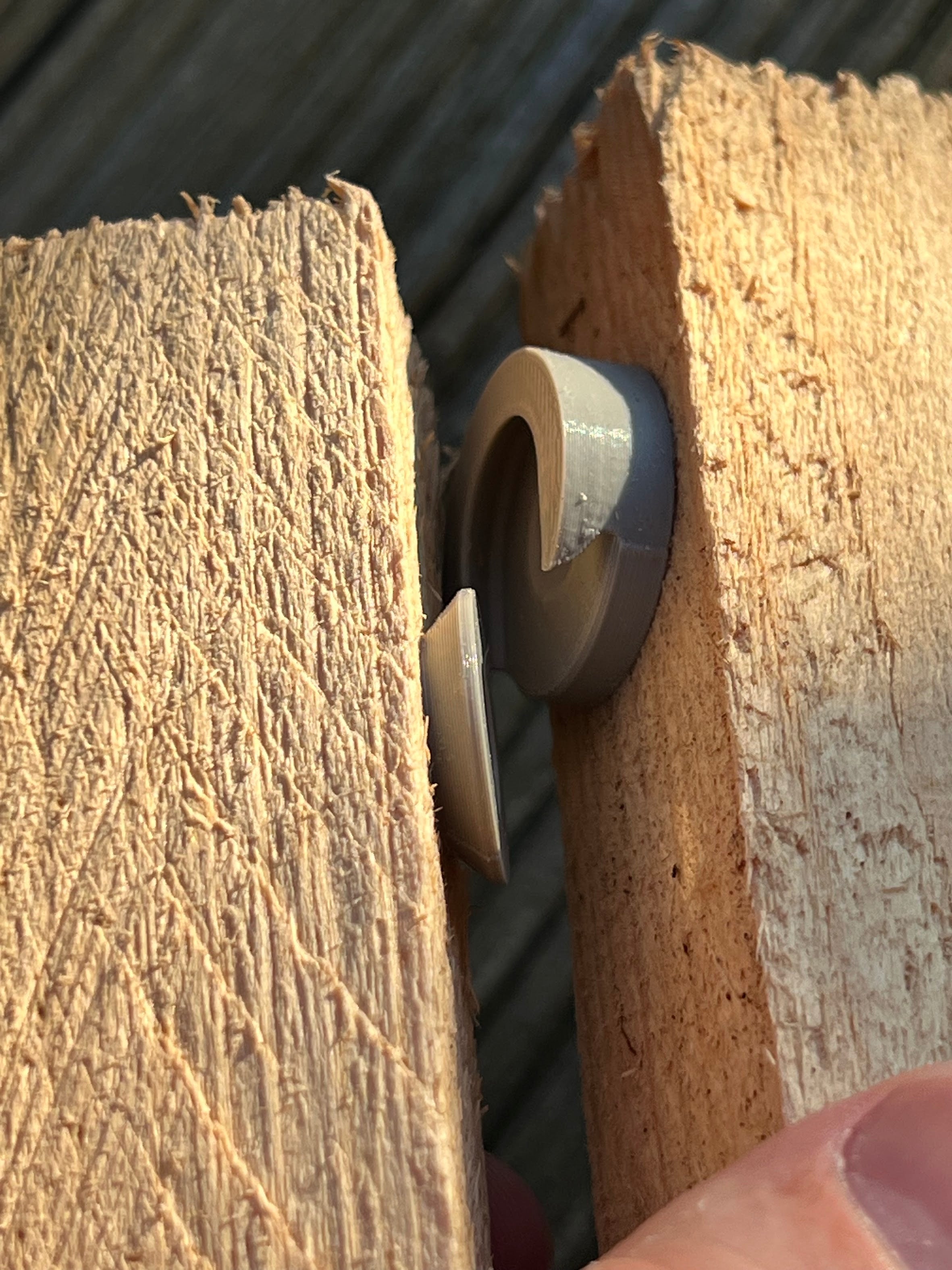

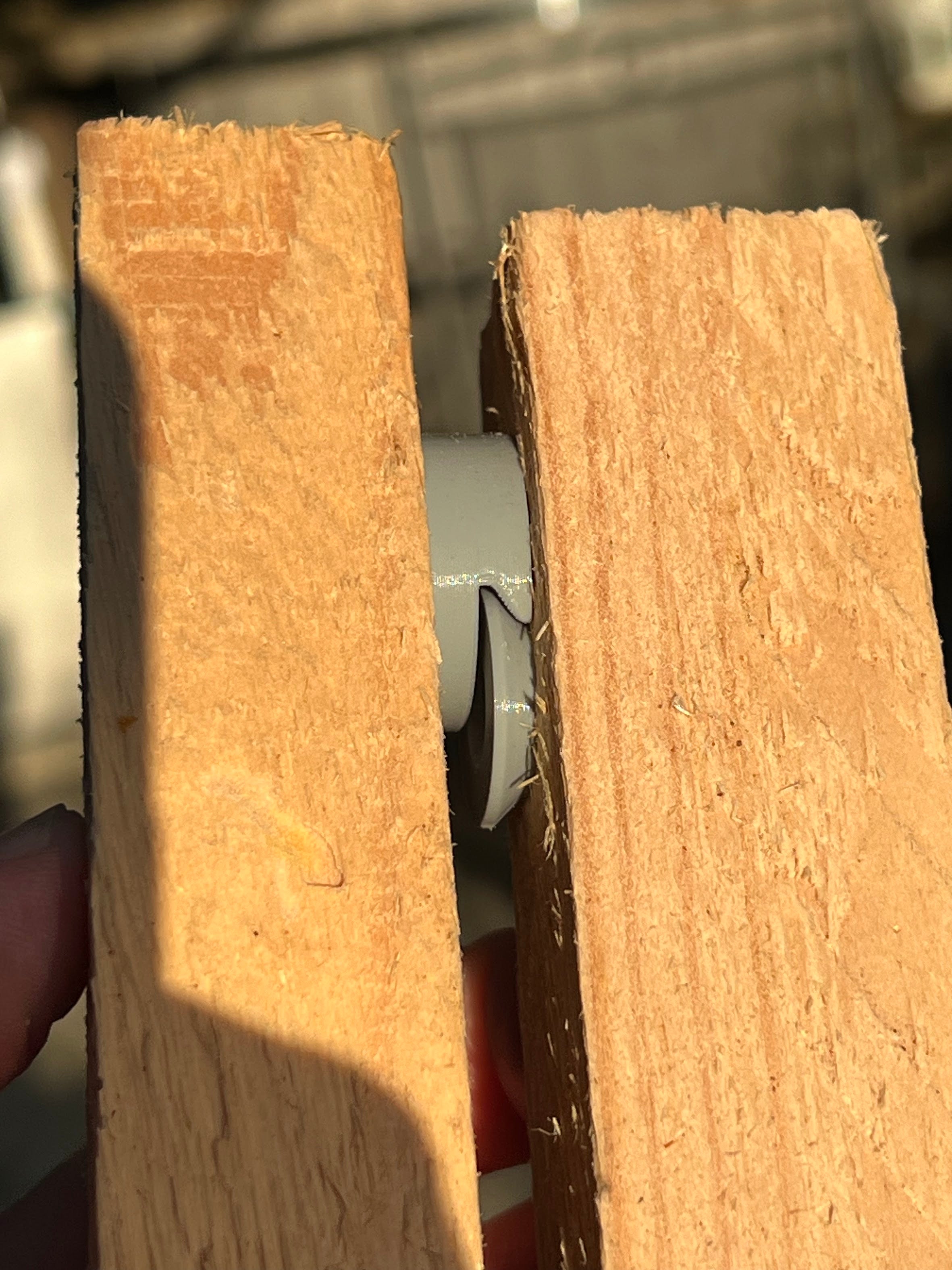

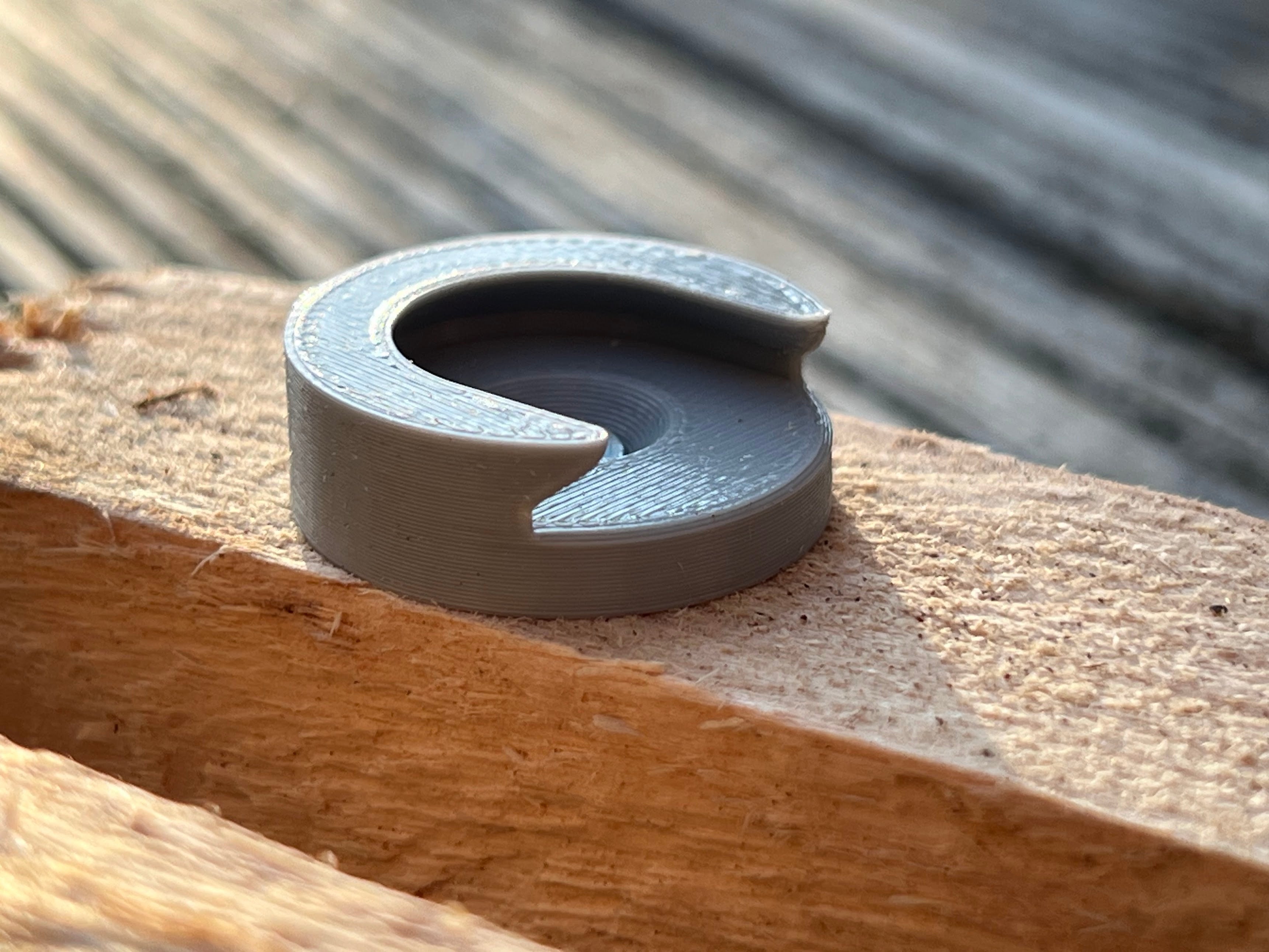

Images show the multiconnect wall mount.
Why use this connector: The connector is universally usable and allows for fast and easy installation and removal of anything you want while still being pretty sturdy. Also the connector will be invisible when something is attached, which leads to a nicer overall look.
See compatible models on makerworld, using the multiconnect tag on printables or the multiconnect tag on thangs.
About the connector system: The connector design/dimensions are actually pretty simple. You can look into the provided dimension PDF to create your own models using the same connector. There are also STEP files which includes just the connector head and a bin/shelve back to be used for your own creations. Feel free to just use those.
Printing instructions: Use at least 3 perimeters and I suggest at least 20% infill. I'm using the grid infill pattern, but others might just be fine. Please don't print in “superfast” mode, use “STRUCTURAL” for Prusa printers for example.
Design by David D on MakerWorld (license: BY).
