Multiple saw blade holder, OpenSCAD parametric

The parametric saw blade holder model allows you to print a holder for any quantity of blades, of any dimension not exceeding your printer plate size. The holder will protect the blades from damage, and the spacers will keep the blades from damaging each other.

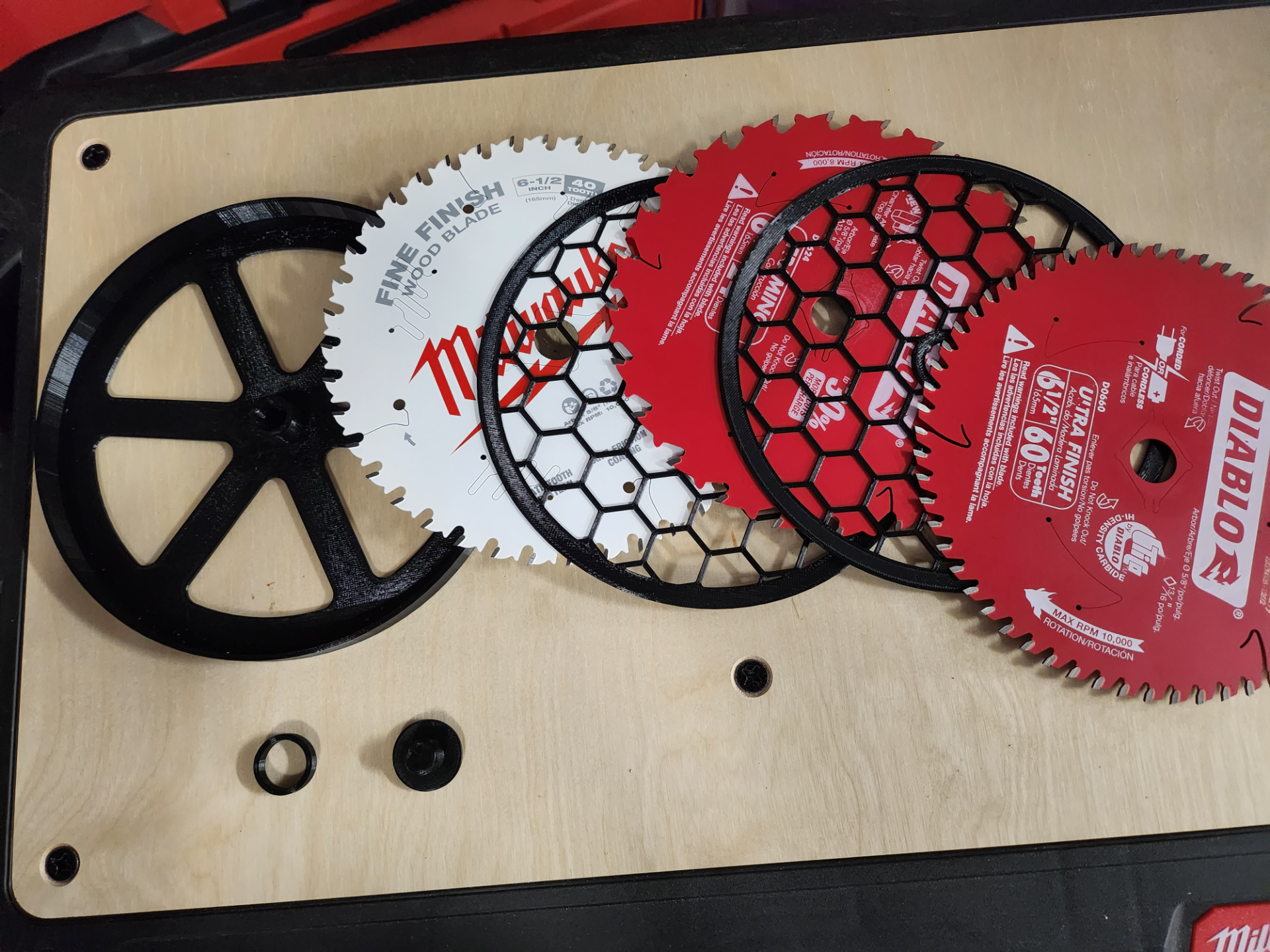

There are 4 parts:

1. plate is the main component
2. spacer prevents the blades from damaging each other. You need one fewer spacers than blades
3. screw holds everything together
4. washer is optional: if the screw alone doesn't hold the blades firmly against the plate, add the washer

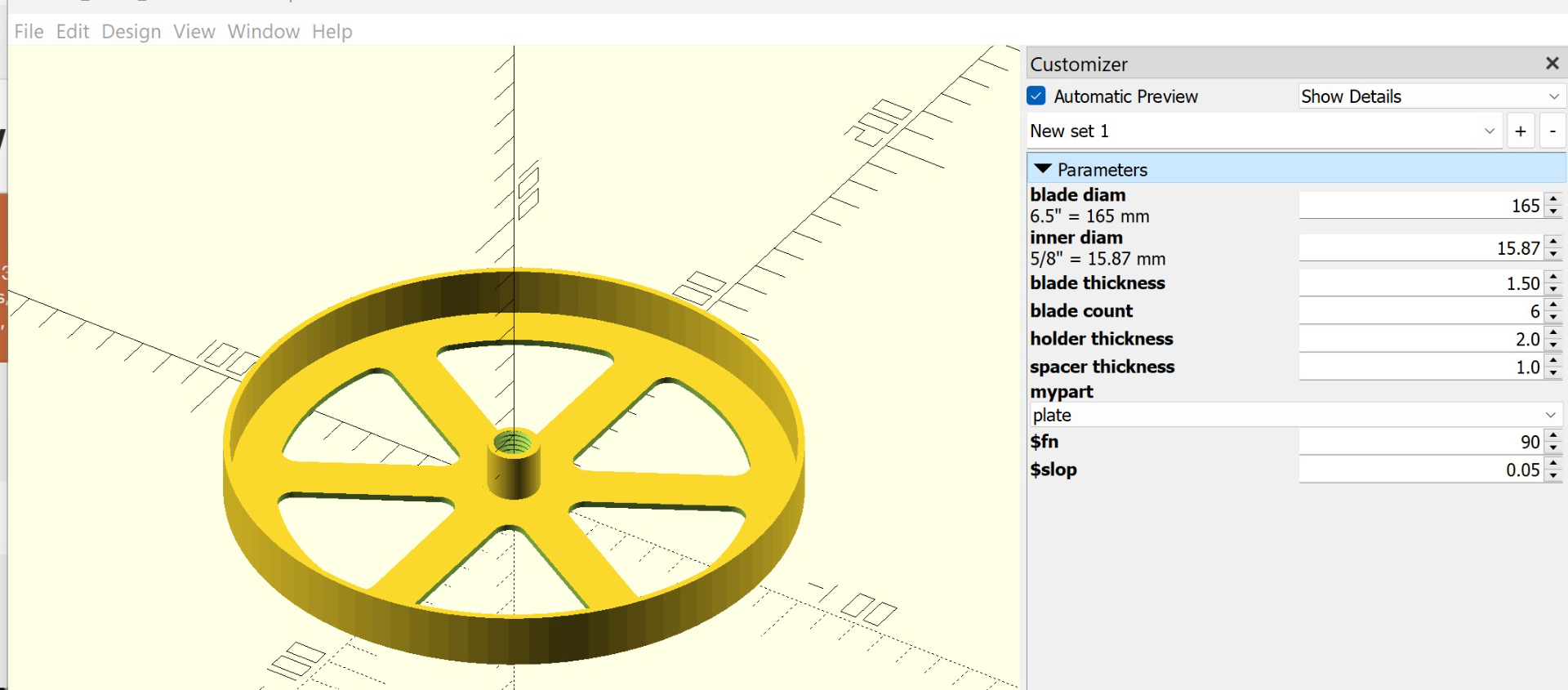

The STL files are for a 6.5" blade with 0.625" bore. To use the customizer, you will need to have BOSL2 package installed https://github.com/BelfrySCAD/BOSL2 along with OpenSCAD.

Design by DP design on MakerWorld (license: BY-SA).
