Usage
I designed it for usage on a french cleat with a depth of 15mm with the Wolfcraft PRO series clamps in mind, specifically the;
Printing

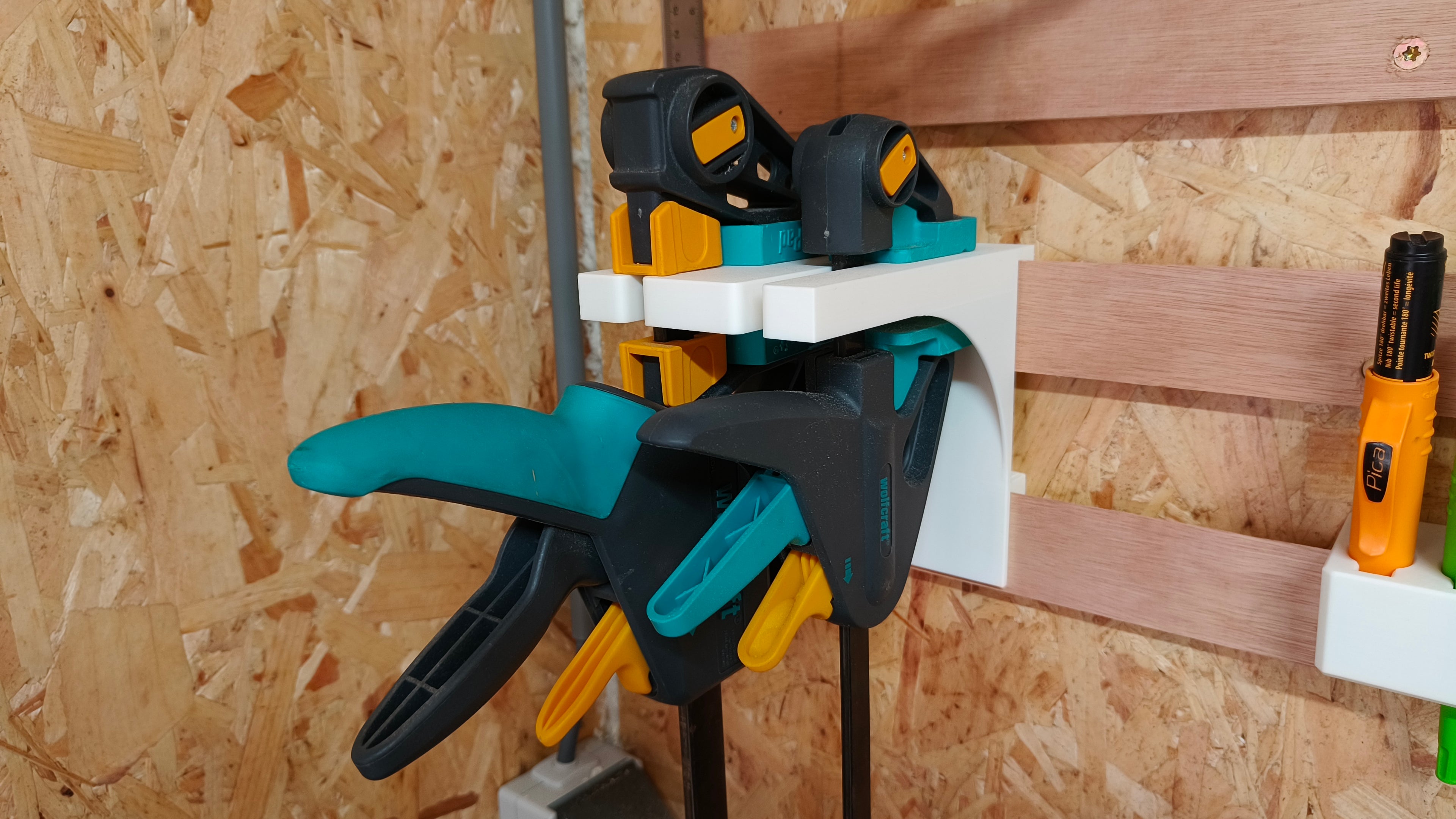

You should be able to print it without support upside down so with the top flat on the bed. The one in the picture is the old version which did require support. I've printed it with regular PLA, 3 wall layers and an infill of 25% and I haven't had any problems so far.
Remixing
The model was made with OnShape and should be available to all https://cad.onshape.com/documents/5d6f040f905bc86da2ecab88/w/341c4a905c907bbc0980aabd/e/8771dfa5d2c418e8a77b21c8
The cleat configuration is in the first tab (on the bottom), the settings per model are in the part studio itself in a folder called variables.
Design by pat.vdleer on MakerWorld (license: BY-SA).
