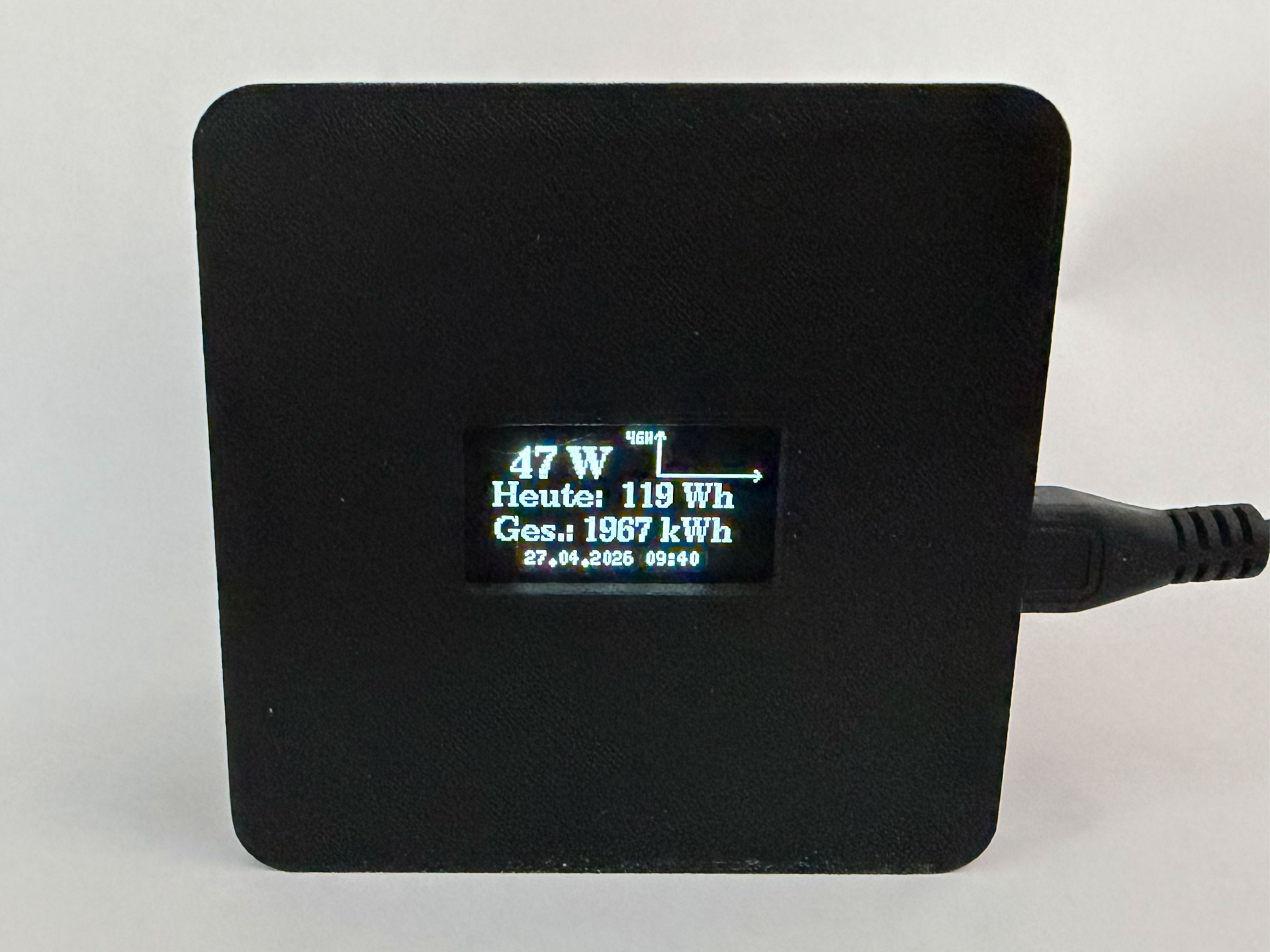

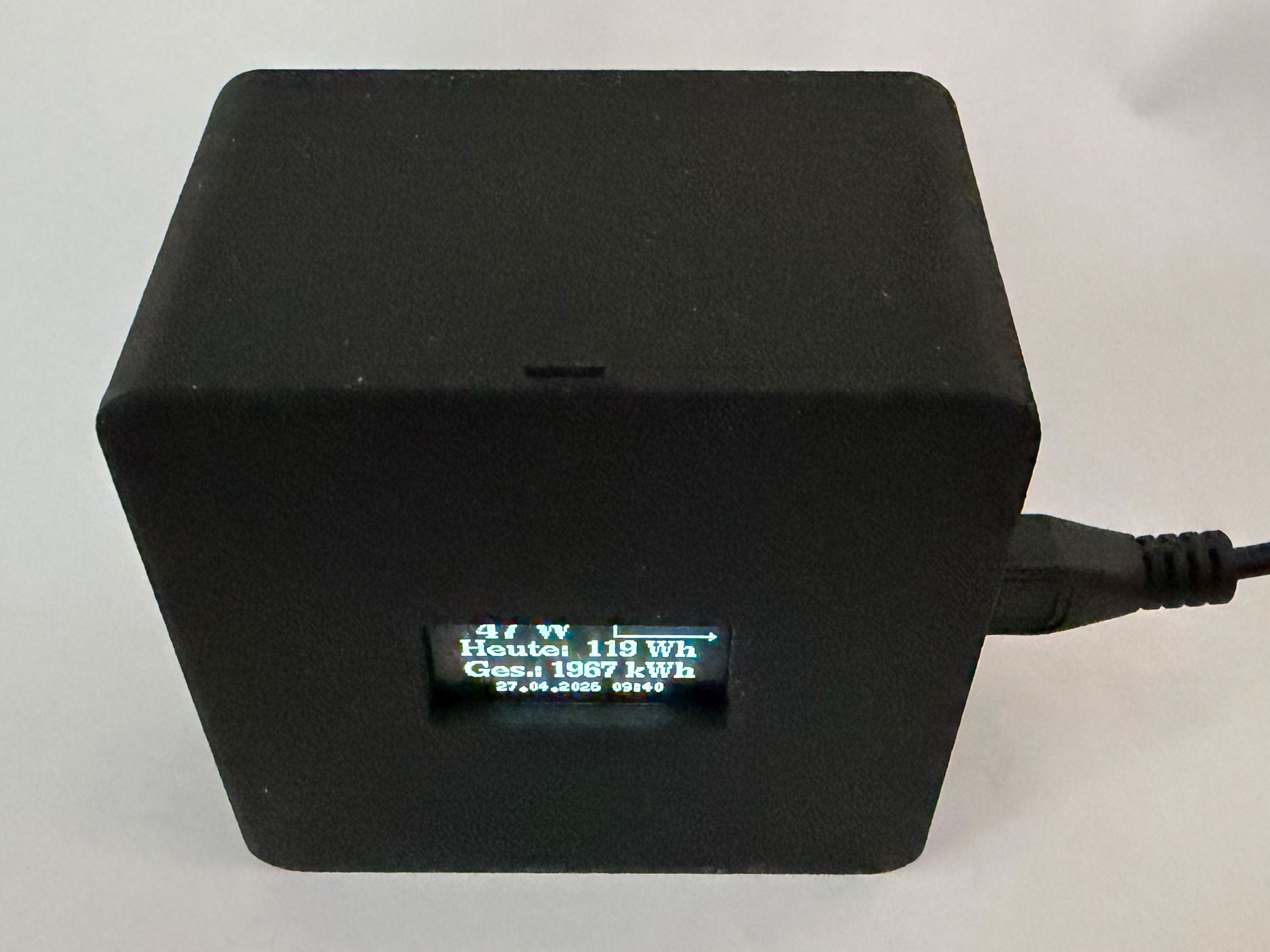

OpenDTU Case with OLED Display (ESP32)

This case is designed for OpenDTU setups with an integrated 0.96" OLED display, providing a compact and clean enclosure for your electronics.

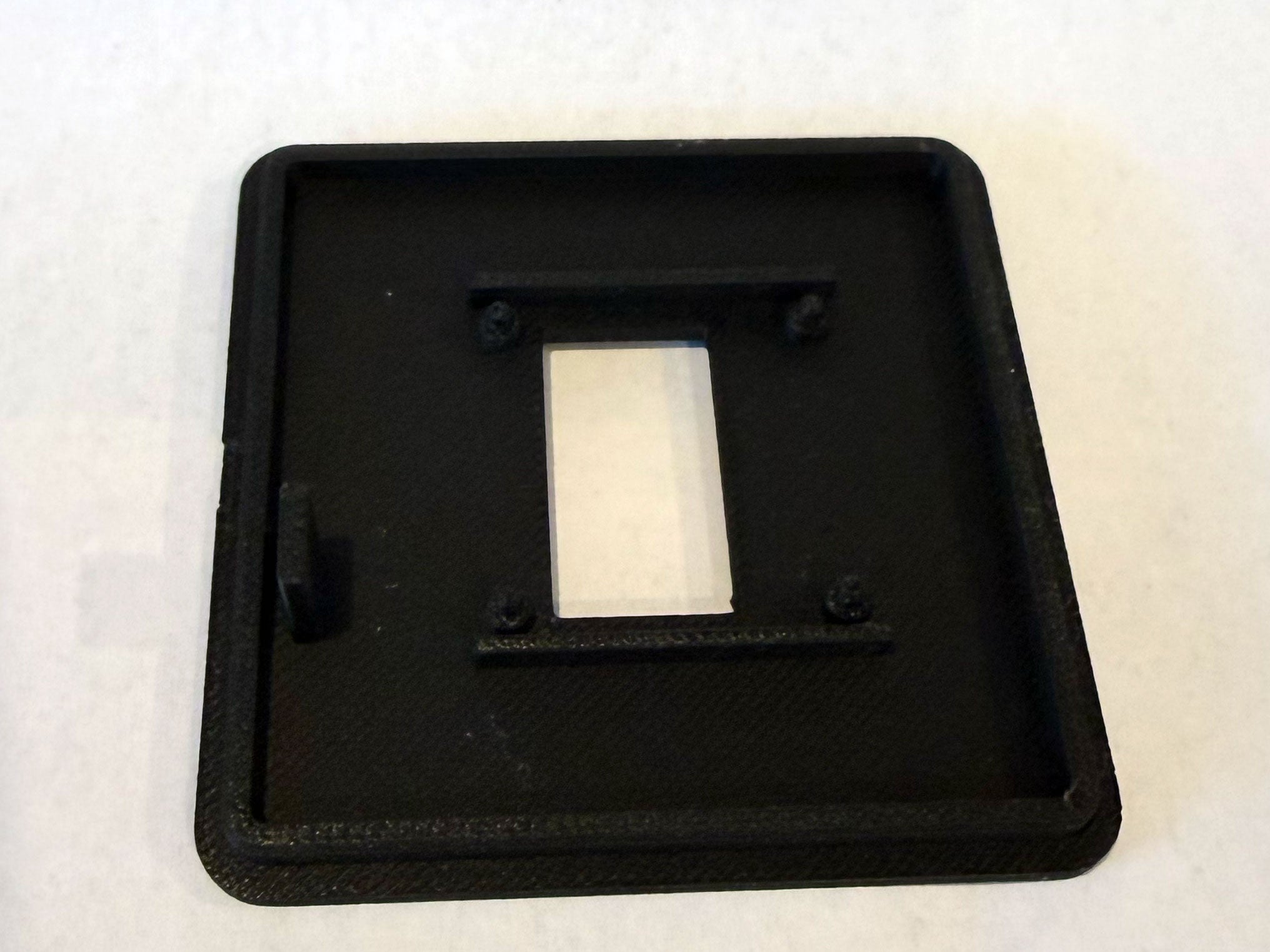

It features a snap-fit lid, allowing easy assembly and access without screws while keeping all components securely in place.

The design is based on an existing OpenDTU breakout case concept but adapted for setups with an integrated display.

🔧 Features

• Compact case for OpenDTU
• Supports 0.96" OLED display (SSD1306, 128×64)
• Snap-on lid – no screws required
• Clean and minimal design
• Easy access for maintenance and wiring
• Multiple versions available (e.g. wiring or PCB setups)

🧩 Hardware Compatibility

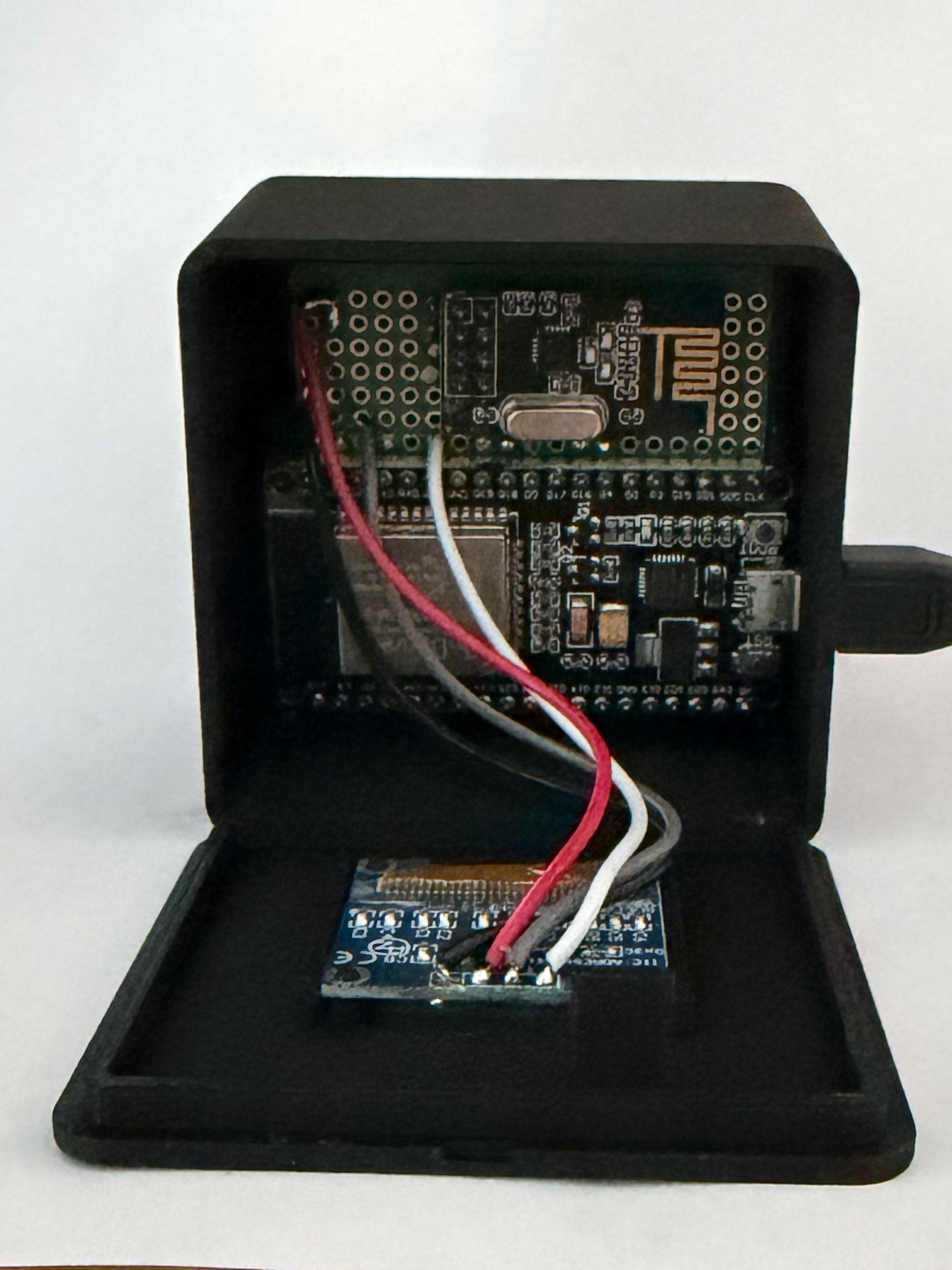

Designed for typical OpenDTU builds using:

• ESP32 NodeMCU (CP2102)
• NRF24L01+ module (with integrated antenna)
• 0.96" OLED display (SSD1306)

🖨️ Print Recommendations

• Material: PLA or PETG
• Layer Height: 0.2 mm
• Infill: 35%
• Supports: Not required
• Brim: Not required
• Print Orientation: As uploaded

ℹ️ Notes

• Designed for standard OpenDTU setups with OLED integration
• Make sure your specific components match the dimensions
• Variants may differ depending on wiring vs. PCB versions

Design by Felix on MakerWorld (license: BY).
