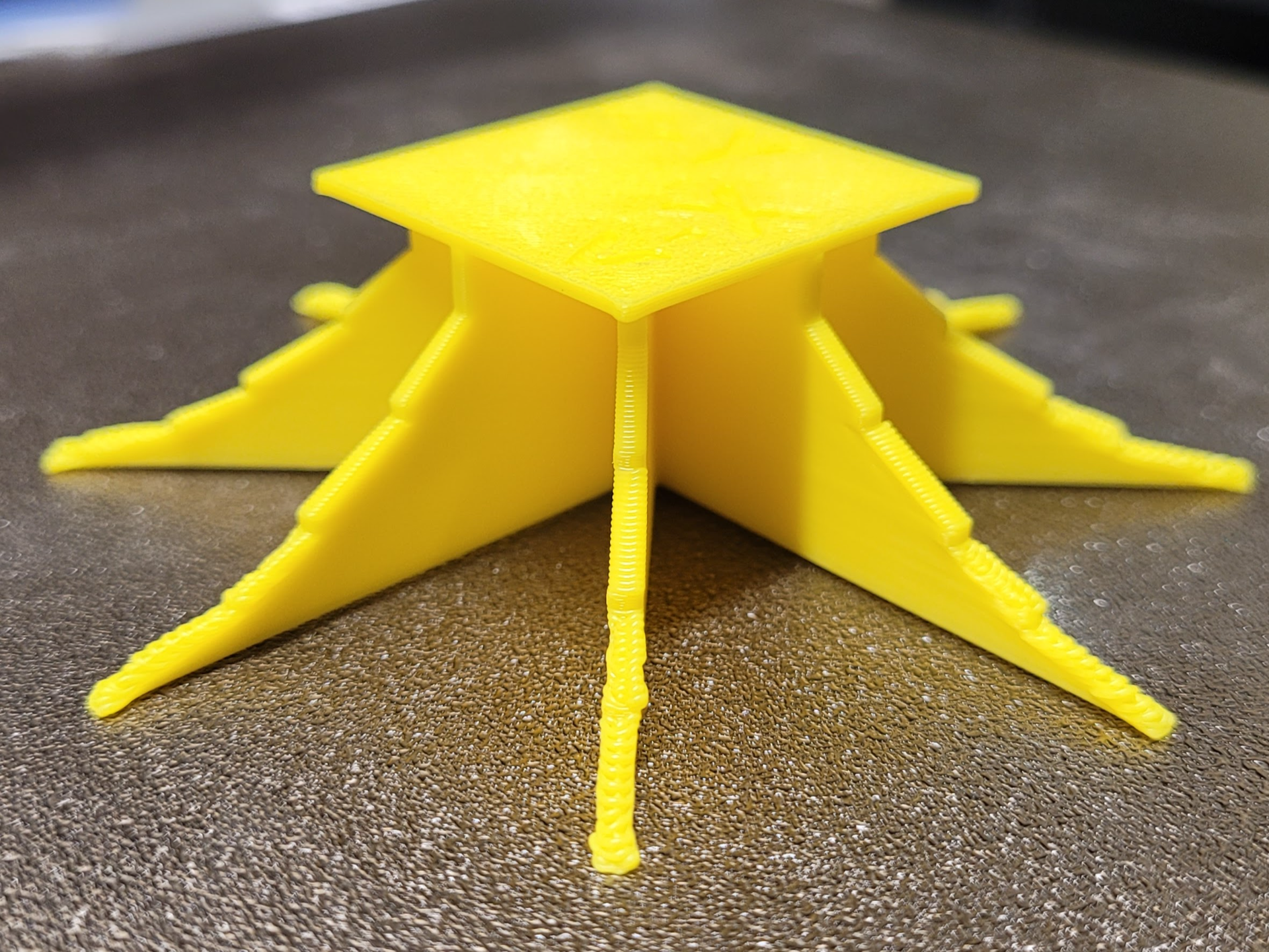

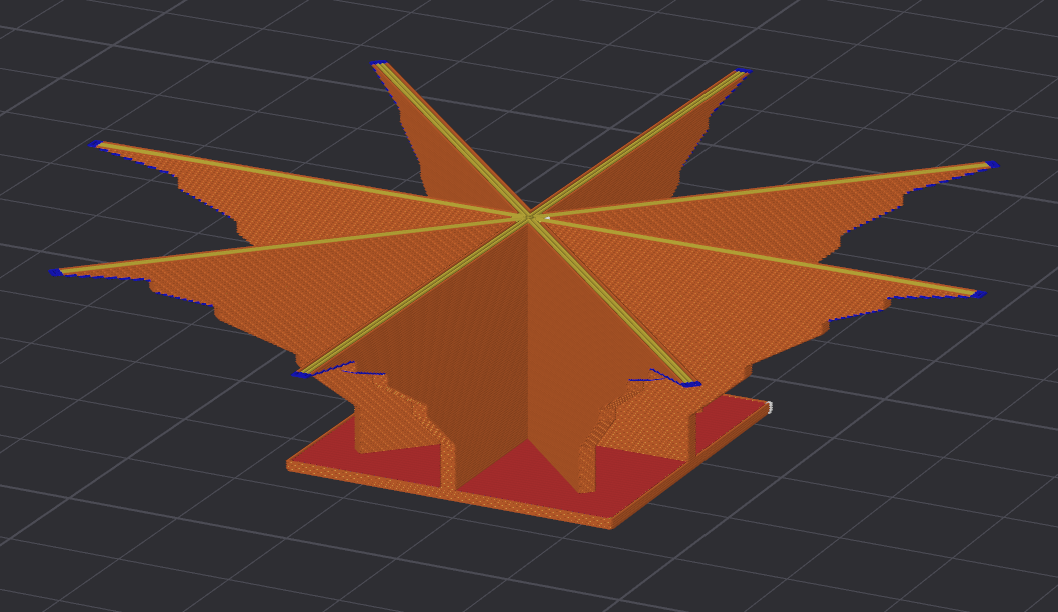

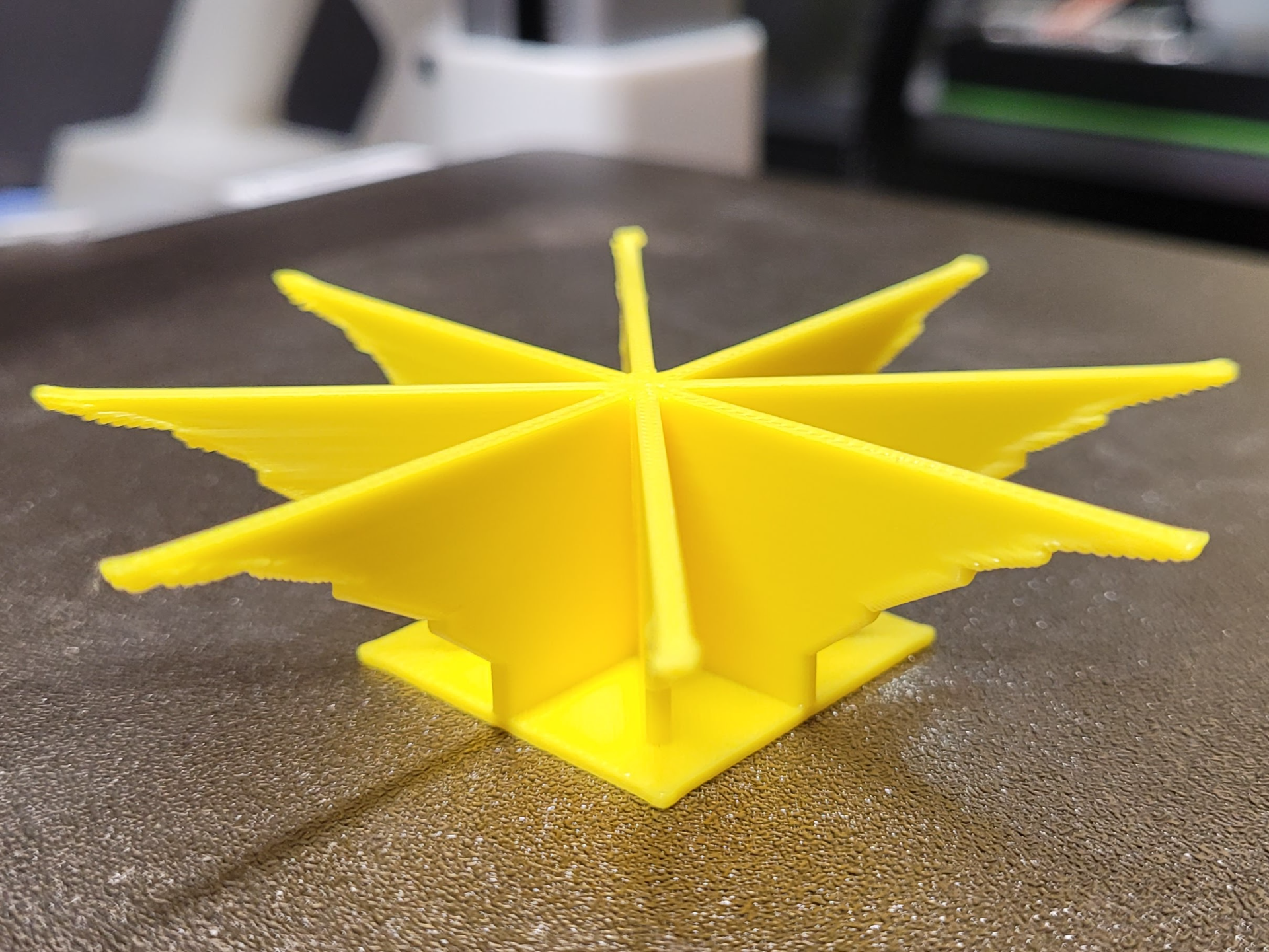

This is a remix of tomi3d’s great detailed overhang model to test your printer’s part cooling fan performance. I added a cross at 45° to have more angles to view. The instructions to print this are the same as his model.

This model is designed for detailed prints, where the overhangs are small.

It tests for 40, 30, 20, and 10° overhangs.

This is a quick print, which takes about 25 mins.

Important: set the seam to an “inner” corner (aligned)!

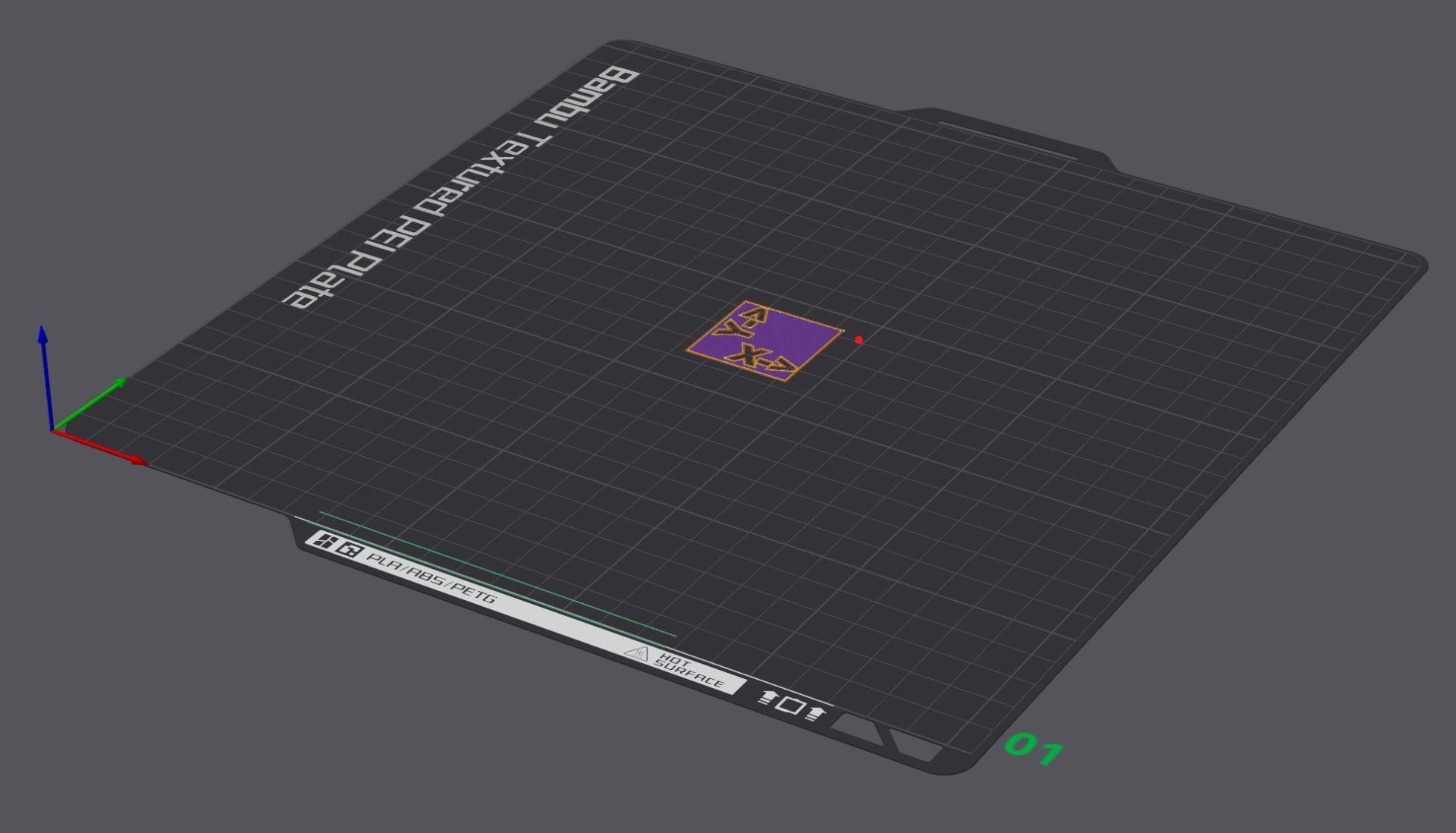

When placing it on the print bed, please pay attention to the text on the bottom side. It will help you identify the x and y directions later.

Design by Lazy Beagle on MakerWorld (license: BY-SA).
