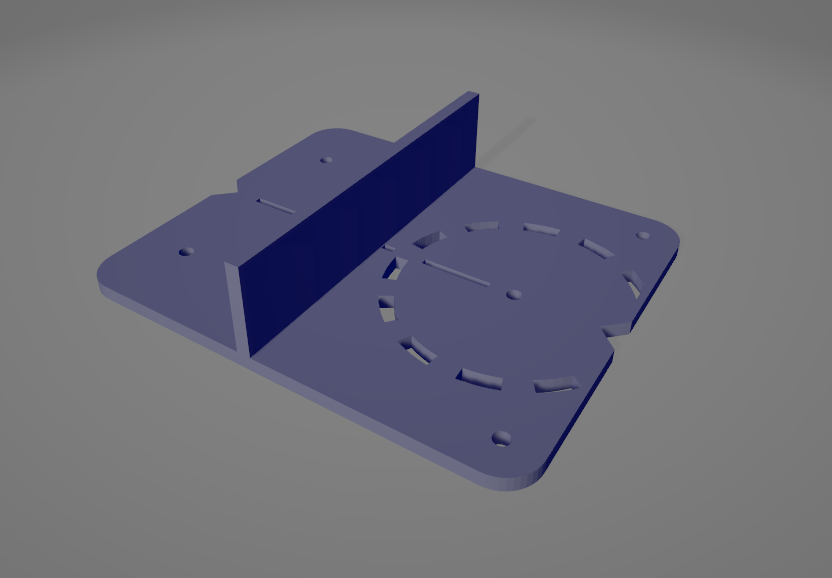

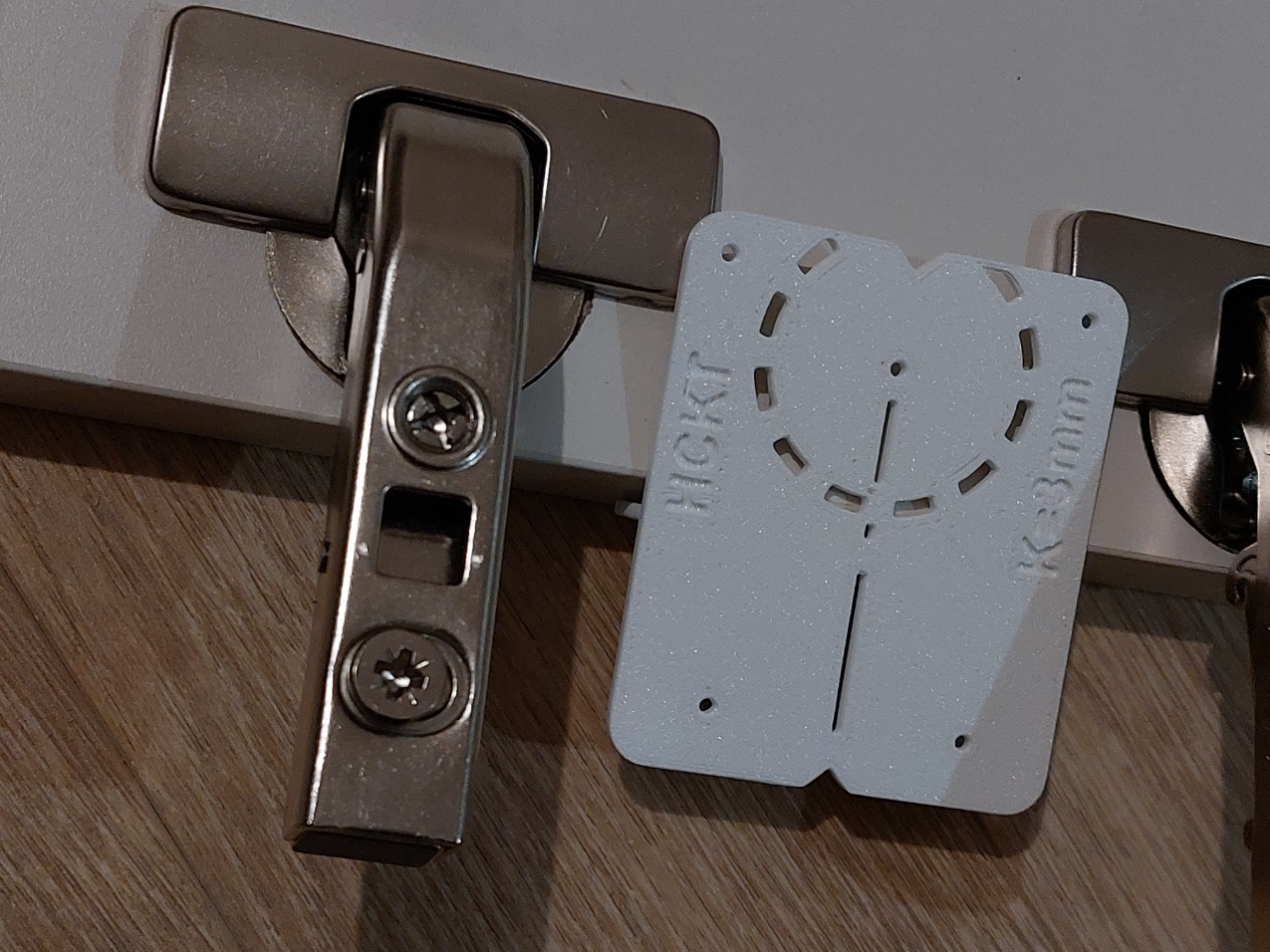

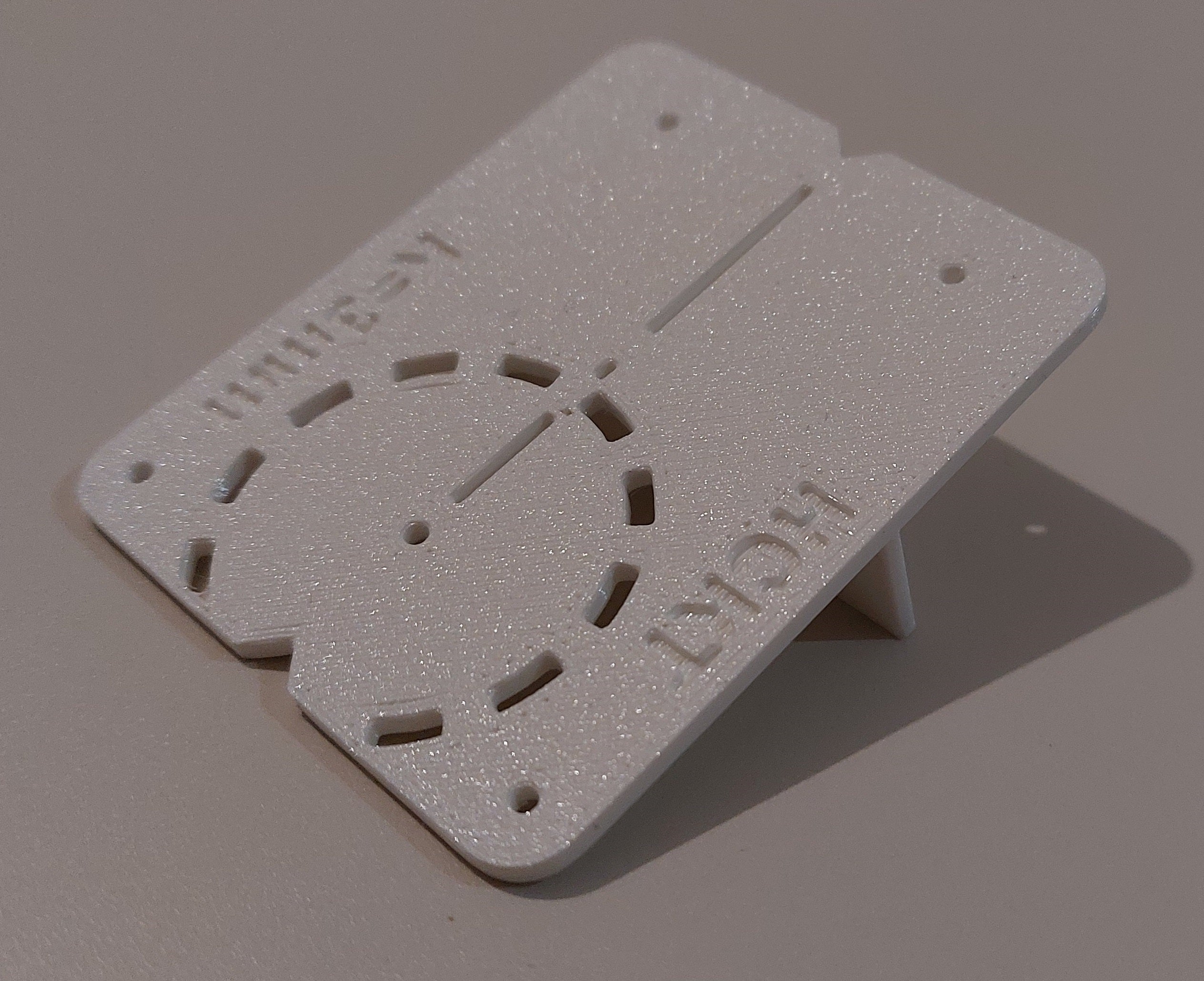

3D-Printed Drilling Template for GTV HCKT Hydraulic Parallel Hinges
A 3D-printed drilling template is a practical accessory designed to simplify and speed up the marking and drilling of mounting holes required for installing GTV HCKT hydraulic parallel hinges. The template ensures accuracy, repeatability, and proper alignment during furniture assembly.
Purpose and Function
The main purpose of the template is to precisely position the hinge cup and screw holes on cabinet doors and side panels according to the hinge’s technical specifications. By placing the template on the workpiece, the user can quickly mark or drill holes without the need for manual measurements each time.
Key Features
Precise Hole Positioning
The template is designed to match the standard 35 mm hinge cup and the exact spacing of the mounting screw holes used by GTV HCKT hinges. This guarantees correct hinge placement and smooth door operation.
Consistent Alignment
Reference edges on the template align with the edge of the door or cabinet panel, ensuring consistent setback distance and parallel positioning for every hinge installation.
3D-Printed Construction
Manufactured using durable plastic (such as PLA, PETG, or ABS), the template is:
Lightweight
Easy to handle
Resistant to repeated workshop use
Drilling and Marking Support
The template can be used to:
Mark drilling points with a pencil or awl
Guide drill bits for pilot holes
Center a Forstner bit for drilling the 35 mm cup hole
Repeatability and Efficiency
Ideal for series production or DIY furniture projects, the template allows fast, repeatable drilling with identical results on multiple doors.
Carpenters and installers
DIY users who want professional-level accuracy
Benefits of Using a Drilling Template
✔ Eliminates measuring errors
✔ Reduces installation time
✔ Ensures proper hinge alignment
✔ Improves final door aesthetics and functionality
✔ Minimizes the risk of damaging panels
Design by DamiKo on MakerWorld (license: BY).
