Parametric Gridfinity - Allen Keys & Hex Wrenches

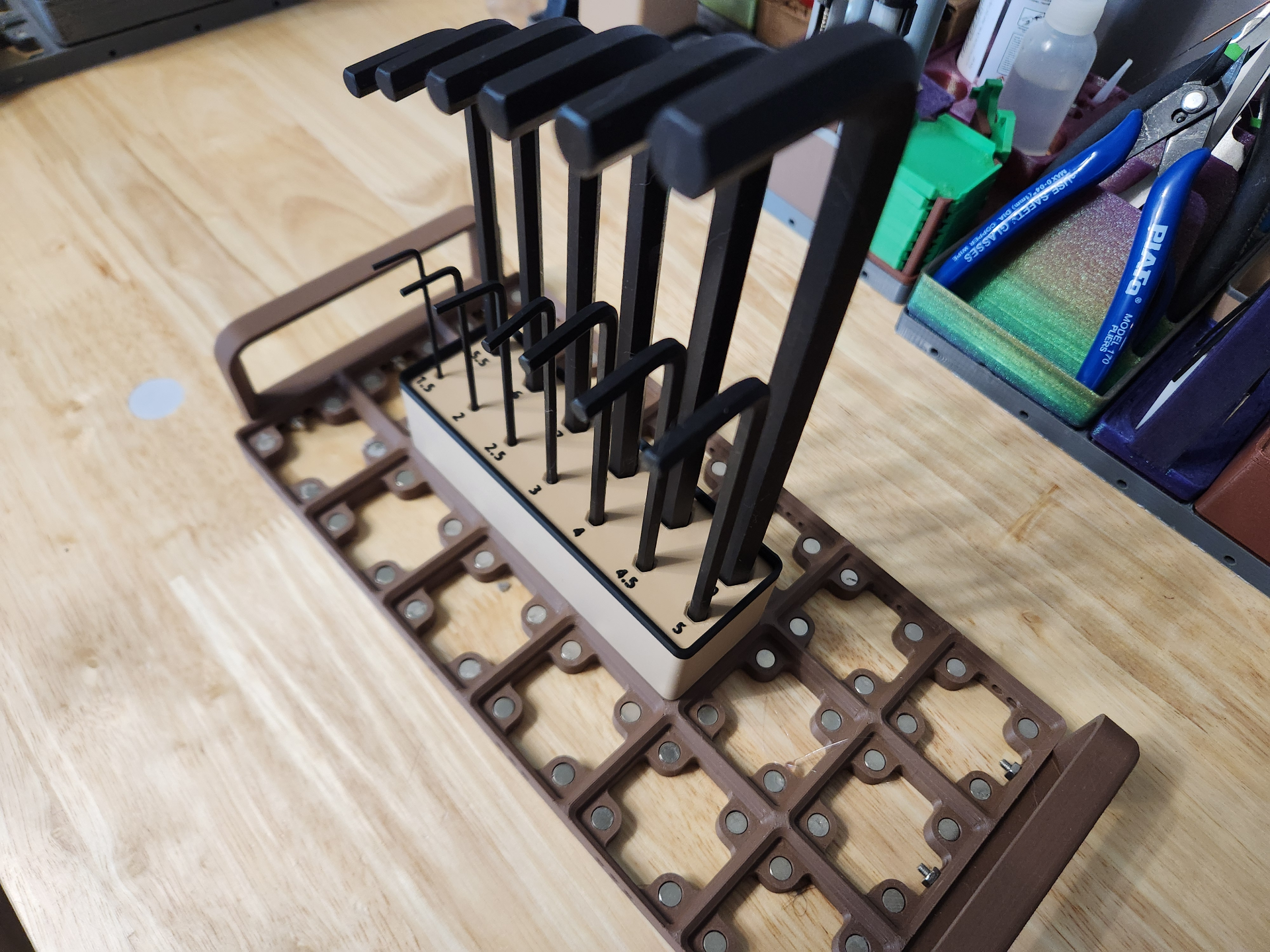

I didn't quite like the way other wrench holders looked so I designed my own. You can modify the sizes to suit your needs, but the models included here are a perfect fit for the Harbor Freight “ICON Metric L-Shaped Ball End Hex Key Set” (SKU: 57928) with 13 wrenches.

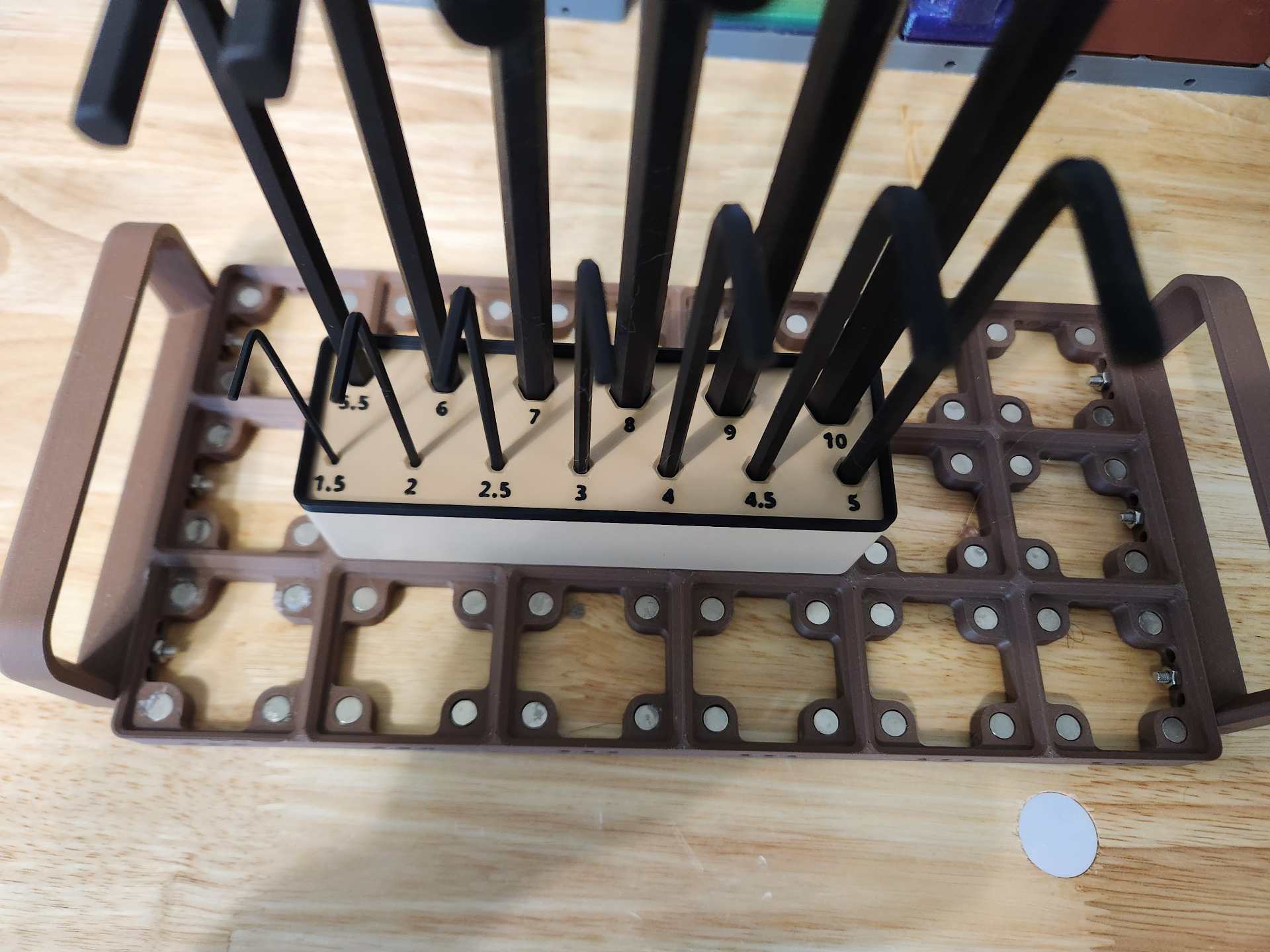

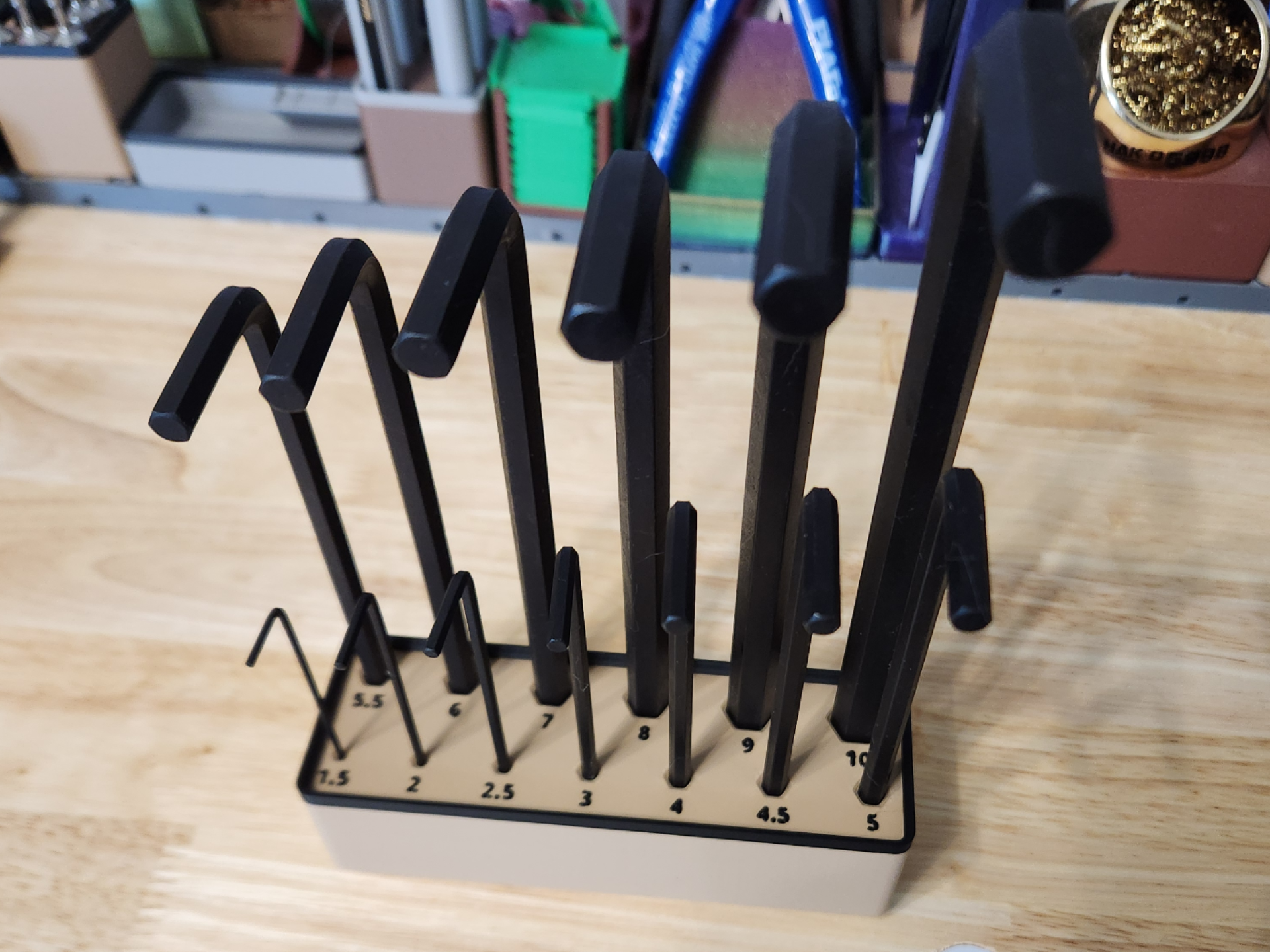

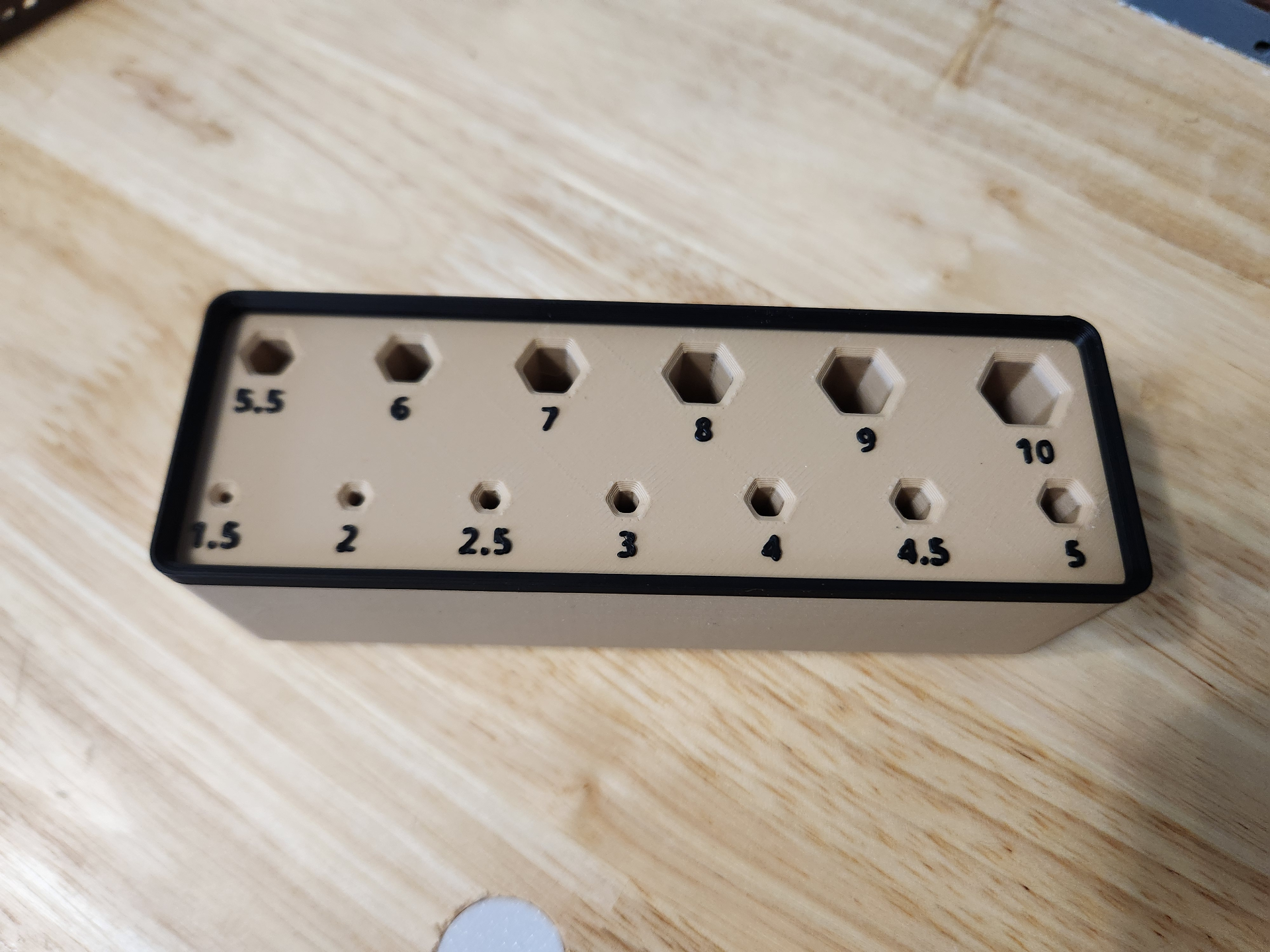

Sizes:

• 1.5mm
• 2mm
• 2.5mm
• 3mm
• 4mm
• 4.5mm
• 5mm
• 5.5mm
• 6mm
• 7mm
• 8mm
• 9mm
• 10mm

Print Instructions

I've included 2 models with different tolerances. The tight tolerance (0.4mm offset) works great on my P1S, but if you have a different printer or have worn your printer down I have included a looser tolerance model (0.5mm offset) that should work for you, but it could allow the wrenches to rotate freely in their sockets.

The profiles added here allow for an optional color change for the text and rim. If you don't have an AMS you can manually change the color or don't bother and just select the same color for both options.

No supports, 0.2mm layer heights.

Design by Cullen J Webb on MakerWorld (license: BY).
