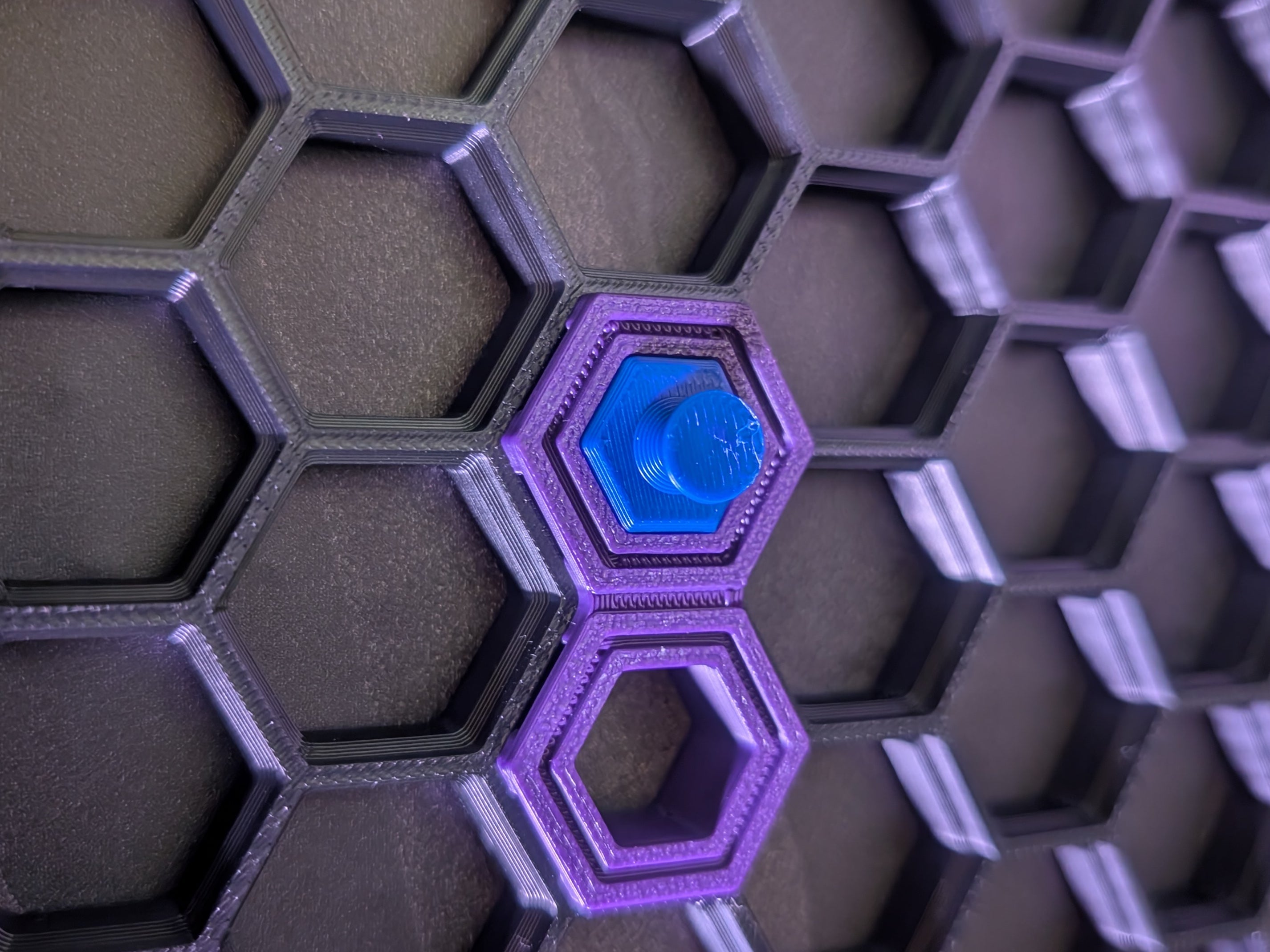

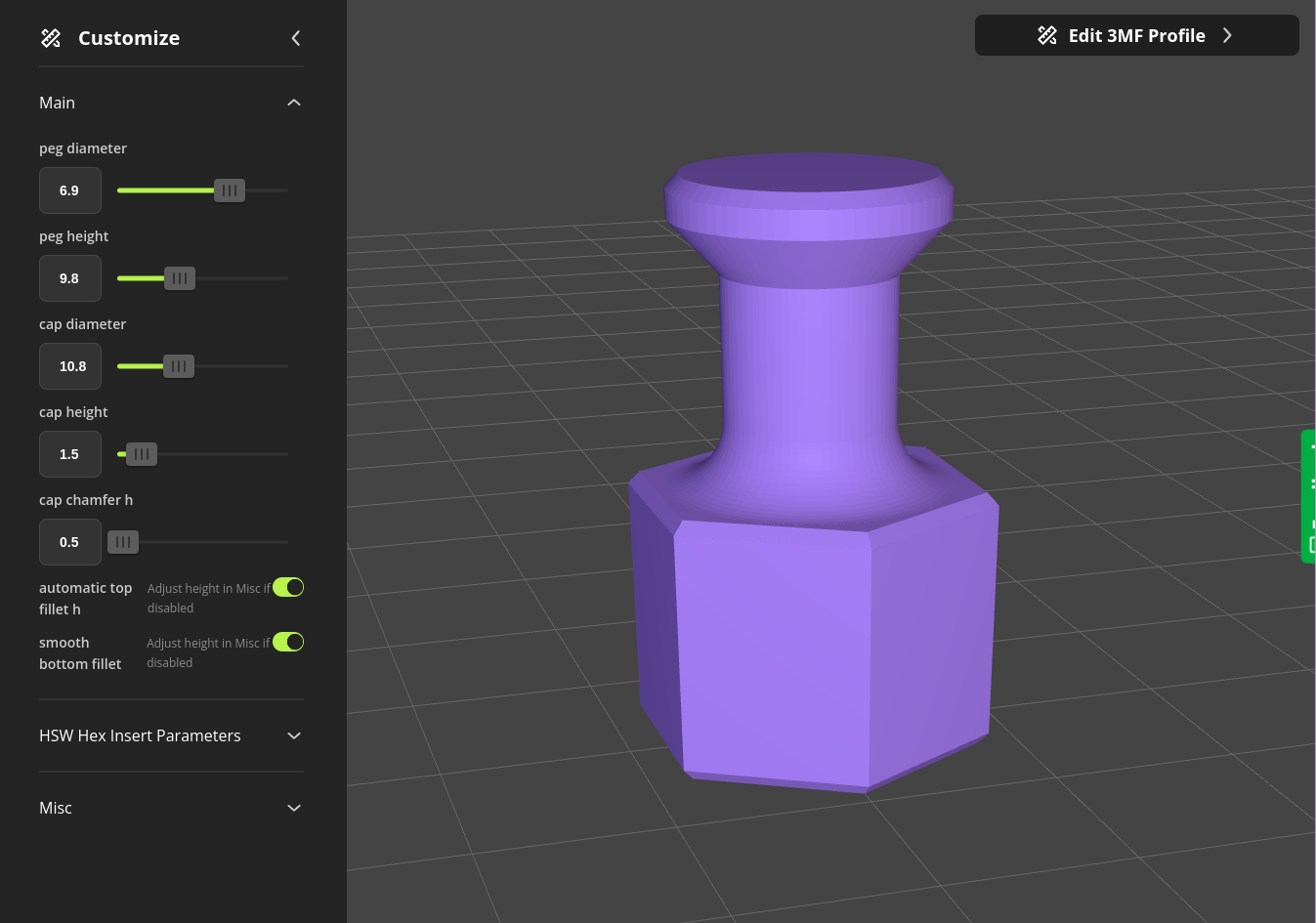

Many things have screw mounts. With this parametric honeycomb storage wall peg generator you can create one that holds your tools and devices snugly. Click on Customize to create one that suits your needs.
As every printer/material combo will slightly vary the print's physical dimensions, you might need to adjust hsw_insert_diameter to get a better fit with your insert. I personally use this one.

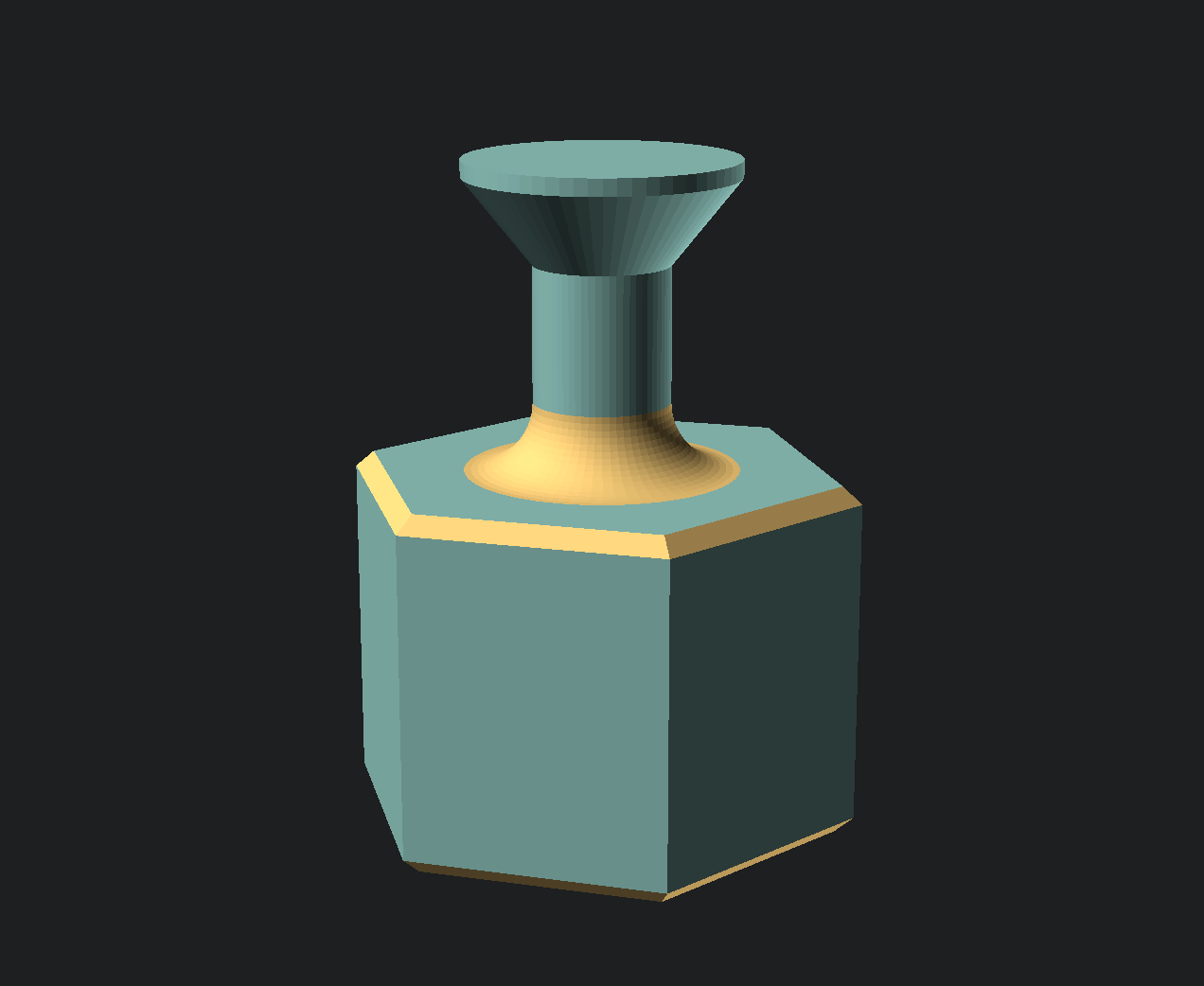

Note that the peg cap extends above the peg itself, so the distance from the HSW insert to the very tip of the head is peg_heigh + cap_height.

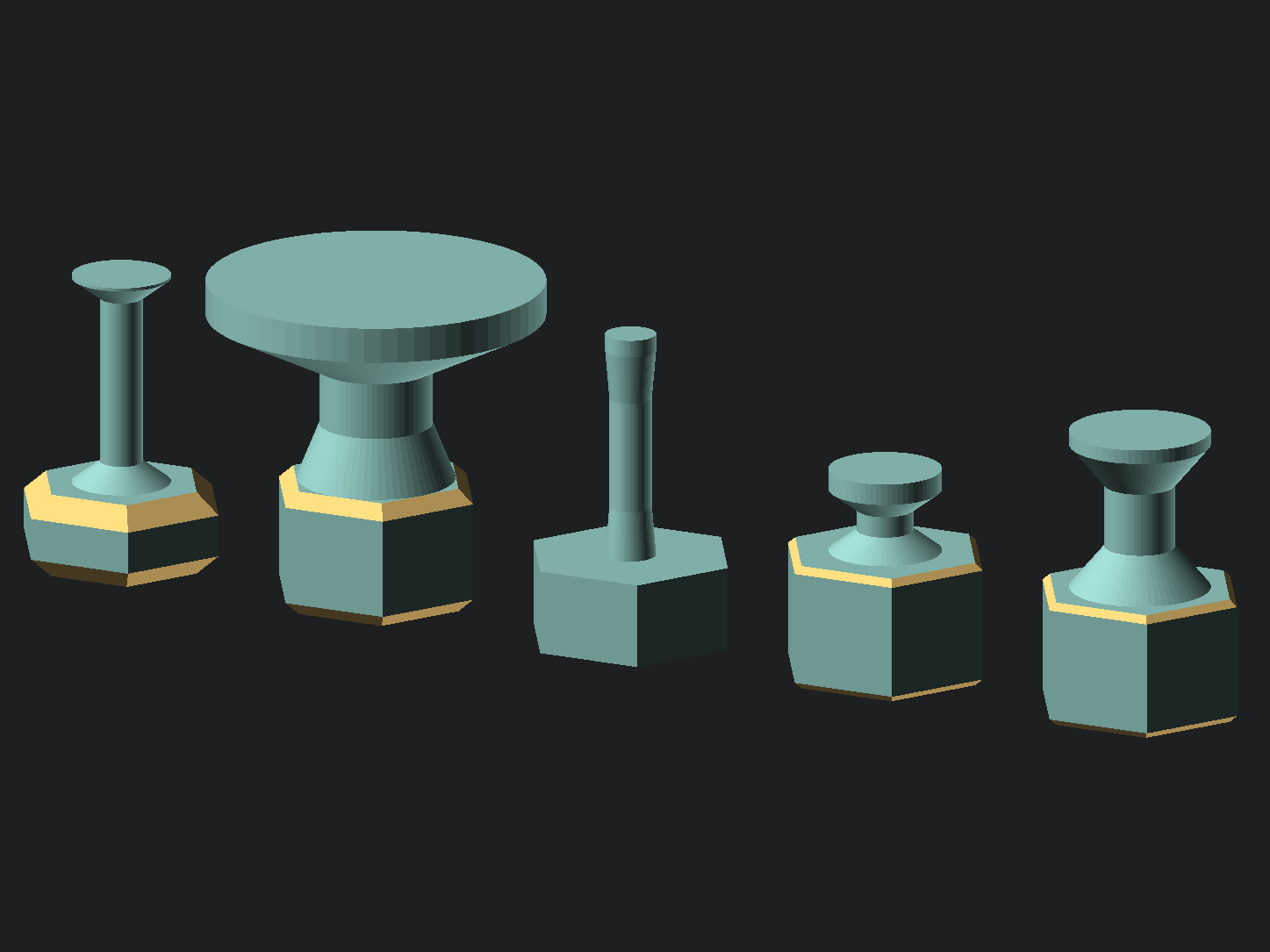

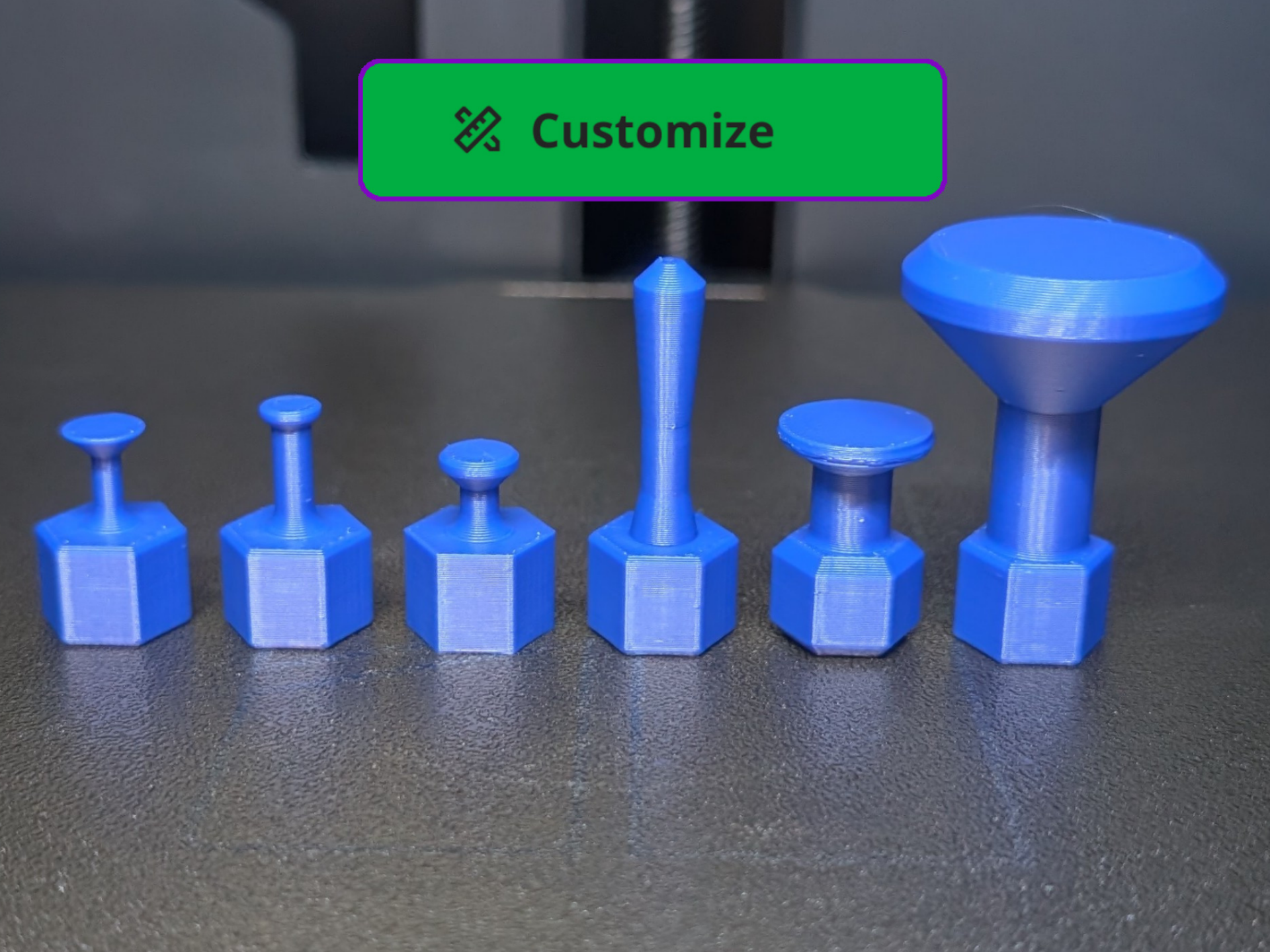

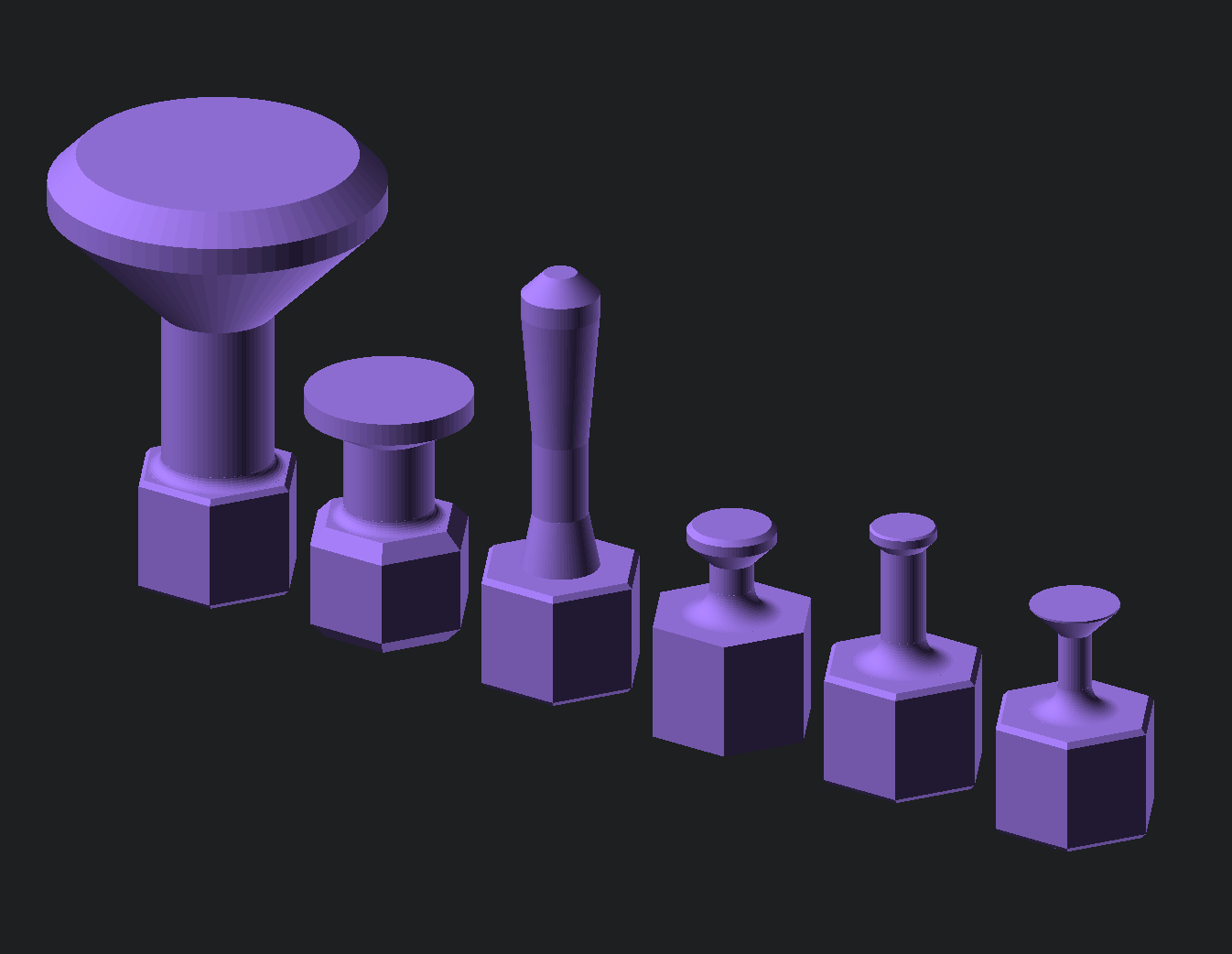

If for whatever reason you are unable to use the customizer, I provided an arbitrary selection of pegs in the supplied print profile. Left to right the peg heights vary from 5mm to 25mm in 2mm steps. Bottom to top peg diameters vary from 4mm to 9mm in 0.5mm steps.
Let me know if you have any requests.
Updates
- 17.07.2025 - Added optional smooth bottom fillet (enabled by default) and split fillet height parameters
- 02.08.2025
- Added slider widgets to the customizer
- Added optional automatic top fillet height
- Faster chamfering
- 16.08.2025
- Fixed chamfering issue that caused the slicer to split individual pegs into separate objects
- Updated random peg selection
