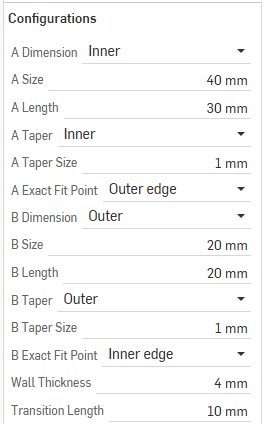

On the left side, you can edit the adapter's parameters to your liking.
There are 2 sides to this model. A and B.
A and B side parameters mean the same thing.
A/B Dimension - Specify if you care or want to define rest of your parameters based on inner or outer dimension of adapter.
A/B Size - Diameter of one side of adapter. It is either internal or external depending on setting above it.
A/B Length - Length of this side of adapter
A/B Taper - Choose if you want taper and what kind.
A/B Taper Size - Taper goes from edge to end of straight side. This dimension is how much smaller should the end of the adapter be on this side.
A/B Exact Fit Point - You can choose to have your “A/B Size” precisely the specified amount in one of three locations. This is meant to help make chamfers more predictable.
Wall Thickness - This is the thickness of the wall at the center of the adapter. Chamfers will effect thickness at the ends.
Transition Length - Length of middle piece connecting both sides of adapter.
Export
On left side, right click on “BaseAdapter” and choose “Export…”
This will allow you to export part (.step is best) to file format that Bambu Lab Studio understands.
