Parkside X20V 140W USB-C PD Adapter

Parkside X20V Battery to USB-C PD Adapter that is capable of delivering up to 25V / 140W

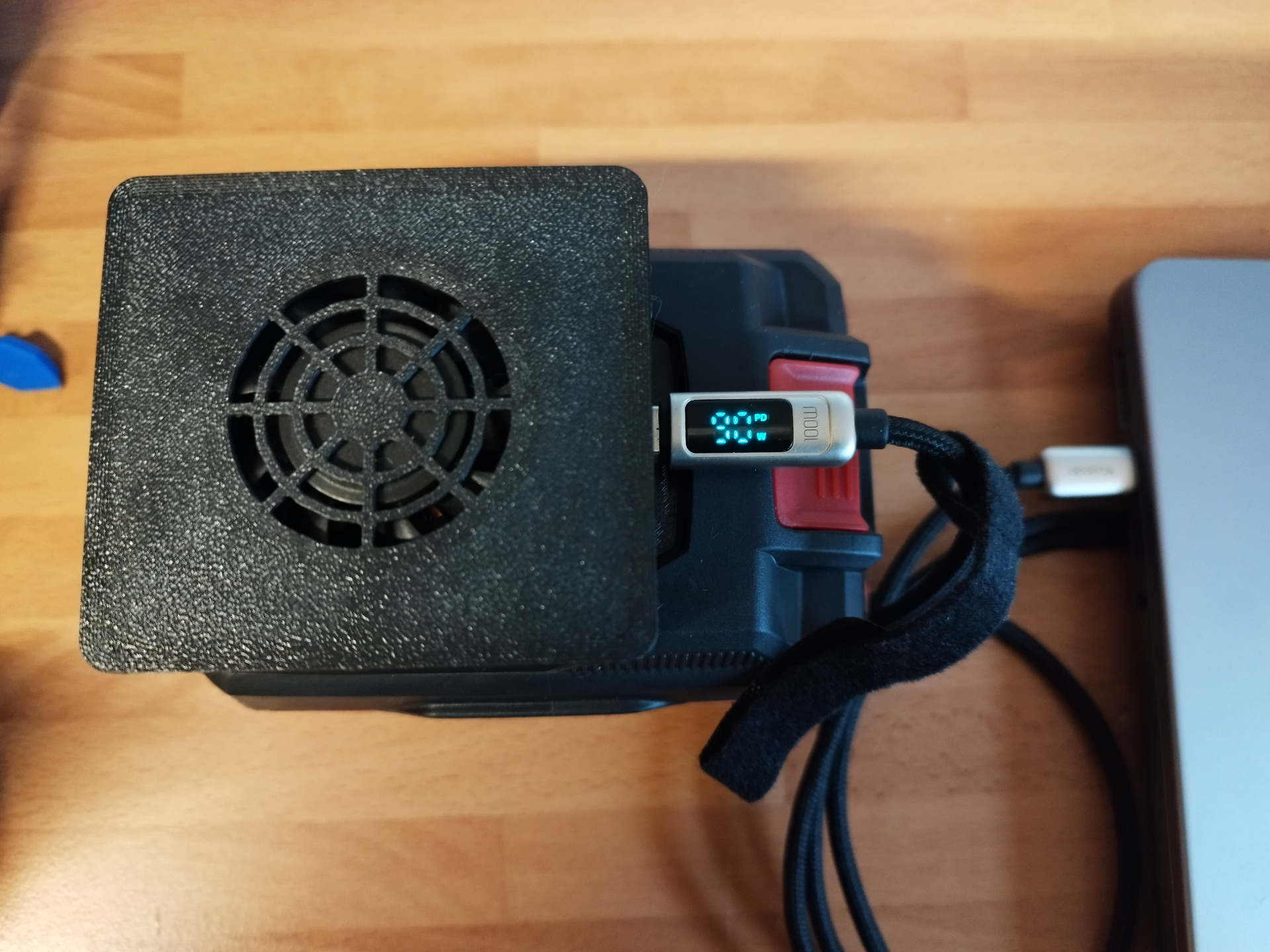

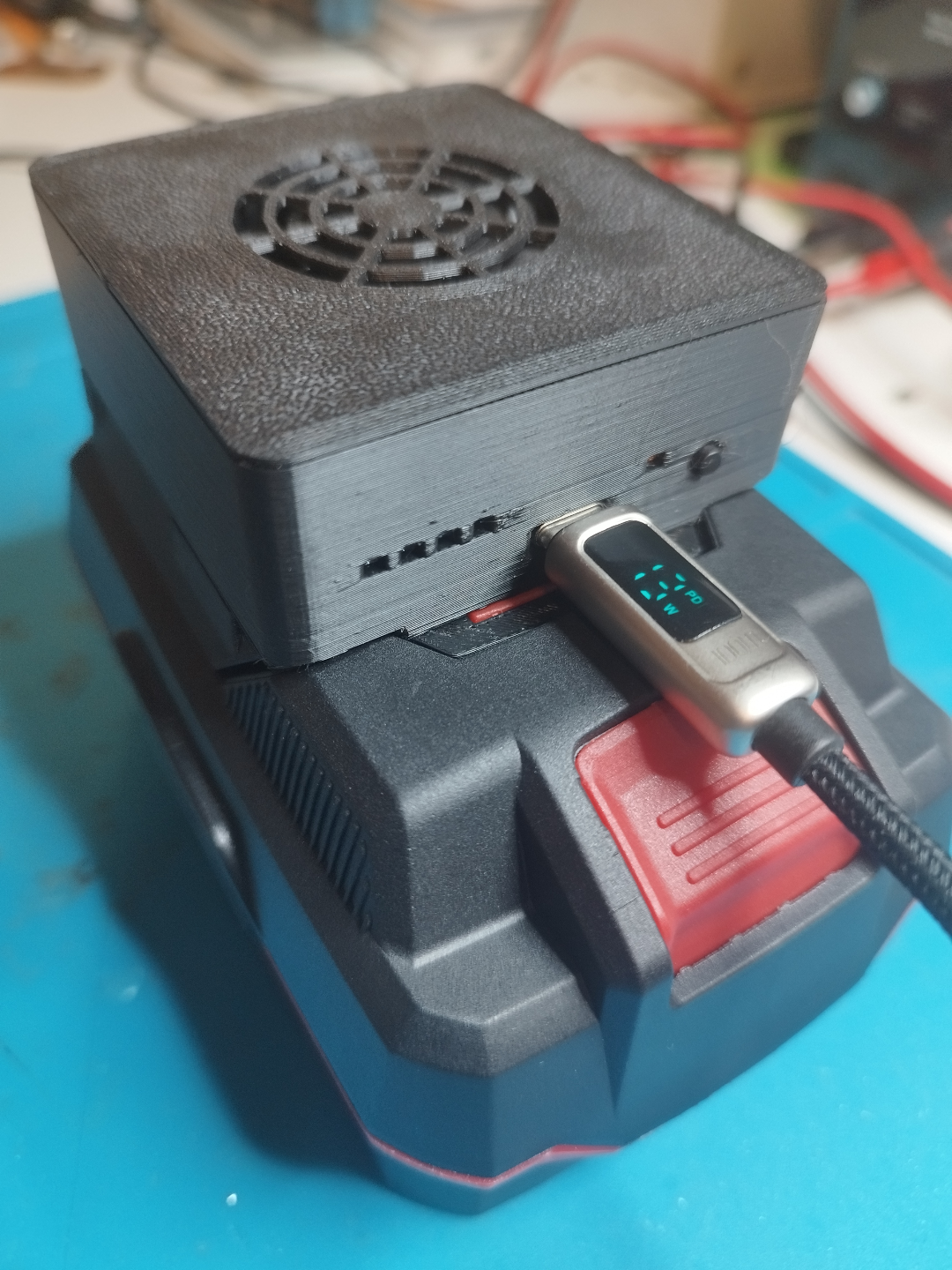

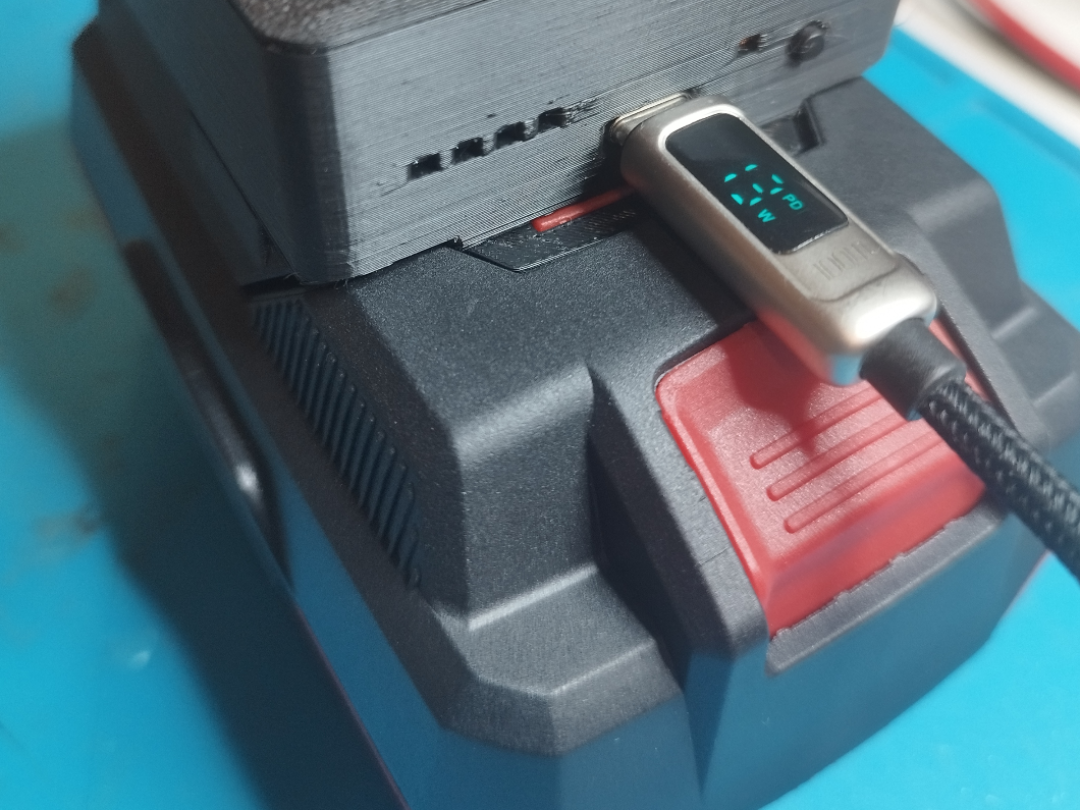

Works well for USB-C Soldering Iron, Charging Laptops etc…

Its even capable of Charging the connected X20V Battery via USB-C ;_)

Used Parts:

IP2366 PD3.1 140W Module: https://www.aliexpress.com/item/1005008296771913.html

4010 24V Fan https://www.aliexpress.com/item/1005003371996395.html

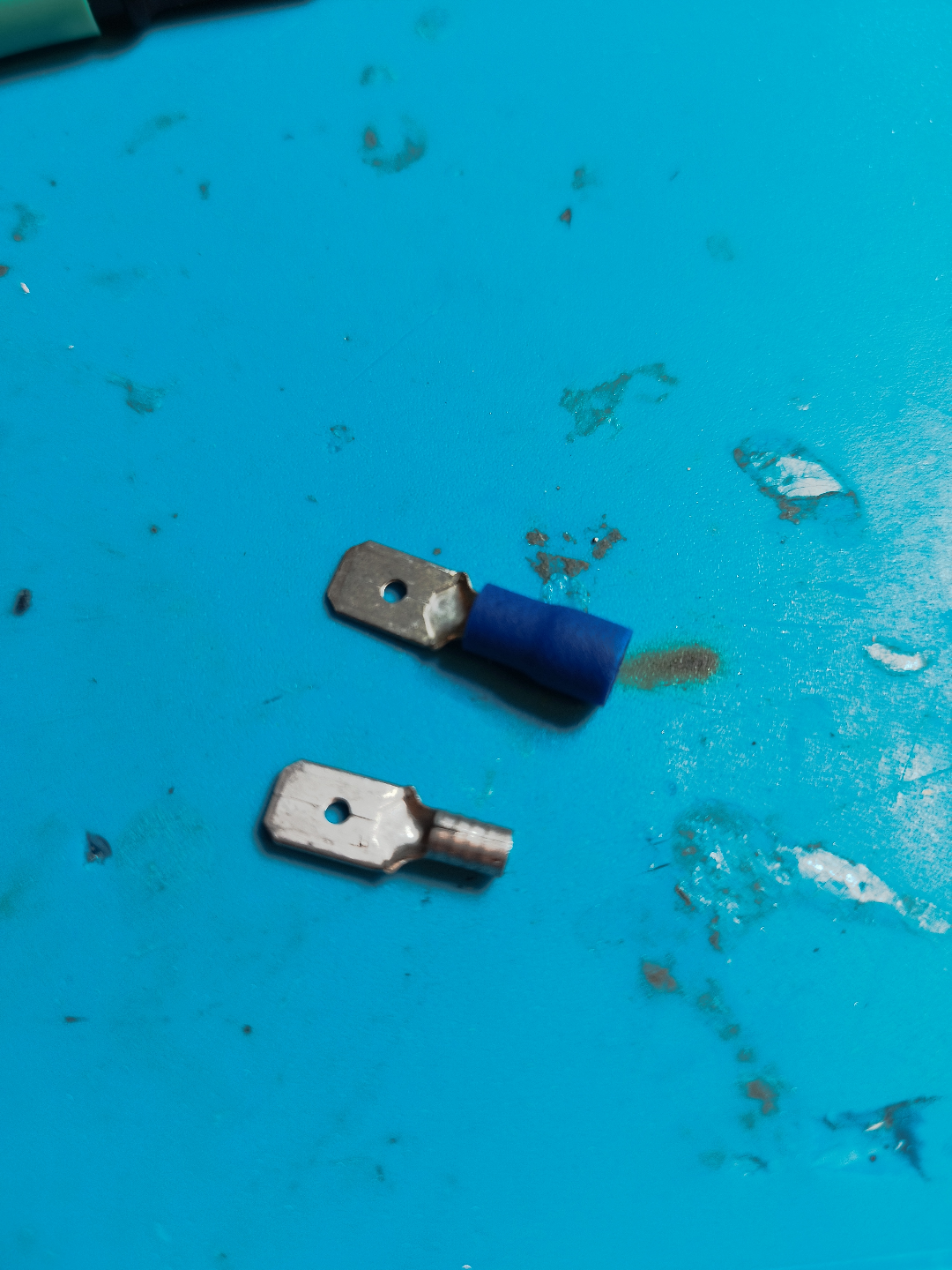

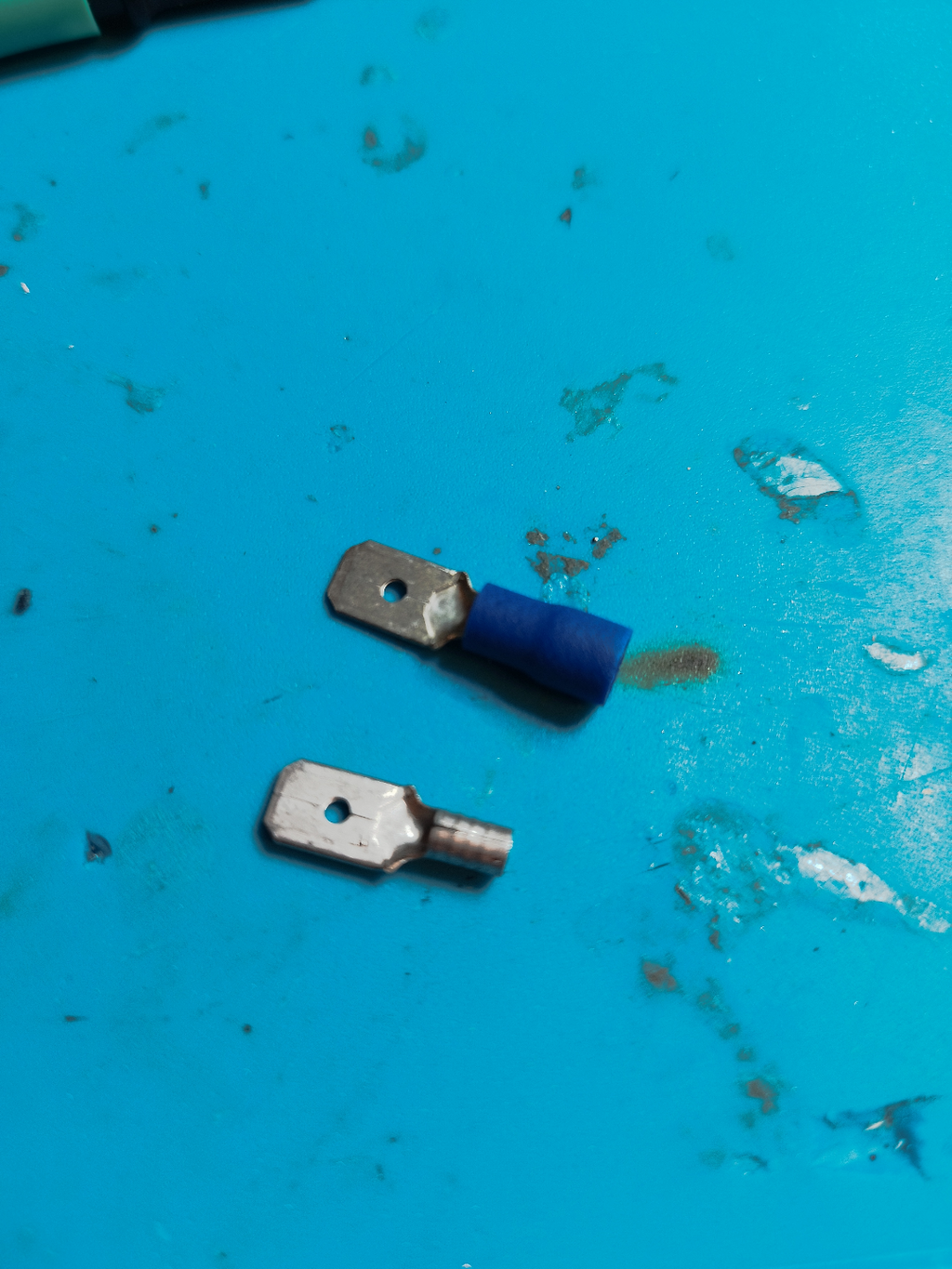

6.3mm Crimp Terminals https://www.aliexpress.com/item/32839880068.html

15cm of flexible wire.

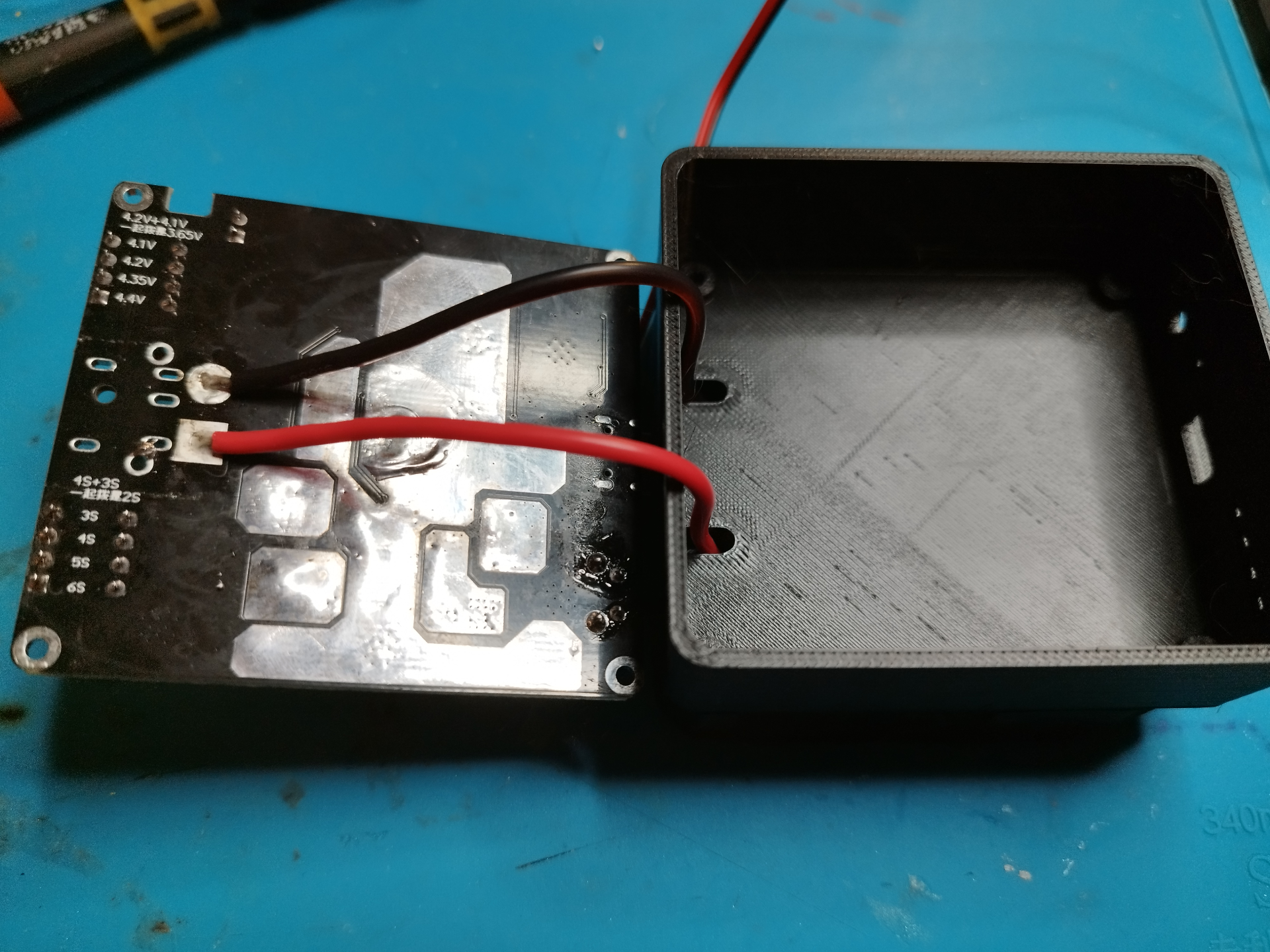

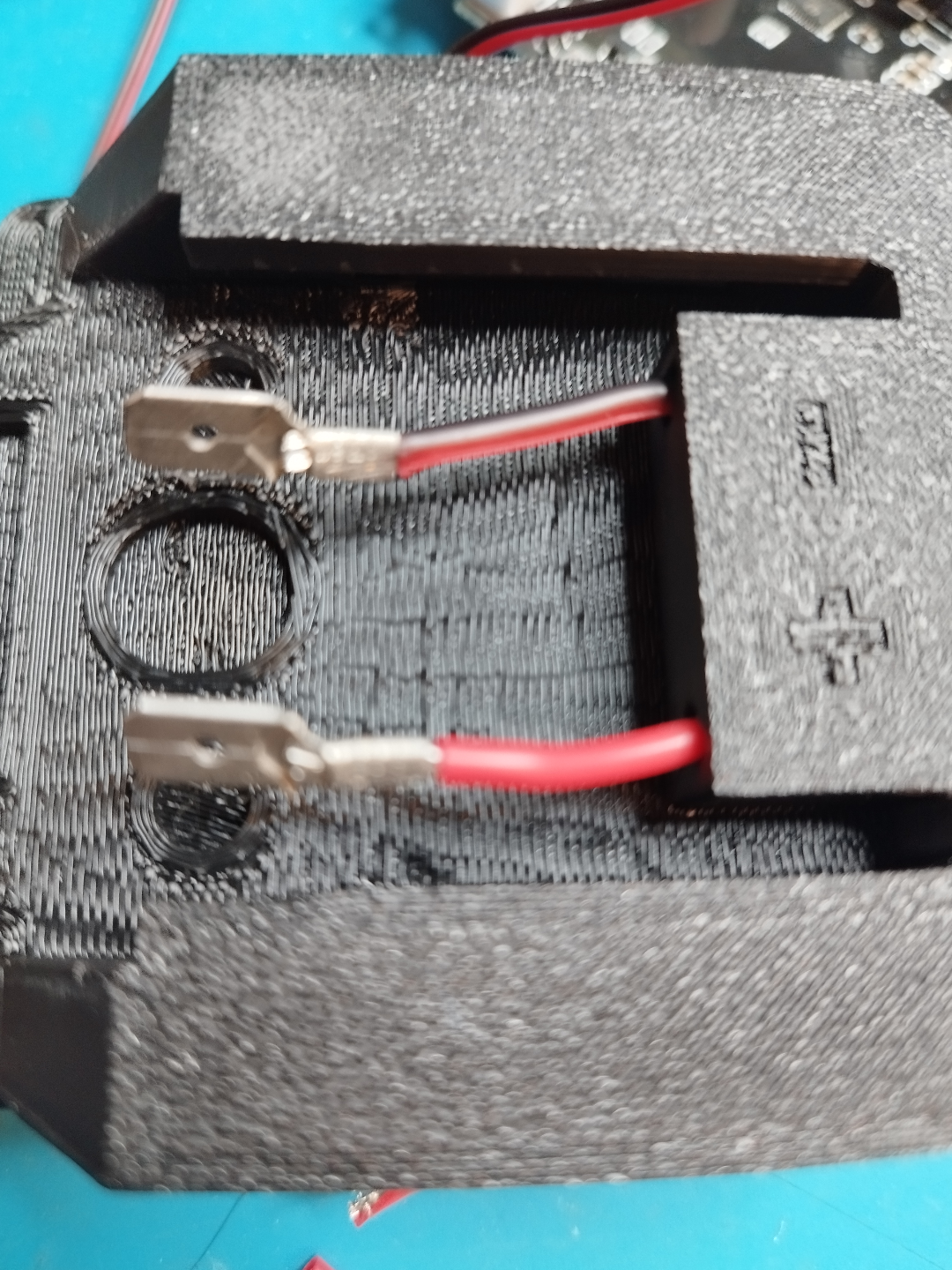

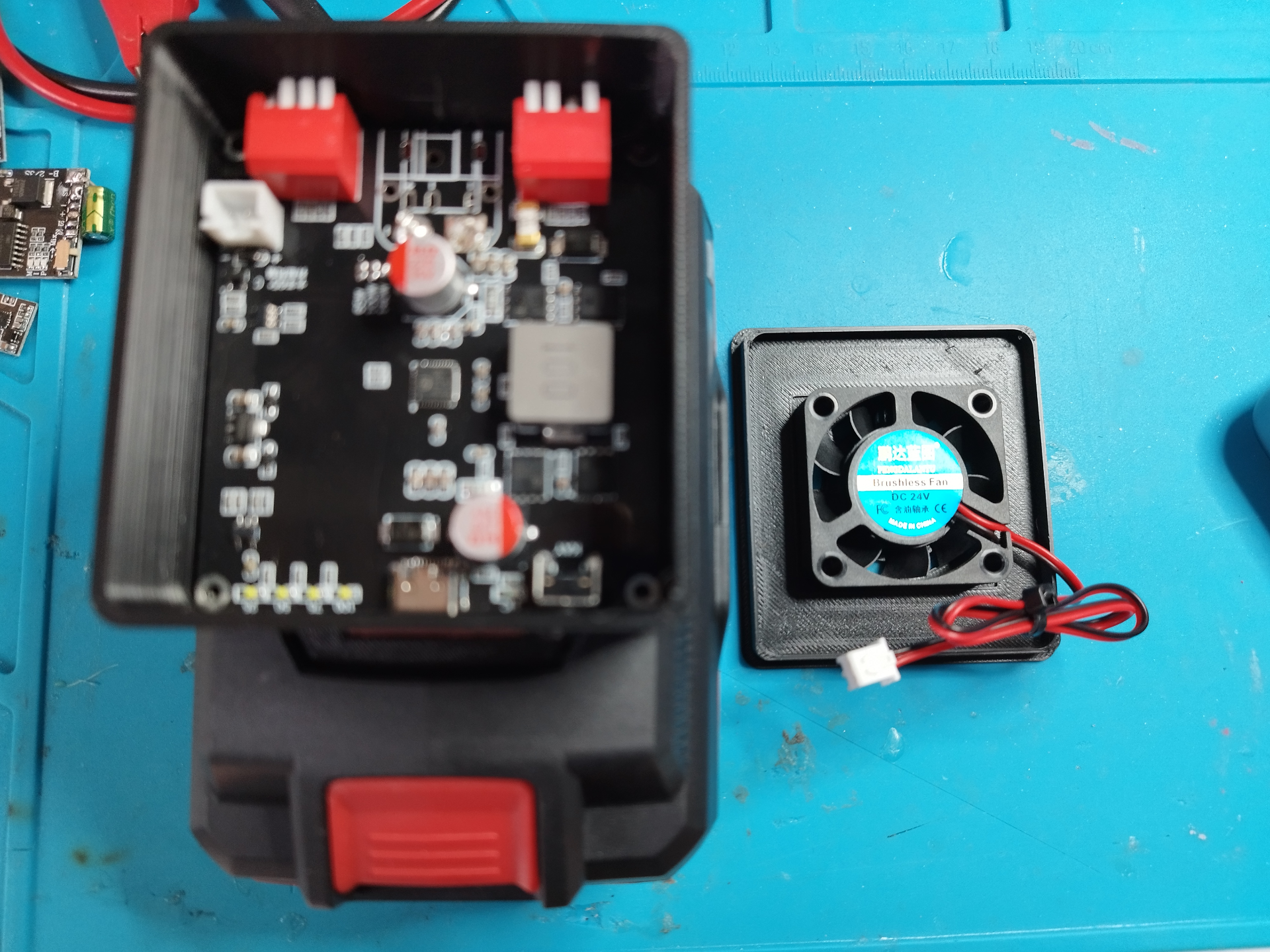

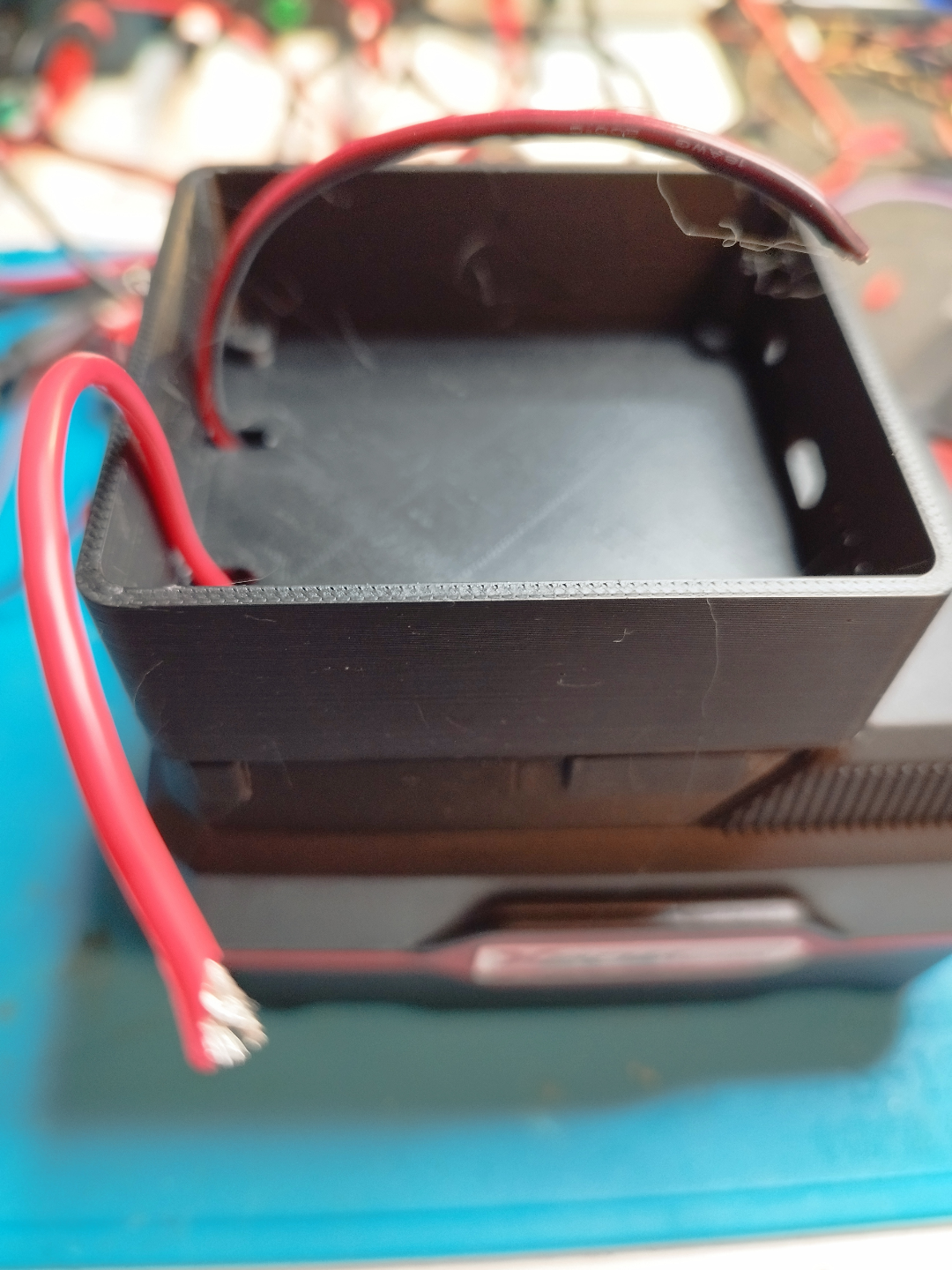

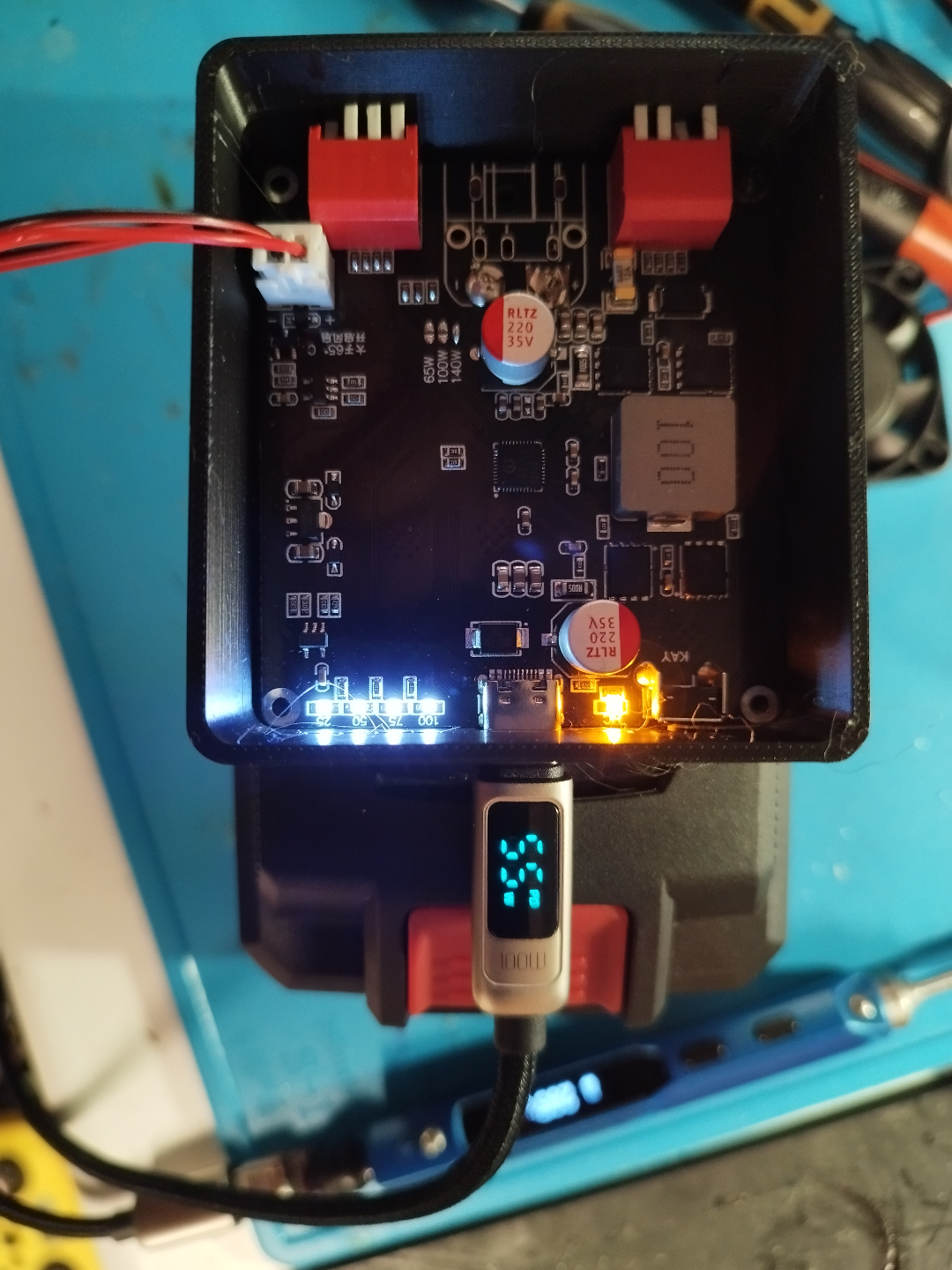

Print base and Lid from PETG, remove the support on the Base. Crimp two terminals to 5-10cm of wire. pull the wire from below the base through the holes and put the terminals into the slots below the base. They will contact the X20V poles later. Solder both wires to the IP2366 board (Check polarity!!!) Now put the IP2366 Board into the base and secure it with some glue or screws. Plug the Fan to the board and attach it to the Lid. Important: Set the two DIP Switches to 5S and 4.1V according to the description of the IP2366 board.

Thanks to https://www.thingiverse.com/thing:5897200 for the X20V adapter i adapted from.

Design by derFrickler on MakerWorld (license: BY).
