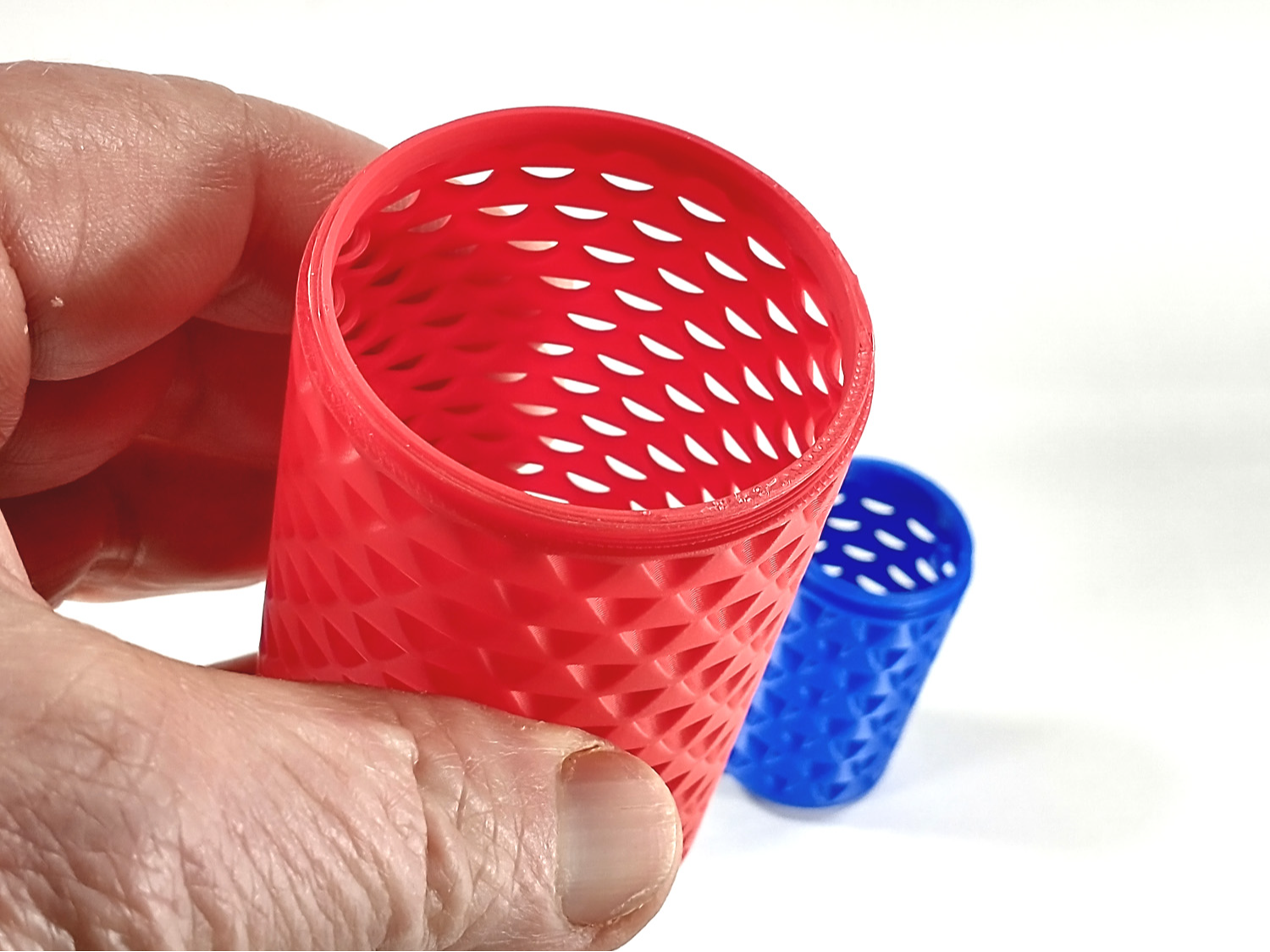

Most of the little containers for dessicant (or aromatics like potpourri) have interrupted walls that take forever to print, often result in stringing, and are also weak. With this perforation design, each layer prints as uninterrupted perimeter lines which print quickly and without drama, and the final product is quite strong.

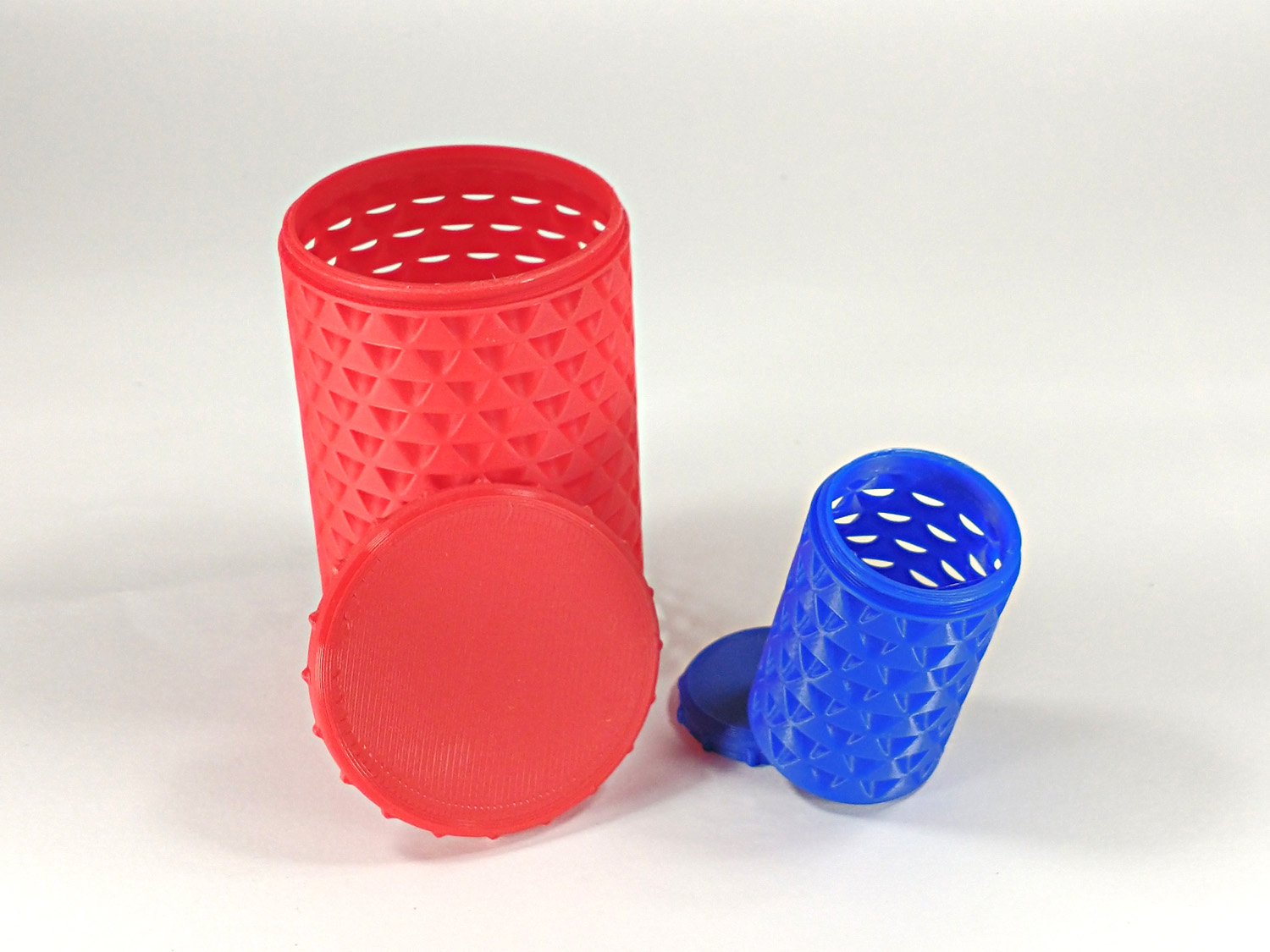

I've provided files for two sizes: a small one 30mm in diameter x 48mm tall, and a large one 50mm in diameter x 78mm tall. Each can be scaled somewhat up or down. Each also includes a screw-top lid.
Pro tip: the 3MF file I provided has the lid and the bottom of the bottle printed solid. To make these perforated too, just set the number of solid top and bottom layers to zero and then select the infill type and density to get the desired sized holes.
Design by LoboCNC on MakerWorld (license: BY-SA).
