PH-656Q Head for Velbon CX540 tripod

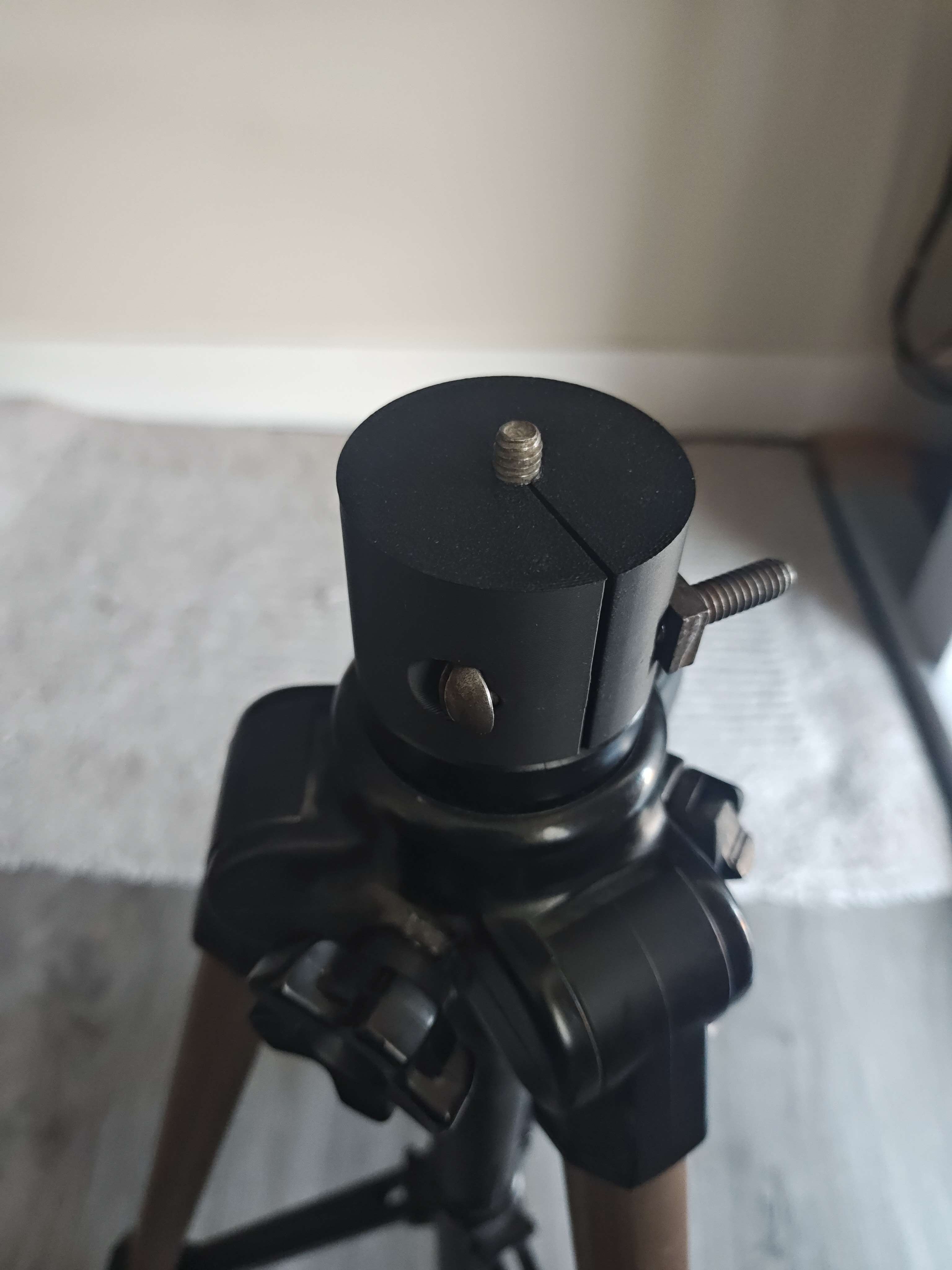

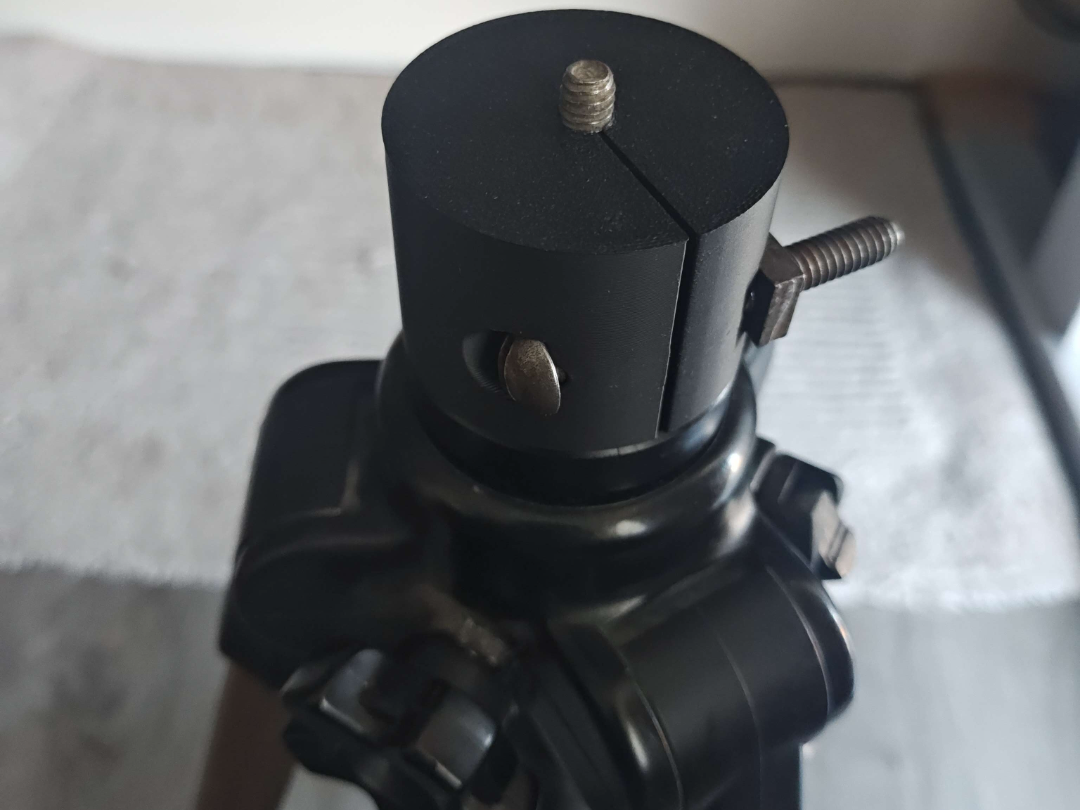

A custom flat ¼x20 mount for a Velbon CX540 tripod with PH-656Q head.
Allows 360 degree free movement about the column.

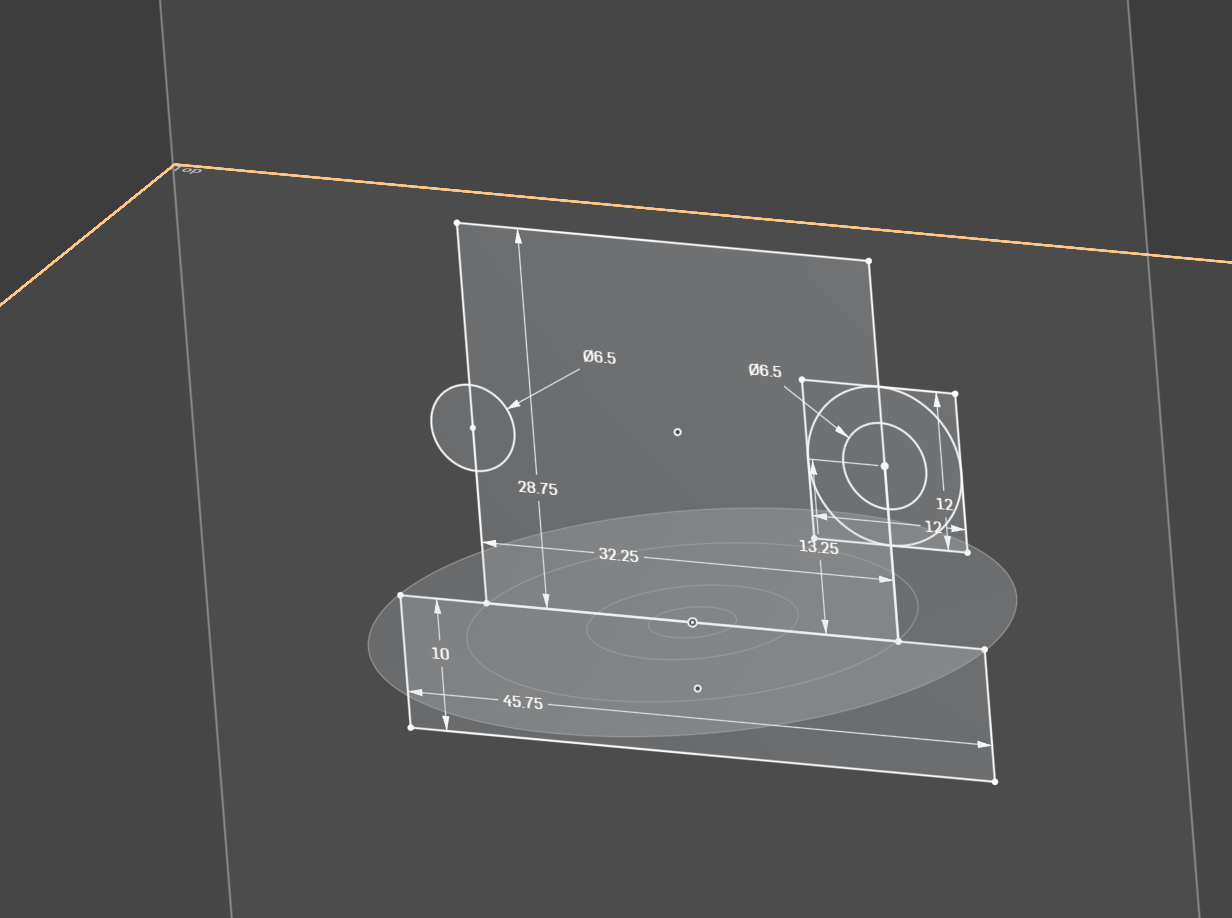

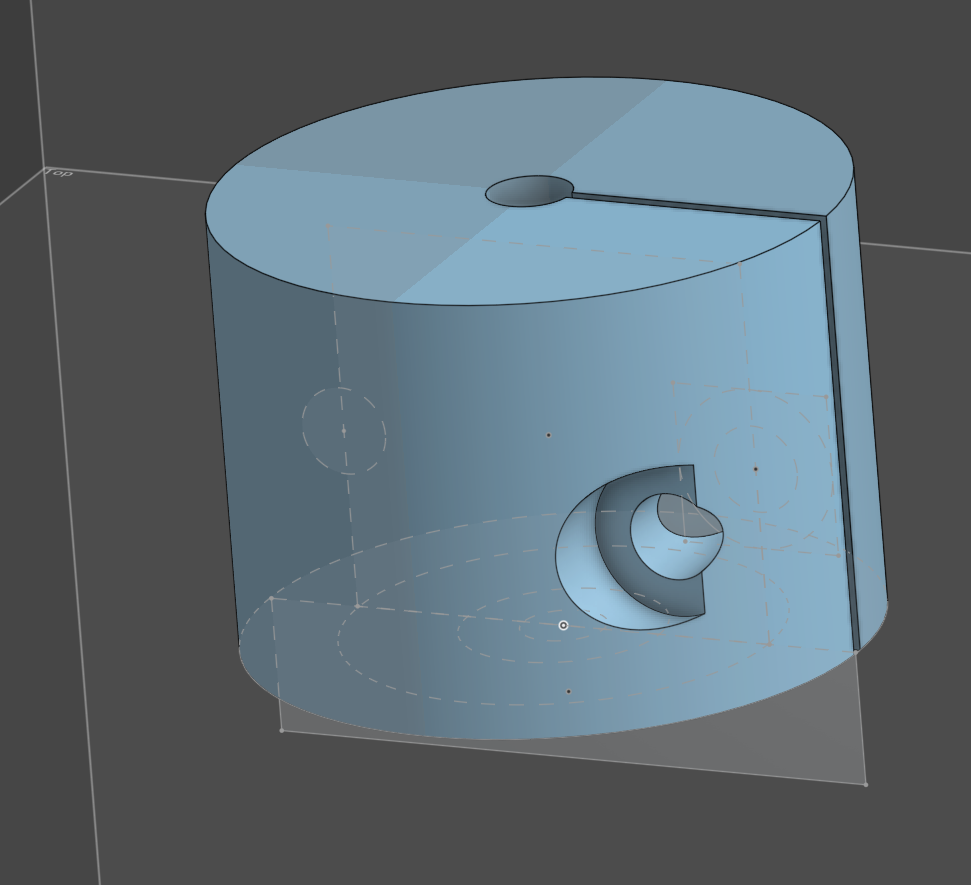

I left the tripod head dimensions in an image for others to confirm if their tripod also accepts this. (or see design: https://cad.onshape.com/documents/c9f1d632ebcee32de793558f/w/feed9f35d25be4be2e25dc8a/e/fa8514f61d654a1a66759c34)

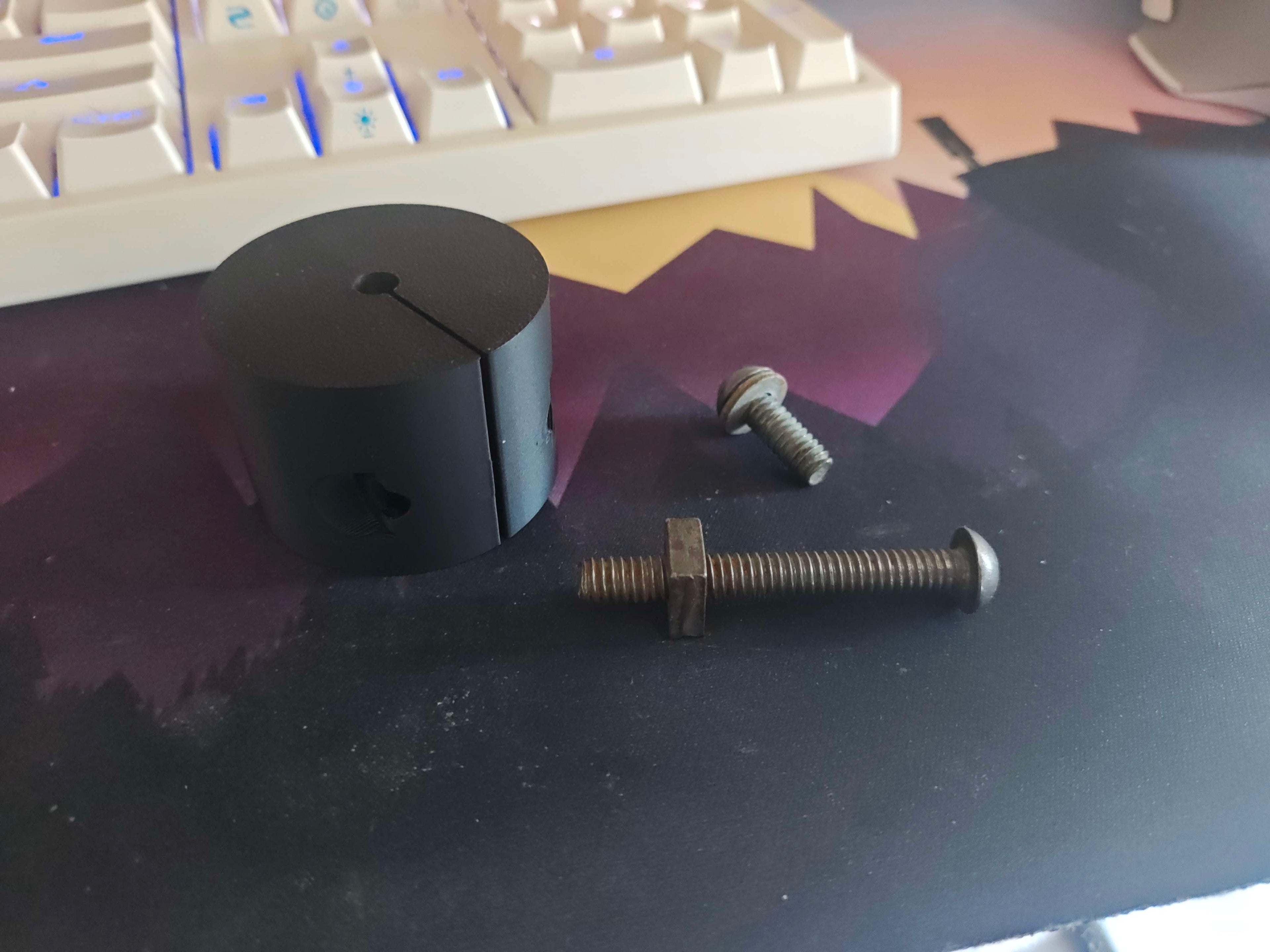

• Requires x1 1/4" 20tpi, 1/2" long screw for interfacing with camera mounts/laser levels/etc.
• Requires x1 1/4", 1-1/4"+ long screw and paired nut to clamp the body down and interface with the tripod's scallop.

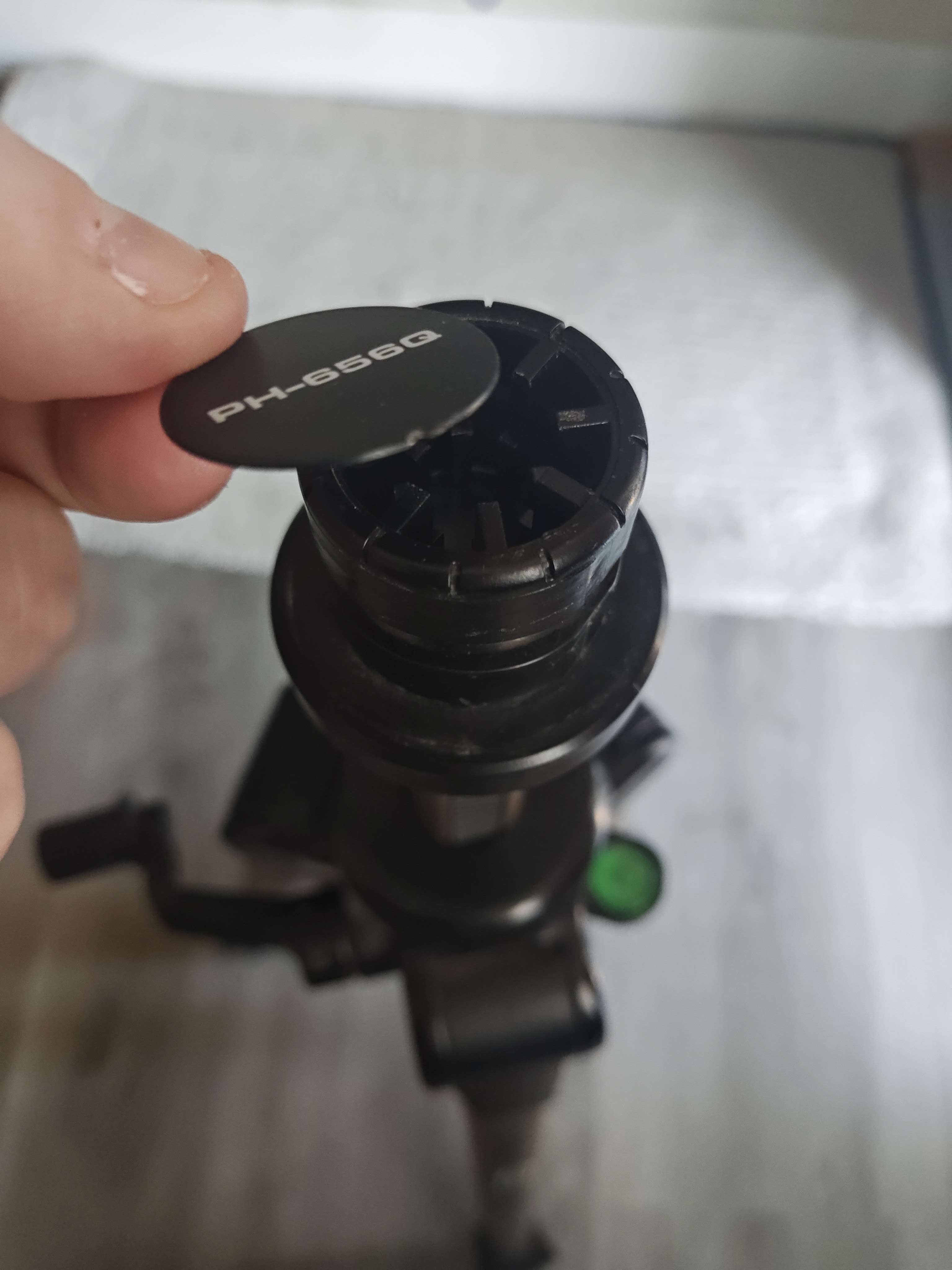

• Assembly requires removal of the “PH-656Q” sticker on the tripod's head.

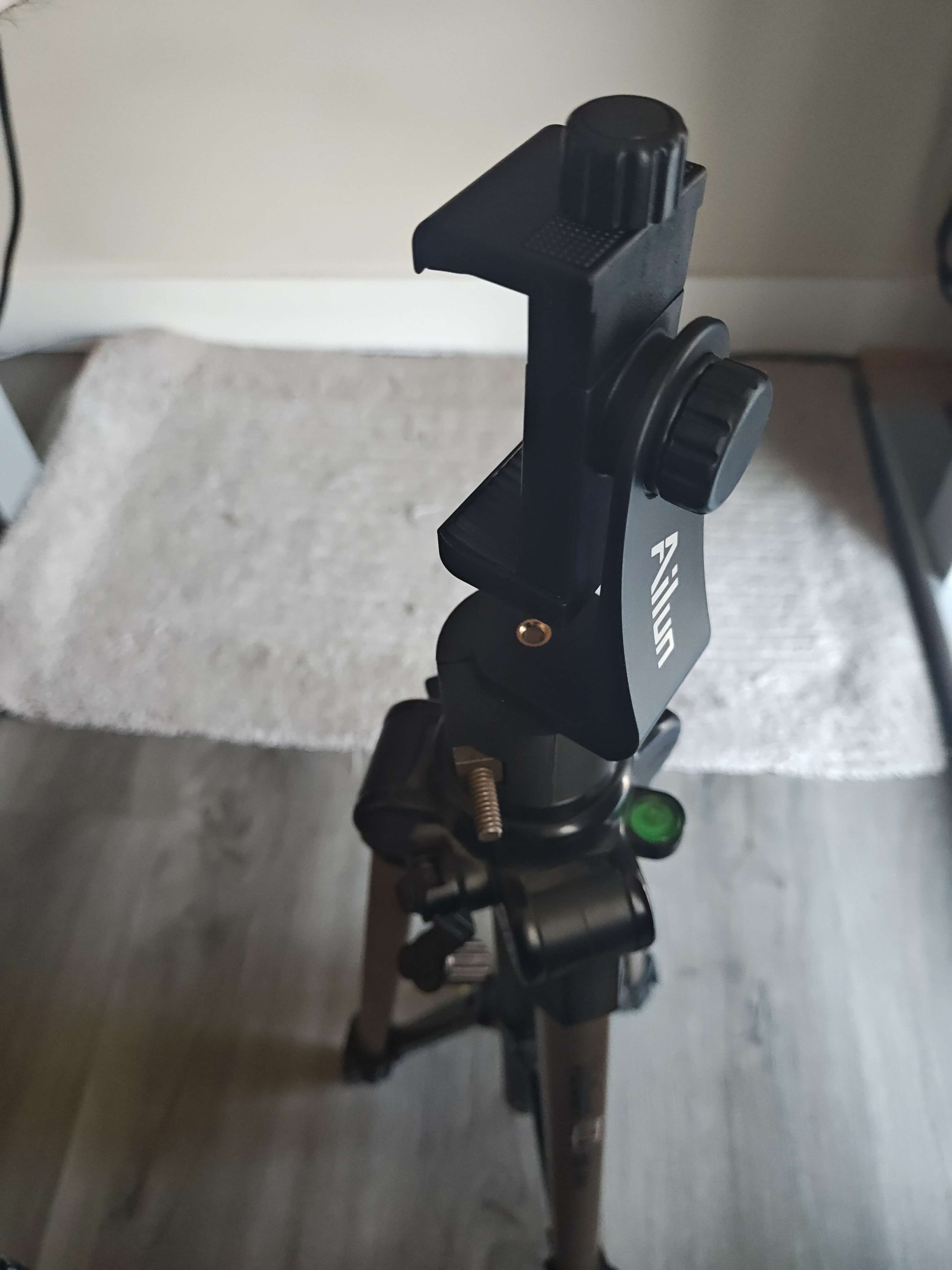

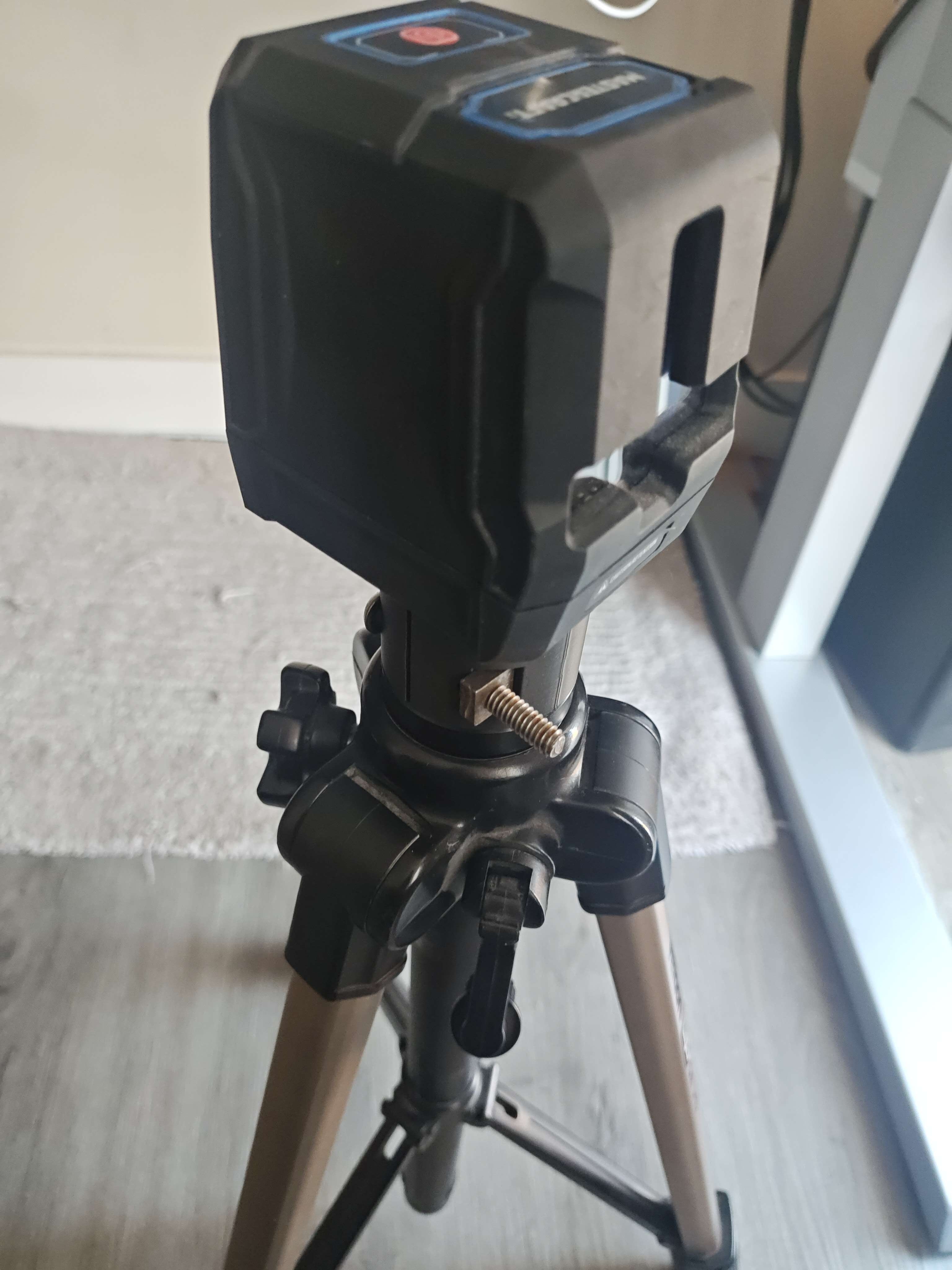

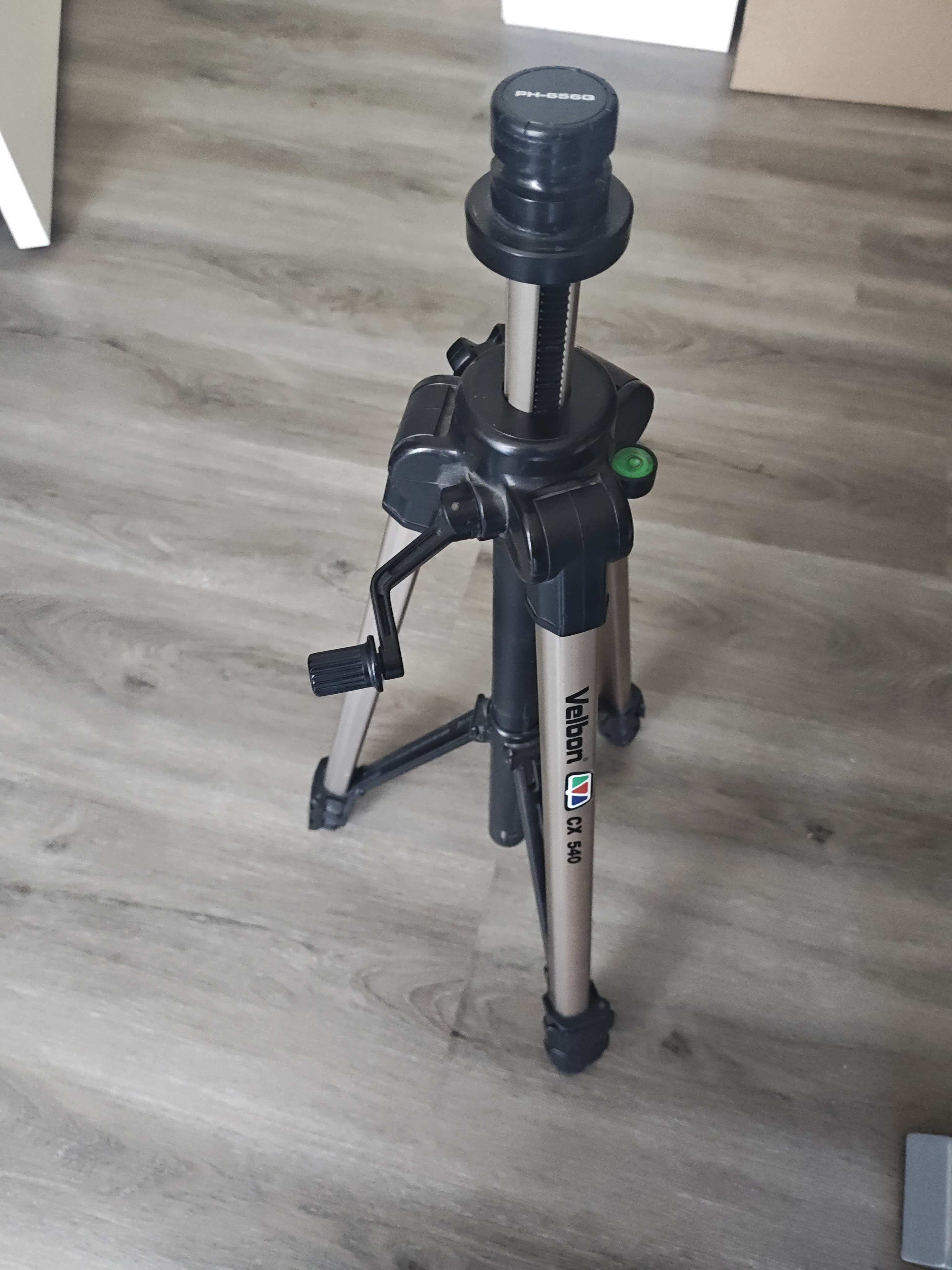

This was created because I found the tripod at a thrift store without the top swivel connecty bit and wanted to be able to use it for my laser level and holding my phone as a camera.

Design by MagikEh on MakerWorld (license: BY).
