Pi 5 Case Remix (tripod/camera)
Pi 5 Case Remix (tripod/camera)
- Made to order — 3D printed after you buy
- Free shipping on orders over $25
- Quality checked before it ships
- Questions? Contact us · Returns

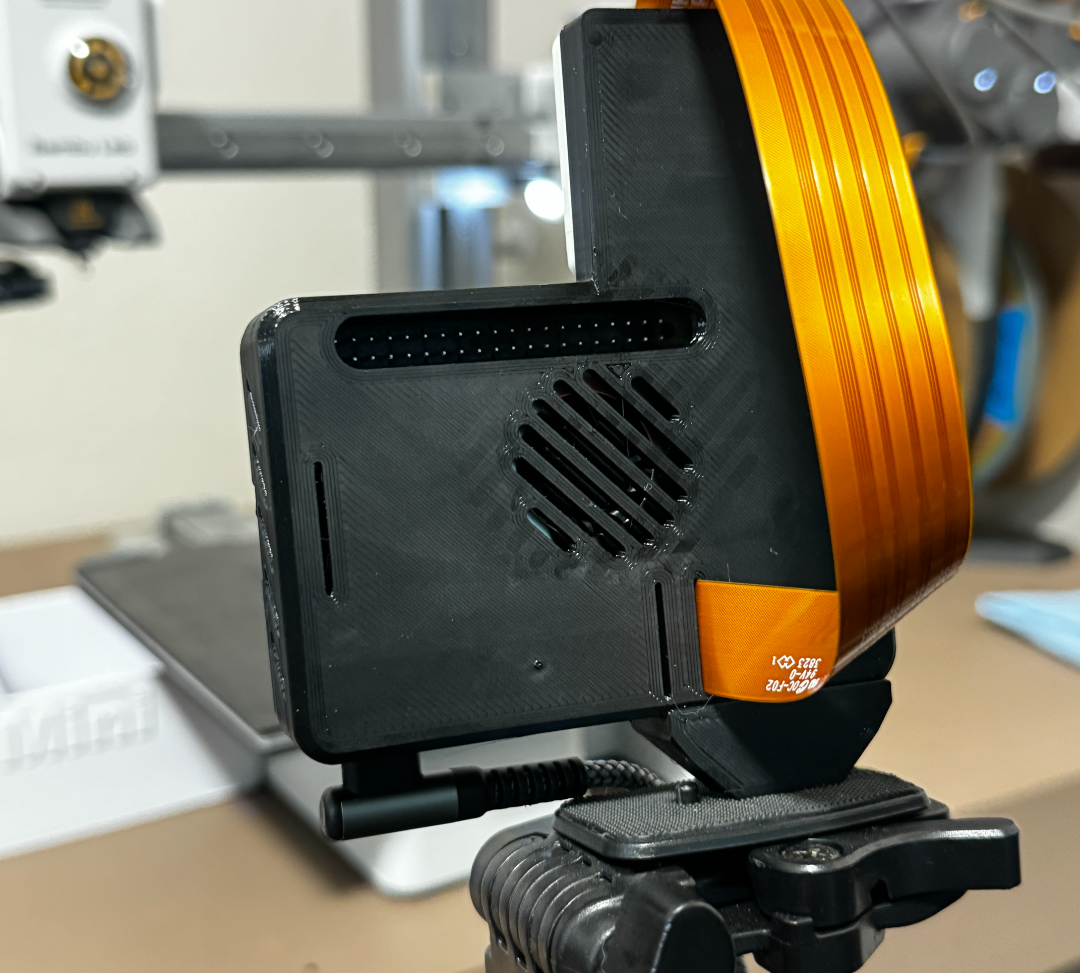

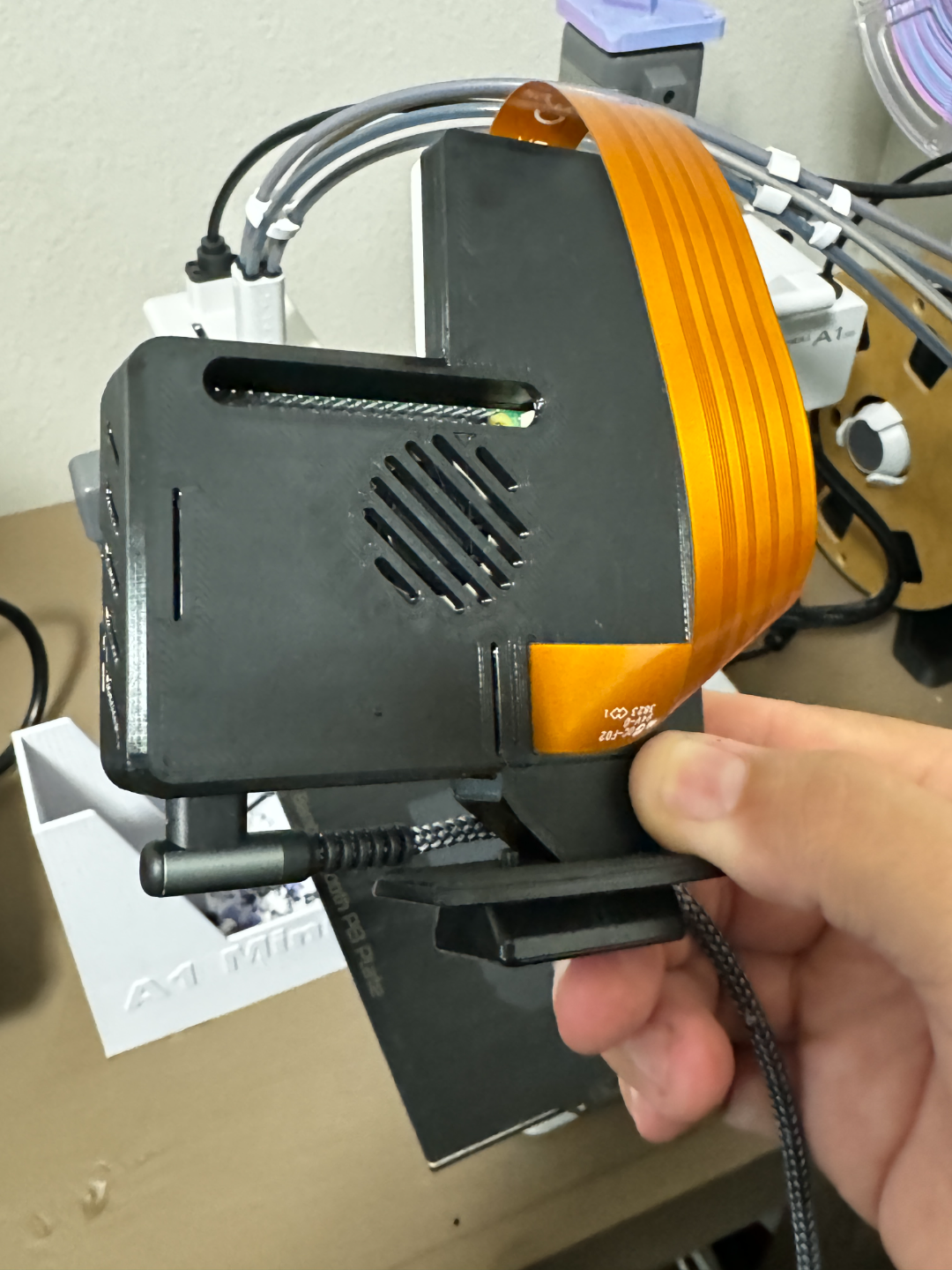

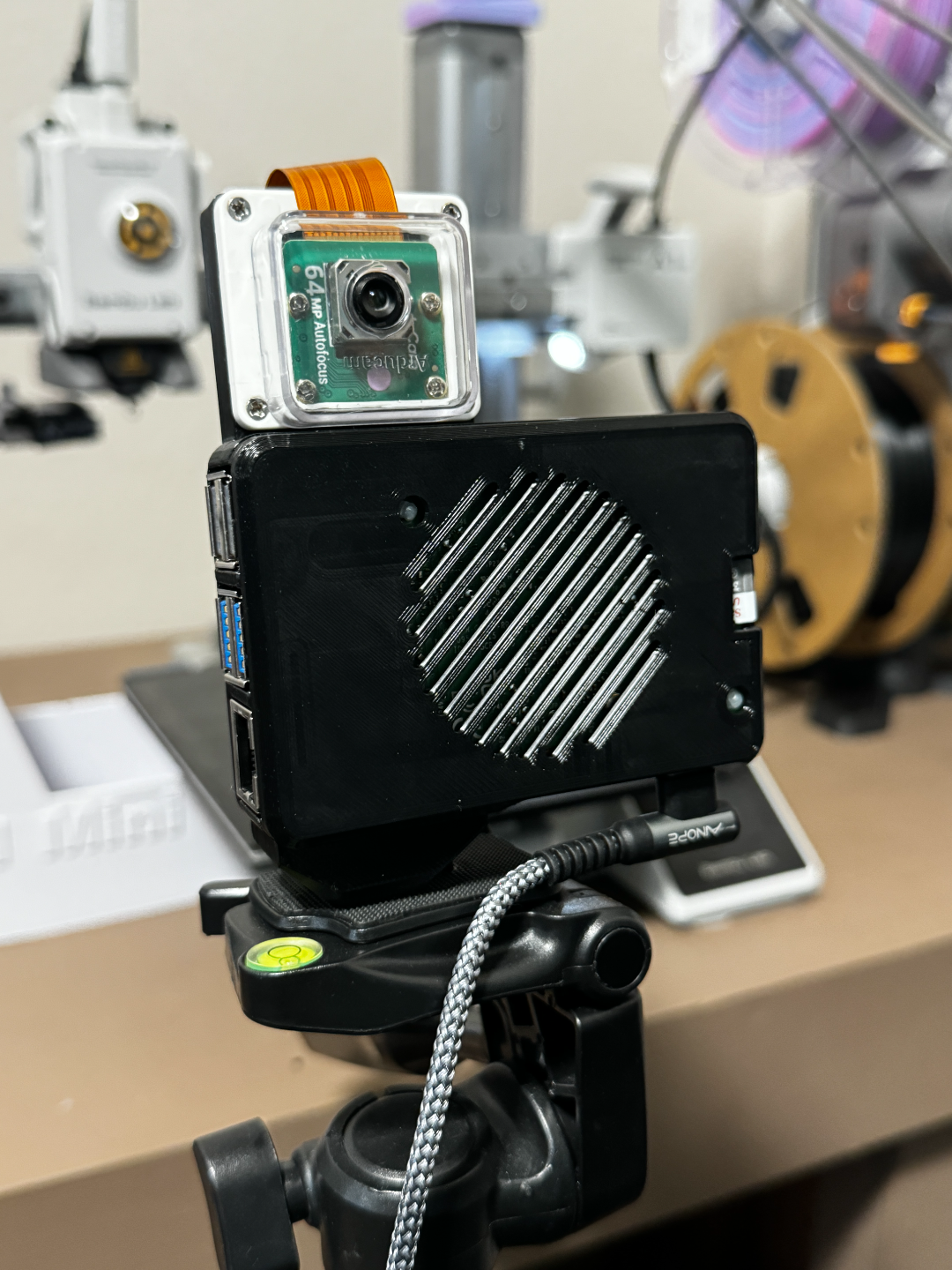

Recently received a Raspberry Pi 5 to use with octoeverywhere and needed a case that can be mounted to a tripod and hold my Arducam camera. I found the snap fit case by pyrho to be a perfect case and added the tripod mount part from DeJeR, and made a camera mount for the top.
If you don't need these components added to the case, please check out the original designers pyrho and DeJeR.
I printed this very slow in PETG and total time is just under 2.5 hours. According to pyrho the case can be printed in PLA but with the amount of heat I didn't want to risk it. Printed with Overture Black PETG, 260/80, 0.4 hardened steel, max 40% fan speed, and max volumetric flow of 9.
Parts used:
Raspberry Pi 5 with active fan heatsink
200mm Pi 5 CSI Camera cable
Arducam 64mp Hawkeye camera kit
4 - M2x5 Screws
Design by joescalon on MakerWorld (license: BY).
