A simple model that tests how varying clearance/tolerance sizes can impact joint holes in your models.

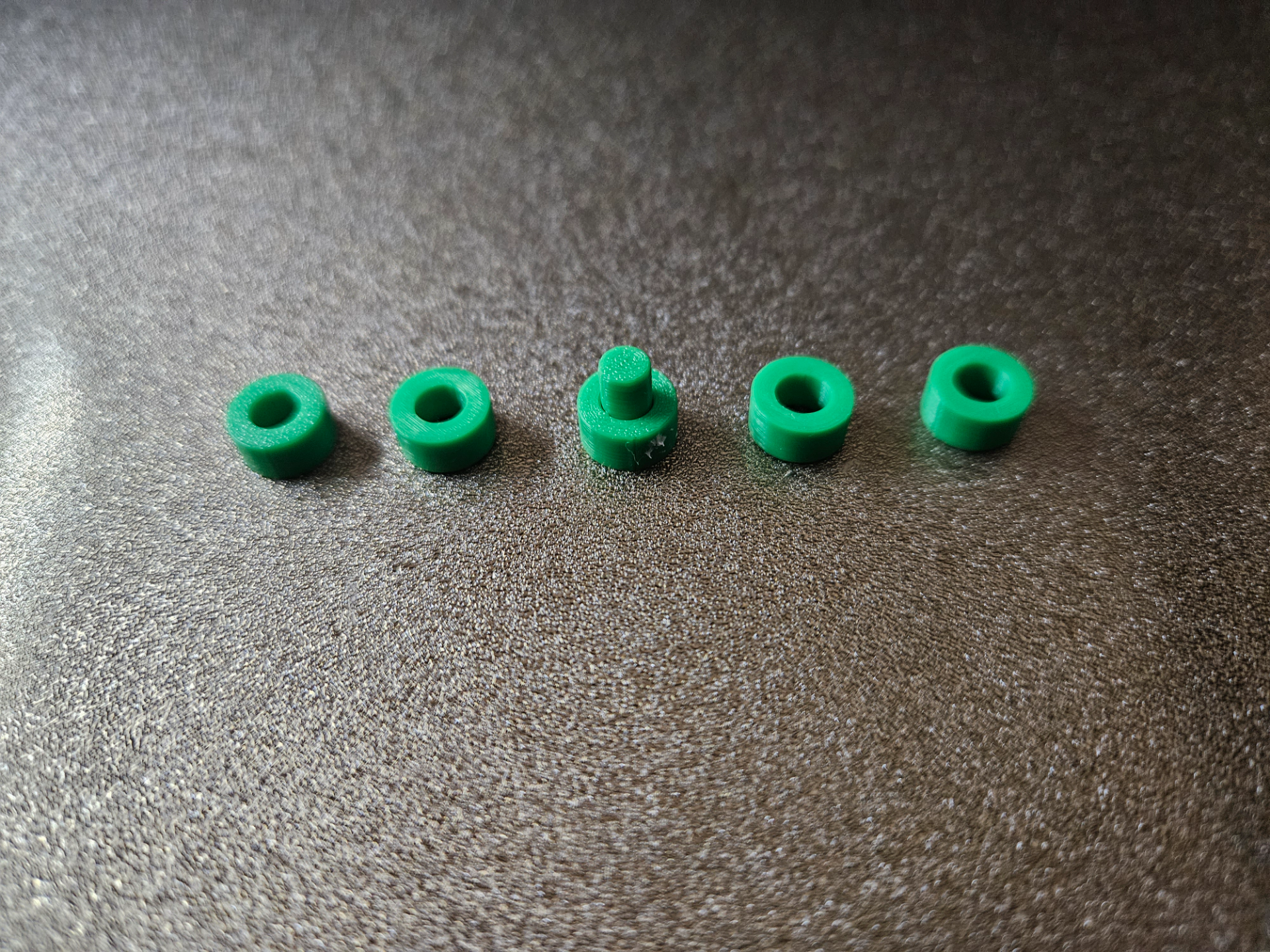

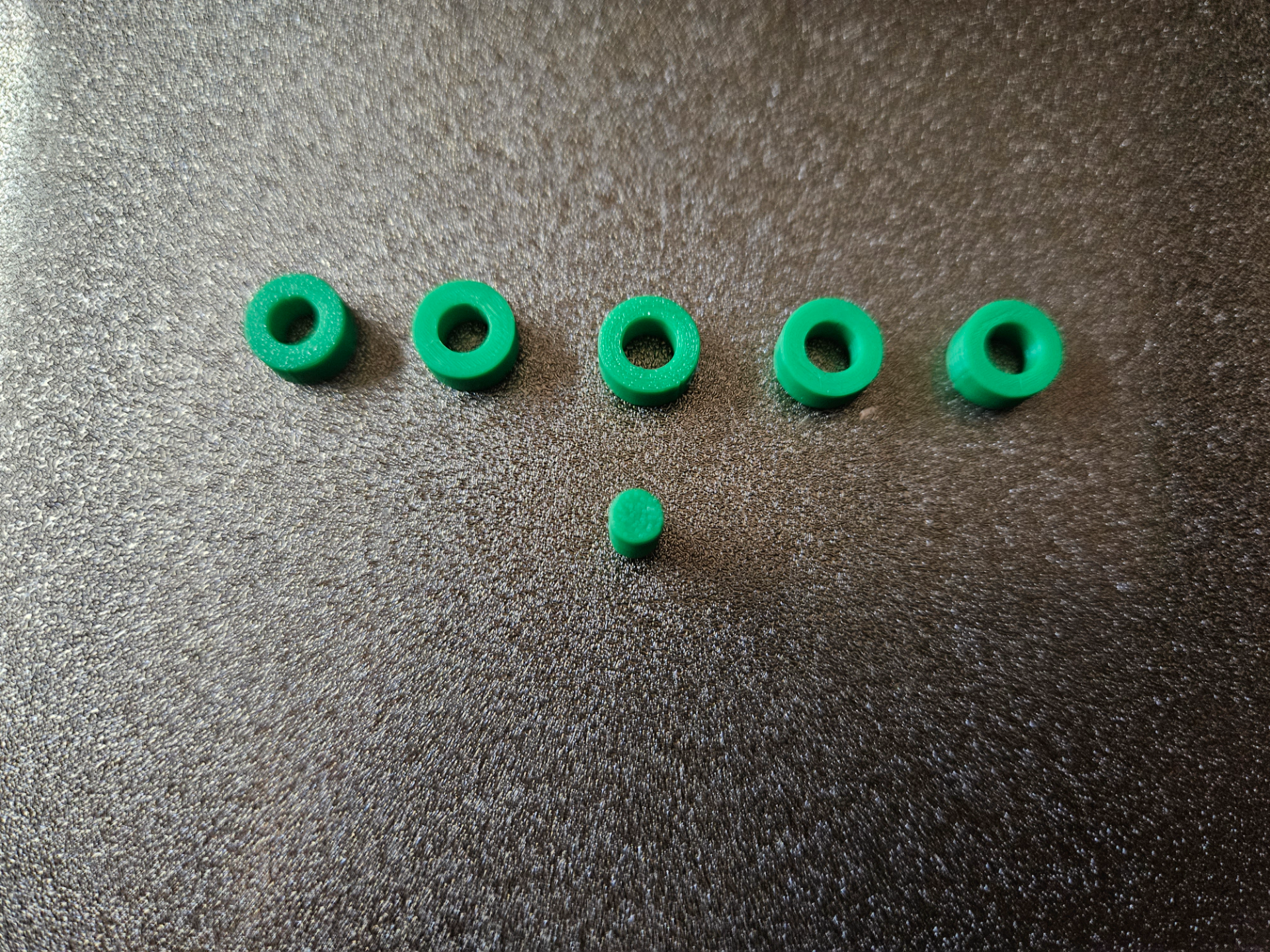

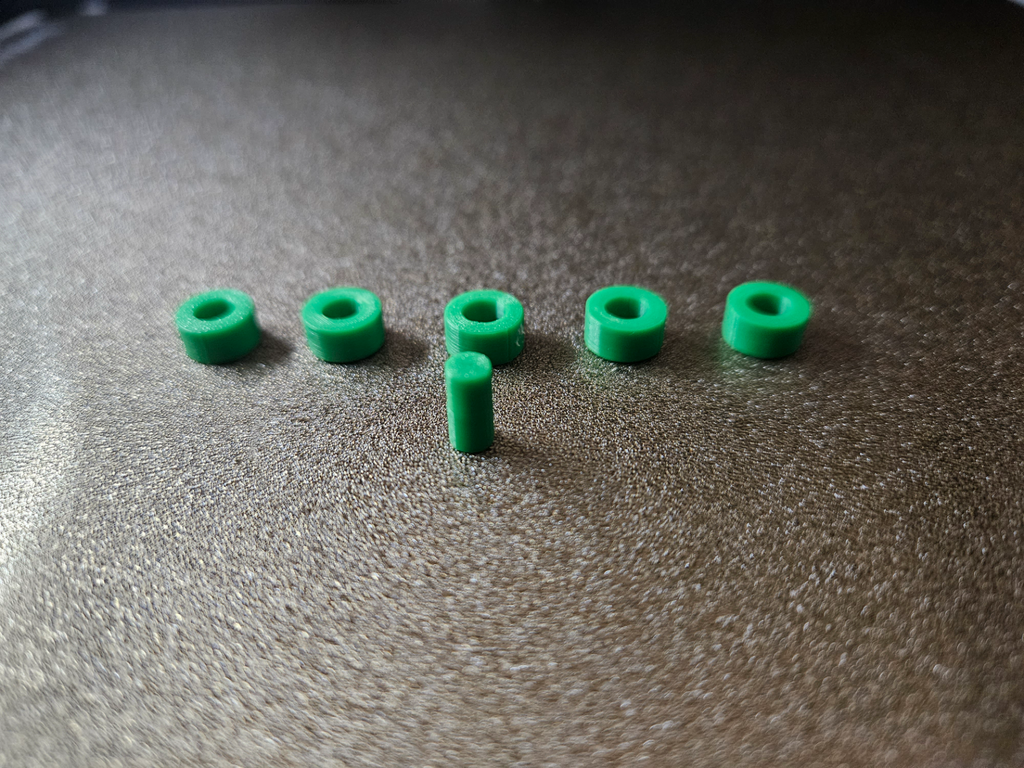

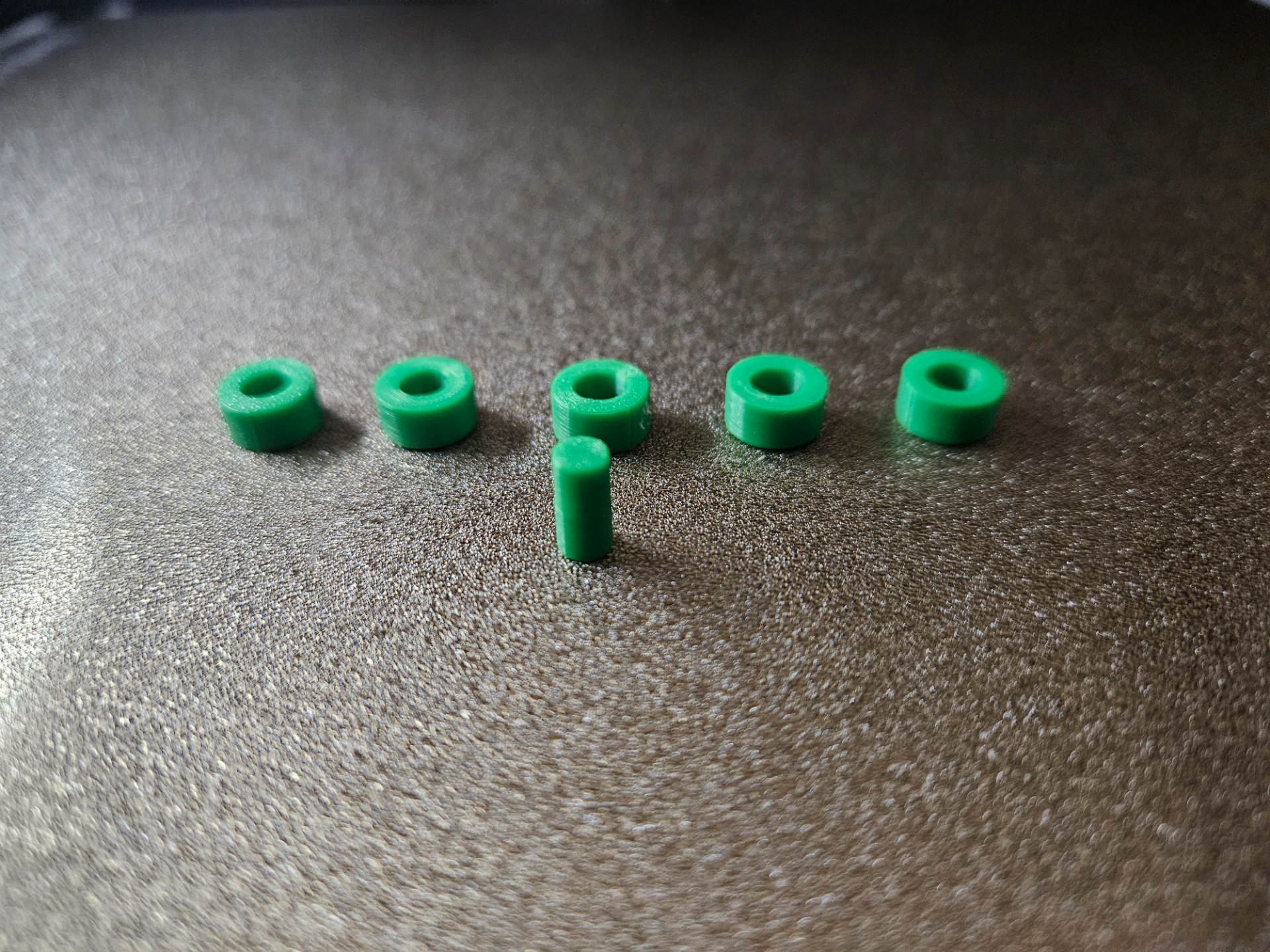

Print the model and use the provided 4.0 mm pin to compare its fit into 4.0 mm, 4.1 mm, 4.2 mm, 4.3 mm, and 4.4 mm holes.



This model should print correctly on all nozzle sizes, the included print profile is a 0.2 nozzle with all default settings.

Design by Jaffa Cakes on MakerWorld (license: BY-SA).
