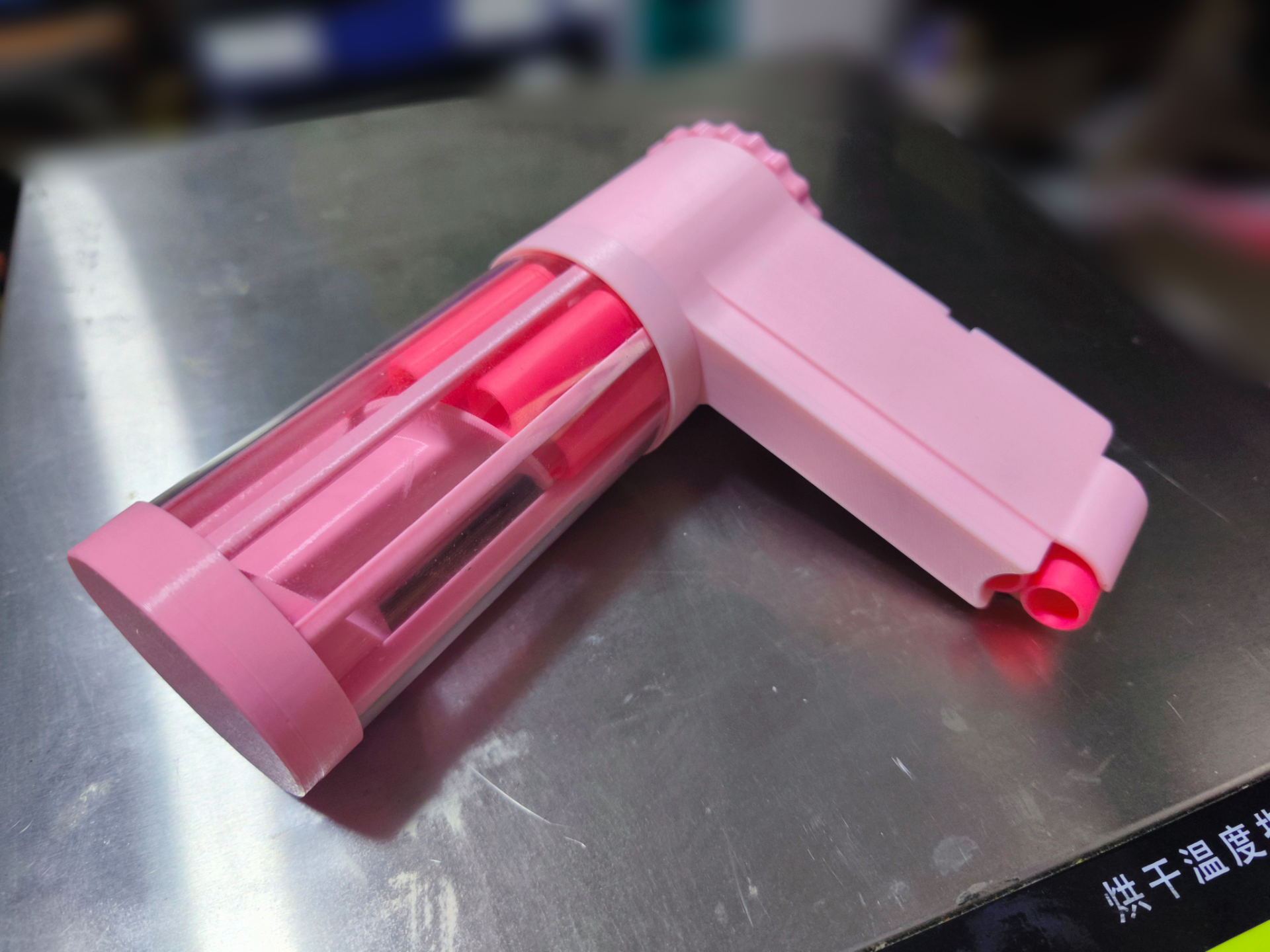

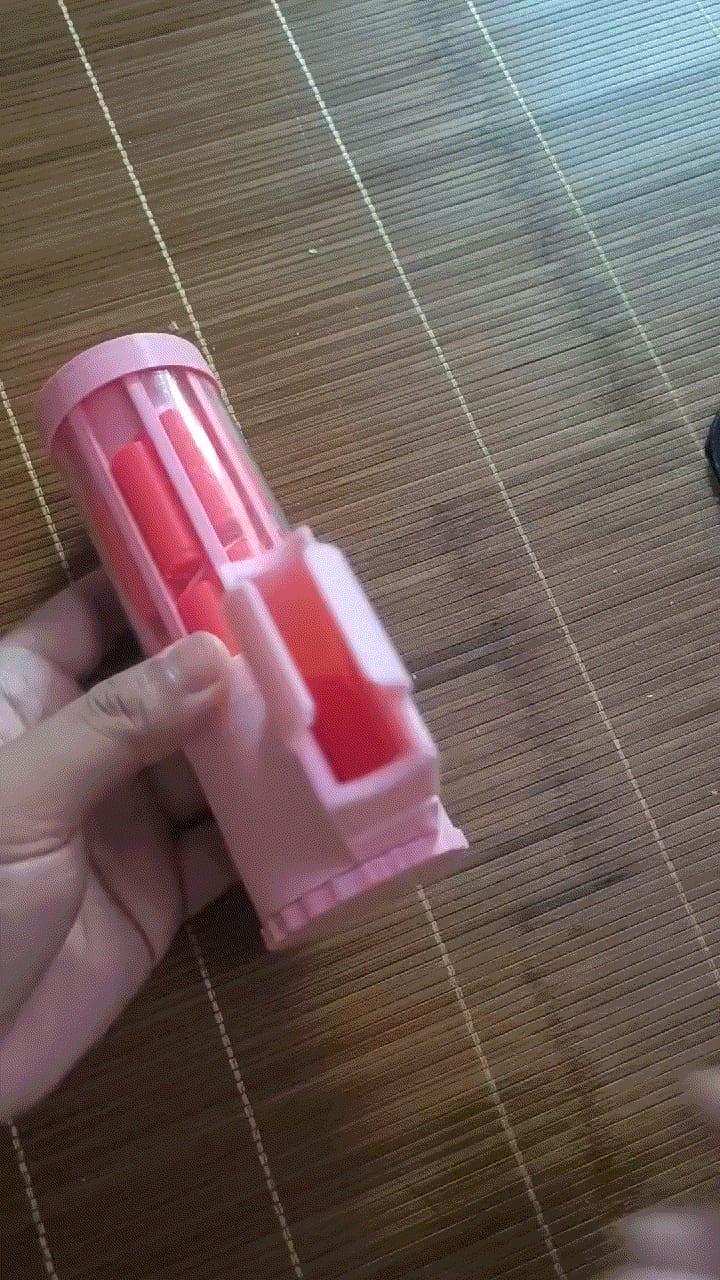

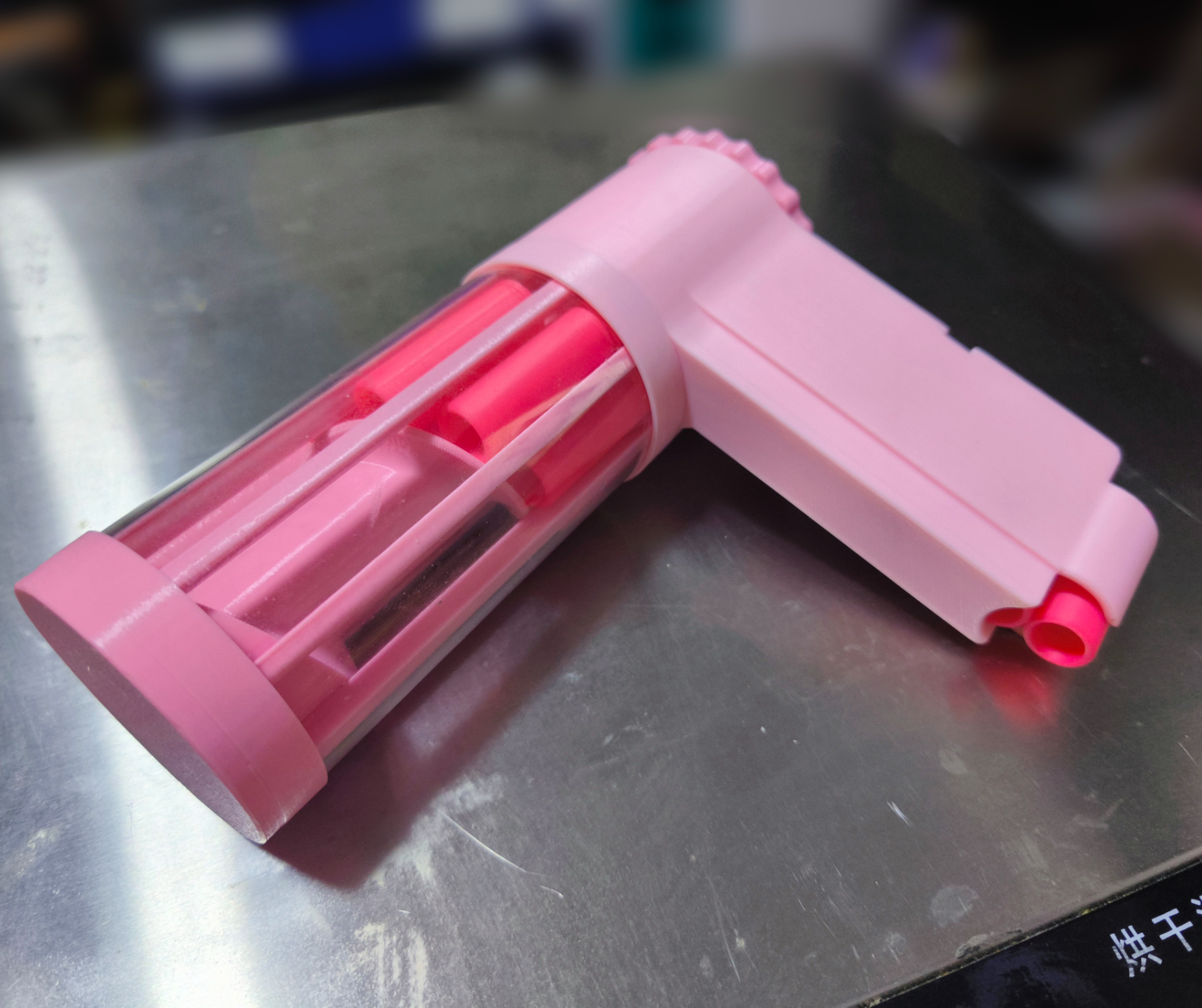

A basic mechanism model of the PP19 Bizon helical mag，but for nerf short dart size
the model is just a example of the mechanism，it can't feed foam dart properly since they are not rigid enough
Although， it can be remodeled for those blaster designed to have shell ejecting feature，such as KIRIN
I open this model's step file for anyone interested in this mechanism and to do further develop
it need no hardware except the optional clear tube，the same size for the YEHW blaster
这是一个展示pp19弹匣原理的毛坯模型
虽然是适配软弹的尺寸，但是因为海绵很软，目前这个模型并不能真的直接作为可用的供弹具
但是经过验证对于抛壳类的玩具使用的带壳弹药，这个结构可以流畅供弹，可以基于此模型修改出可用成品
例如黄蜂塑料虫，麒麟等抛壳玩具
我本次开源了这个模型的step格式文件，可以进行编辑，有兴趣的朋友可以进一步修改和开发成可用成品
本次模型采用CC-BY开源协议，只需署名即可任意使用，修改并重新发布此模型，包括商用
模型本身不需要五金，其中透明管为50/47长100的PC管，可打印代替
Design by 疯狂的问号493 on MakerWorld (license: BY).
