PTFE Tube Cutting Guide [X2D/P2S/H2/X1/P1]

PTFE Tube Cutting Guide

A simple, clean, and support-free tool for cutting PTFE (Teflon) tubes to consistent lengths.

✨ Features
🔧 No supports required
🖨 Easy to print
📏 Consistent, repeatable cuts
🔄 Simple circular cutting workflow

📦 Overview

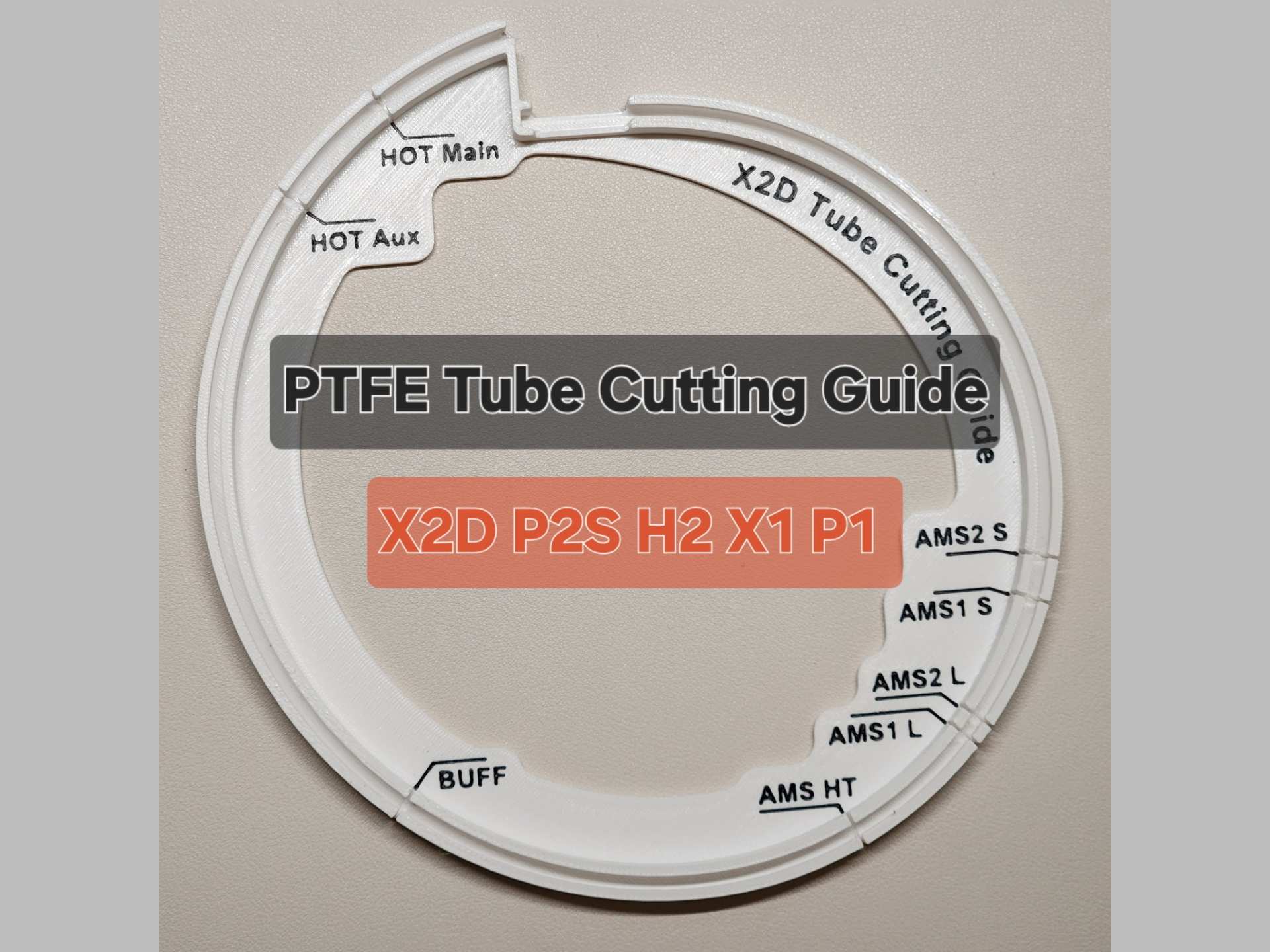

Designed as a circular guide, this tool allows you to route a PTFE tube around the track and cut it precisely at predefined positions.

🔧 How to Use

1. Insert the PTFE tube into the outer entry hole.
2. Route the tube along the circular path until it reaches the end.
3. At the desired marking (indicated by the labels), insert a blade and cut the tube.
4. After cutting, pull the tube out through the opposite hole. Done!

🧩 Versions

• X2D (tested)
• P2S (same spec as X2D, expected to be compatible)
• H2 Series (H2S / H2D / H2C — not tested yet)
• X1 & P1 Series (not tested yet)

⚠ Notes

• Only the X2D version has been physically tested.
• P2S appears to share the same dimensions as X2D, so compatibility is likely.
• H2 and X1/P1 versions require verification.

💡 Summary
A minimal, reliable PTFE tube cutting guide designed for ease of use and consistent results—no supports, no complexity, just clean cuts.

Design by Gamma on MakerWorld (license: BY-SA).
