Raspberry Pi 5 Case for Freenove M.2 NVMe Adapter & Active Cooler

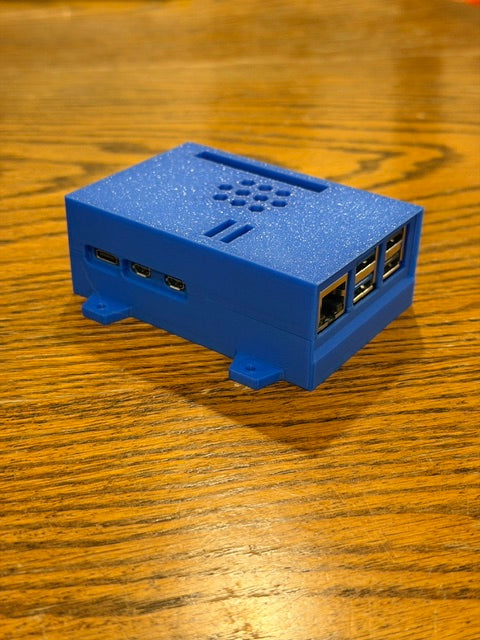

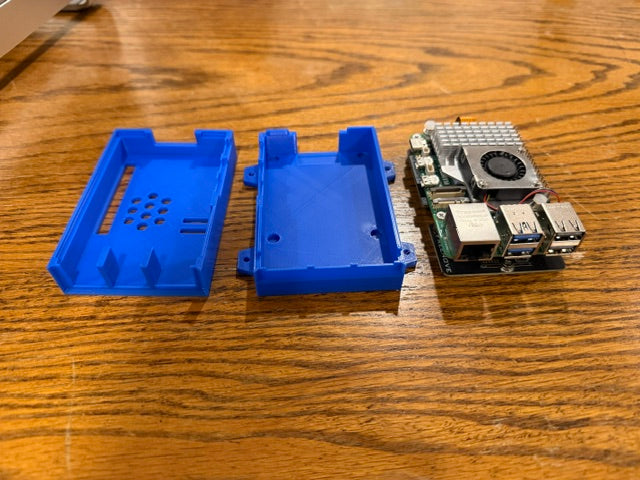

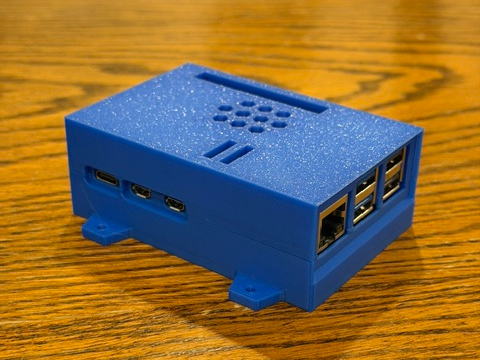

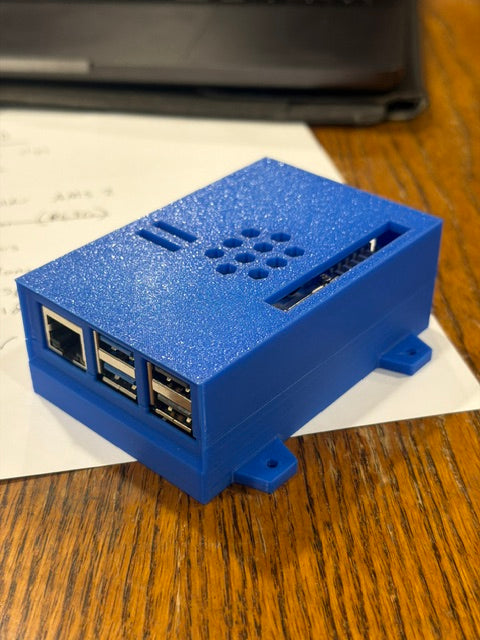

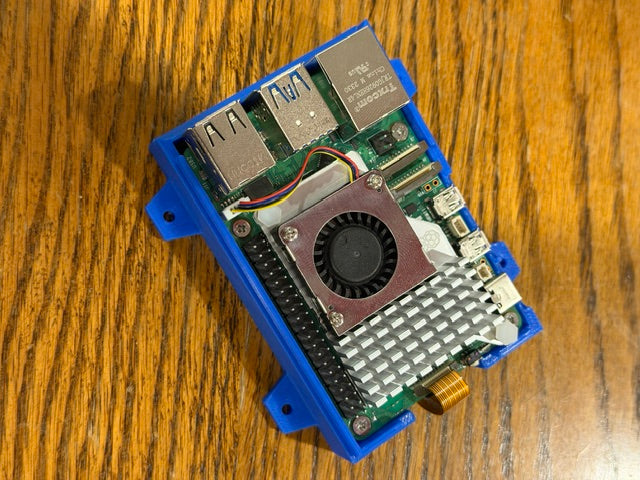

This is a simple Version 1 enclosure for the Raspberry Pi 5 using the Freenove M.2 NVMe adapter and the Raspberry Pi Active Cooler.

The primary goal of this design was to create a functional housing that accommodates both the NVMe expansion board and active cooling solution while maintaining access to the Pi's ports and connectors. It has been working well for my setup, but there is definitely room for improvement.

I've included the original design files so others can modify, improve, and adapt the case to their own needs. Consider this an open starting point rather than a finished product. If you make improvements, I'd love to see what you come up with.

Features

• Raspberry Pi 5 compatible
• Supports the Freenove M.2 NVMe adapter
• Designed for use with the Raspberry Pi Active Cooler
• Open access to ports and GPIO
• Ventilated design for airflow
• Easy to customize and remix

Included Files

• Ready-to-print STL files
• Editable source files for customization and future revisions

Notes

• This is Version 1 of the design.
• Designed and tested with my hardware configuration.
• Compatibility with other NVMe adapters, coolers, or SSD configurations is not guaranteed.
• Feedback and remixes are welcome.

Design by Agent of 3D on MakerWorld (license: BY-SA).
