raspberry pi laptop v2 edited

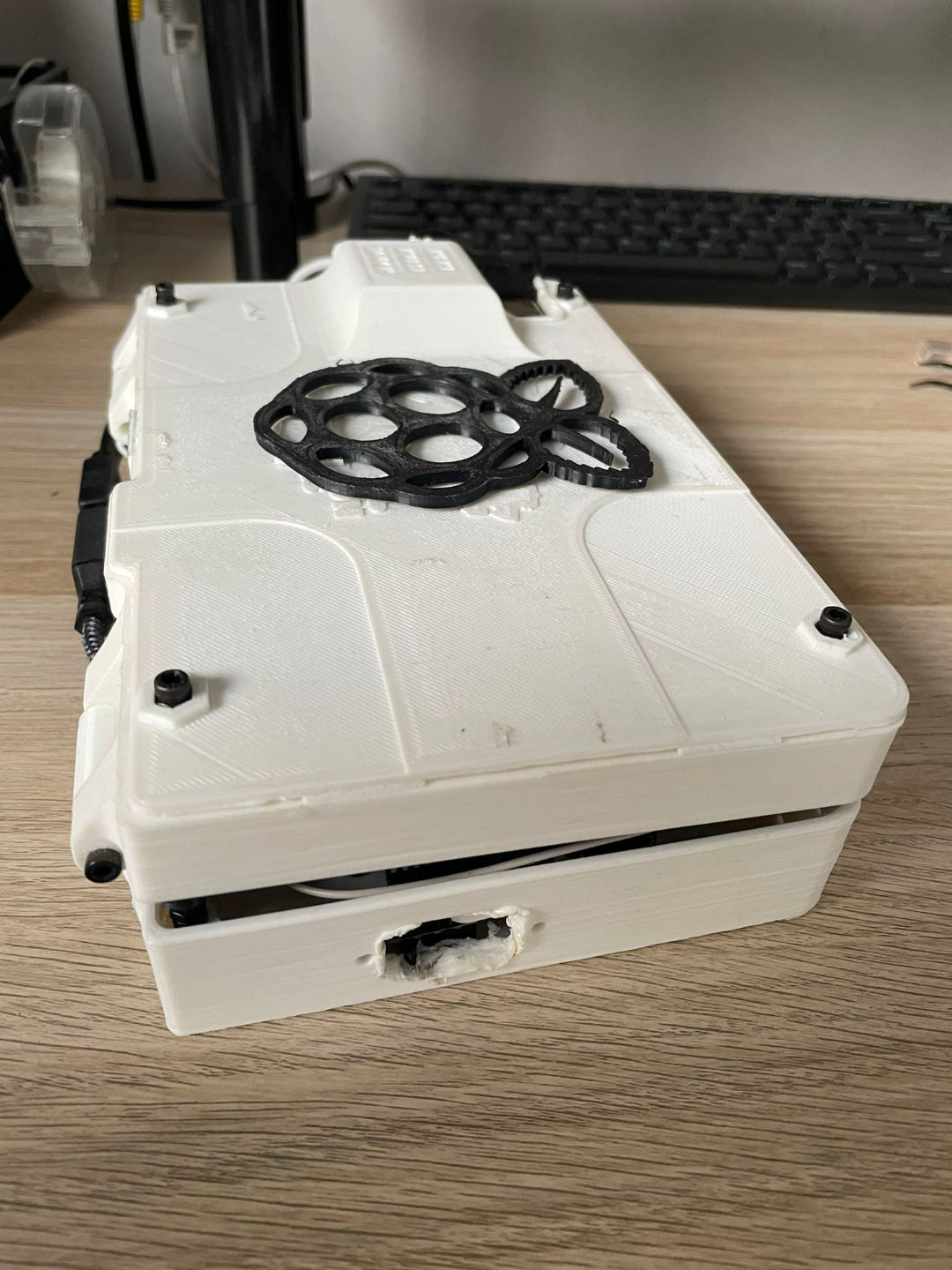

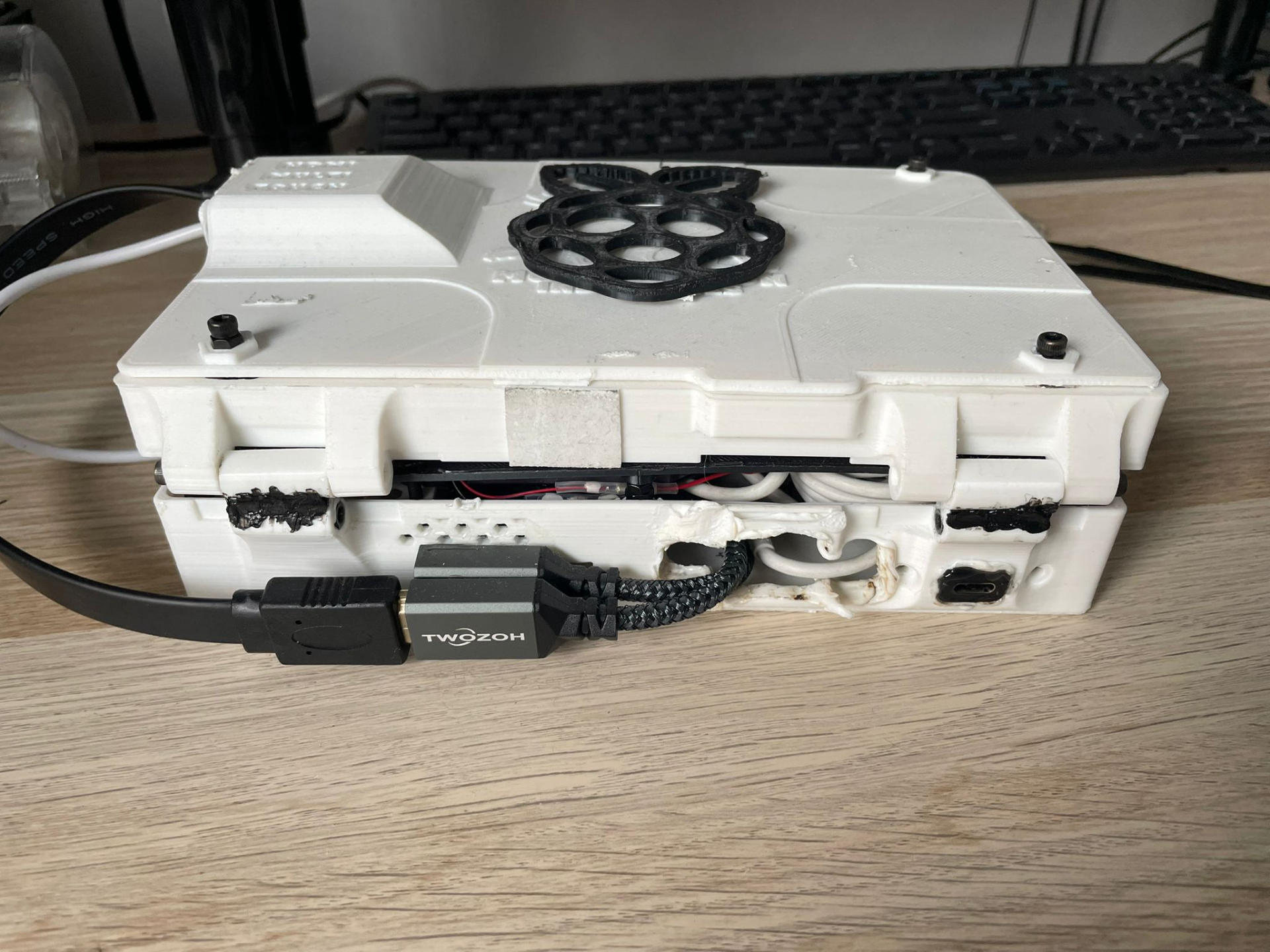

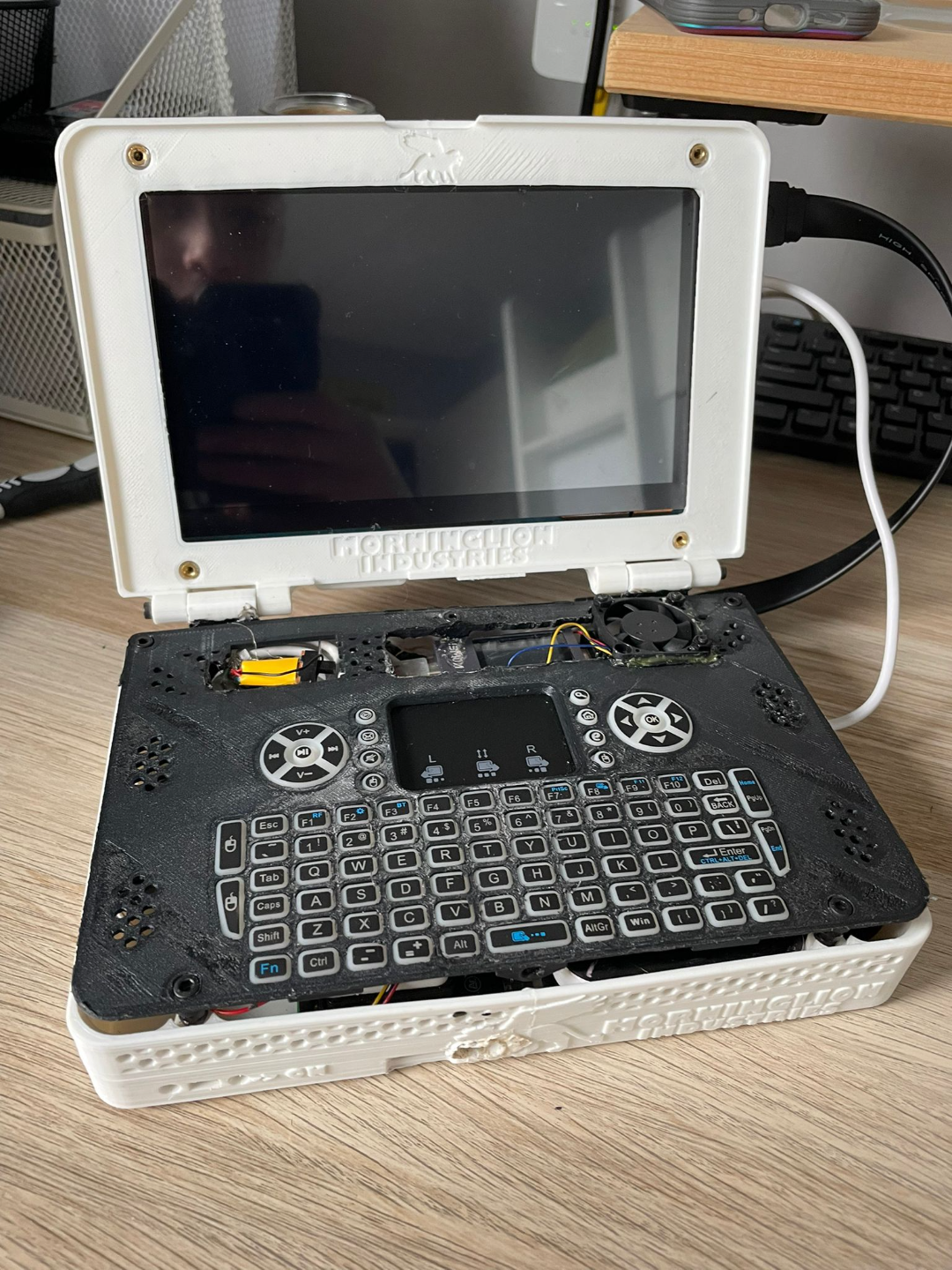

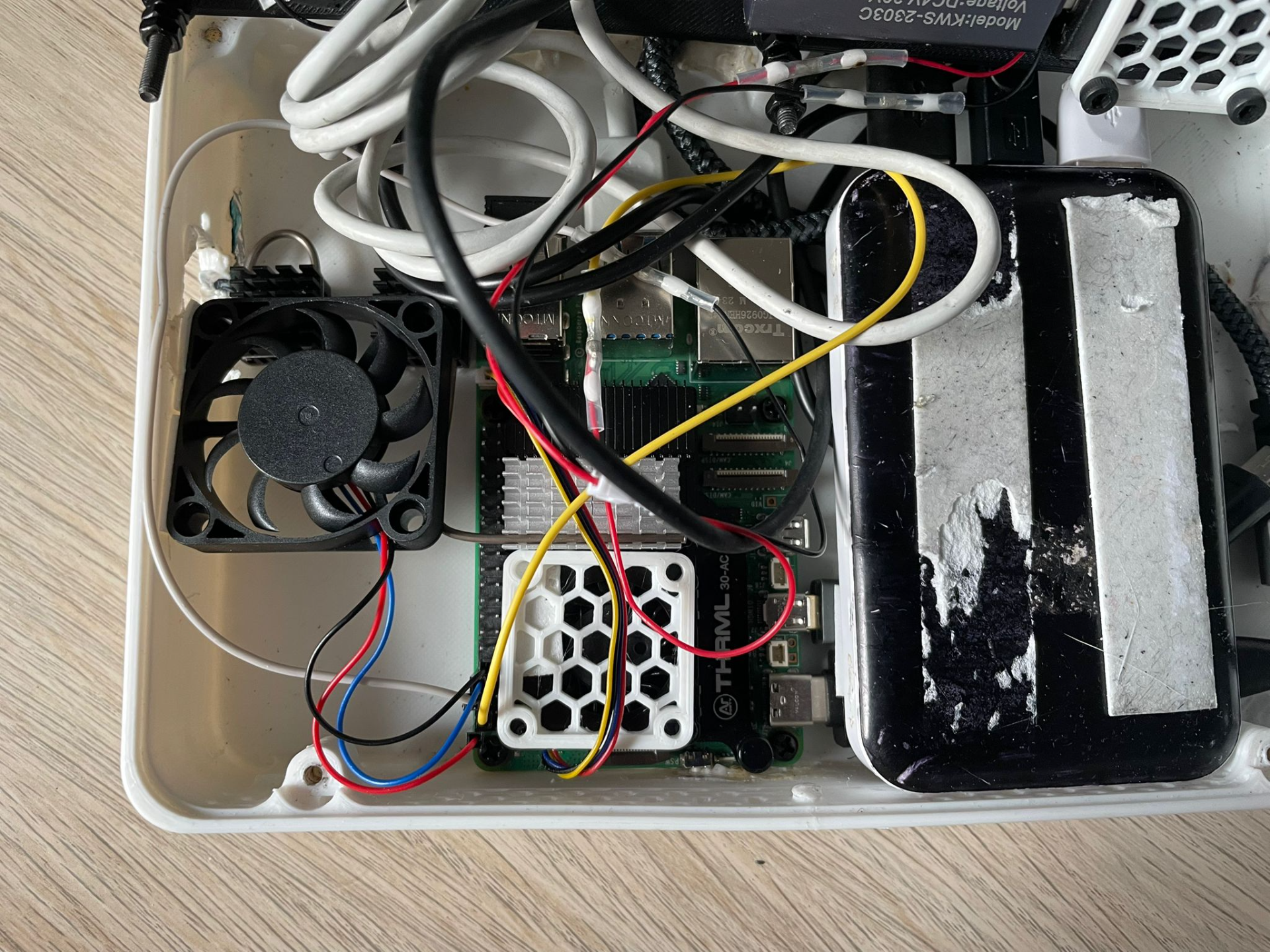

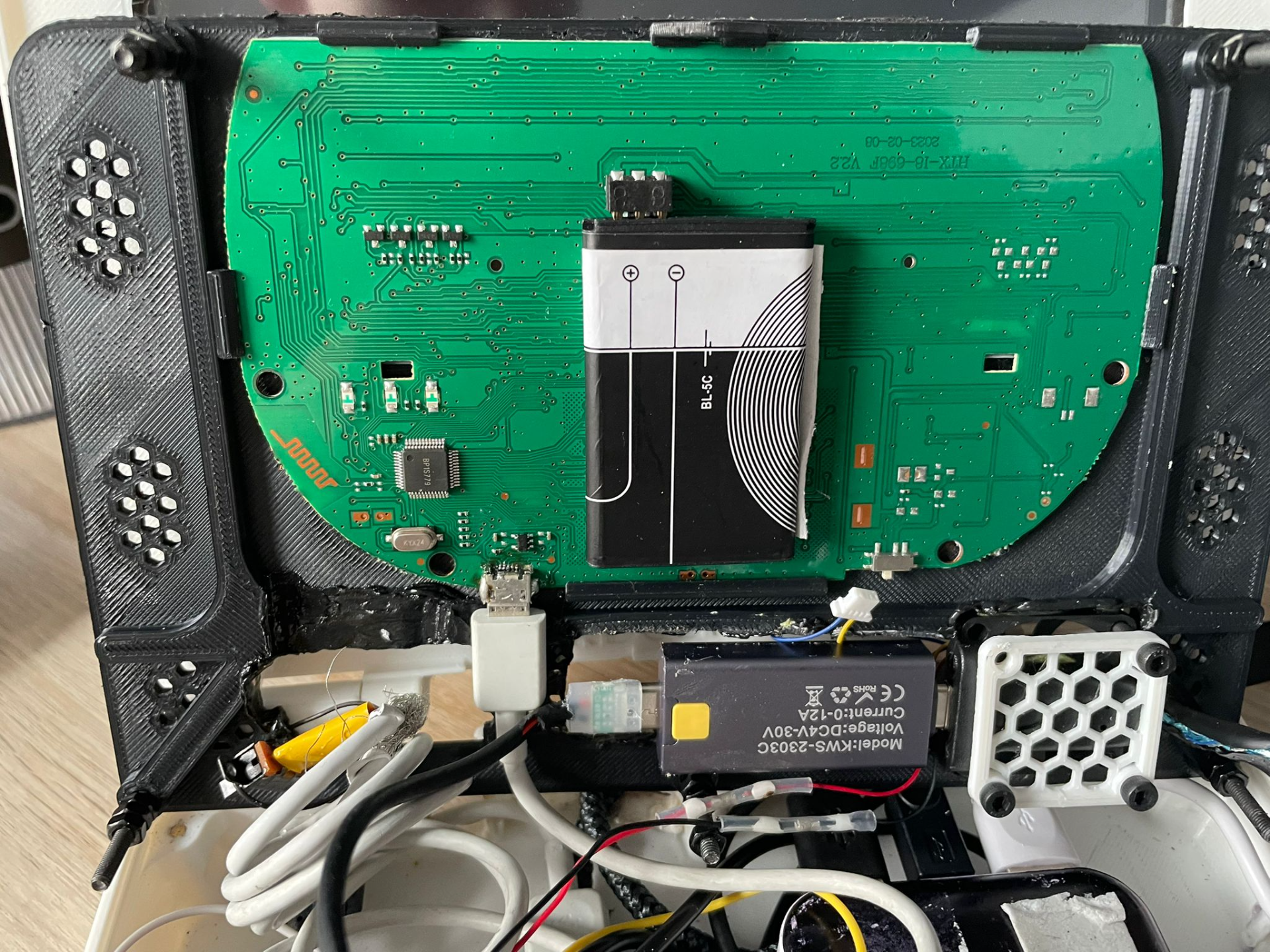

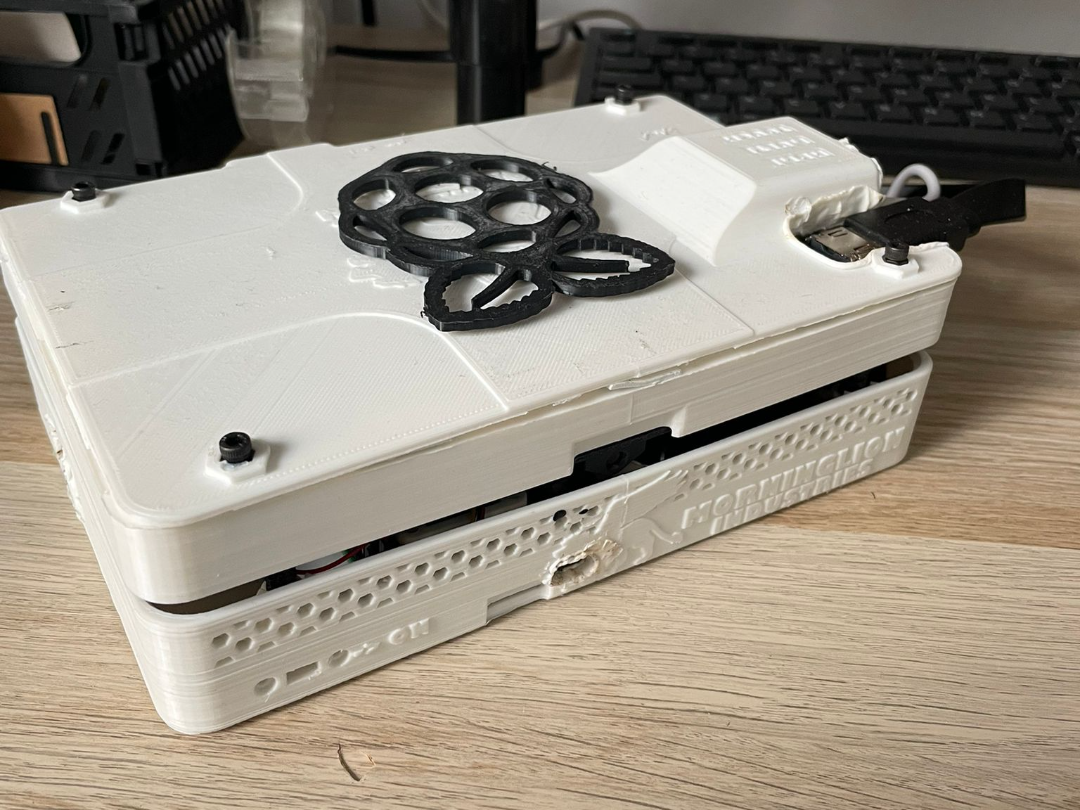

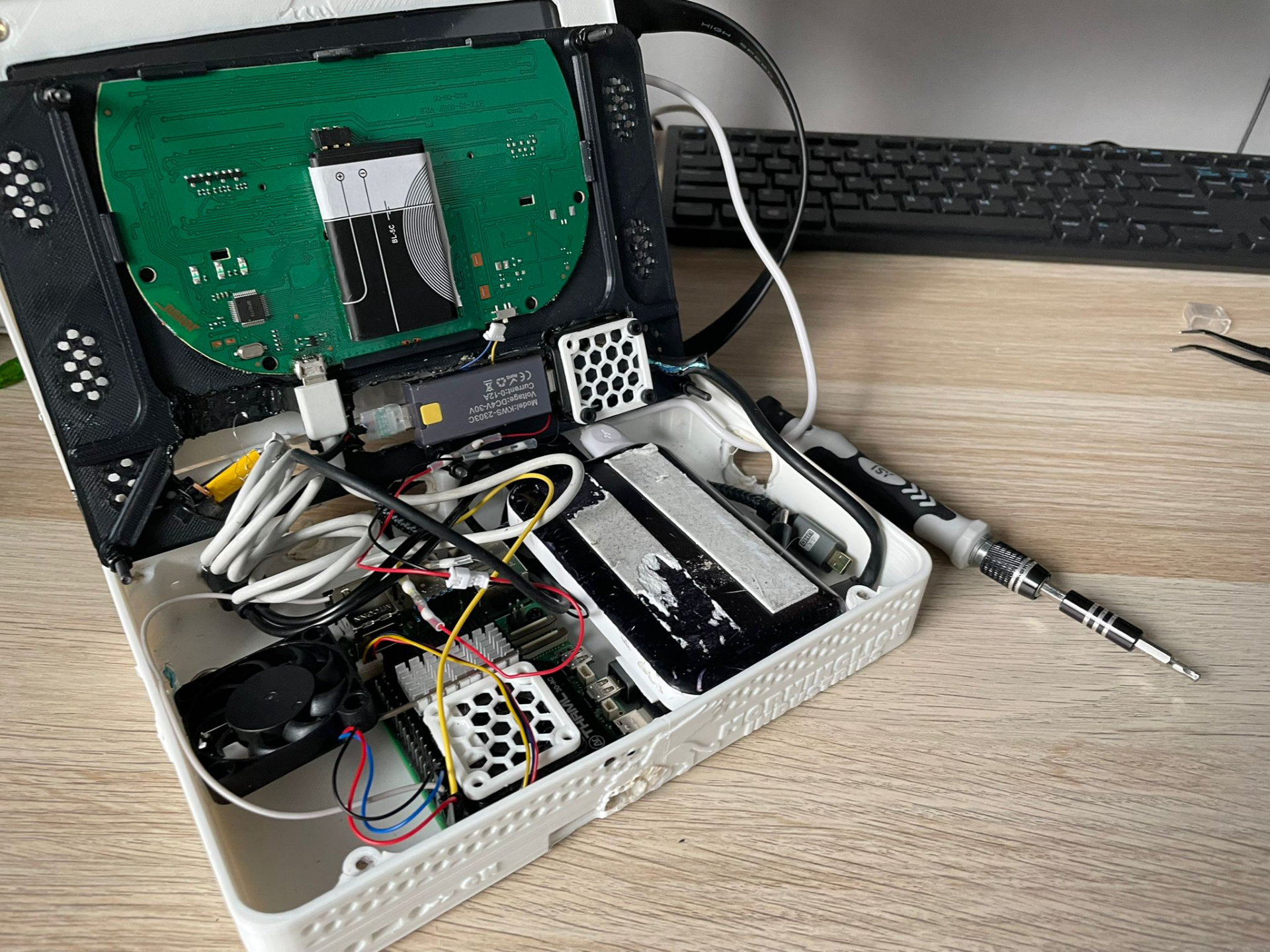

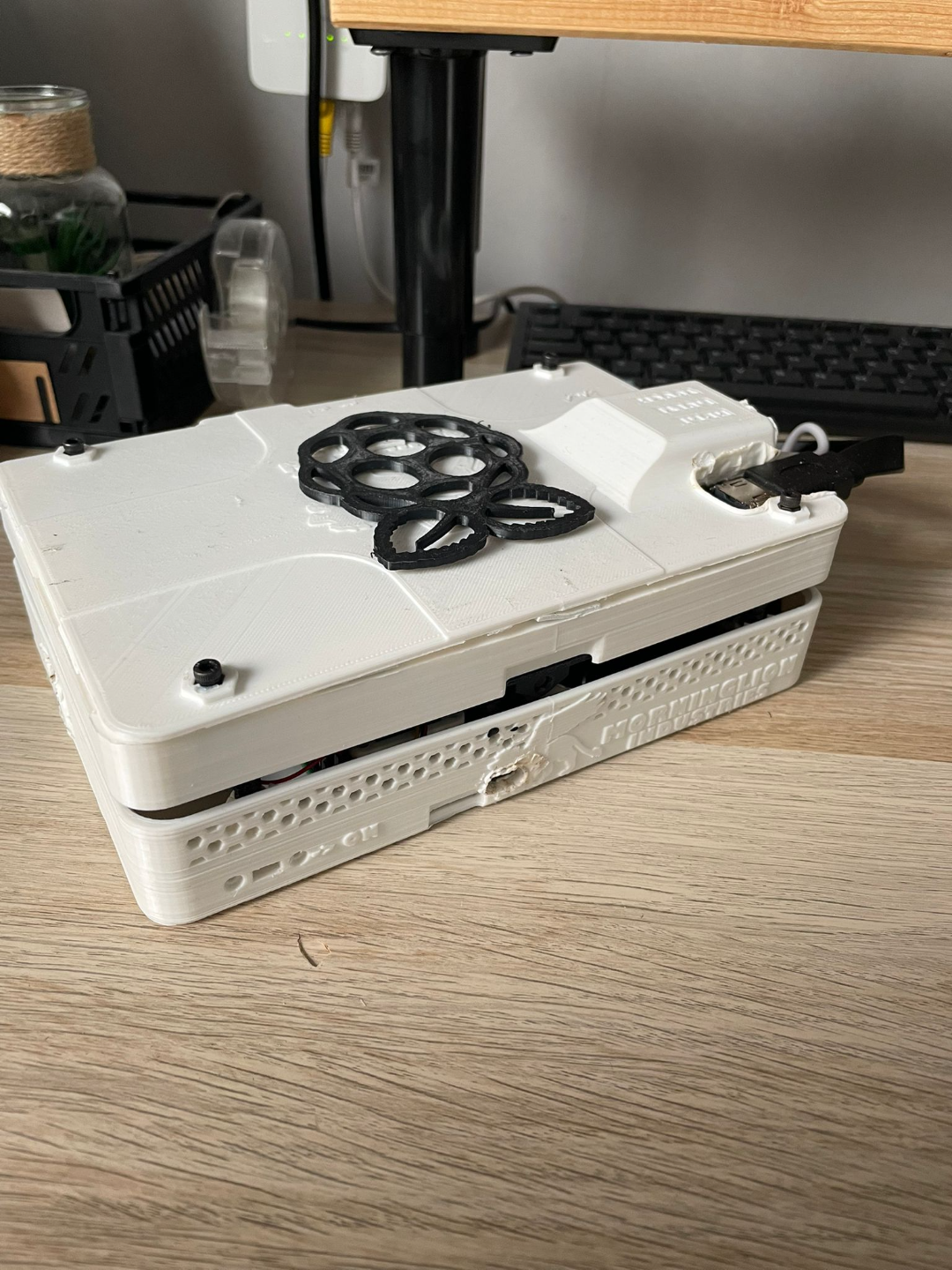

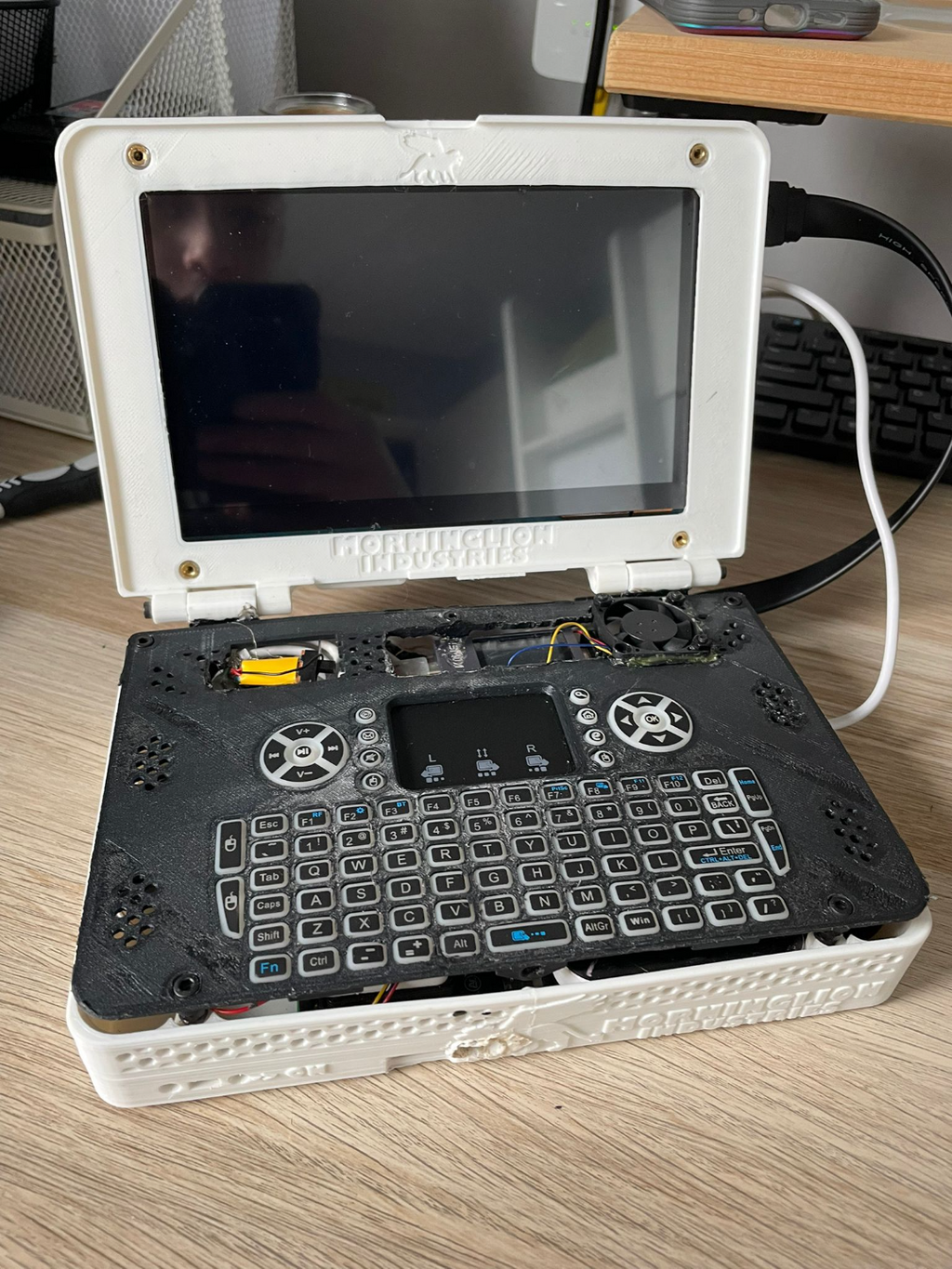

This is my raspberry pi laptop! For the original were some vague lion logo's, so i removed them to make it a more raspberry pi themed build! The original had no holes, so i made those with the soldering iron, but that released some toxic fumes, so for you guys i have those holes implemented into the design and saved you the lung cancer! For the hardware i used a raspberry pi with a elecrow 7" inch display and at first a AZdelivery battery pack, but that one was so bad that i had issues starting the pi, random shutdowns and extreme tempratures, and then i didn't even started about the charging time……. So i upgraded to a genuine 5000 mah powerbank with 5v and 2.1a output. that worked without any issues! For the charging system, i used a usb-c female to micro usb male to charge the powerbank! So this was my build, if you have questions, just ask me! I will leave the links down here!

links:

raspberry pi 5: https://www.amazon.nl/Raspberry-Pi-SC1112-5-8GB/dp/B0CK2FCG1K/ref=sr_1_5?crid=1YTBK3YEVJR87&dib=eyJ2IjoiMSJ9.4tE8TfIhk3OgtNe4PtZzi8U0zhVIgcE8c9gcYu306MEOa1AoNTTx56ys_QXEqyp1DeJ3unAdWcd5Dx1n6BhKQv7luij9lxSXwBziR4qzRVuK6Fv__sjGR4j9SPoQ-AdpOFe9OpGeXa3cFOODVmEevXgpwr80AfHHJQj1ffl6q72hIS7JyVBe6sRFV4uOqm6vMB-p7FHNrRVRq-8zL-waX2BSQdzNlzLKiUBjoE9F68A1HCvNe69q1oea76AebnDYJPm1RFq5ljh4owcCxM4M_qJ4Zof8uzN8GxZxvmTlTKmxtMalI-rz075S6gdIPEyPN_LDNT0FrUvAzEHadJusLxf6s_vxm-8aIdY2IHPGiP0Z0F4qlWo1zjjxP254qTHlx95J2jwAcv8S6rYqgzTMrrgJJMQR6QOJP7lrl2TJJI7W3nvt7AFin9573ySkp87Q.LDEl1LJyaDGxuxNnAMdIayAMFNzDrhh6GnOC_Segq4A&dib_tag=se&keywords=raspberry+pi&qid=1737910839&sprefix=ras%2Caps%2C90&sr=8-5

raspberry pi standard cooler: https://www.amazon.nl/Raspberry-Pi-SC1148-Active-Cooler/dp/B0CLXZBR5P/ref=sr_1_3_mod_primary_new?__mk_nl_NL=ÅMÅŽÕÑ&crid=1CC1BHXEP66N&dib=eyJ2IjoiMSJ9.yxdTGmMffH2iJhveQSAPuG2toW1McLZkEVgPR3za_8Hmv1zbubI6UiHhT_MLeHcc3h2MuxCOW1nm2urKDfwKgZImY_auZ0SOMt0QwZkGHvgLebh_kvr2sMJSIbnonJcs4Utg-kkjhTcEpZjtcqEoW0G9RYvjdz5GgLeDFFtBsqRPA87VjSXAbjWzYYrec3TVcRPNF10a1JfkaJ2rFZrpMeKML08g_B5KWGlPROrCWxTxuwd3ViuxG1Bm0Ud08CQMzikL5x8vdkHGEAUQ6JFnt1DHJFDYTrlF2zrLKzSfw-987yOT_9K4tlHwrum2ZmMrQlnqrPTYfgPJz2oTEtMekNt2mH8-jLt5fraDrwDpd2SJzrd7jlZ5HL4N4qP4iA1-O6NiwvLh1aVS8j9fy5swss3-rILv1XMJBmUUE74dxzSBEOFfUKHn-Y7JOrKC2VQM.hCyug7HdR2GNZ66uKodOVIf-hvHJe2C-WNKBqh-1ox8&dib_tag=se&keywords=raspberry+pi+cooler&qid=1737910922&sbo=RZvfv%2F%2FHxDF%2BO5021pAnSA%3D%3D&sprefix=raspberry+pi+cooler%2Caps%2C81&sr=8-3

elecrow 7" inch display: https://www.amazon.nl/Touchscreen-monitor-Raspberry-mini-monitor-resolutie/dp/B07H79XMLT/ref=sr_1_4?__mk_nl_NL=ÅMÅŽÕÑ&crid=3DMIF3YCMRYTQ&dib=eyJ2IjoiMSJ9.3U_qaeCAZzMZpPQxOClEPBWJESuIvUt5lEu33QiYXmLDZgeo69rsRJjZslEDtgZW6fZXxhRUM_6w8jC06oTg-bYaqR0mrcw-I2CcFCLMYpMsZIFTXadYBSU1CTqF7gqNDwbkhGGW2UTLxMfZXZCpdjwhky3PbO1QfreWNyFrrAZ1ErVid3T65bKerWrlmfRZL-gQVrj4DdwTPr_YARq_jji0jONfpeAJpflpLqtcuzHcOooJzdHtZVe9lJL86cAOQtIeFcRmNKRi6kJOaXf0IYvNGQl1v-g9JvzLltn2RZbRwvxOvYKzOPL8LBUnv4fTFw_ONX-_61MW7ZvdIKqgJdYB6N4A3WhYNrywNPub_tJu6tRfRCWqmexnqBij52CSW_Z4jd0wSNJIB7HjD_Y8d-7dUd4-Q3iYAVOKiRdCqS_bQw5JY0N5U9IX0Nz7AAWL.ymSWhN5Z5NCHtyGKRjd7HA4XaBh636R5ZGkSM2_Jfz4&dib_tag=se&keywords=elecrow+7+inch&qid=1737910880&sprefix=elecrow+7+inch%2Caps%2C77&sr=8-4

AZdelivery battery pack: https://www.amazon.nl/AZDelivery-Powerpack-compatibel-Raspberry-Inclusief/dp/B072QZXTGS/ref=sr_1_2_sspa?__mk_nl_NL=ÅMÅŽÕÑ&crid=3B7M5MV5HNQ1V&dib=eyJ2IjoiMSJ9.bDt_pGrbqP8vxxu8f-wjD7WiNnVzYcpkRyDhccfPO862ZHvQ3j4wkg_Q_2AaECx11y_5ohPUzatTP4edXB53a4H30CtANoWfulqOTLNsEyTbsPG4KFp2NLlTzvsJXpGfdq4pdl92RxUFF18DTLKOOUU8c7UVhlX-9YMfXn0YYUGxV7TfNpk4Jx4ALUdZnfLCsubQqQggYn53WhcLpfsiH_jgKOdbTOjk9P2mFt3pb6k.J_Ej9_iRj5-whe2BB1RYmC5f9bxH2sQOvZpq-EBuOBA&dib_tag=se&keywords=azdelivery%2Bbattery&qid=1737910955&sprefix=azdelivery%2Bbattery%2Caps%2C78&sr=8-2-spons&sp_csd=d2lkZ2V0TmFtZT1zcF9hdGY&th=1

5000 mah powerbank: https://www.amazon.nl/Intenso-Powerbank-geschikt-smartphone-MP3-speler/dp/B07Z6N28RD/ref=sr_1_8?__mk_nl_NL=ÅMÅŽÕÑ&crid=V7XGCEBBD1XA&dib=eyJ2IjoiMSJ9.vqkk0WozsQCRxijtgcDwm9YutRbYMKmsvbMkdGqh1lmIf0D4mHpWy_oVi05nK5NCA3HP-mm9AYi8lKJxreeWxsLRV_rFhTPU9G6WqGHo2_UuOrYSv3yLapi7T7QnTqDuuqxIa3EgKU8q4QYUKiw5sKWl_NpgewOtJpM8Hmx5MOwpQowmzNpFozG_pqnfCVcGkN5h5YMiDASAZWfQ24jYBhCYKeV7M19qypByKrh6NITBpnJ1YjJt9QRp-FxXBNHY9TUKZyEaKo4kn2uh4lxQlc2M-2i6HuKV7rTZpOVdve8Gtk5QU7gkuRp1JqFk_DboBHapX_nyY9CvPEGKX2sGhjZeiy0_gIUjRnJkqqbZtPCKgm2lM3SRIw2aXiE8kP1UhaqMBSH5Y6TrBlpGHZLDg7Ww-mYbQn2XvN0thSwB3gdYZ_evqsNAcfLXnwDZj6fA.RTRqeAXJZsCbl9O7Aal_dXazwYHWFVY3AupE5O52kAk&dib_tag=se&keywords=5000%2Bmah%2Bpowerbank%2B5v%2B2.1%2Ba%2Boutput&qid=1737910984&sprefix=5000%2Bmah%2Bpowerbank%2B5v%2B2.1%2Ba%2Boutput%2Caps%2C74&sr=8-8&th=1

micro hdmi to hdmi converter: https://www.amazon.nl/dp/B0BZYS7JKH/ref=twister_B09WHYJYPC?_encoding=UTF8&th=1

charging cable for the power bank: https://www.amazon.nl/chenyang-Vrouwelijk-Mannelijke-Uitbreiding-Laadkabel/dp/B0C6Q88VFB/ref=sr_1_32?__mk_nl_NL=ÅMÅŽÕÑ&crid=3Q0VLT3C015Q2&dib=eyJ2IjoiMSJ9.5UdebiTIkLlWlwxBu8IZUsmLCtT2VzkajfulIuOqTjlnnuxkMTJbi8rgLQ-1rsAXY-QGPv4e4u4yq_n8j4GDvCi25GkAG81pbps8k2jqv2SyuVjeH3AFSo1PWU4cwI_ve5JSzQ44HRpqXyPShFgMYbx7u8cRTlWAthD6yDNR1p5Gp6T8hBHDMQ_DHb-nDt_rc6o9jfiAeyRyn6Up8jLsiMqYxKOfedc6dWC8kuMnub7IPK6yG6uJqzhFidtaXD46DBlEpXEZgDnIguApQROuaeAAGsMlfUm7Qk5NtmKR55L-tJ1EAN1H8MrR8dgLNGUbjeGNMGtlD8u_fUQSiZcK9-cgGwrXBpXfCXypxGrYb-38EX4fz7yClrVYhqf3qkpnA47EYZILpEIXwxhCukXEKENoDRIEEf2qMThI_ITumn5dADlciR6xy8P3evrmDTtW.bpInW9iogL0zwZvK5aDdsp8Z7wkFQ23ZbaYUpDNtwiE&dib_tag=se&keywords=usb-c%2Bfemale%2Bto%2Bmicro%2Busb%2Bmale&qid=1737911131&sprefix=usb-c%2Bfemale%2Bto%2Bmicro%2Busb%2Bmale%2Caps%2C82&sr=8-32&th=1

voltmeter (only for the upgraded palmrest!): https://www.amazon.nl/YOJOCK-360W-Capaciteit-Temperatuur-Ampèremeter/dp/B0D941P128/ref=sr_1_6?__mk_nl_NL=ÅMÅŽÕÑ&crid=25E19G4ANRX3D&dib=eyJ2IjoiMSJ9.WczT18sYyXC91o1tPGZZaKL2SZFLC6BT7_Vb42Hdx7u-ZslZalx5zP72yf8jPbWrQYJdW7DYsEI-Xpl7mF7Sciy3-75138KHWyddf7j7PsuqU7VTO9onJFCRlk4eeW4gcVjJ0Yo0exmVPh1rVSc0fkxJb7WlMqF5D9Q3mbiSeSsbL4lW75mkZkA9p4l4rFKB5fkOPrBF3UYZdkeRybCIZaz7B8oxmfT35pai5_dTh26ZmNXpMmh_qVnvKRSIx0BkPpmQBBhDMr_TqJYwjbeuOUVYS4H4DeRpKNzhAHqDsUAFfgxPIvWtq6oJVLJOEsTa8QDdYGBOLB0i6vwQ2KUyKv_TE6wED1r49K2w1RSI76_Atd9TkOyVsRmu0NYjfFQ1j80o0zJEbz5CK0WhAv9Vlj1jxrUlgdsMx6LX0H476vWcfmB9ABGihMJJ3FlWnd6T.y4o6G7vkn4L_do6_gX1hZeHTCetrS46ycBZR1BLp2pA&dib_tag=se&keywords=voltmeter+usb+c&qid=1737911185&sprefix=voltmeter+usb+c%2Caps%2C81&sr=8-6

panel-mounted usb-c cable (also only for upgraded palmrest!): https://www.amazon.nl/Type-C-Schroefgat-Mannelijk-Vrouwelijk-Extension/dp/B075R7QBQD/ref=sr_1_1?__mk_nl_NL=ÅMÅŽÕÑ&crid=24ZS1WT999I48&dib=eyJ2IjoiMSJ9.8qMMhknIKuldNOWdWKDDymzr1d-sb7cT8_YTMpBNm9NQcXNzT_HYlCJ094f1WtgL47Kz69g3LxApt6XIBf3u5E_bzIMZnLi6_ibSZr2y0URewDGT_zTRTXFfavPqKtuinLCTEWyoA2tW-rHw12H7qckP1rzWTDpoMQt5h_rSDxN01j6rHPQOyBB2l0-Yh3j_PVgzRF0gph7VEiTJMgL-u3xtotMbaRYbilD3ECo9QcR80B3fIHcvKVnPvjfilj7NQf8S4EJUA70zA7BYhSghQXPm8ArDGTddGoiLqjjwHkCjaLUr_sGrjWLeTOOY44qfoutgaCVGWUlBPQ6a9xBGrHCQtsbSHZpaaxbF--tP_7pVXaTyJhsqZaXB9Axpl0xGWXOcg1FilyCM0kxlPNzAt-x4vcb0y5K7uIn7rx8G-0c-5FQx509bgkRrFRKT29Gi.Iuc3urvCzNy1YqCpNPSSMVEcQVSHWTfRUYU0rEdUm60&dib_tag=se&keywords=panel%2Bmounted%2Busb-c%2Bextension&qid=1737911254&sprefix=panel%2Bmounted%2Busb-c%2Bextension%2Caps%2C71&sr=8-1&th=1

keyboard: https://www.amazon.nl/toetsenbord-TV-toetsenbord-Android-toetsenbord-mini-toetsenbord-Afstandsbediening/dp/B0932XND9Y/ref=sr_1_8?__mk_nl_NL=ÅMÅŽÕÑ&crid=2Z9AQRLNPEBIE&dib=eyJ2IjoiMSJ9.UhOrYyRvlImcycnW5A2gWQ5b8eEcSzd8ysUlSjbEwTzWPchJl4IEszLq8npKBxiC2oFHR5omoNQg7reojdp6r7lxMNj-NfjSKlnTyWWnd-gZ-8_7g6l7Lh4y3gfndlXCL99NbEsasFAjDEUBGFuNb0MarRjobimGM1BxK5zPbfWX72ErDUH2YTj8aUGUcPHogH62o1klhQ2AiO5SeAGcCfQfbiIndYnHwYwCT3Z7EHpBrcOrwFdunACwomgMcDlCLPMjU59PSif4dyeEw0JO5UcYDk4c9ii_-98SdFwzwV6ODp-iiGySx8MBYzR0clcTaViUrklCVpQqZ7leAxuIOUWGIGtDEnf2SWAdDUrEOWgDW9TPJa-CNgKDCGVZ_JM9GreOYtWZ_U0kVbVvM5sB3XZ3oRFaS8CV_DqPPyK4ub8raMdyECye0l9OinxAj46B.wr4Hcvw4dahVdUUmOWow3JEZZrBNlHrrDfSlhqpm0wA&dib_tag=se&keywords=mini+keyboard&qid=1737911275&sprefix=mini+keyboar%2Caps%2C79&sr=8-8

Design by toaststealer_2010 on MakerWorld (license: BY-SA).
