Rattlesnake v2

Summary

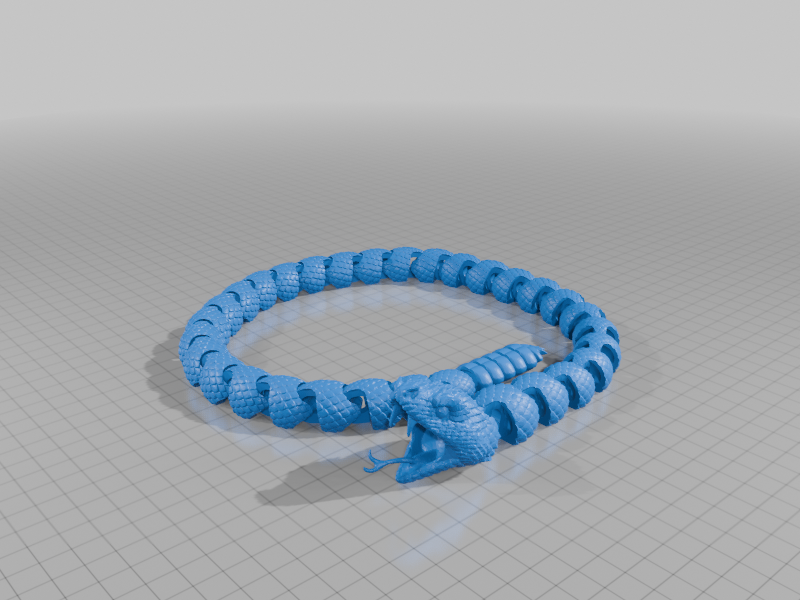

A remix of my fun articulated rattlesnake with springy rattle.

Updates from version 1: My first version was shorter than I would've liked, so this one is a little longer. After awhile the rattle broke off, so I revamped the design for this model to fix those weak points. I also made a thicker version of that new design. It's a little stiffer to rattle, but hopefully can take a little more abuse. I also made a version of an alternate head with the snake's mouth open from the original model by stronghero. Test prints are also provided of the different rattles and head so you can see which one you like best without having to print the whole snake.

Rattlesnake Length scaled @ 100% is 27.5"

Files:
Regular Rattle (3 versions: Regular, Supports Included, & Alternate Head)
Thicker Rattle (3 versions: Thicker, Supports Included, & Alternate Head)
Test Files (3 test prints: Alternate Head, Regular Tail Supports Included, Thicker Tail Supports Included)

The files with "supports included" only have two triangle supports on the rattles that easily break off after printing. No other supports should be needed for these files.
If you are printing any of the other files, you will have to add your own supports on sections of the rattle and head.

UPDATE: v.2.3b & v.2.6b have the tongue in the mouth, instead of sticking out, to prevent breaking.

Print Settings

Printer Brand:

Bambulabs

Printer:

Bambu P1S

Rafts:

Doesn't Matter

Supports:

Yes

Resolution:

.2

Infill:

10

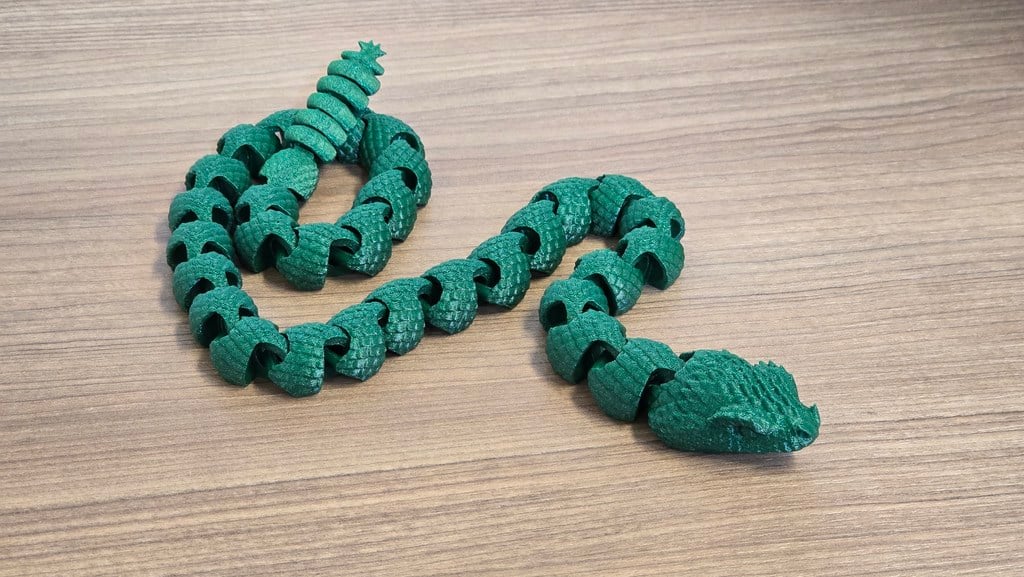

Filament: Ziro PLA
Diamond Emerald Green


Notes:

The files with "supports included" only have two triangle supports on the rattles that easily break off after printing. No other supports should be needed for these files.
If you are printing any of the other files, you will have to add your own supports on sections of the rattle and head.

Sorry for all of the versions. But people requested different models and modifications.
Here's a more detailed rundown of each model of snake, with their differences.
v2.1 - Original tail, original head
v2.2 - Original tail, original head, with supports included
v2.3 - Original tail, mouth open
v2.3b - Original tail, mouth open, tongue retracted
v2.4 - Thicker tail, original head
v2.5 - Thicker tail, original head, with supports included
v2.6 - Thicker tail, mouth open
v2.6b - Thicker tail, mouth open, tongue retracted

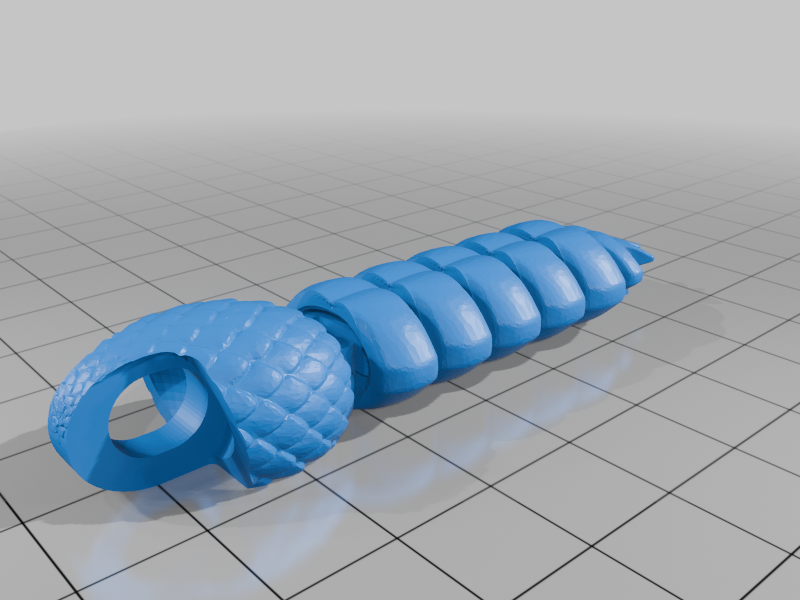

Test Print Models - print only a part of the model without printing the whole snake to see the differences
Original Tail
Thicker Tail
Head with mouth open, tongue out.

Design by Davis_County_Library on MakerWorld (license: BY-SA).
