RC Tire and Rim – 14 mm Hex
RC Tire and Rim – 14 mm Hex
- Made to order — 3D printed after you buy
- Free shipping on orders over $25
- Quality checked before it ships
- Questions? Contact us · Returns
• Compatible Wheel System
Designed for RC cars using a 14 mm hex hub. Suitable for most 1/10 or 1/8-scale vehicles needing a large, high-traction tire.
• Dimensions
Overall height: 135 mm
Width: 55 mm
Provides stability, grip, and predictable handling.
• Optimized for 3D Printing
Tire :
– Material: TPU (i use 85A)
– 2 perimeters
– 8% gyroid infill for flexibility and shock absorption
– No support required
– Recommended: enable “scarf joints” (seam shrouding) for cleaner sidewalls.

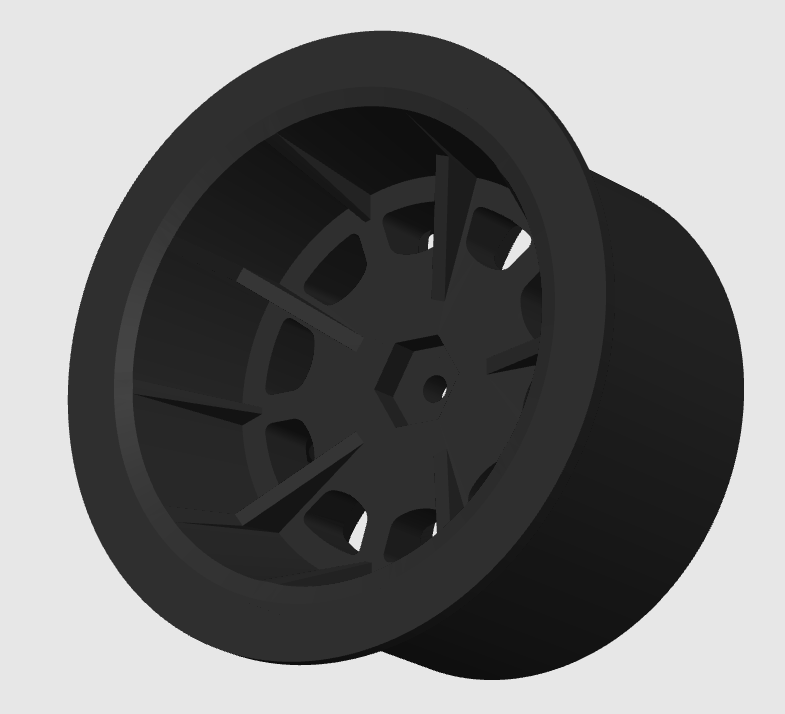

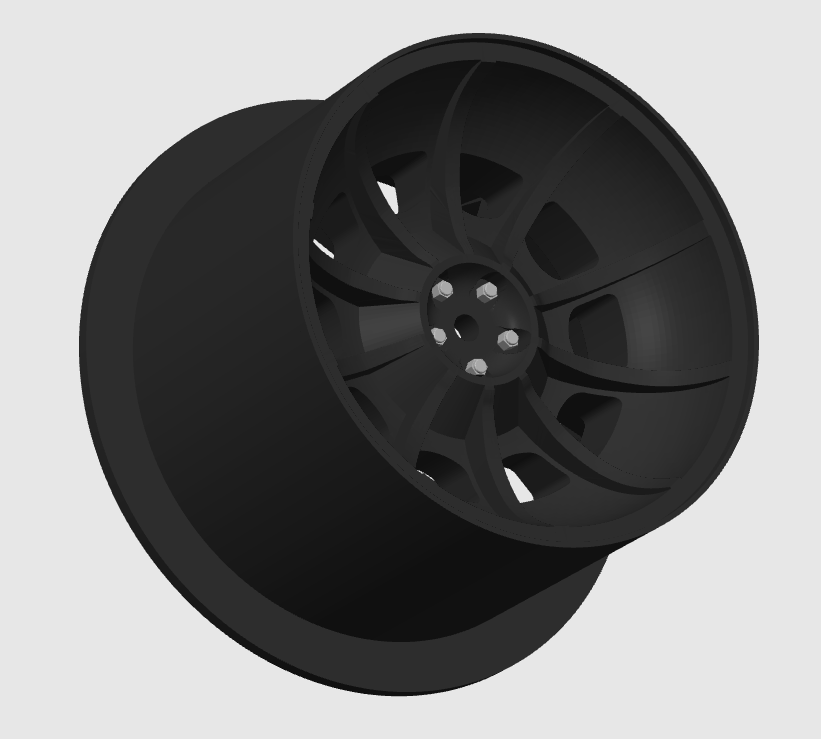

Rim :
– Material: PETG or stronger (i use PBT)
– 5 perimeters
– 15% gyroid infill
– Recommended: enable “scarf joints” (seam shrouding) for cleaner sidewalls.
• Print Orientation
A small mark is present on one side of the tire. Position this side face-down on the build plate for the best surface finish.
• Assembly Requirement
The tire must be glued to the wheel to ensure proper retention and avoid slipping during use.
• Performance Features
Durable and flexible structure, smooth ride, and consistent grip across various surfaces.
Designed for bashing, custom builds, and high-traction RC applications.
• Maker-Friendly Design
Easy to print, straightforward to assemble, and reliable once mounted and glued.
If you have some trouble for tpu print, maybe try my TPU profil.
Design by Vulcain on MakerWorld (license: BY).
