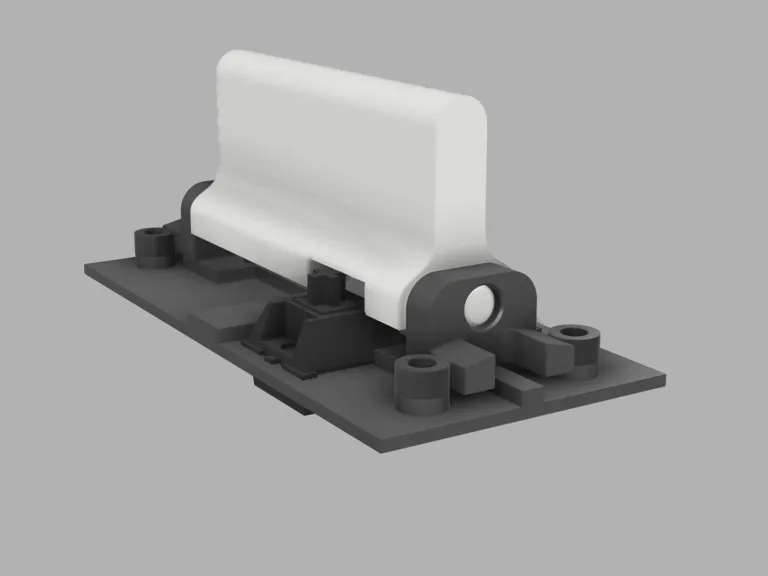

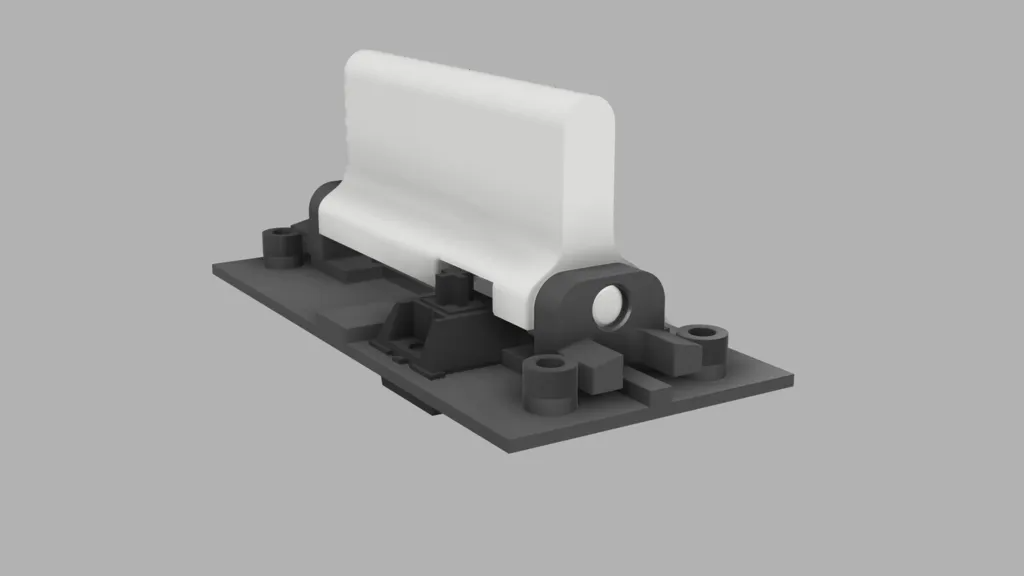

Rock Band Strum Fix Plus 2 Switch Mounting Bracket
Rock Band Strum Fix Plus 2 Switch Mounting Bracket
- Made to order — 3D printed after you buy
- Free shipping on orders over $25
- Quality checked before it ships
- Questions? Contact us · Returns
Original by: Popis

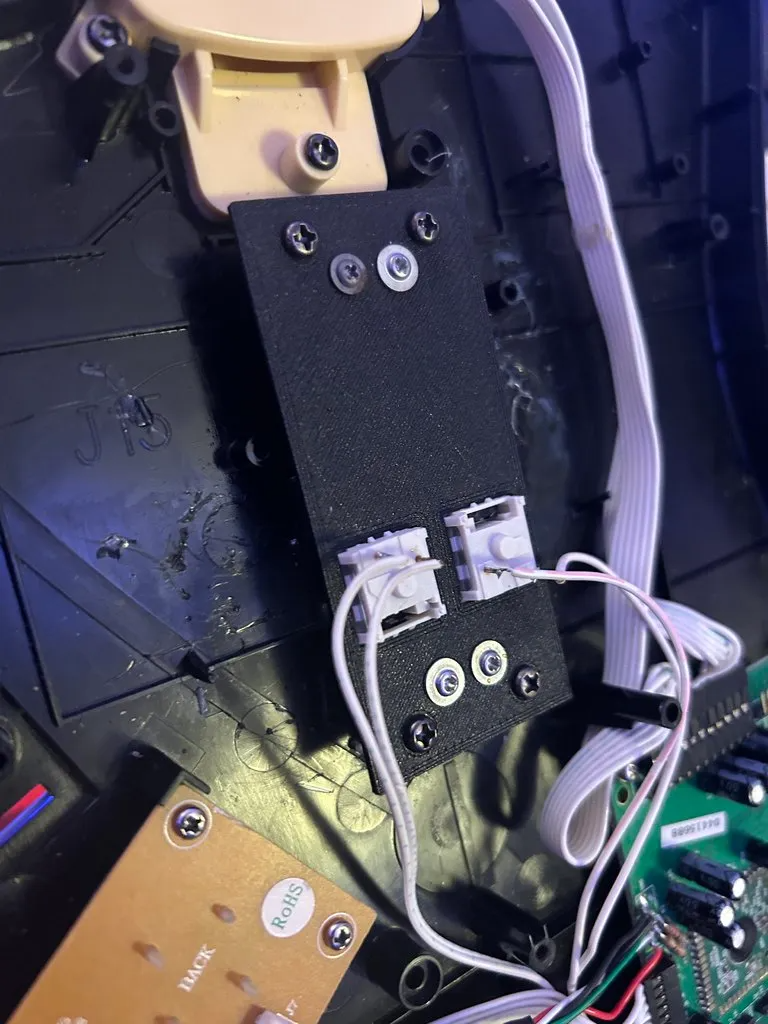

Workaround for the strum fix plus 2 from bytearts if you want to use kailh box switches instead of pre-soldered low profile switches. You can use cherry, but I wouldn't recommend due to them having lower actuation force compared to kailh so the strum bar might sag under its own weight. In my case I used box navy switches, but jades are also a great option. You may or may not need a small spring underneath the strum bar, in my opinion it feels a lot better with one in. I also plan on making a version for alps style switches soon.
P.S. Sanding may be required on the pins for the strum bar to operate smoothly, you can also apply grease/lube if you'd like.
If you have any issues with the model, feel free to let me know and I will try to fix ASAP!
V2: Changed tolerances on the switch bracket, I noticed the switches would wiggle back and forth a tiny bit.
V3: Edited the shape of the switch bracket for use on different models of Rock Band guitars.
Strumbar and bracket models were made by Bytearts for the strum fix plus 2, I only made the mounting plate for them.
Print Settings
Rafts:
Doesn't Matter
Supports:
No
Design by Joseph shephard on MakerWorld (license: BY-SA).
