Rockband pedal replacement

A replacement rockband pedal designed to replace a broken one, while still using the original hardware.

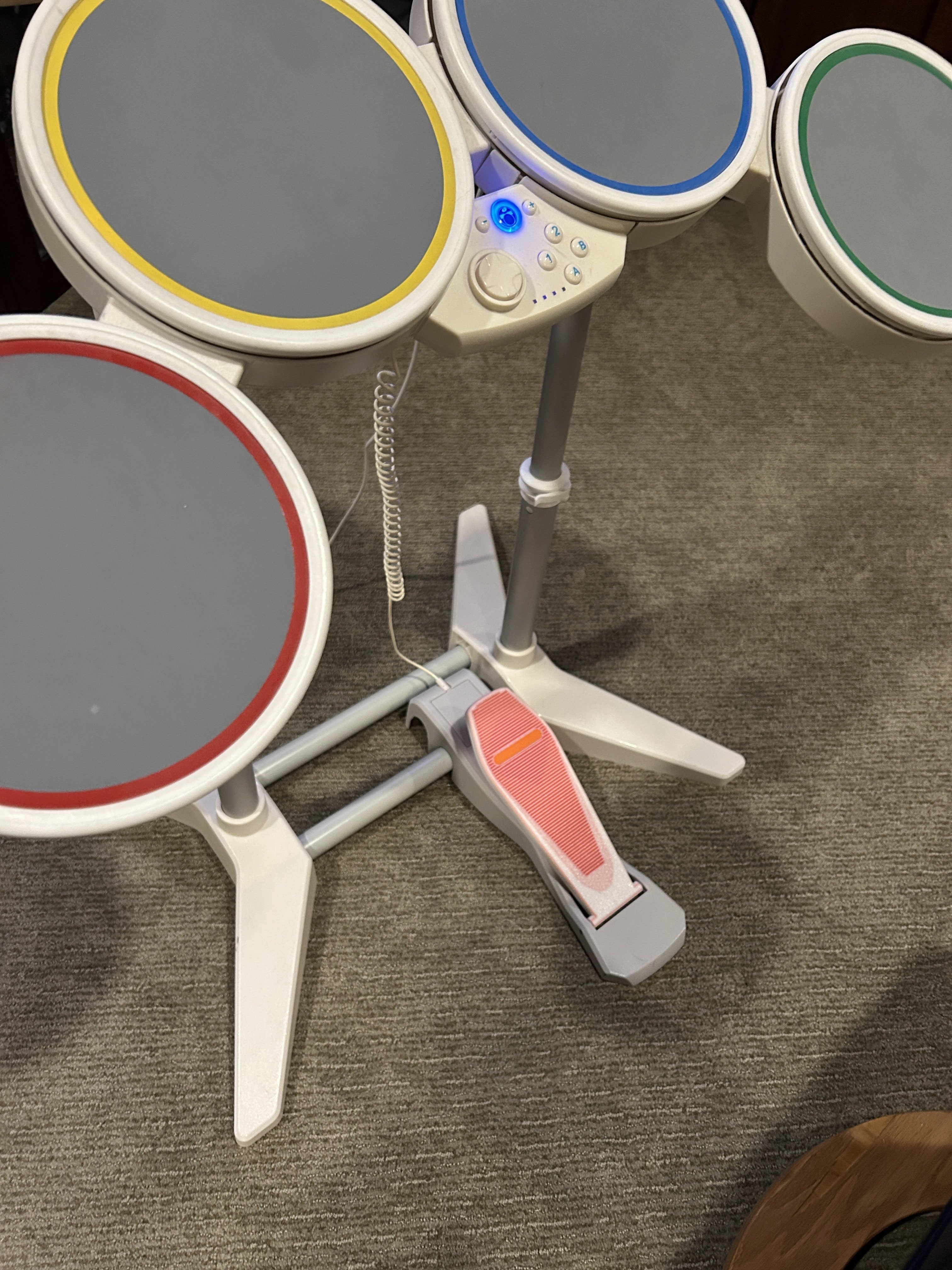

This is designed for the Wii Rockband drum set and is untested with other types of drumsets. If you have a different drumset from mine, please check if it looks similar to this model. If so this may work for you.

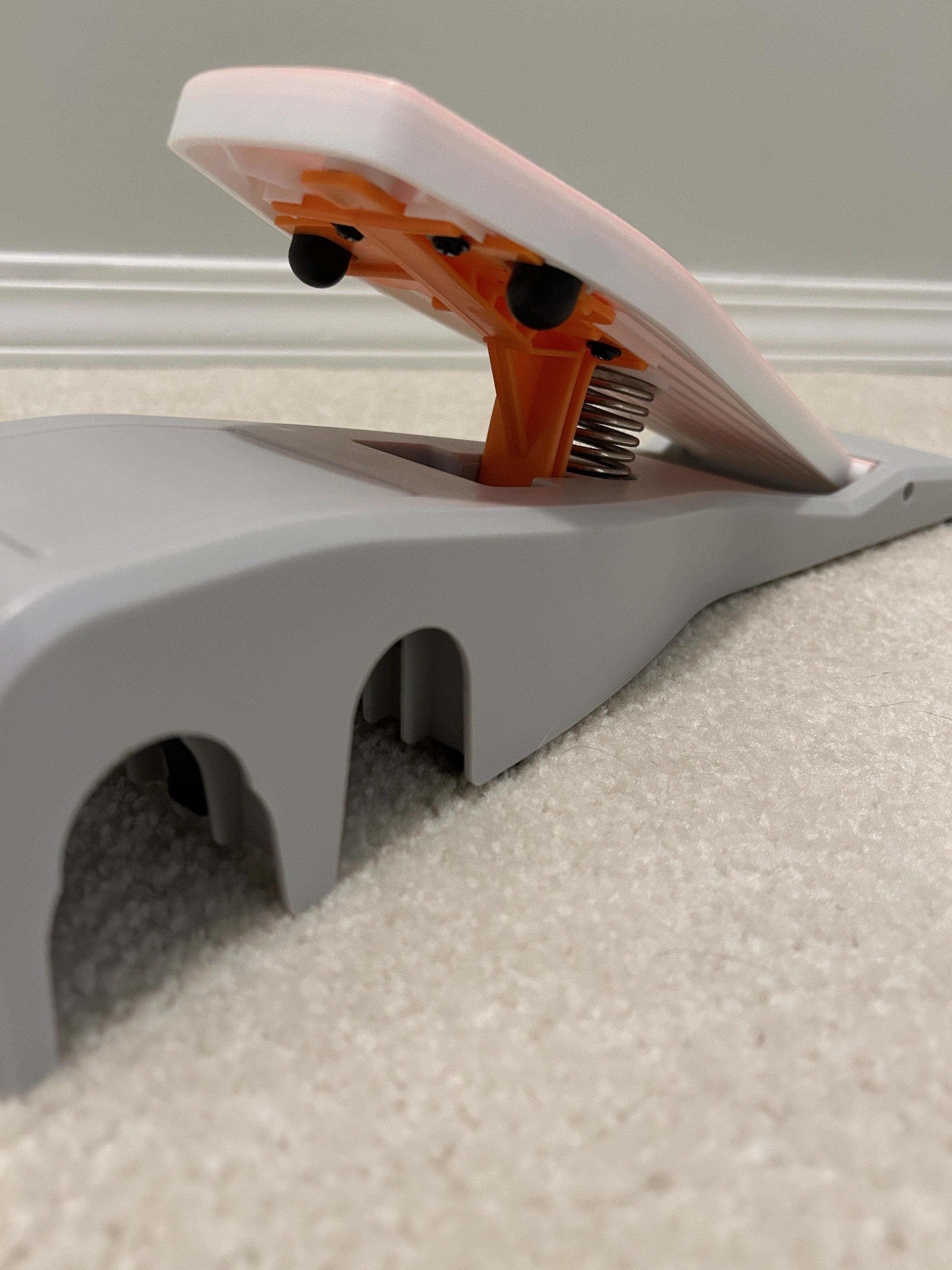

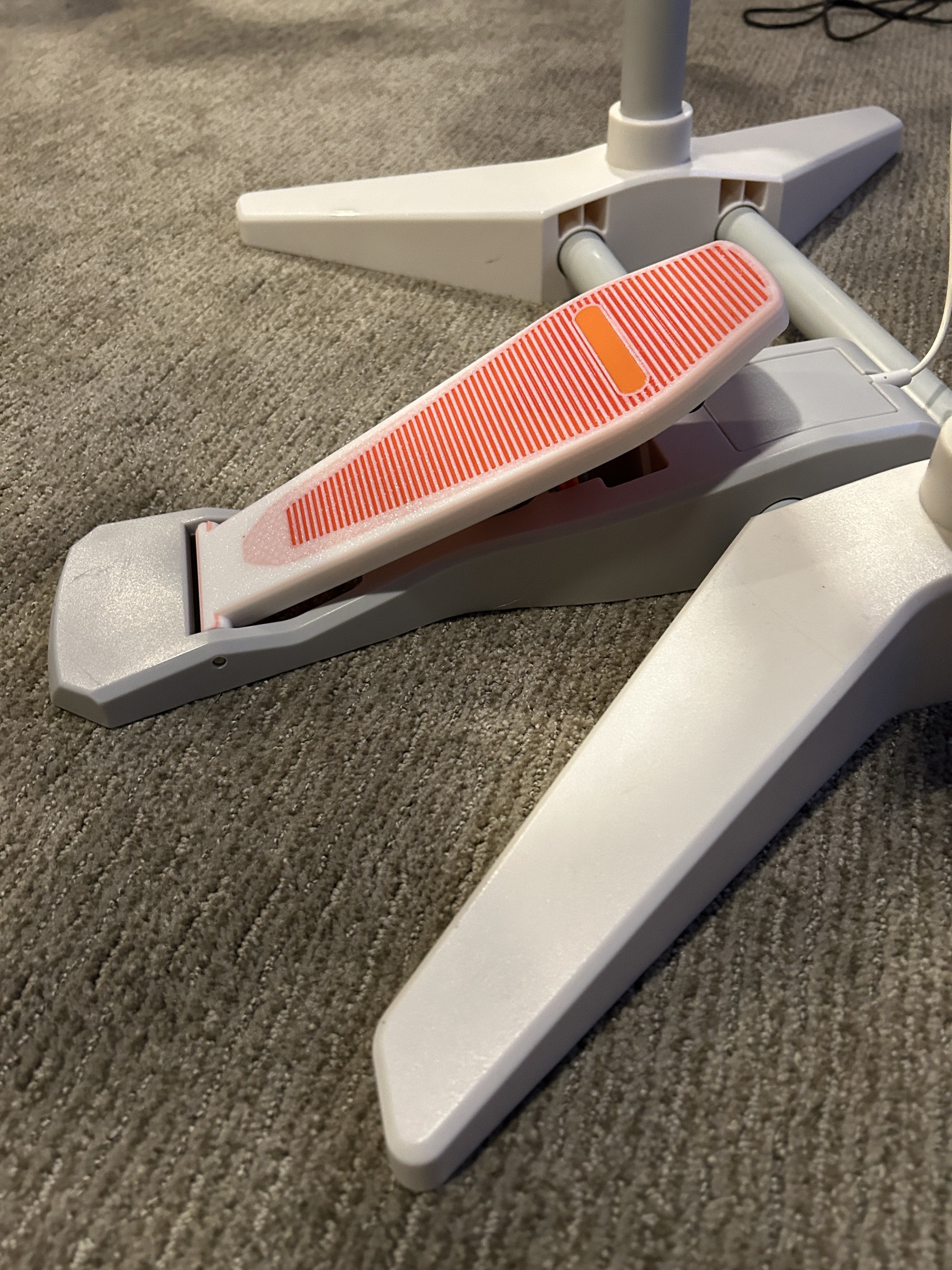

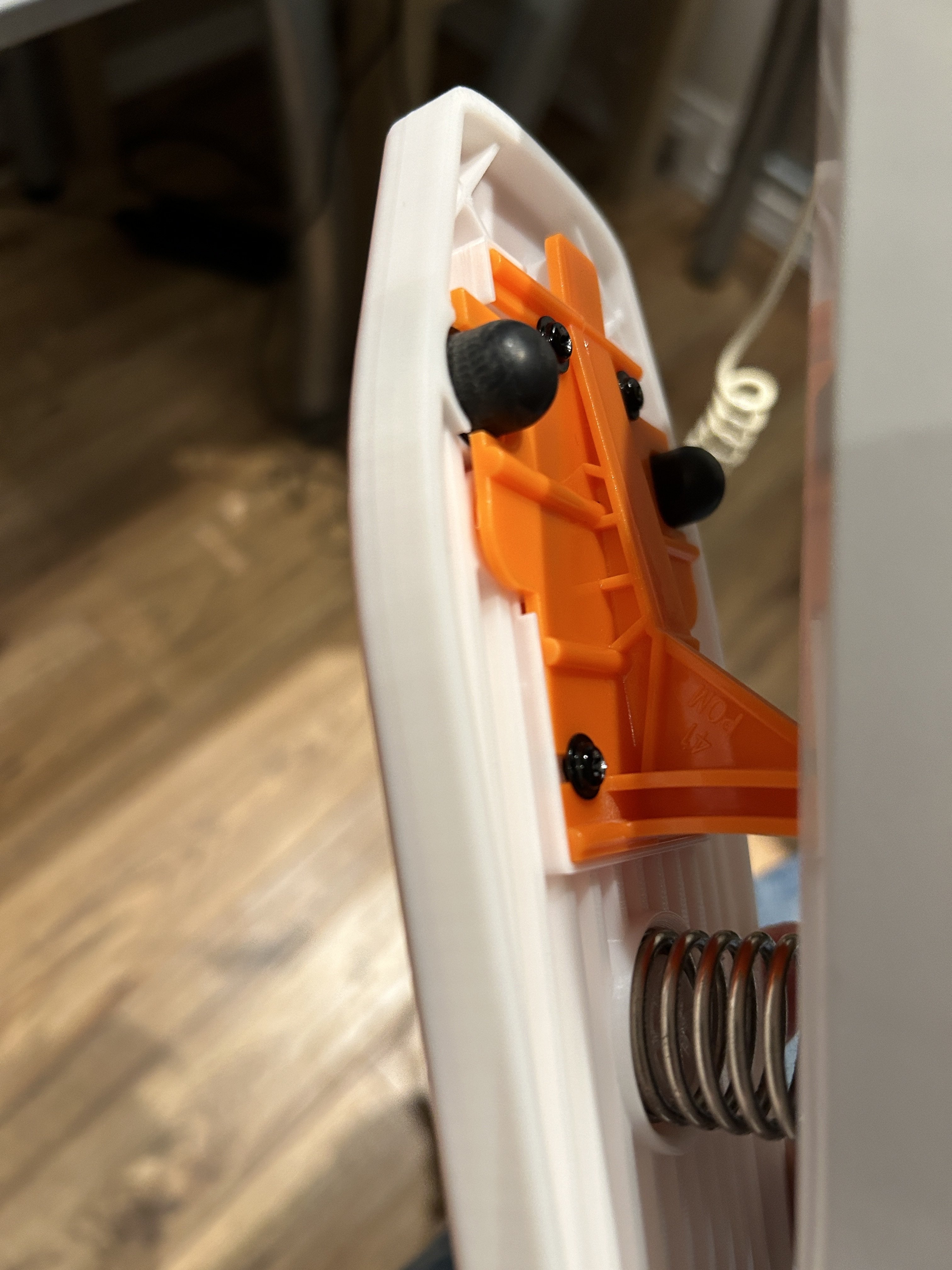

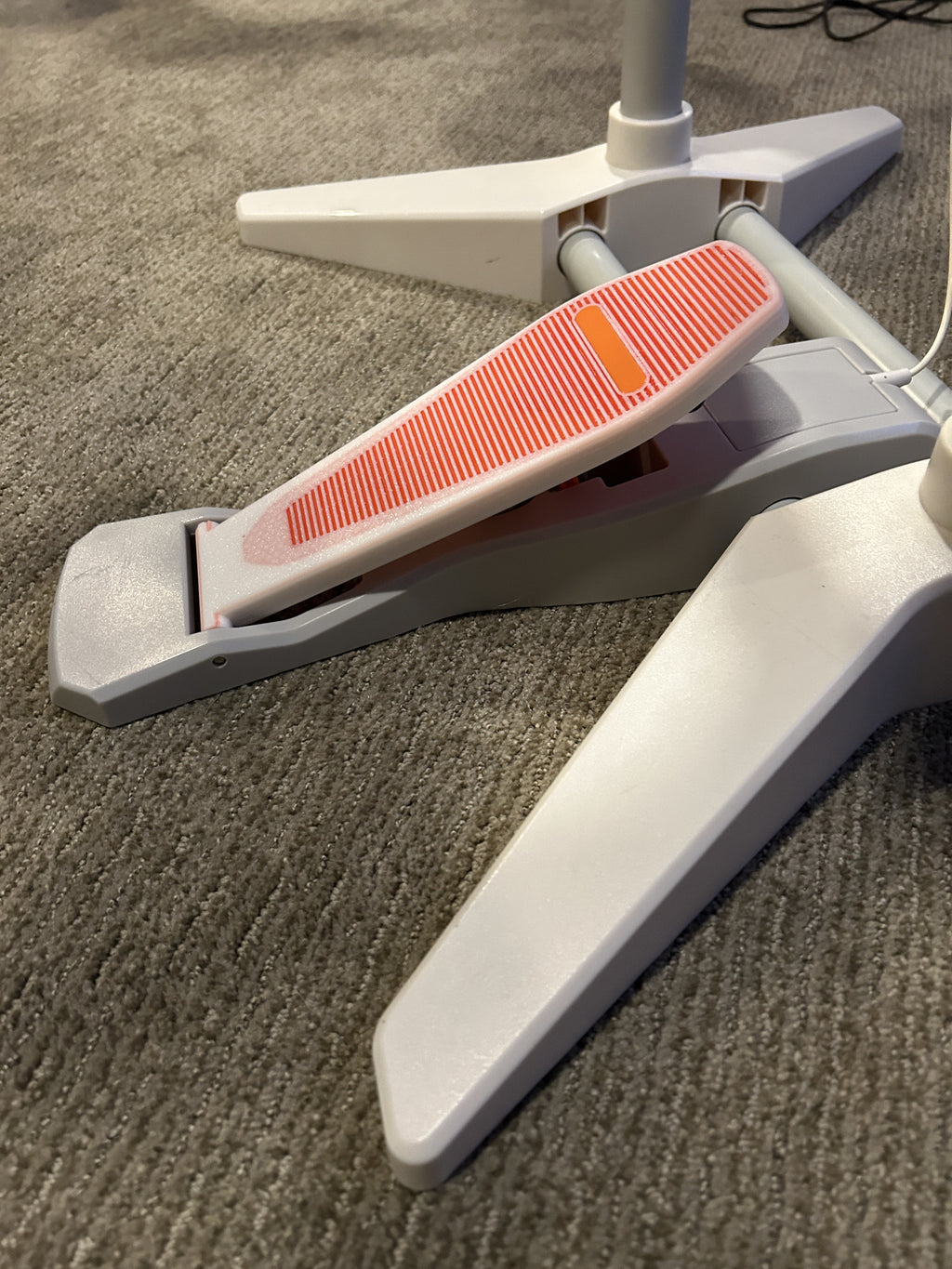

I had a broken pedal so I redesigned it to be stronger. It is made so that the original parts including the spring, magnet, rubber bumpers, and backplate all fit into the new pedal, and the pedal attaches to the original base. This way no new parts are required besides the printed pedal.

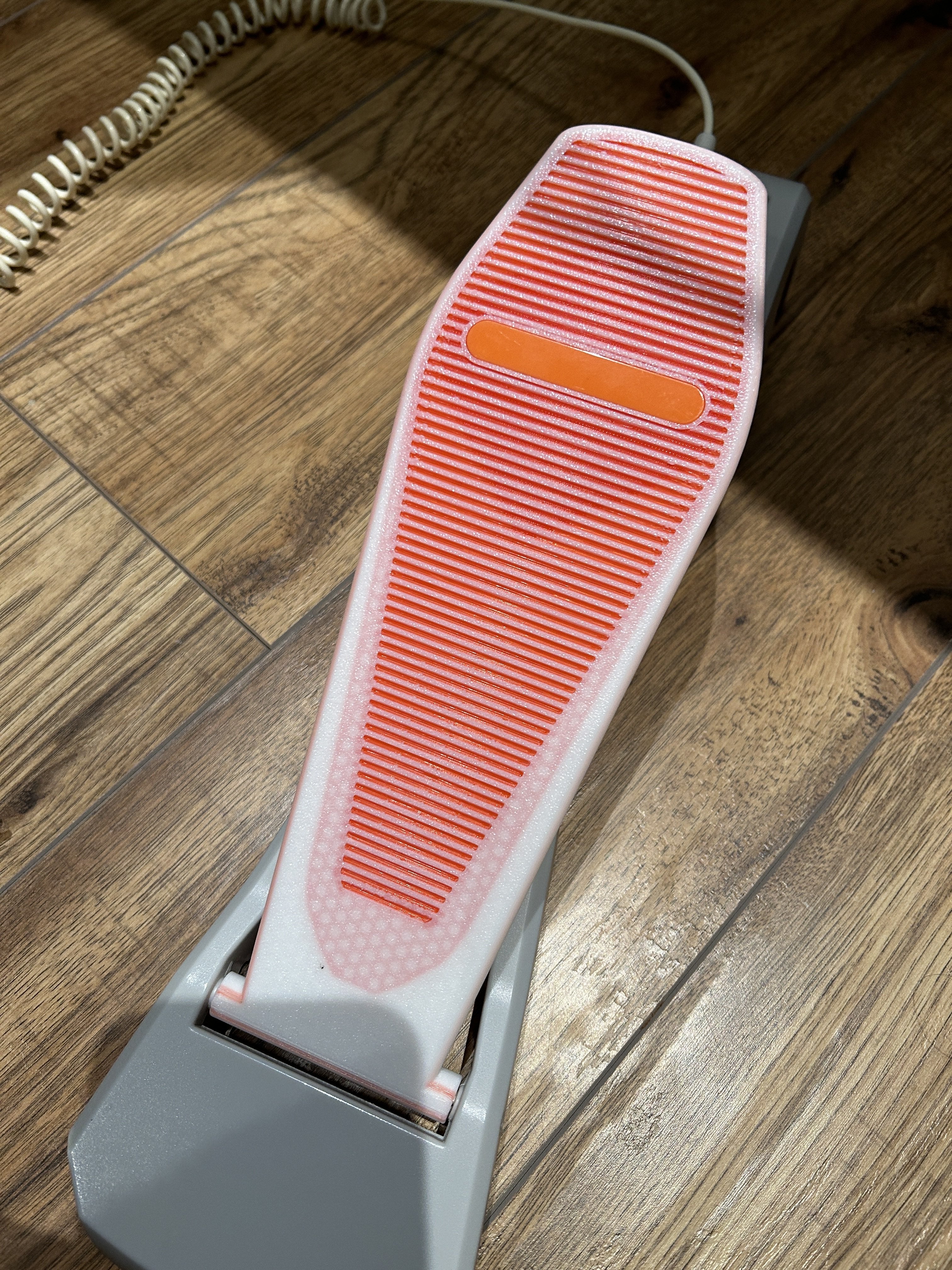

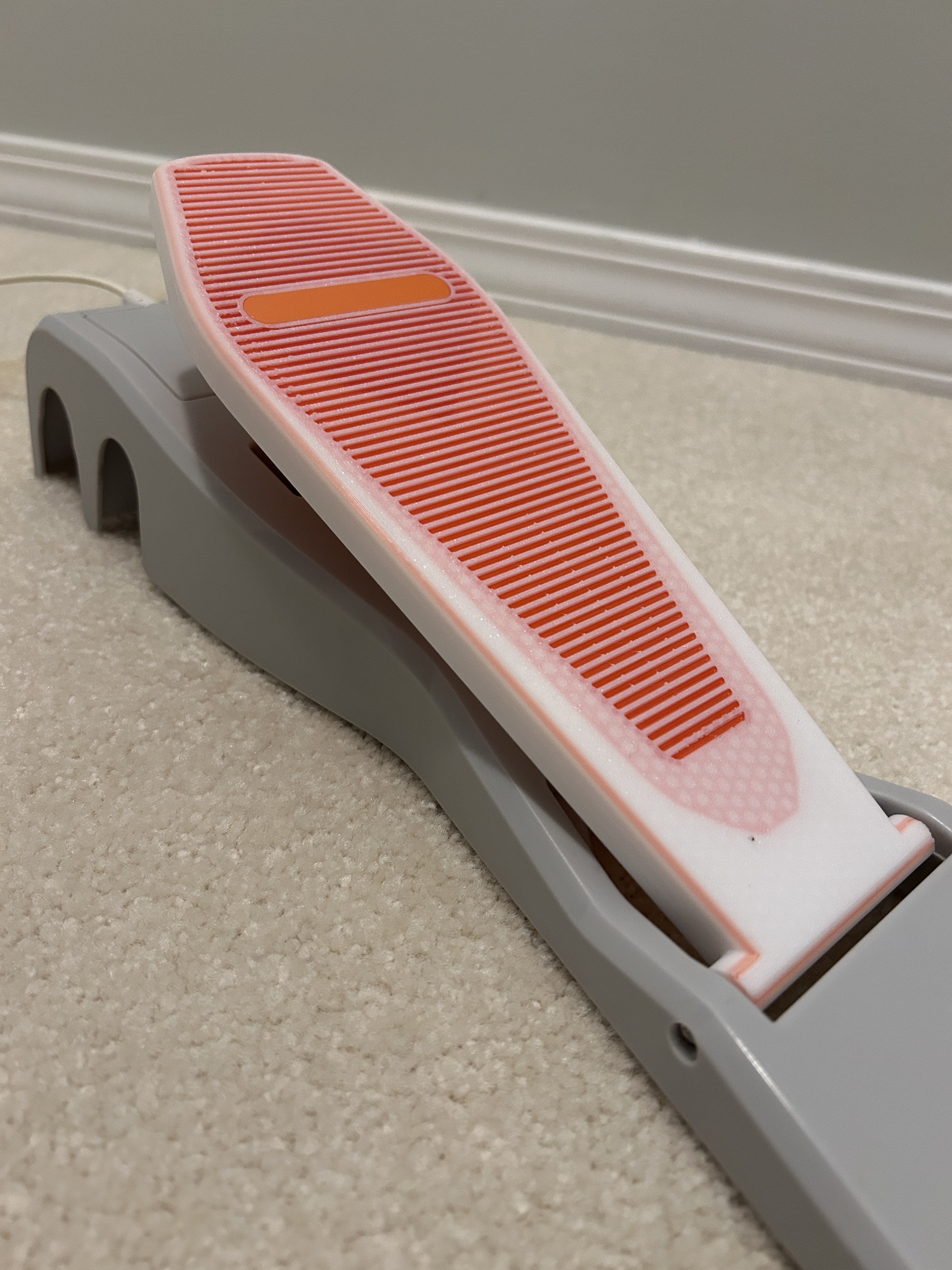

For a little extra fanciness I decided to print in multicolour. My flushing settings were messed up so there was some bleed but I like how it turned out. I have included a plate that has the secondary colour throughout the entire model from layers 3-8 as an option that can be achieved without using an AMS with pauses for colour changes at those layers. This version will look similar to what is pictured but with a bolder outline along the perimeter of the top face, which I think is cool. Feel free to experiment with your own multicolour ideas.

***UPDATE - a secondary file is now included that has a solid hinge tube at the end of the pedal that the original pin can be inserted through. I originally designed it with the clip-on hinge because I was not able to remove the pin on my pedal base. If you are able to remove the pin, then the full hinge version may be a better option for you.

Included is a video describing the pedal design and assembly process. If you have any questions on how assembly works please feel free to comment and I will do what I can to help.

Design by Mack Stuff on MakerWorld (license: BY).
