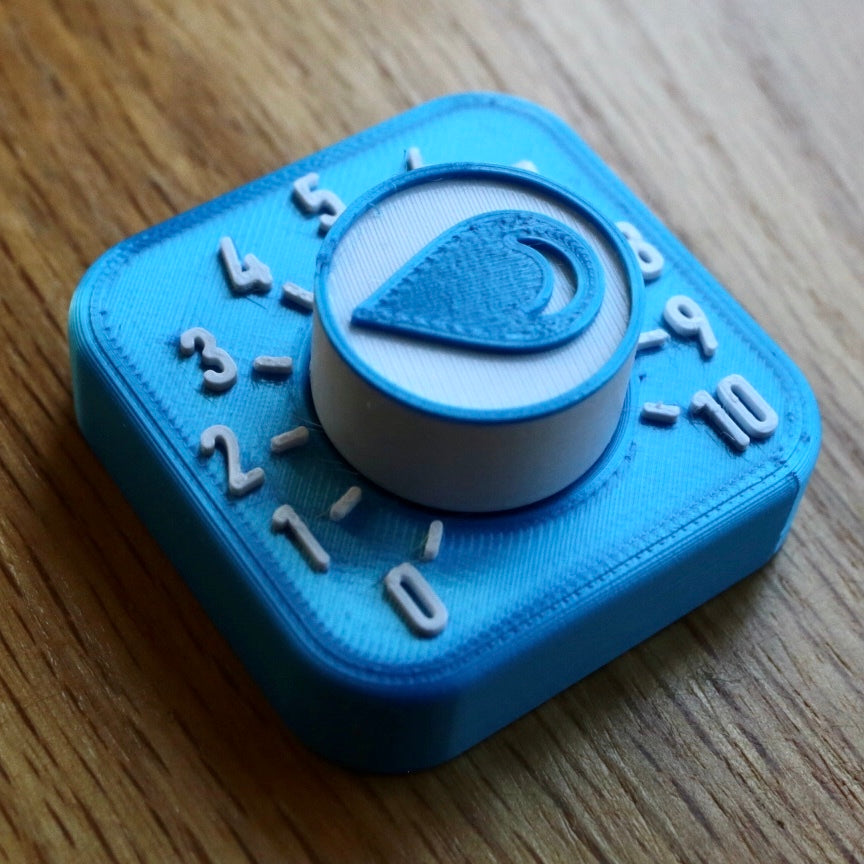

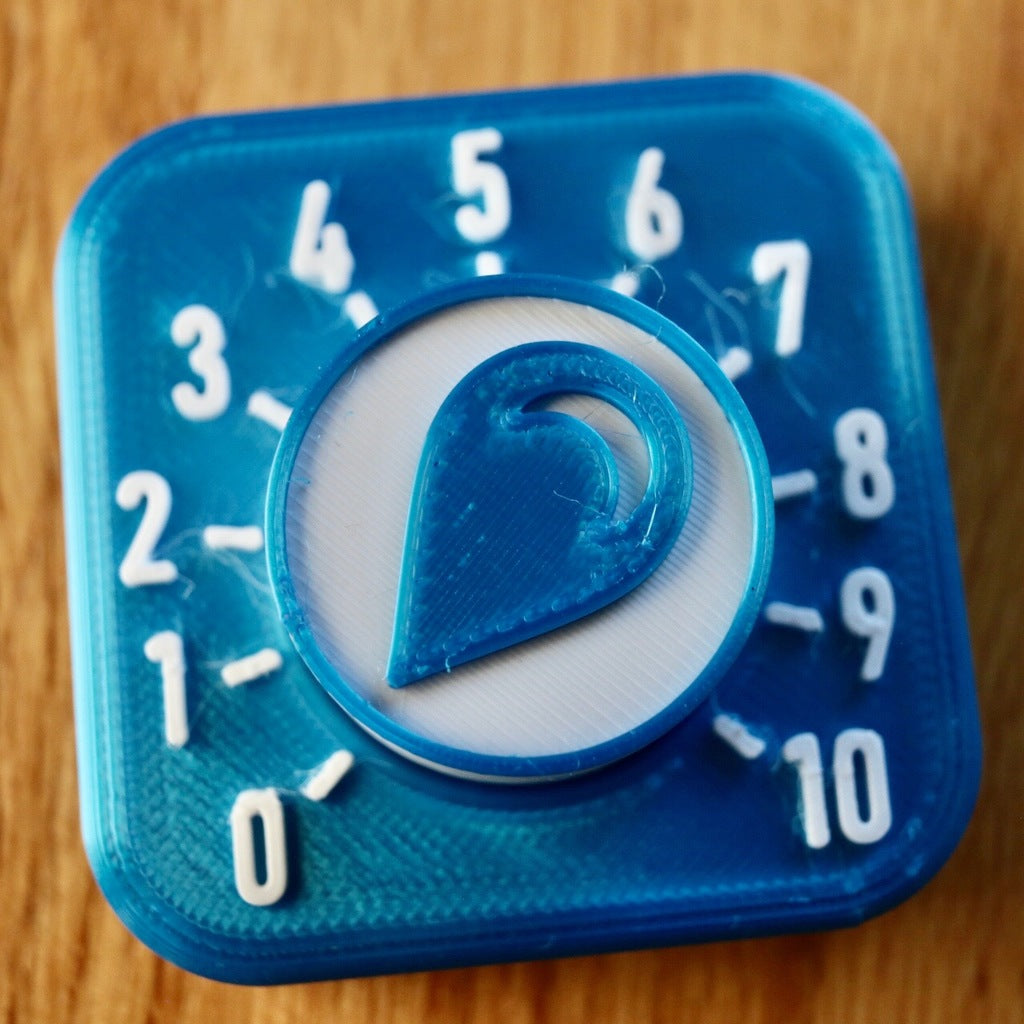

Rotary Counter Dial / Knob

Initially designed for counting number of cups of water consumed, it can be adapted to count various things for games or in general.

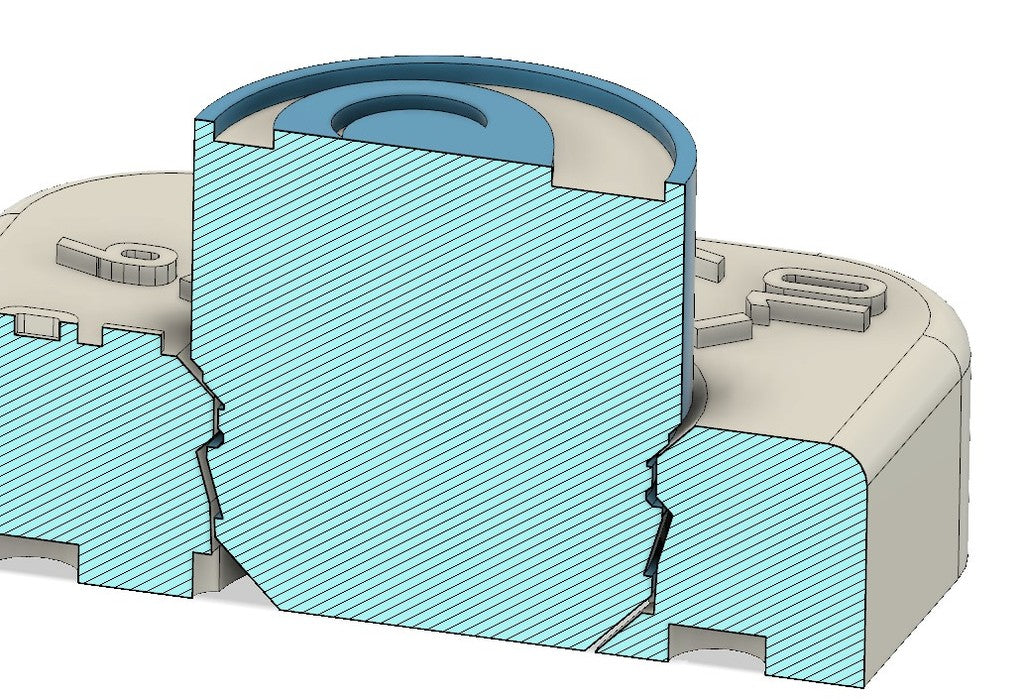

It features 11 positions which 'click' in place with a simple compliance mechanism.

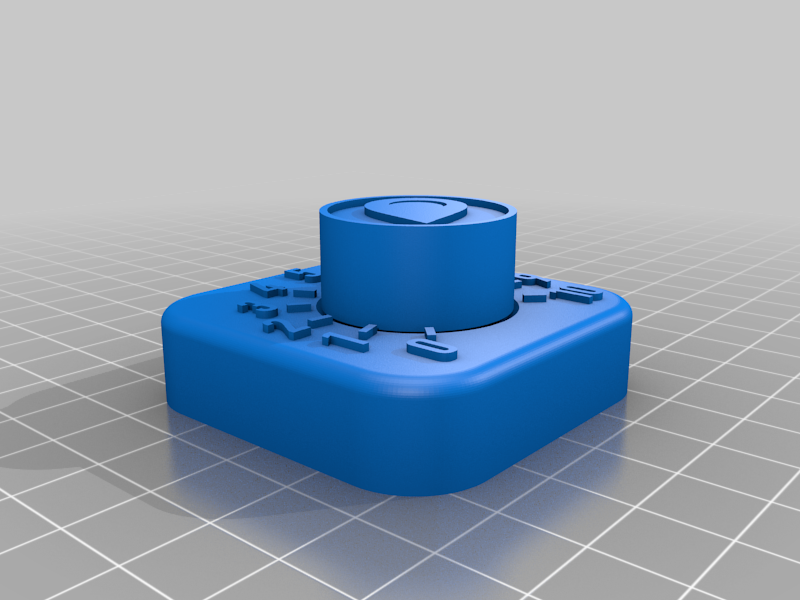

This is a two body print in place model with no supports required.

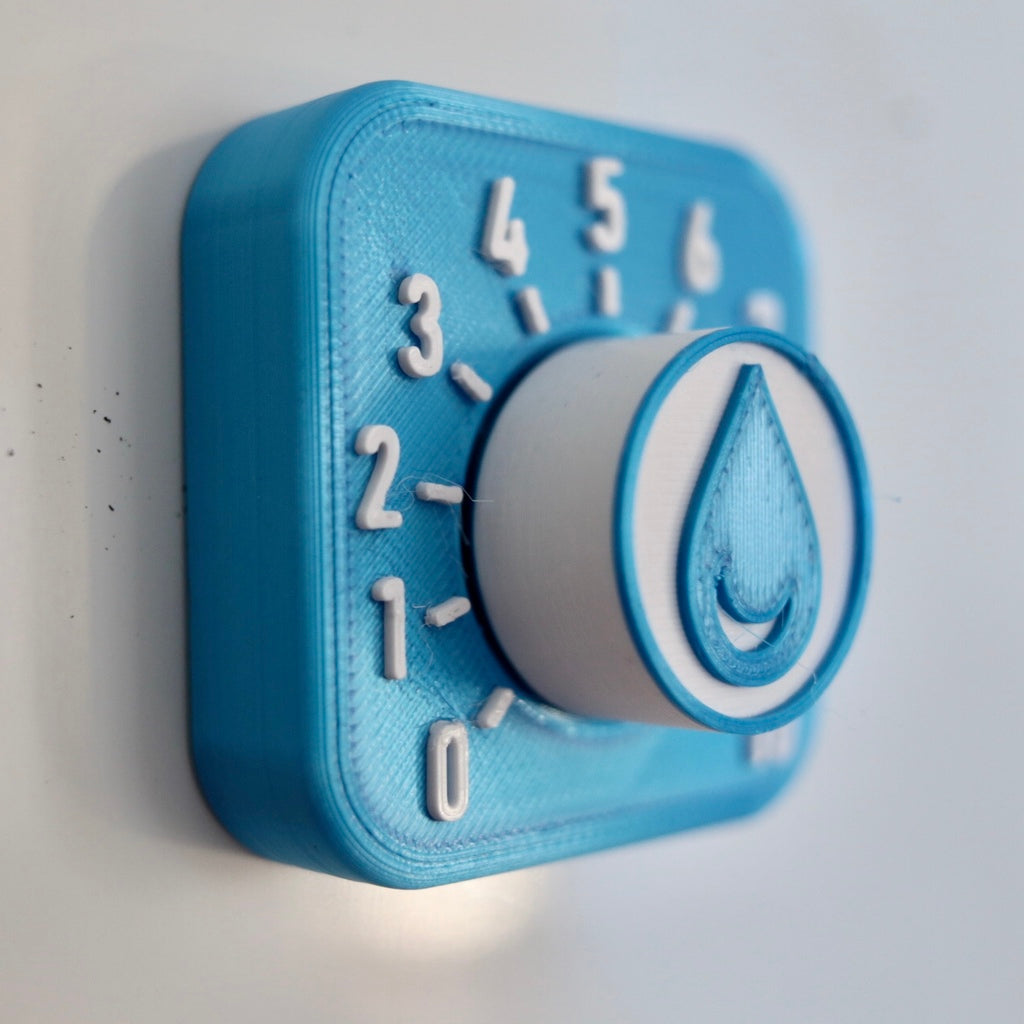

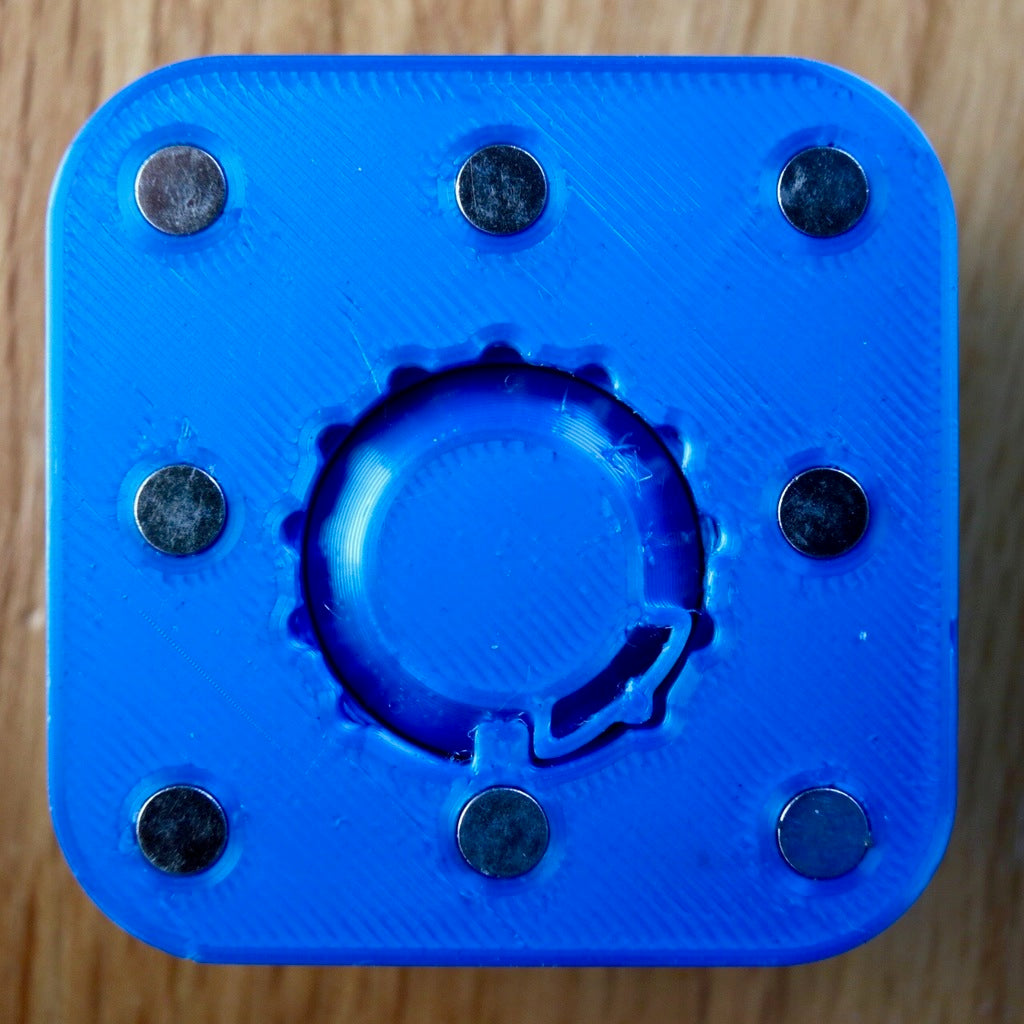

5x2mm magnets can be used if mounted on a whiteboard.

Fusion360 and STEP file included for tuning geometry and remix purposes.

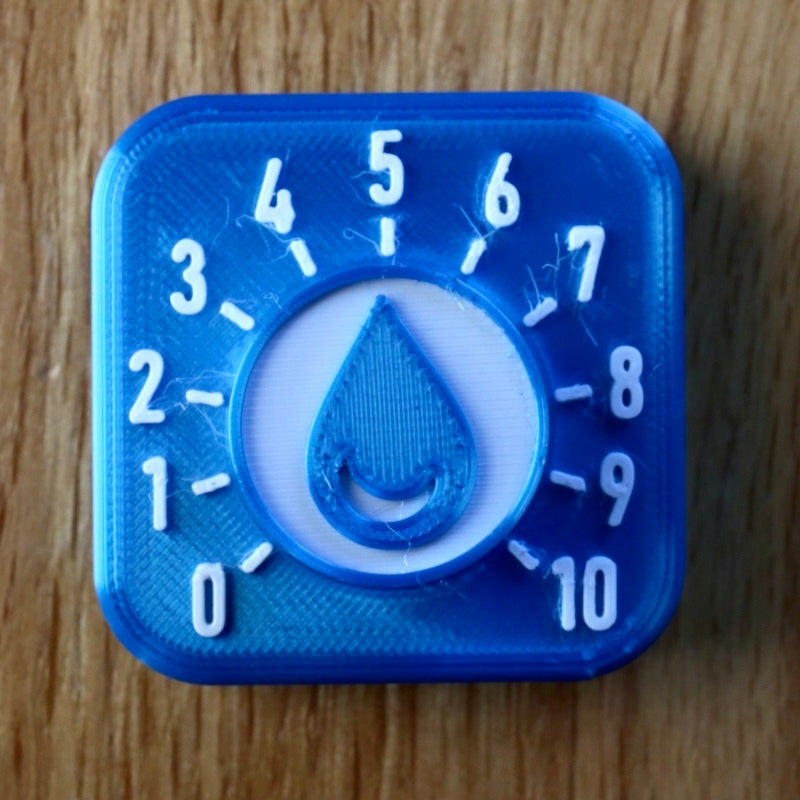

Use multiple colours for greater effect.

2 perimeters 20% infill, 4 top/4 bottom layers.

Print Settings

Printer:

Prusa Mini+

Rafts:

Supports:

No

Resolution:

Infill:

20%

Filament:

Cyan Silk / Cold White

Design by Rittai 3D on MakerWorld (license: BY).
