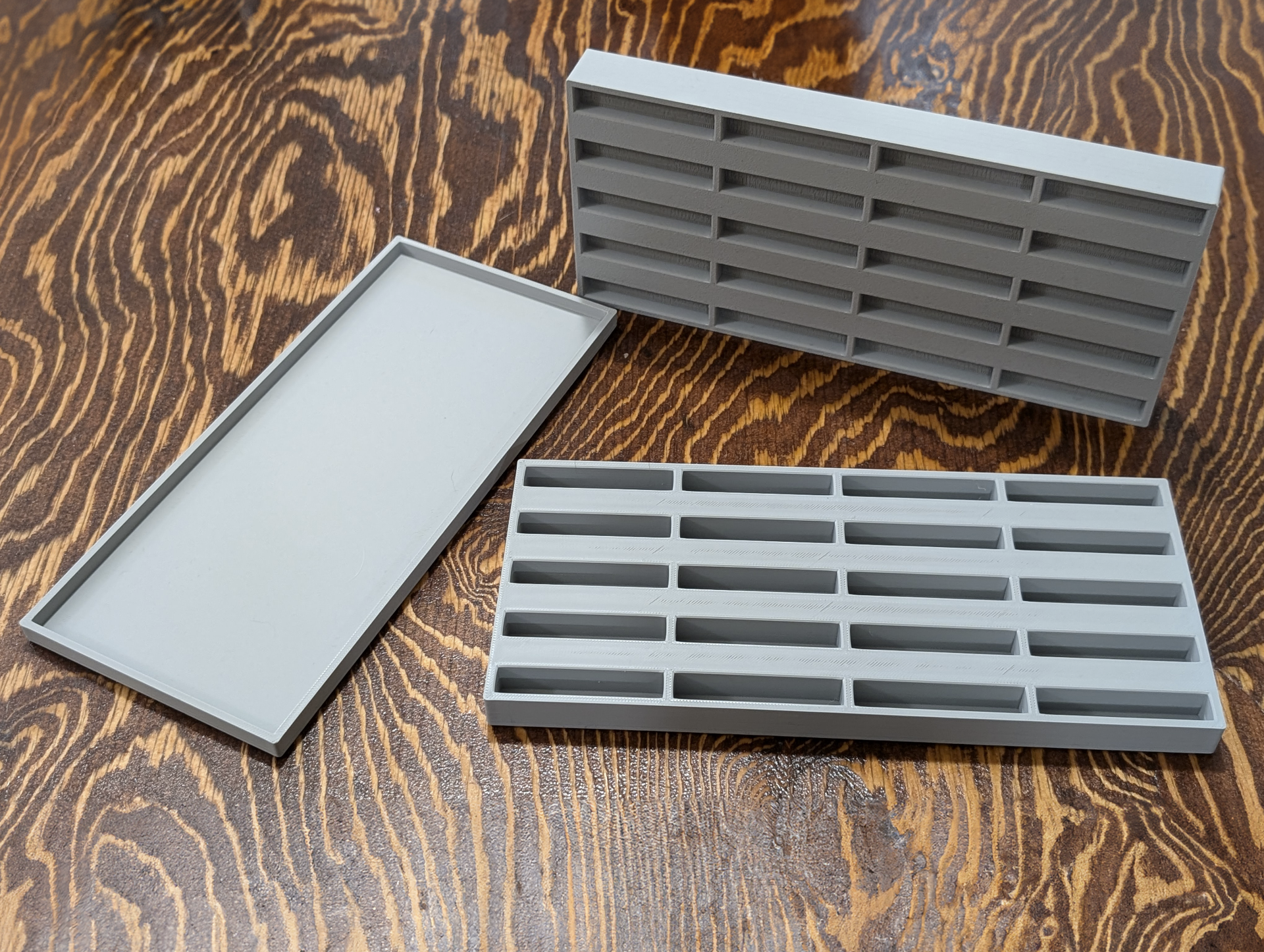

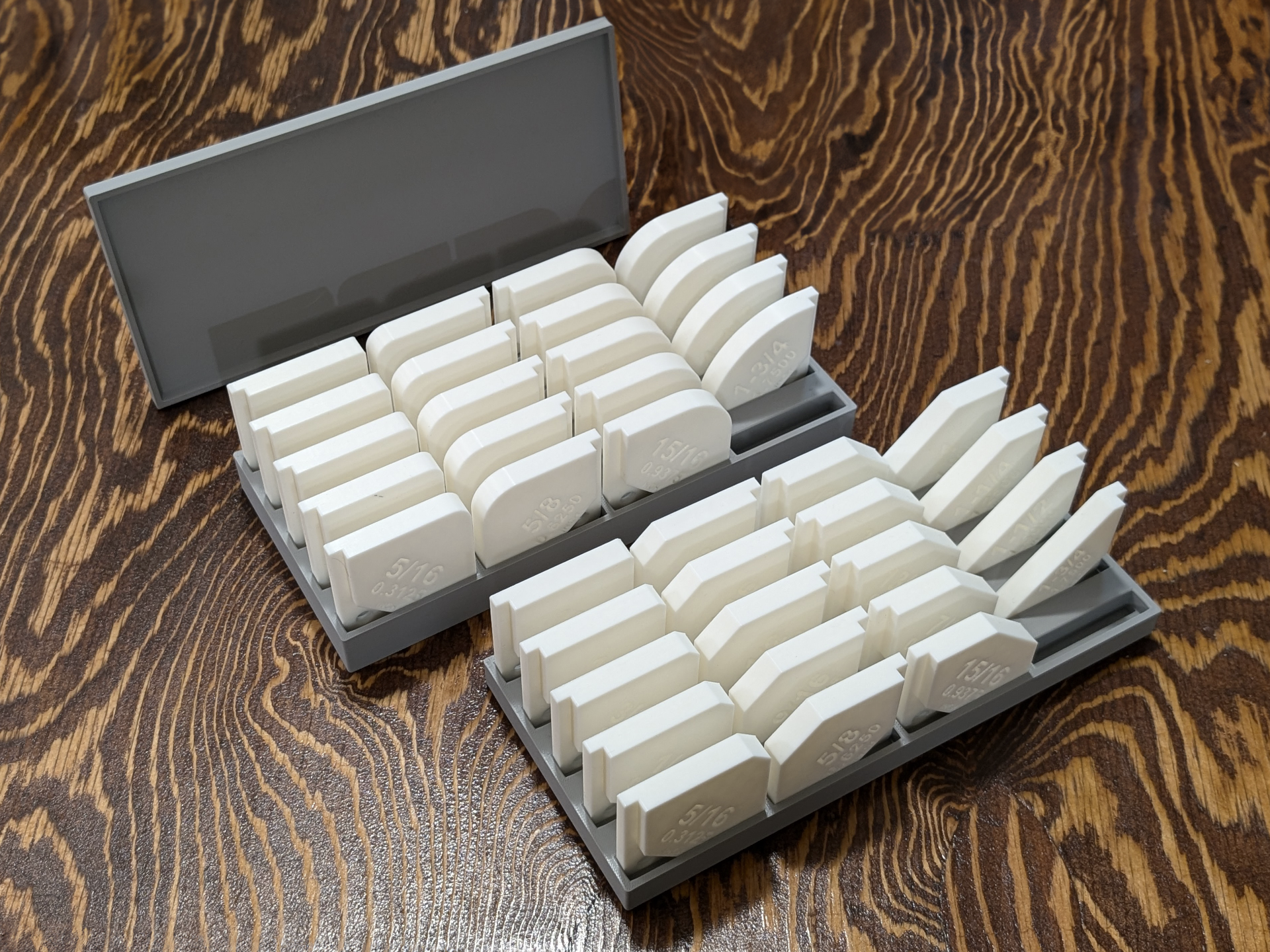

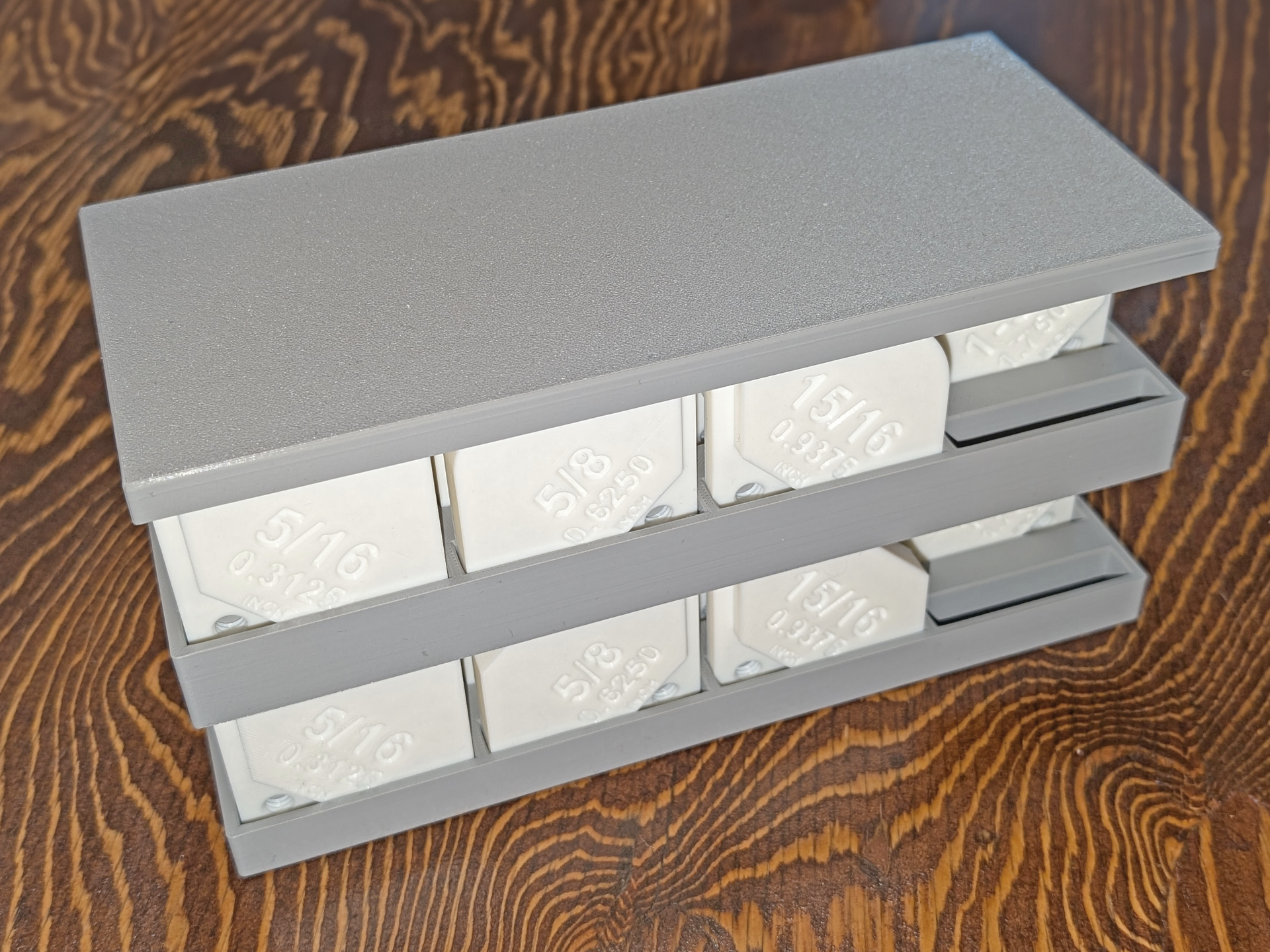

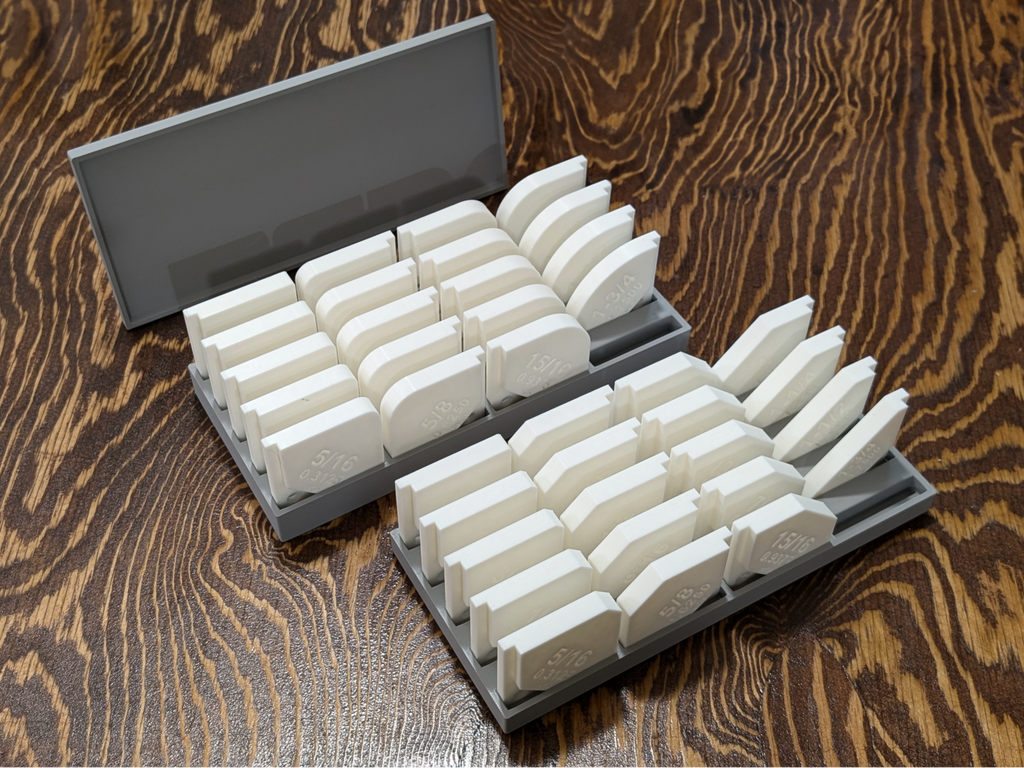

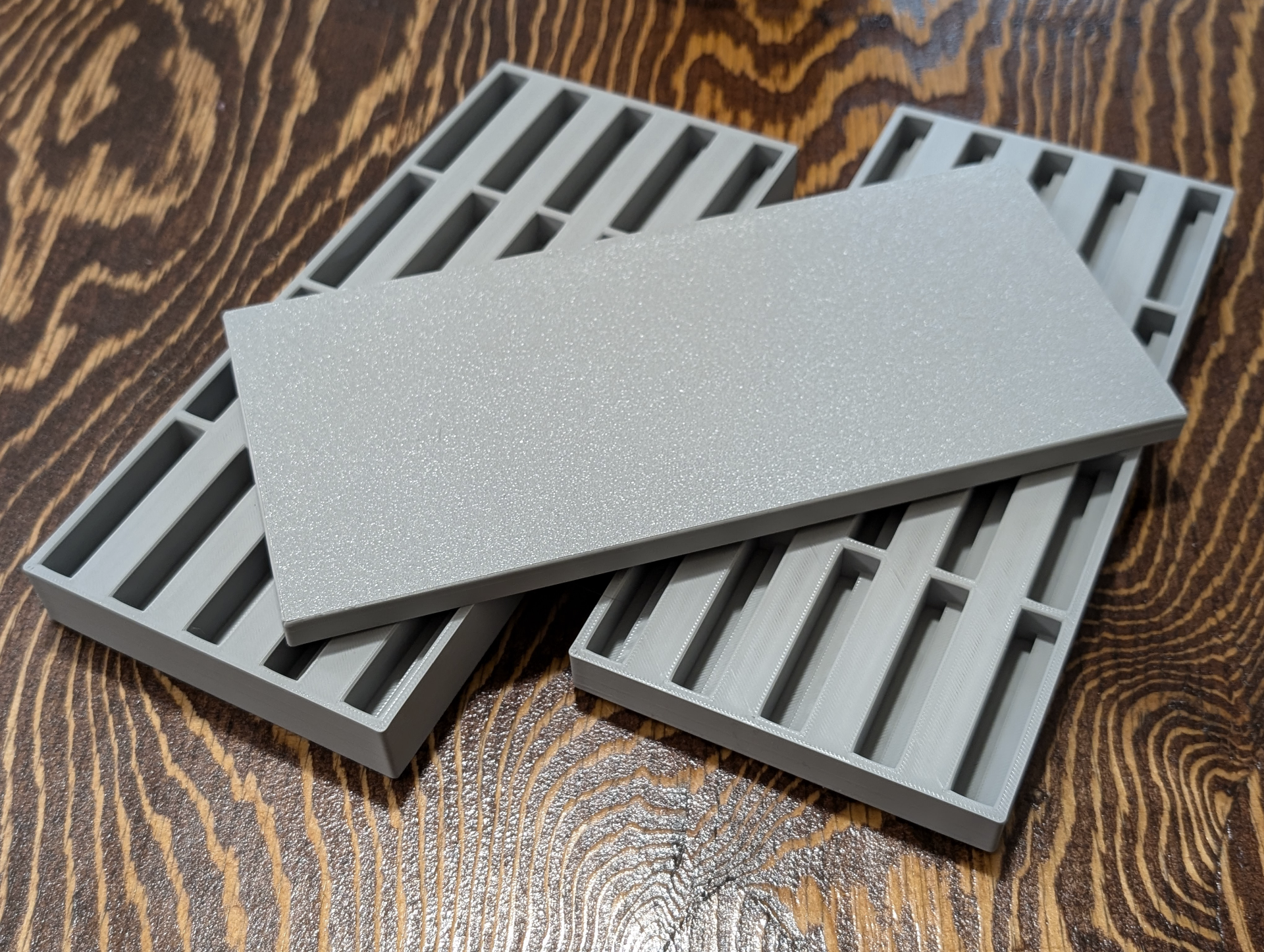

This is a stackable storage tray for the inserts for warlogh's router jig. The file contains a base tray, stackable trays, and a lid for a 5-row/4-column version (which is enough to hold all 19 fillet and all 19 chamfer inserts I shared in my remix).

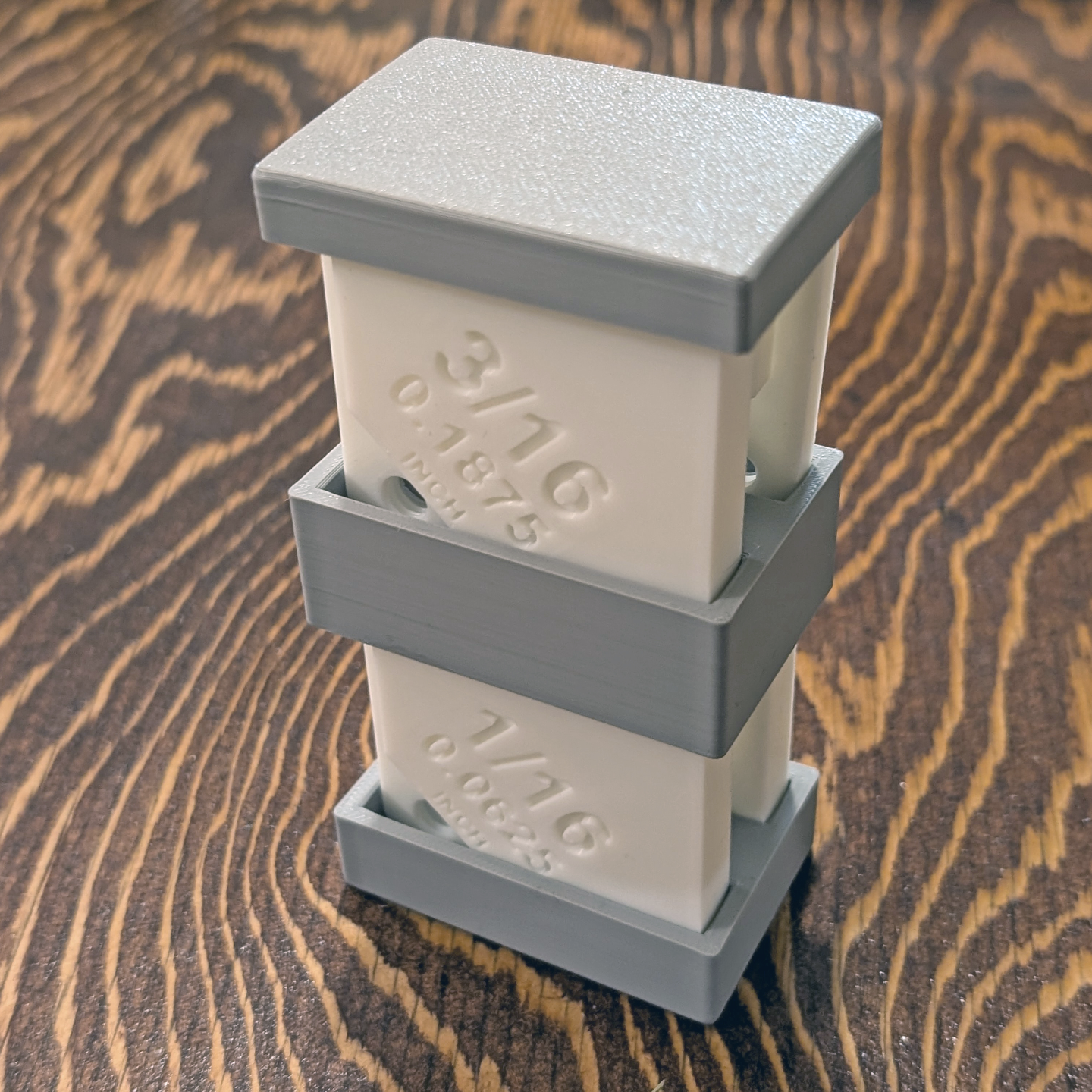

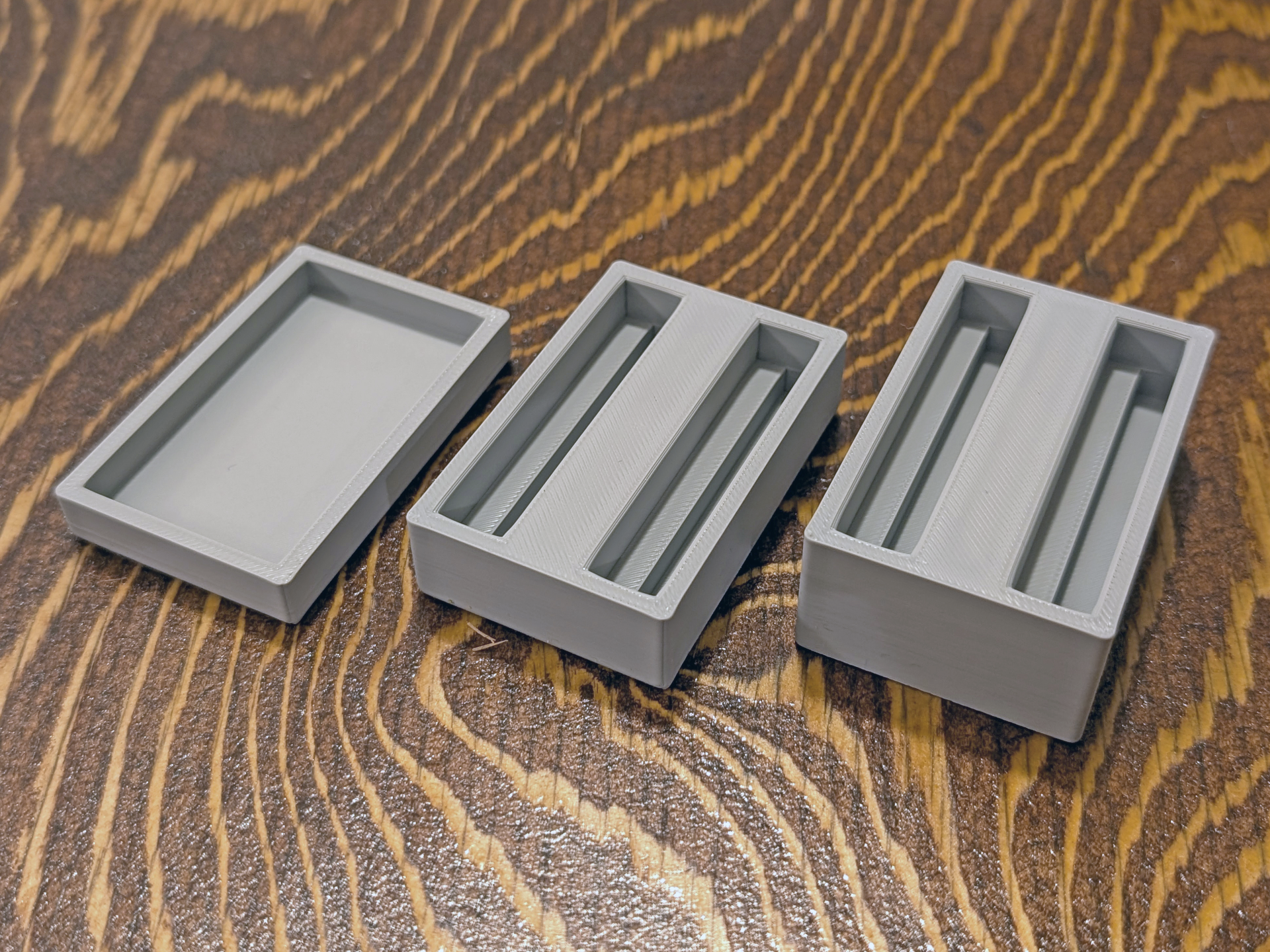

The .3MF file also contains a 2-row/1-column test print on sheet 4 so you can see if scaling is needed for your printer/inserts prior to printing the full-sized one.
The fully-parametric Fusion file is included if you want to alter or create custom tray sizes, with all parameters labelled and clearly described for ease of use.
Check out my other post for upgraded radius/fillet and chamfer inserts and this post for upgraded screws.
Design by theantivirus on MakerWorld (license: BY-SA).
