RPi 5 & AI HAT+ Vertical Stand (Low Filament)

Overview:
Tired of your Raspberry Pi 5 and AI HAT+ thermal throttling? This vertical stand is designed for maximum cooling efficiency with the absolute minimum amount of filament. It keeps your workspace tidy while ensuring your Hailo-8L chip stays cool during heavy AI workloads.

Key Features:

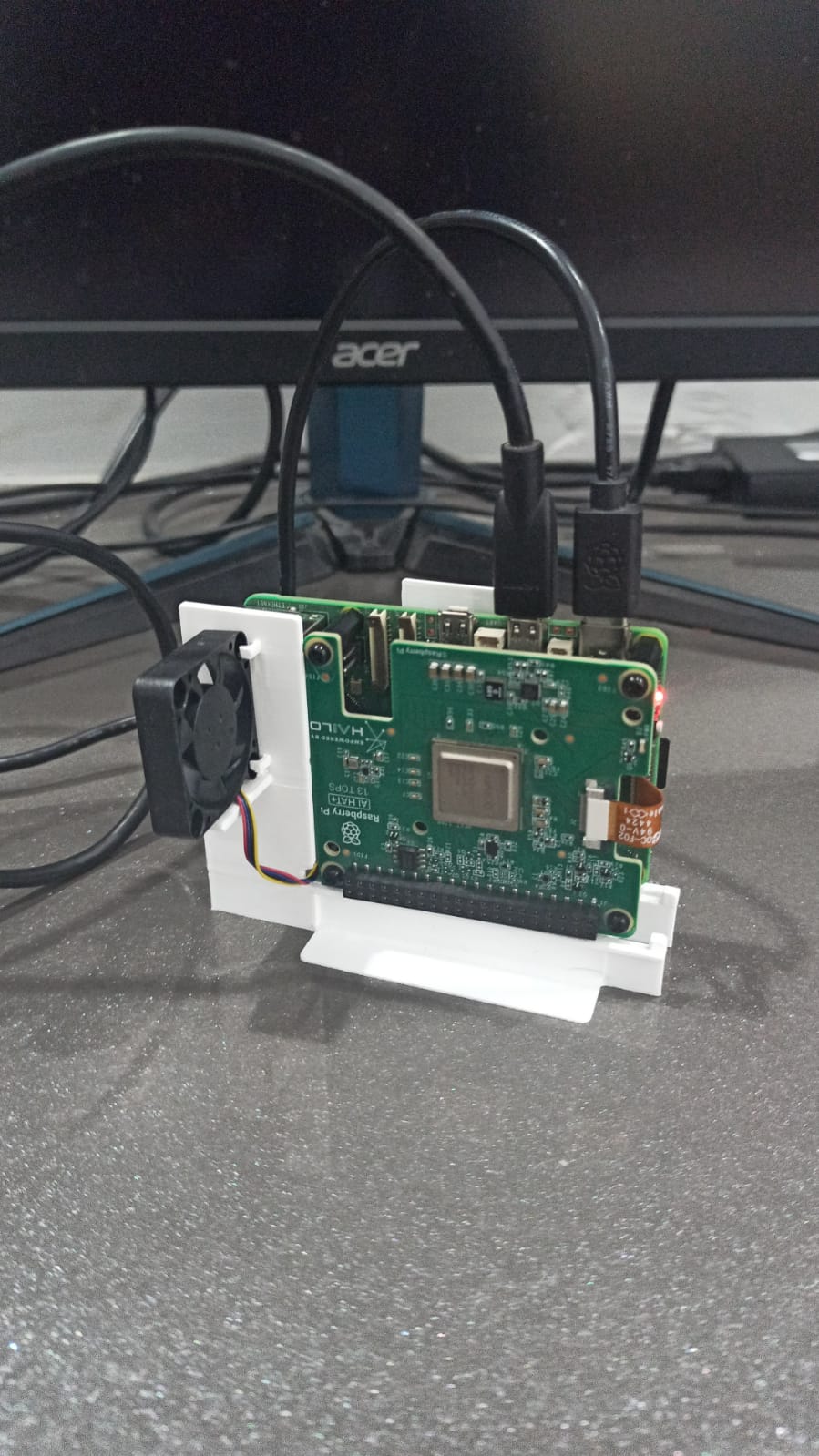

• Vertical "Chimney" Effect: By mounting the Pi vertically, heat naturally rises and escapes from the gap between the mainboard and the AI HAT+, preventing heat soak.

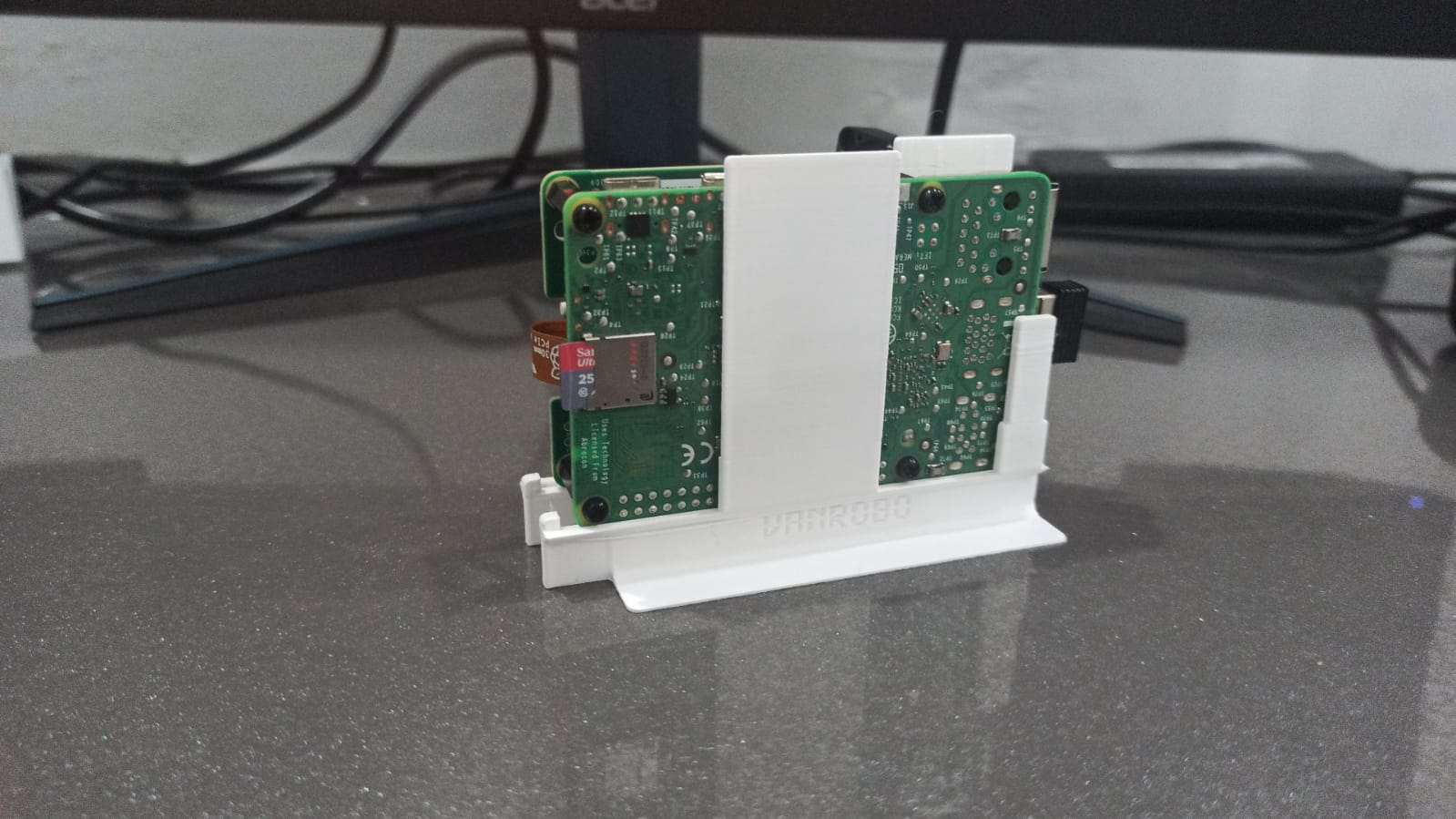

• 360° Air Exposure: Unlike a closed case, the underside of the Pi 5 is fully exposed to ambient air, cooling the board components passively.

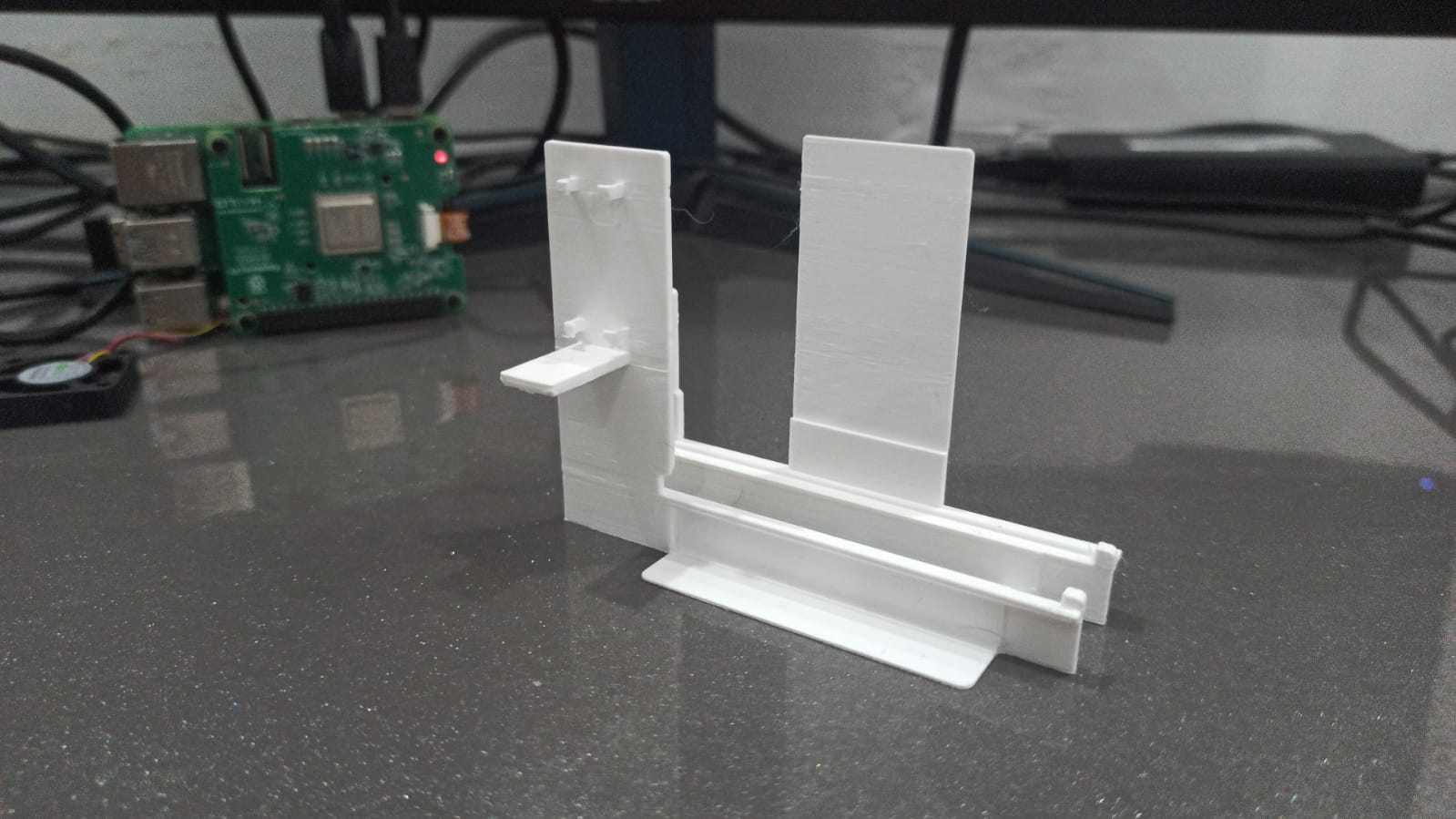

• Minimalist Design: Low filament usage (only 16 grams!). Fast print time with minimal supports needed.

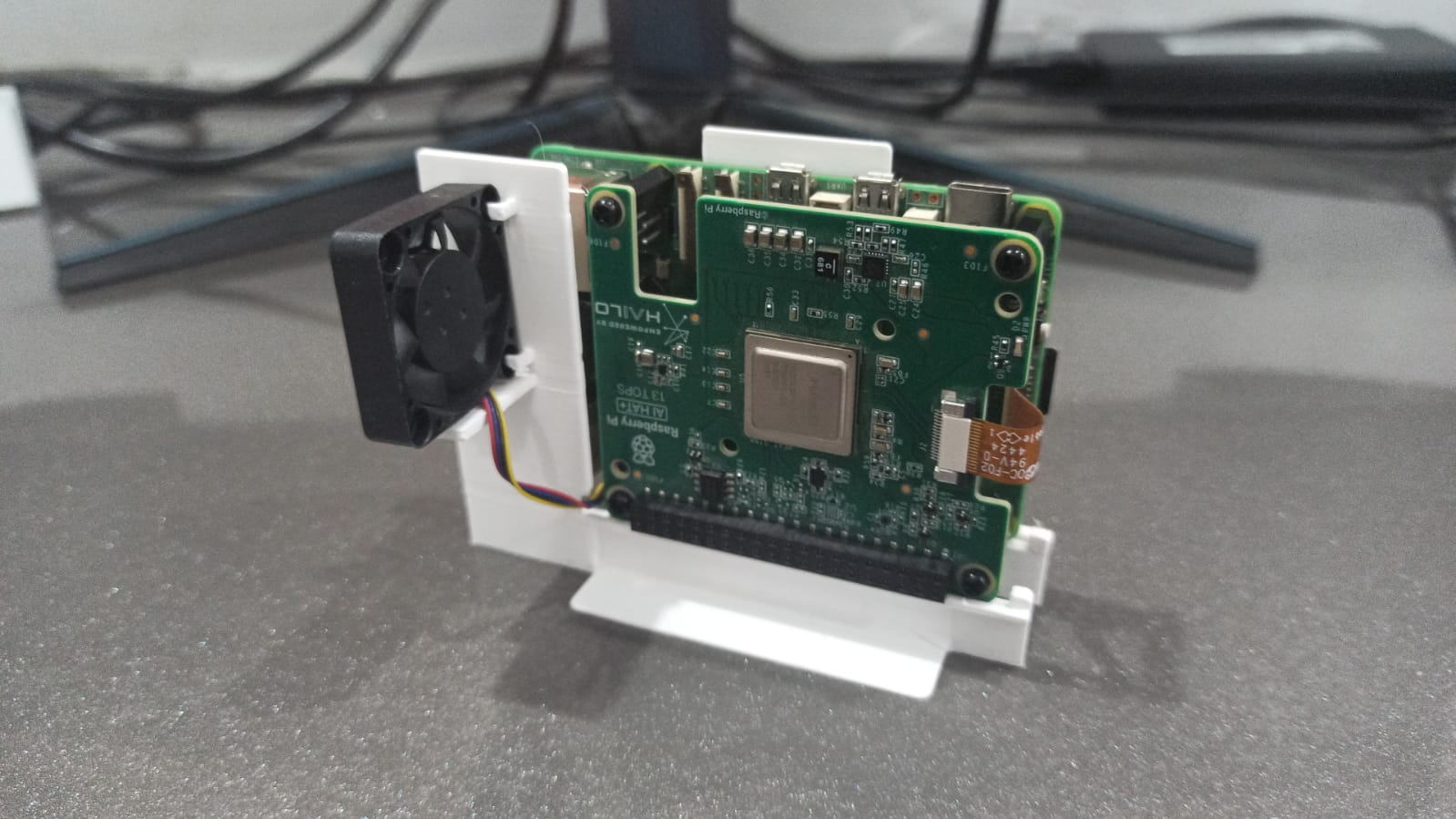

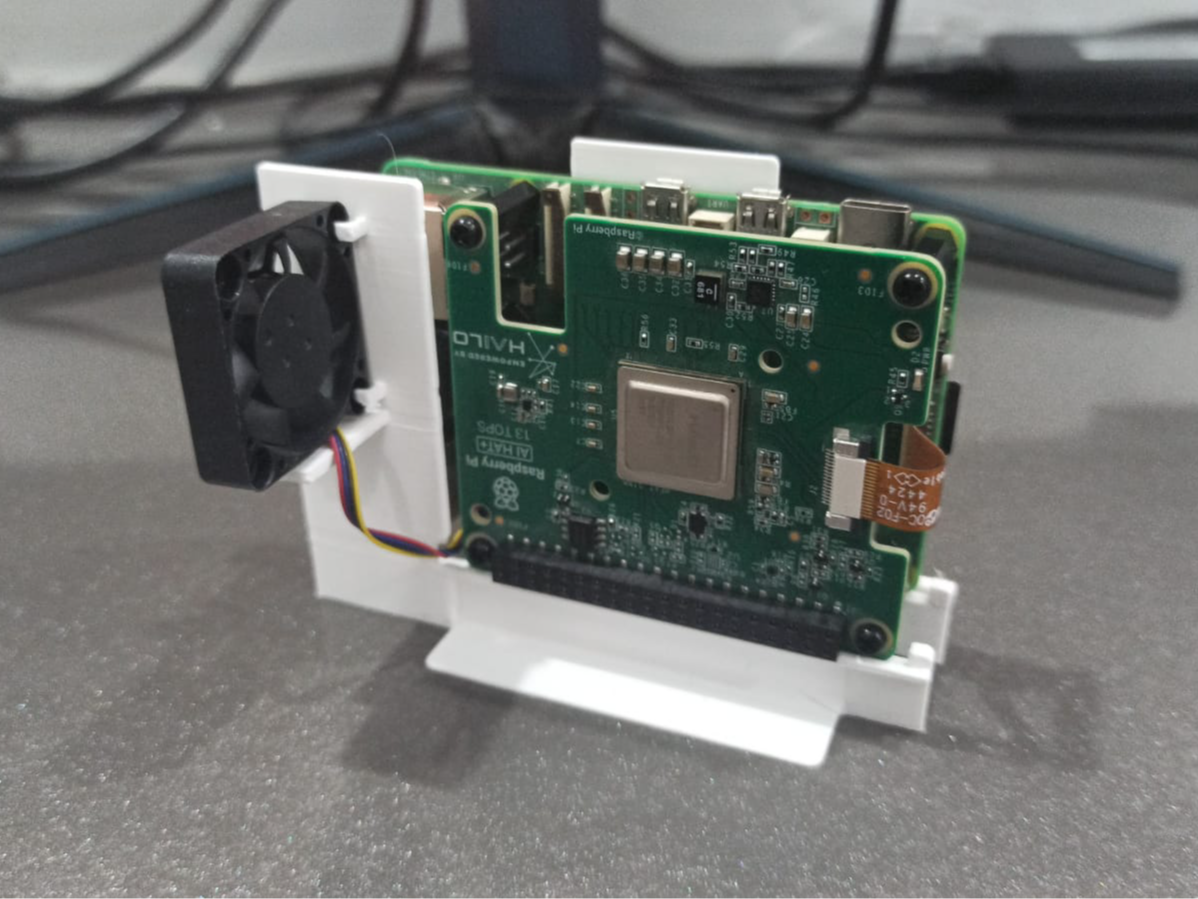

• Side-Load Fan Mount: Includes a dedicated bracket for a standard 30mm/40mm fan, blowing air directly across the NPU and CPU simultaneously.'

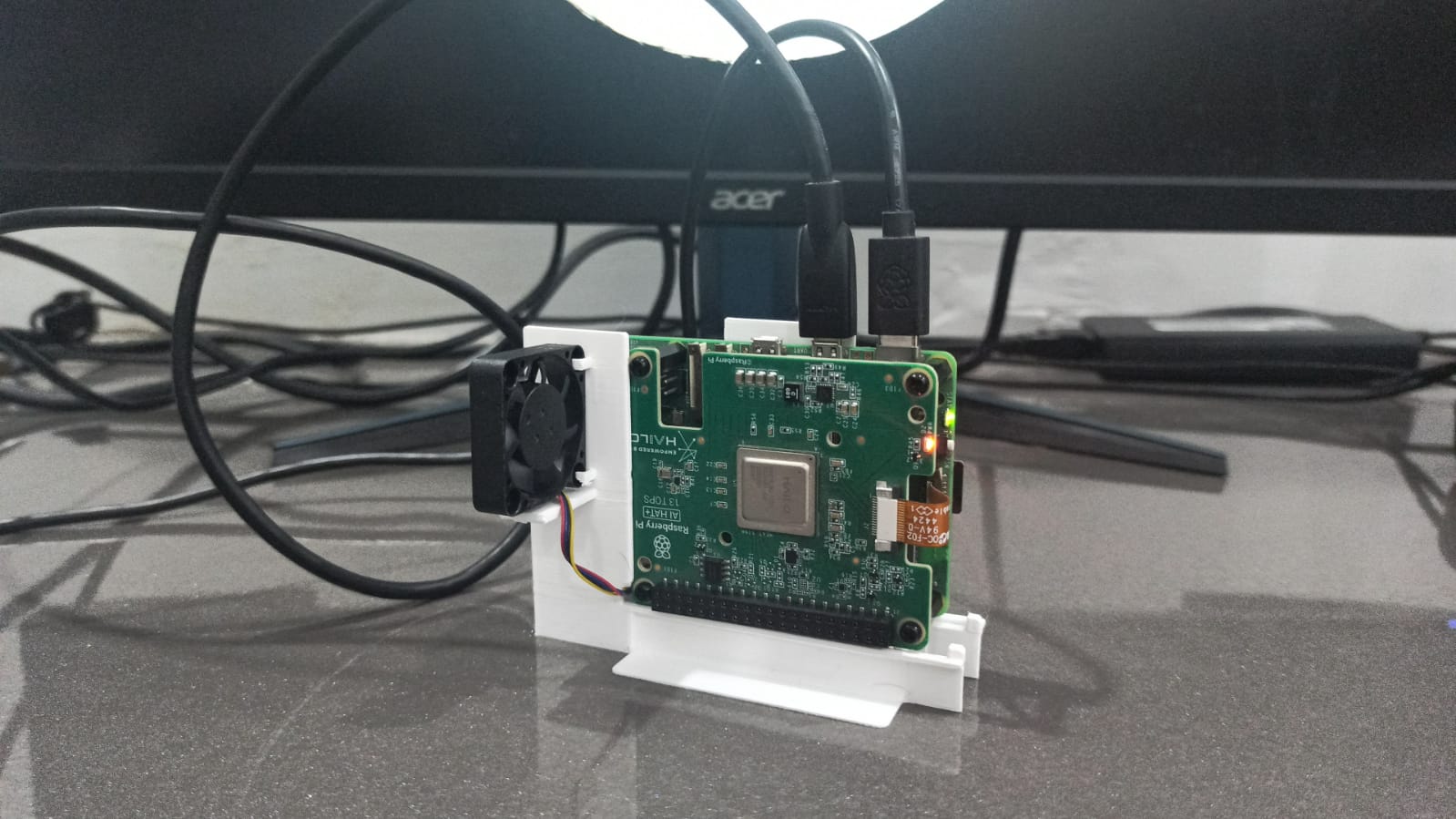

• Stable Base: Despite its small footprint, the "T-stand" base provides a solid foundation even with heavy cables plugged into the top.


Print Settings:

• Material: PLA (PETG recommended if your Pi runs very hot).
• Supports: Enabled [with ON BUILD PLATE ONLY RECOMMENDED].
• Infill: 15-20% (Grid or Gyroid).

Design by vanrobo on MakerWorld (license: BY-SA).
