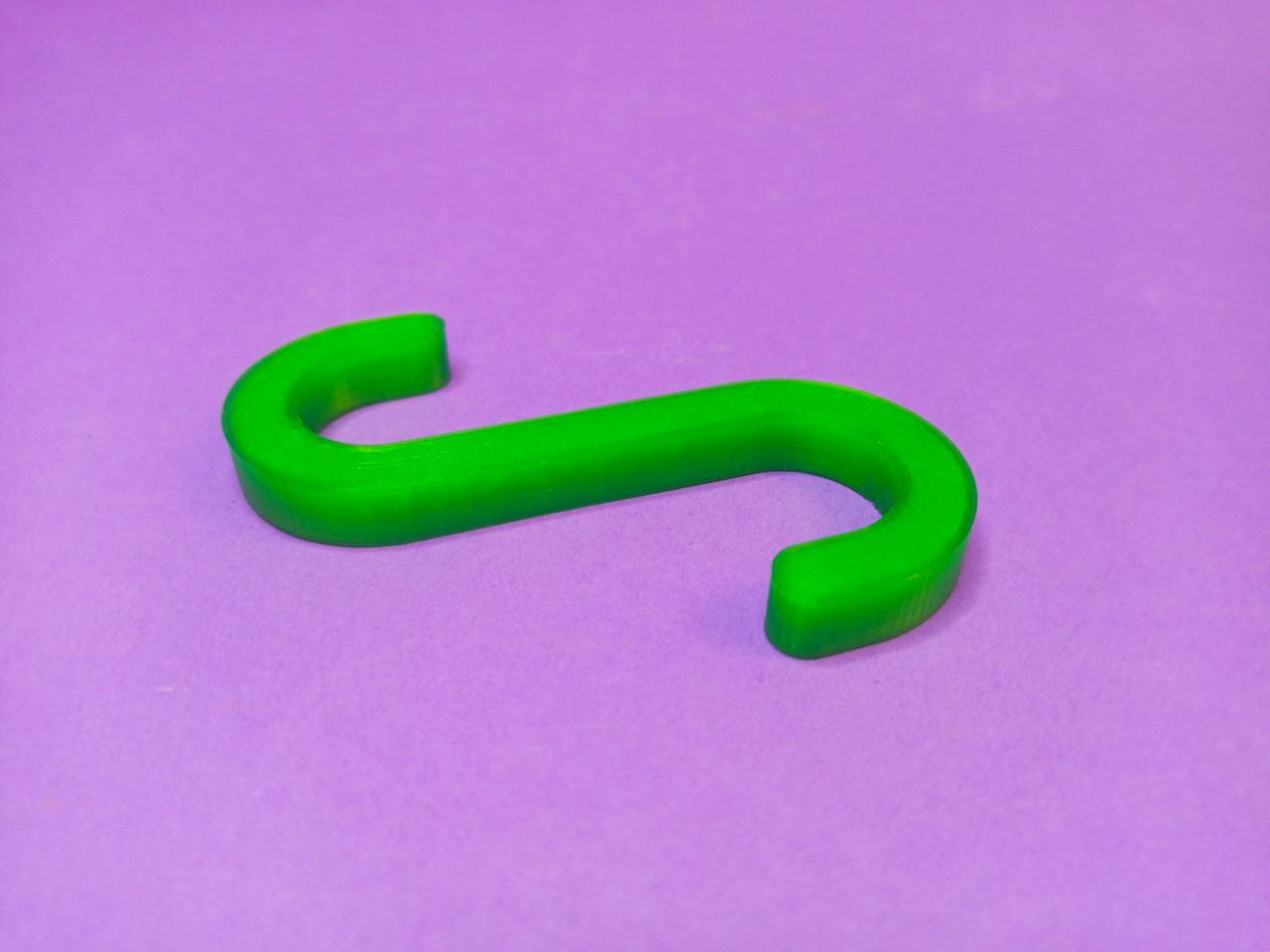

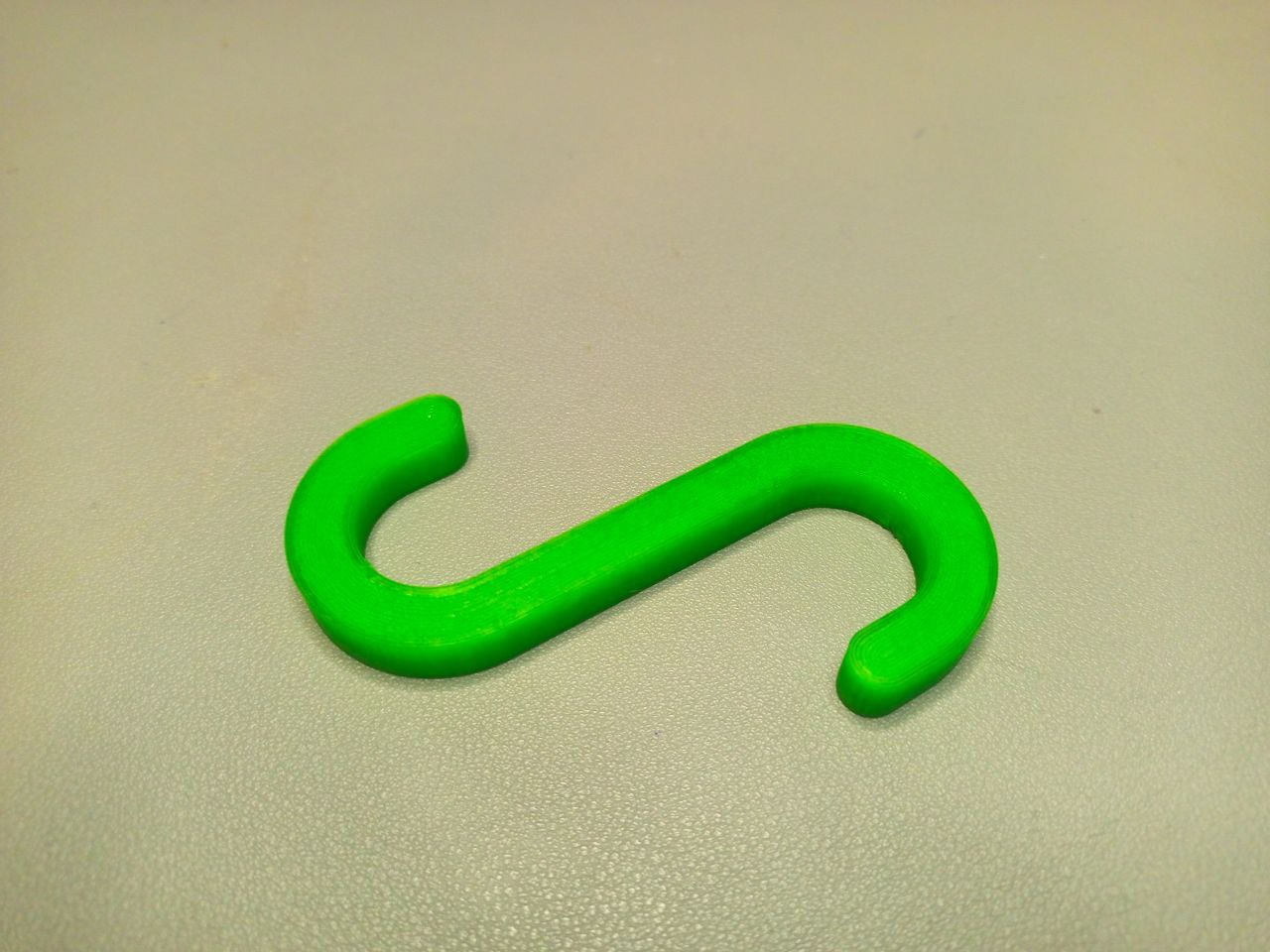

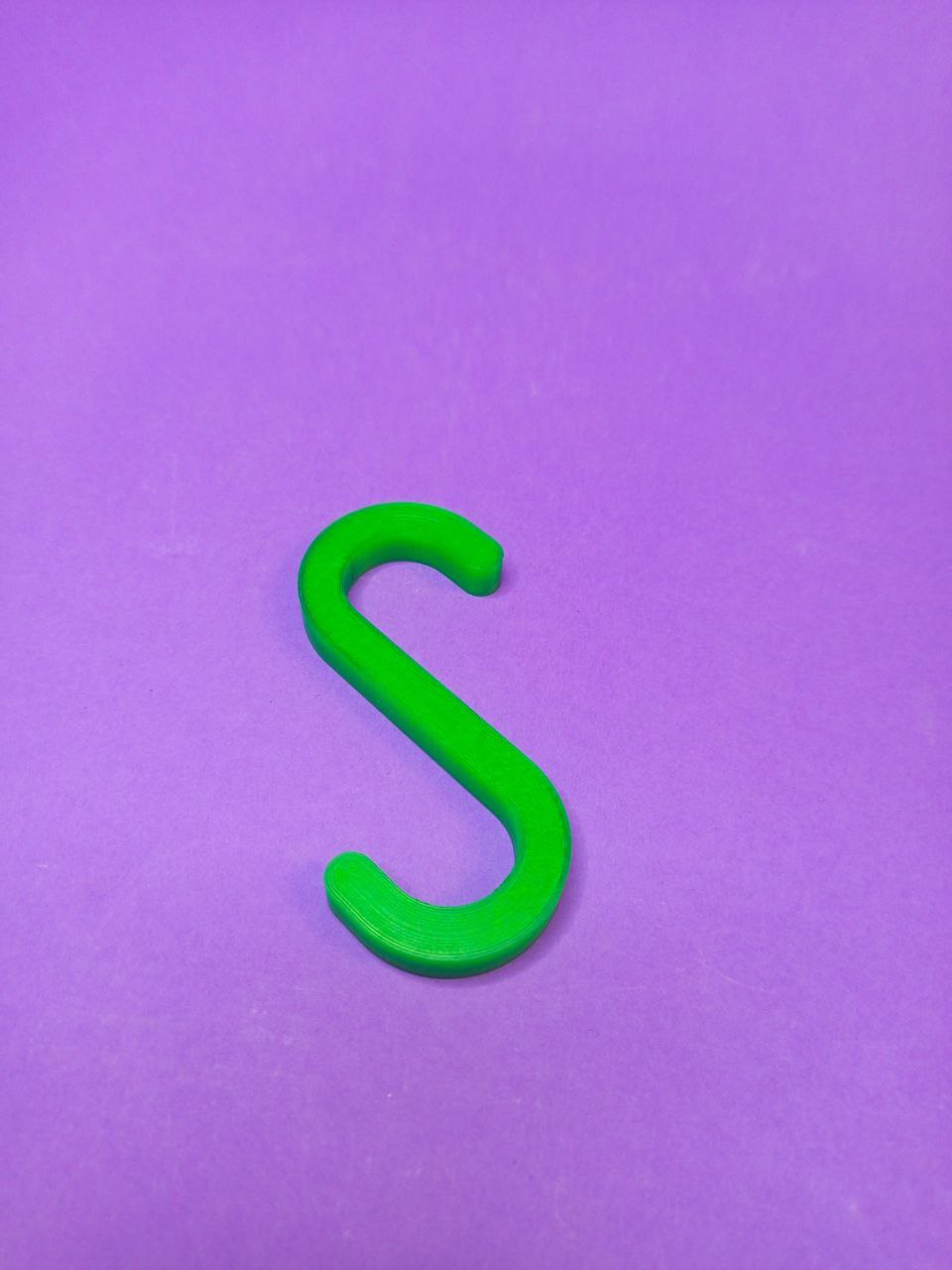

S-hook with a load capacity of 10 kg

s-hook with a load capacity of 10 kg
 inner diameter 20 mm

axis distance 50 mm
---------------------------------------
 🚀 My Hooks Collection Just Expanded!

Based on your feedback and requests, I've turned the single hook into two comprehensive, ready-to-use sets. Now you can choose the perfect strength and size for your project.

Check out the new collections:

• 📦 Light-Duty 2kg Hooks Set (10-60mm) – Perfect for everyday organizing of keys, towels, cables, and light tools. A sleek, efficient design with a proven safety margin.
  👉 https://makerworld.com/en/models/2362050-light-duty-2kg-hooks-set-10-60mm-inner-diameter
• 🏋️ Heavy-Duty 10kg Hooks Set (10-60mm) – Engineered for serious weight. Ideal for the garage, workshop, or anywhere you need to hang power tools, hoses, or heavy equipment.
  👉 https://makerworld.com/en/models/2351826-heavy-duty-10kg-hooks-set-10-60mm-inner-diameter

Both sets feature the same logical file naming, clear safety guidelines, and a full range of sizes (10, 15, 20, 30, 40, 50, 60mm inner diameter). Print in PETG for best results.

Thank you for the inspiration to build something more complete!
--------------------------------------------

The load capacity depends on the material used and the printing technology.

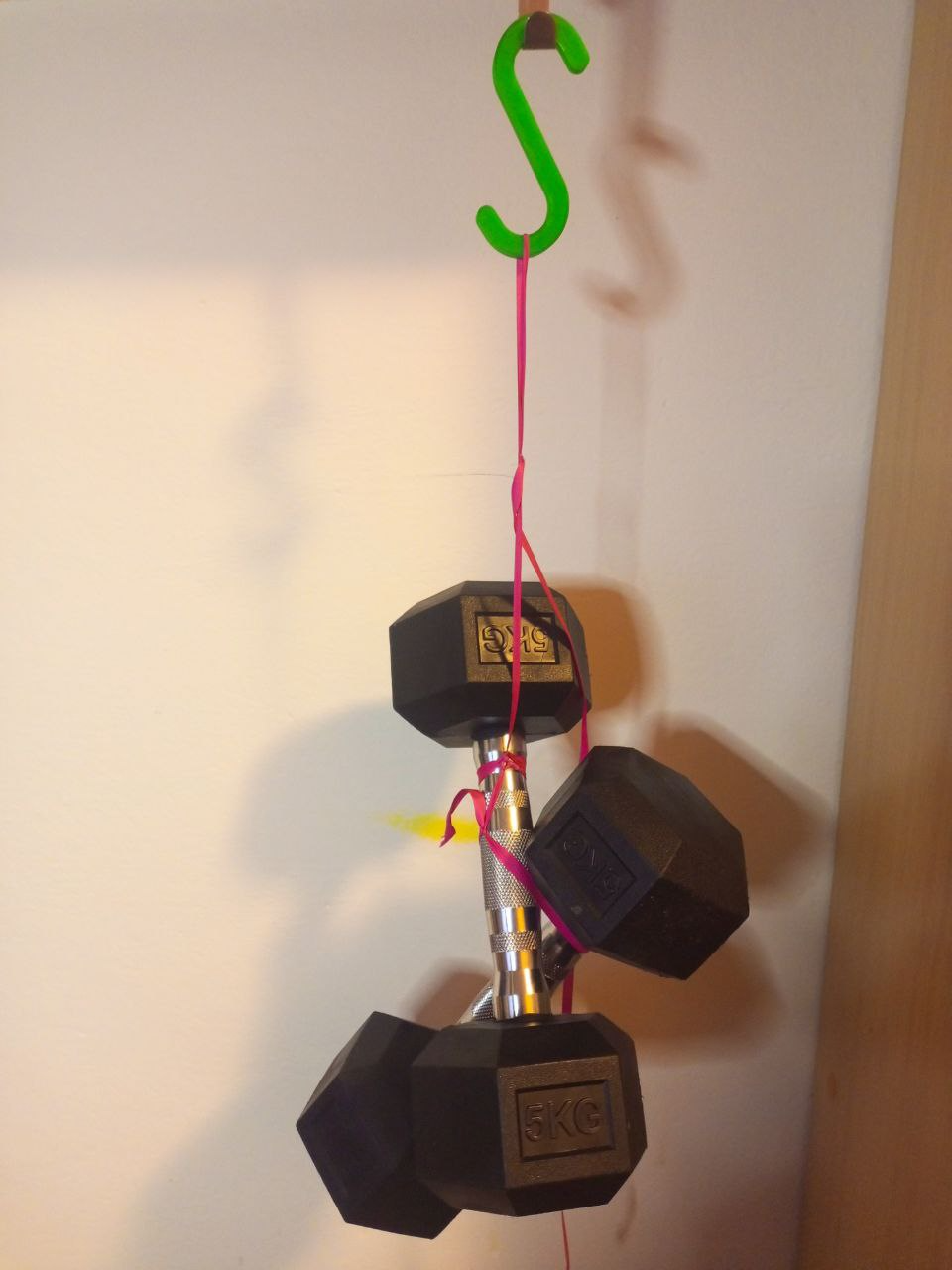

A load of 10 kg seems to be safe when the load is approximately in the middle of the hook and the printing conditions and material are respected.

The theoretical load capacity is over 20 kg, but better not to try.

Conditions:

PETG material (strength over 50 MPa)

Minimum 3 walls, 30% infill, 1 mm bottom and top layer.
Speed max. 60 mm/s

The hook lies on its side when printing (no supports).

If you want a different hook shape, you can write me a message.
I am not responsible for any damages that may occur if the hook is broken.



Design by MiFa on MakerWorld (license: CC0).
