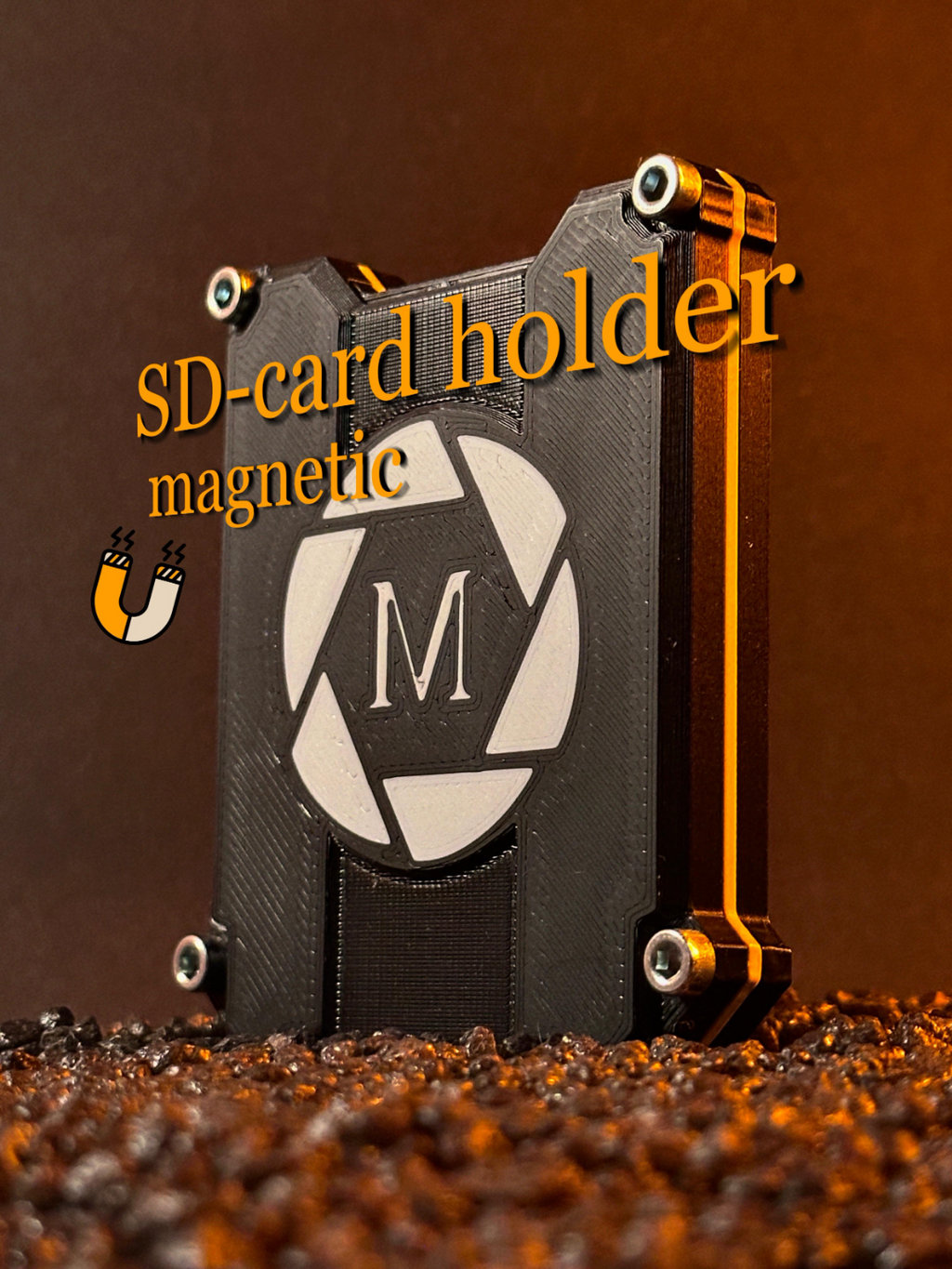

SD-Card Holder/Wallet

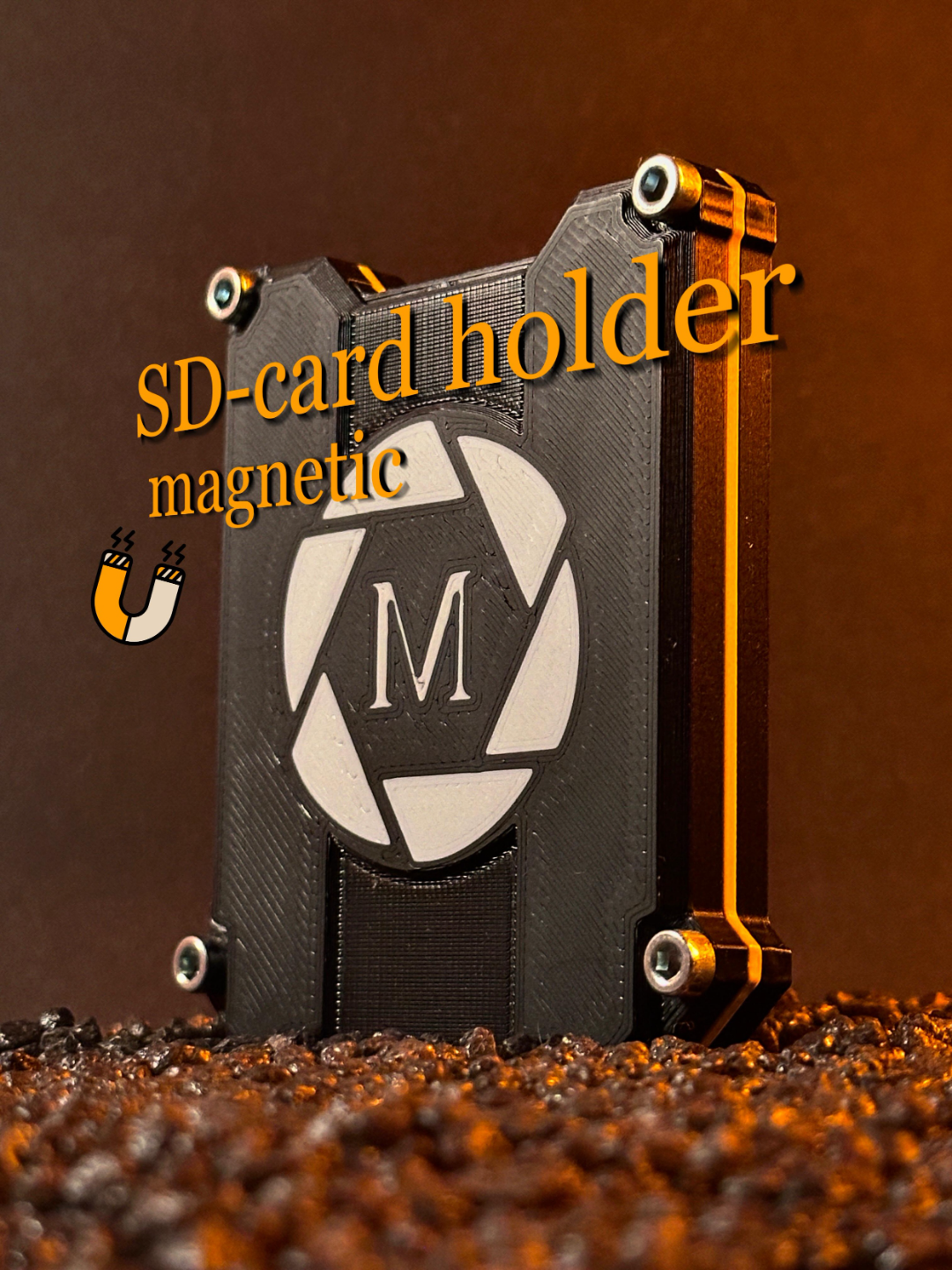

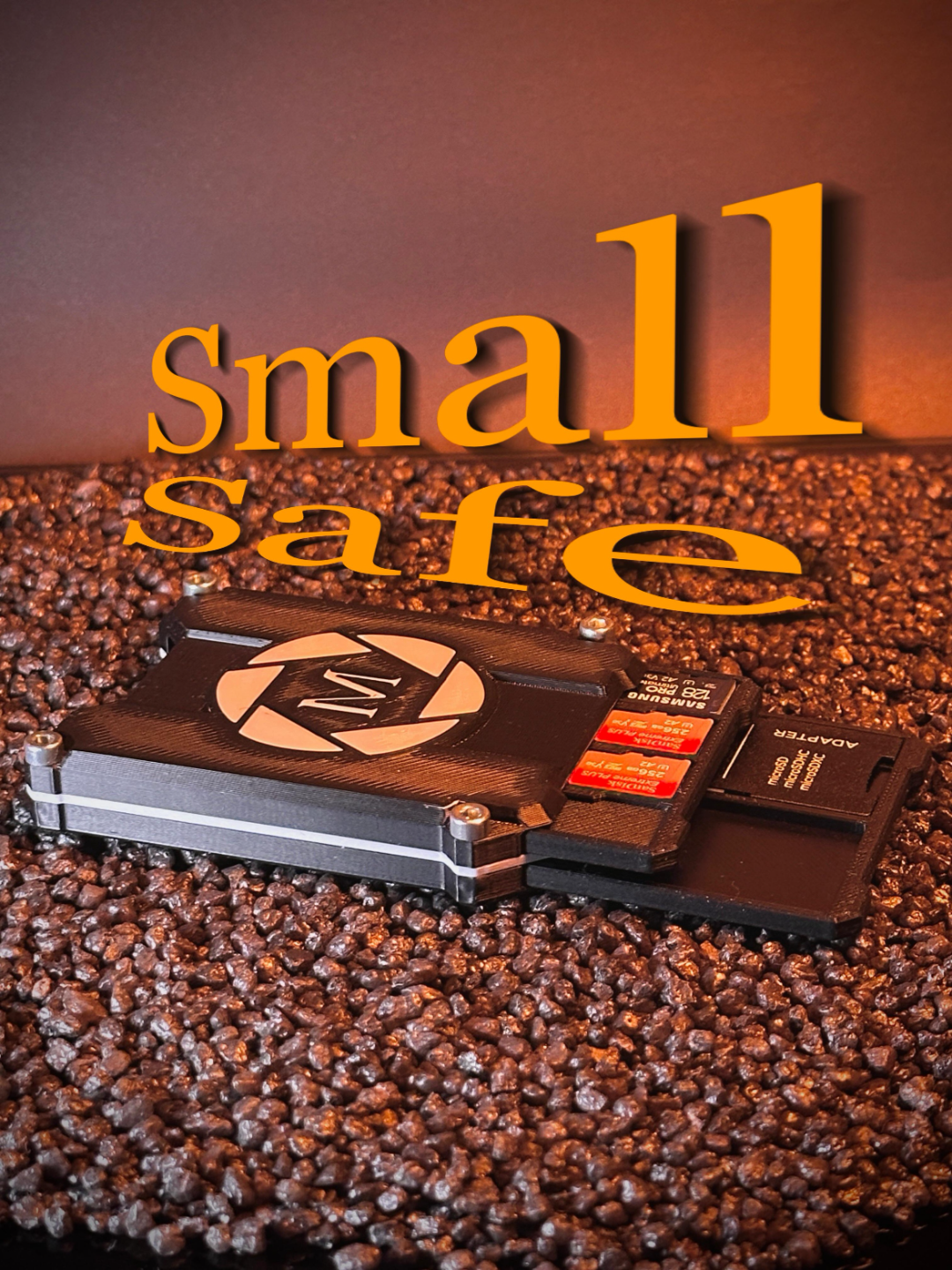

This SD card wallet is designed to securely and compactly store your memory cards. It features two layers that are held in place magnetically. These layers can be smoothly slid out with a gentle push, providing easy access to your cards while ensuring they remain safely in place.

The wallet offers three different printable insert compartments to suit your specific needs:

1. Compartment for 4 large SD cards – Perfect for users who primarily work with standard SD cards.

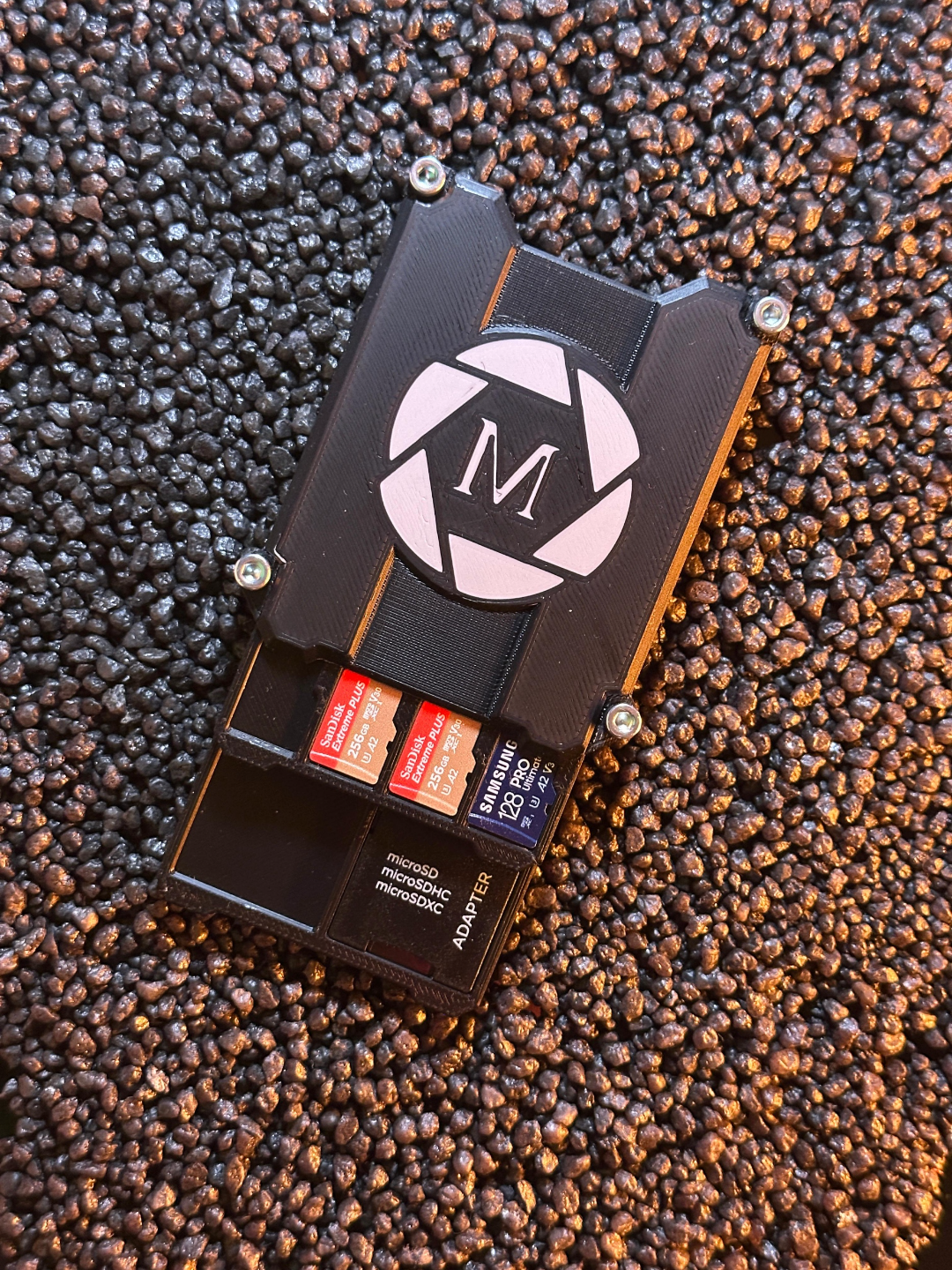

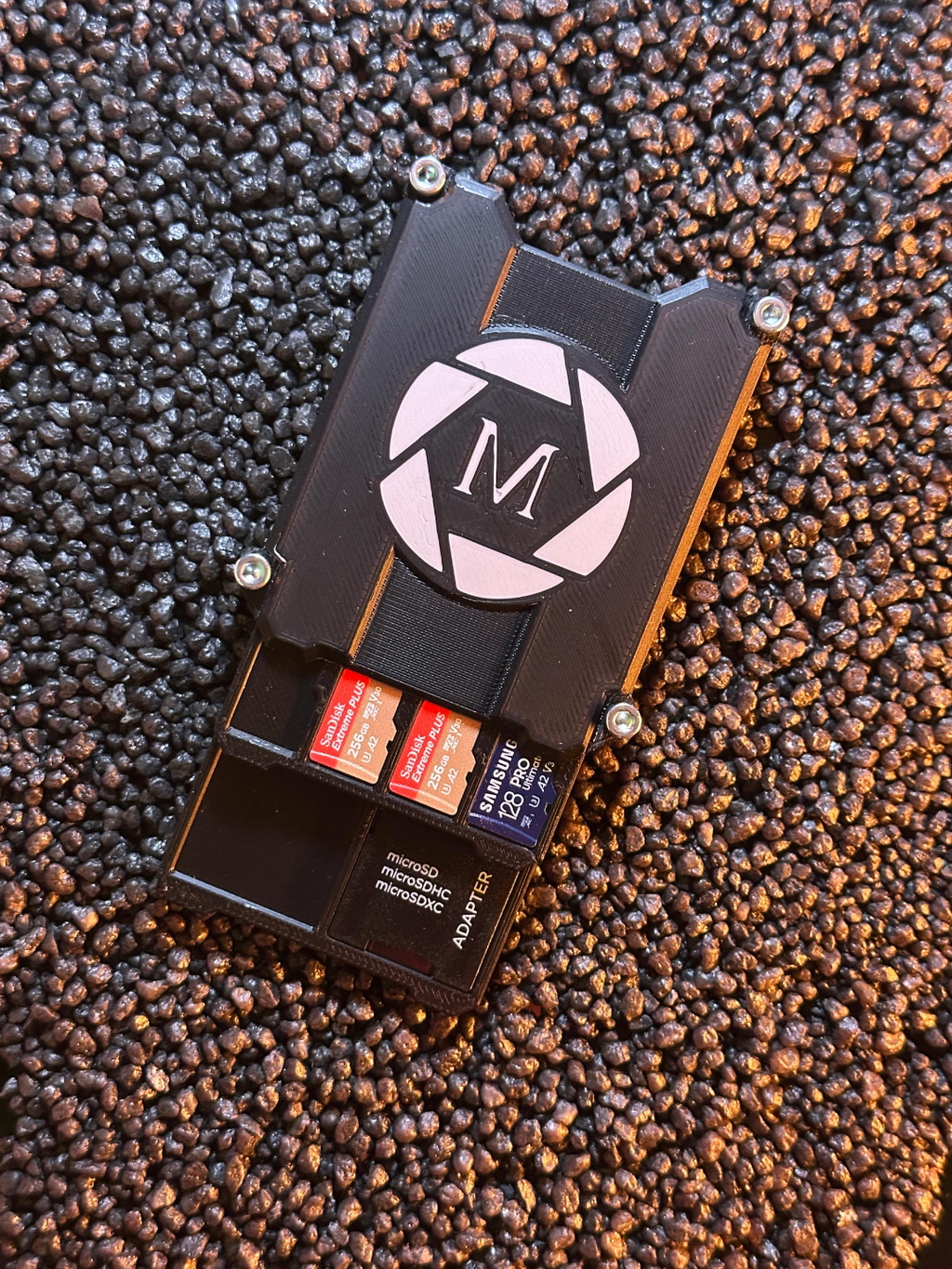

2. Combo compartment for 3 large SD cards and 4 micro SD cards – Ideal for those who use both standard and micro SD cards.
3. Compartment for 16 micro SD cards – Excellent for professionals who need to organize numerous small memory cards.

The compact design and secure magnetic closure make this wallet a reliable companion on the go. It combines functionality, style, and the convenience of keeping your memory cards easily accessible and well-protected.

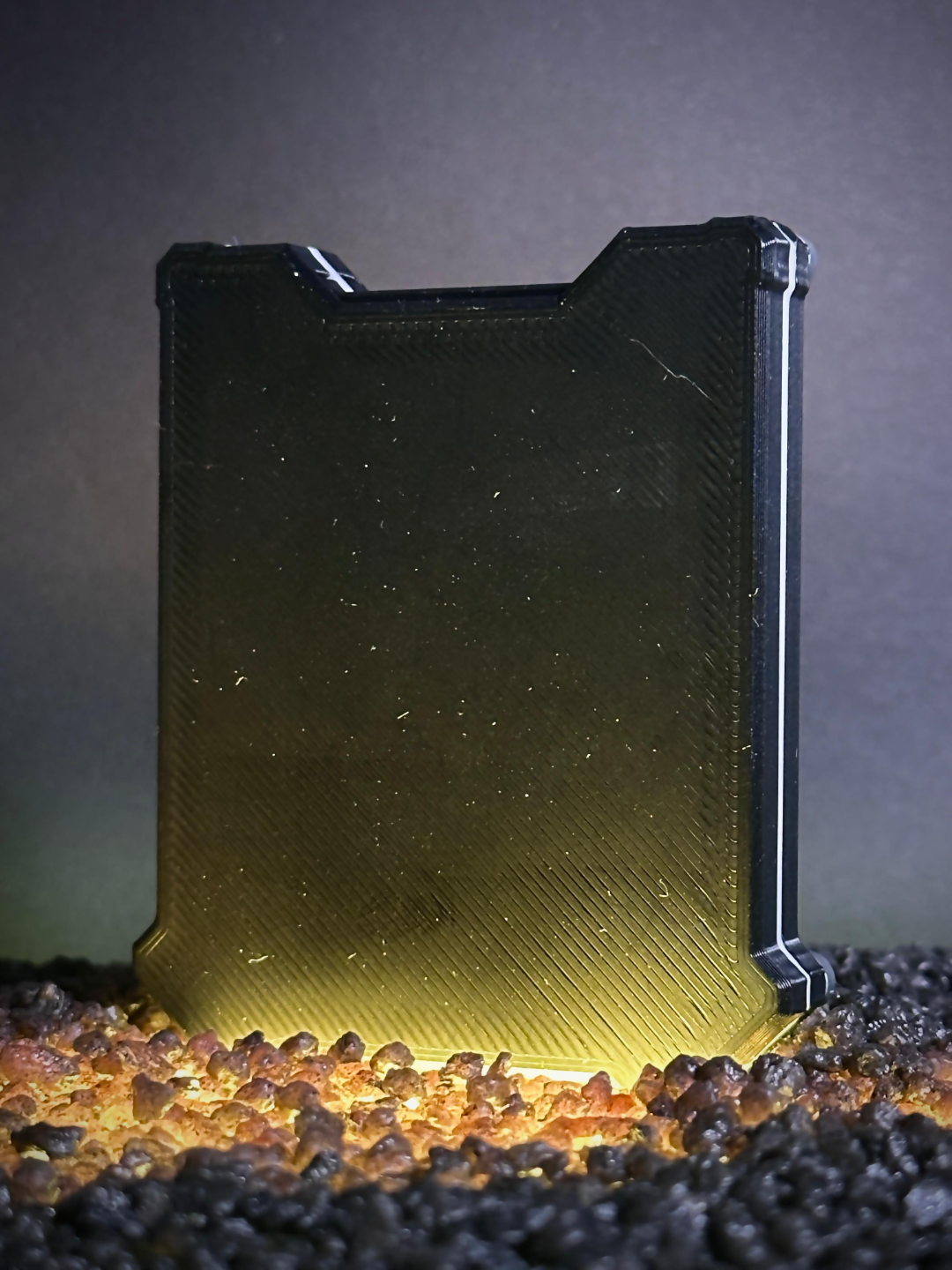

I have chosen a normal support structure for printing the cover plate, whereby the interface can either be printed from separate Bambu support material or from a material that is not compatible with the main material. In my case, I used PETG as the main material and then PLA as the interface, which worked very well.

You also need some extra Stuff to assemble this Holder:

4x M3x8mm Screws (Hex, Torx etc. what you like better)

8x 6mmx1,5mmx3mm Reactangle Magnets (https://www.amazon.de/-/en/Neodymium-Magnets-Rectangular-Magnetic-Postcard/dp/B09MRHH3KH/ref=sr_1_59?crid=3L4EPTC6WEMES&dib=eyJ2IjoiMSJ9.jWMxm4r8uZCG8lmKydEXP3T280VVpa7d3SpsYoTfgP1YkNe6zBQv-AfTrbe6x2tYnLHlwb7Zo2JdxVYuisEzSScJURtPv1QQ98UmJJjZ3ontL-8-Bfpc3C-BvkSq1IUvNr-nfXneZjQZ3NnUd6teAOOpUGU0wsMzYSAtZpSWNWH1QKzscZa4rLrIQu4uvJPQEPik81mHVRZC89QA3OlCNxhCAfkX0fBzKqmQ_IcHWOjmJB9CmGfsT6oijt7uWcOrzQj59baPYJbNabu9ENthFneWFPjb13_TVgxXSA_MwdTawbQdOF34uXOuclRrnHfqXulQKp7EEbpfMjlvnI5Jc6CC3Q6hitjJPtSDLLfTKXahncZ_xRWhQ1ZzyQ52DRBvZ-vDOV5ADWrj0PKGkknw12jQOvJWA2-VFnhXq-tYGc4HbE8V3Z6GnzjN8unc0Zt2.4P70V72Txz6bQcSXmUbFj6beO2-yQbr-7MhHLXjcCQI&dib_tag=se&keywords=Magnet%2Bmini%2Brechteckig&nsdOptOutParam=true&qid=1737477458&sprefix=magnet%2Bmini%2Brechteckig%2Caps%2C95&sr=8-59&th=1)

4x Heat Thread Inserts M3x4mm long (https://www.amazon.de/Threaded-Inserts-Assortment-Lead-Free-Bushing/dp/B08K1BVGN9/ref=sr_1_1_sspa?crid=27CUAVVPNFNKC&dib=eyJ2IjoiMSJ9.I56ALzJomMk9MP51BImog4Ou_hz8ArwrzvC6Rkfw2l8C7MCynKwDIULitatBKTxwcXnh6a9c9ECOQ7b8VfmPtrDYkqzxYGZr9hW85WknJU6XD2EkUbRbGyac7zJFvoAHxEgqv7flnAMQUNLGkxTnYt98d45lR-slswjQicFwGKAvR8wN-FQxDdNMmM-Q1QHhUjHTZJR4-gWlu2eufge4MaNmf-I7J4YlwqG-q60Fgz-OJamq6N49epus0UmCys_zxWzOvpDeHwMAphLt0ixwrcxGp-pQe8A5lCP0El68-gI.3kejYopvVgiQoLu8IscBSAhawQZx0FxeJqyeZYk0sPw&dib_tag=se&keywords=Heat+Inserts&nsdOptOutParam=true&qid=1737476954&s=industrial&sprefix=heat+inserts%2Cindustrial%2C81&sr=1-1-spons&sp_csd=d2lkZ2V0TmFtZT1zcF9hdGY&psc=1)

Attention!

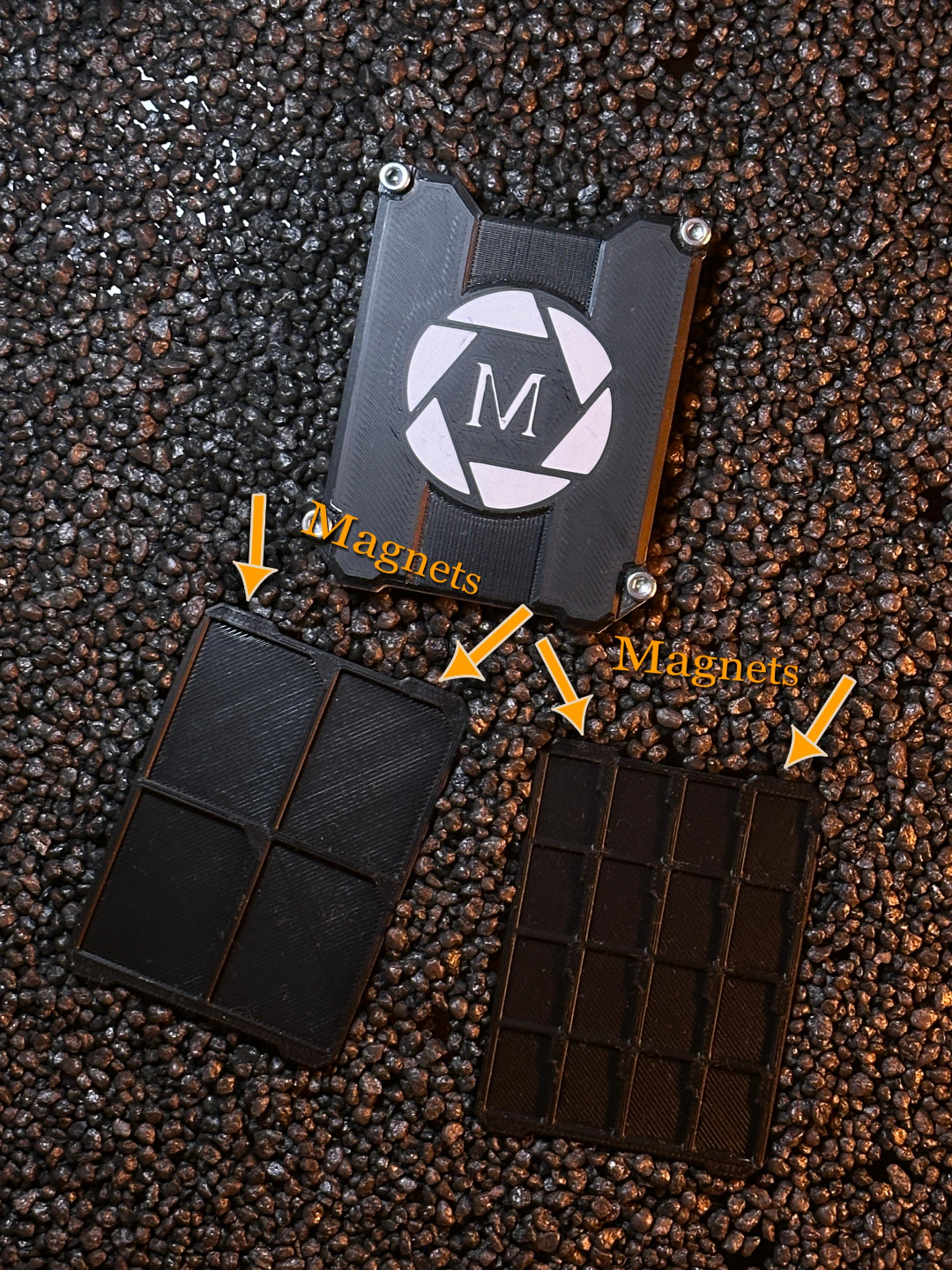

Be careful when assembling, the magnets of the compartments should attract each other when they are placed on top of each other and when they are pushed into the holder, they must repel each other from the intermediate plate. You have to try it out and if necessary you can also simply turn the divider plate around.

For any Questions write a comment and i will anwser it
