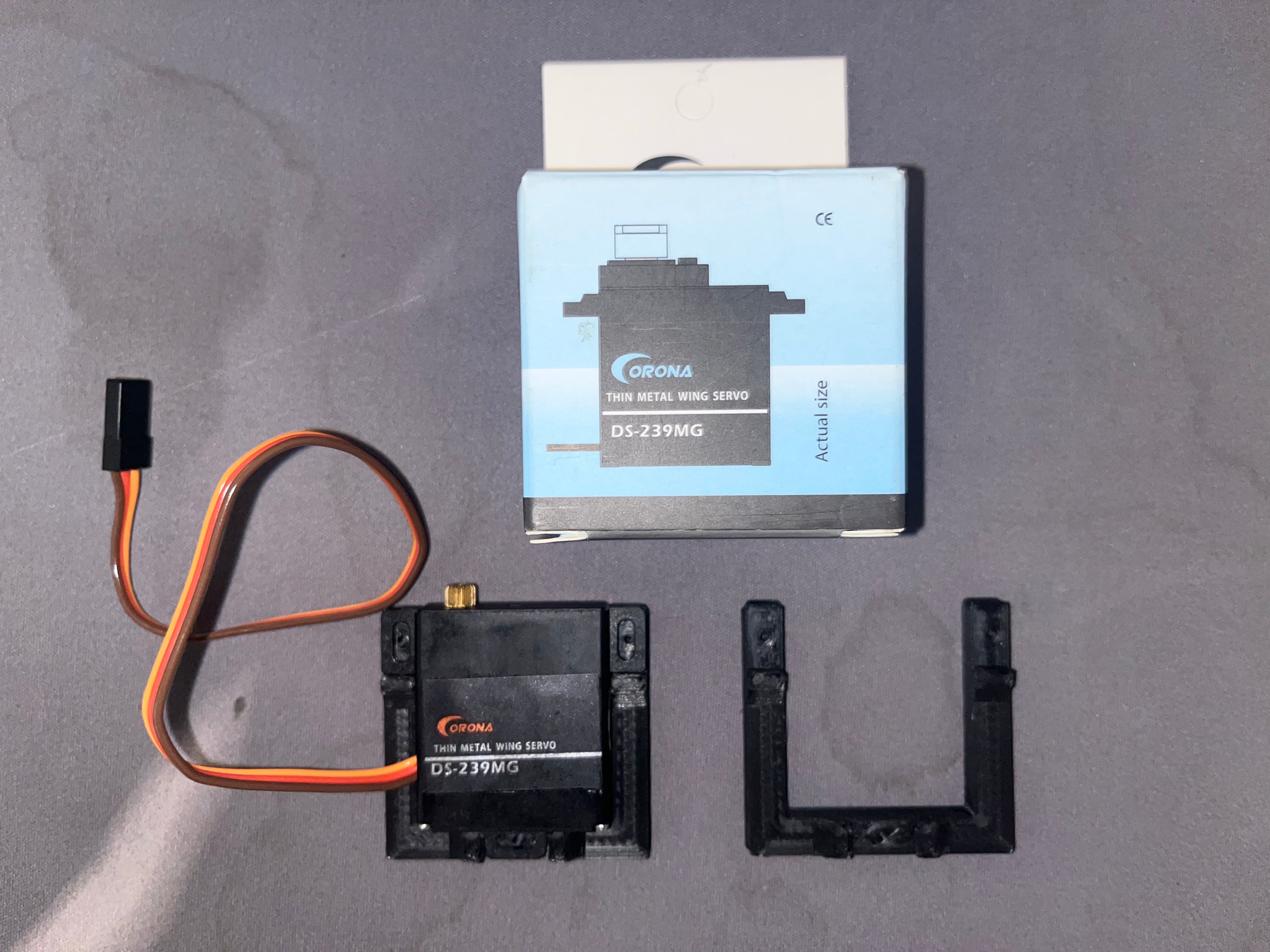

A servo frame suitable for the Corona DS239MG wing servo. Optimal for gliders like f3b, f3f etc. or any other wing which is laminated in monocoque construction.
Since I used cfk-reinforced filament as the material, the part is optimized for printing with a 0.6mm nozzle.
Do not forget to shorten the screws before assembly so that they don´t damage the wings!
Print settings:
Material: CF-PLA
Nozzle: 0.6mm
Wall thickness: 1,8mm
Layer thickness: 0.2mm
Bottom layers: 4
Top layers: 6
Infill: 10%
Design by crazy.diver84 on MakerWorld (license: BY).
