Sideload for Filament incl. Y-Splitter

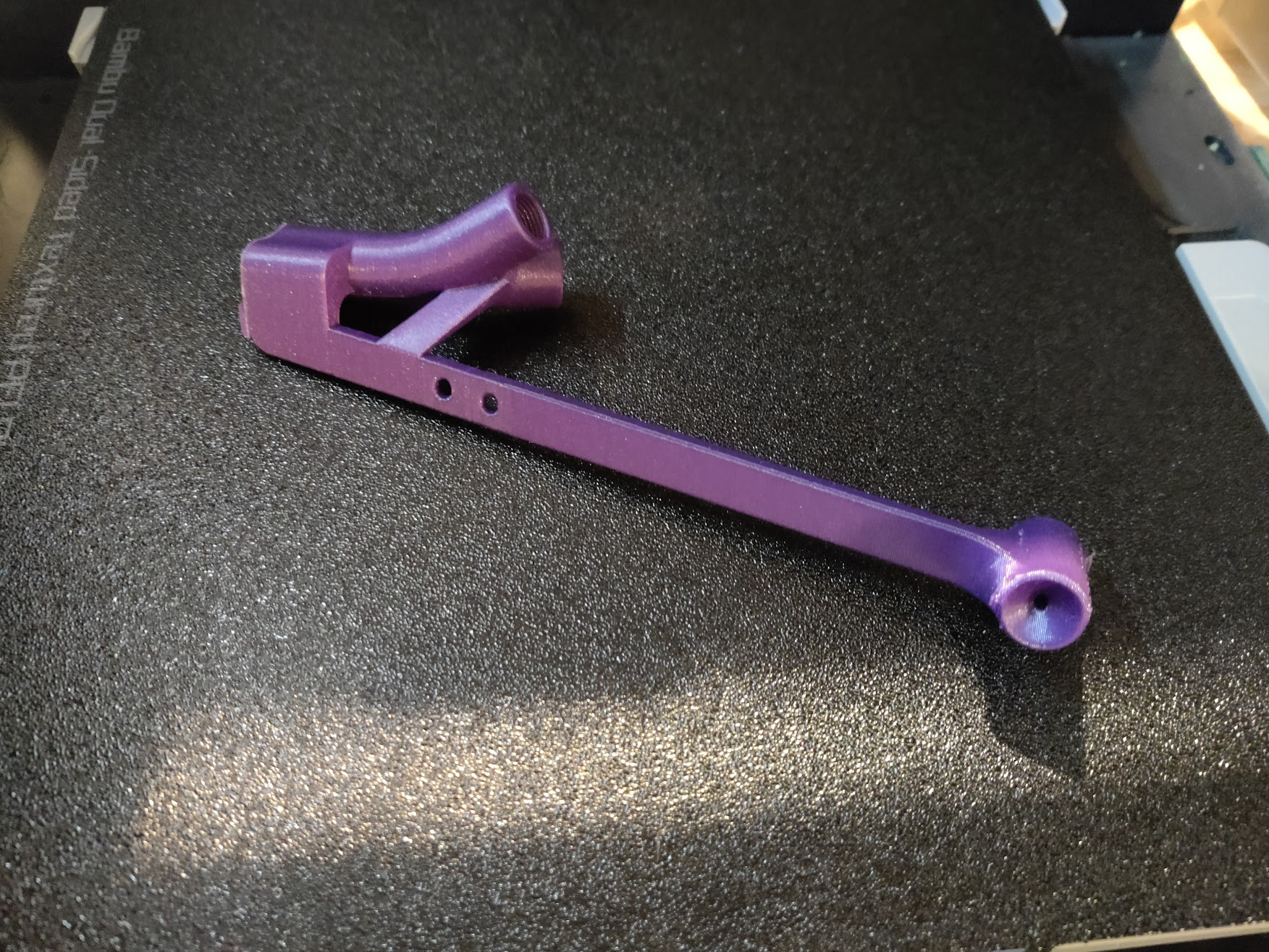

I enhanced my last Remix of the Y-Splitter with a bar with the option, to plug into Filament from the side.

You need in total now one more PTFE Connector.

• 4x PC4-M10 pneumatic connector, inner diameter: 4 mm
• 2x M3 6mm

I moved the Splitter a bit more to the edge to fit better for X1. I read some complaints in my Splitter Remix.

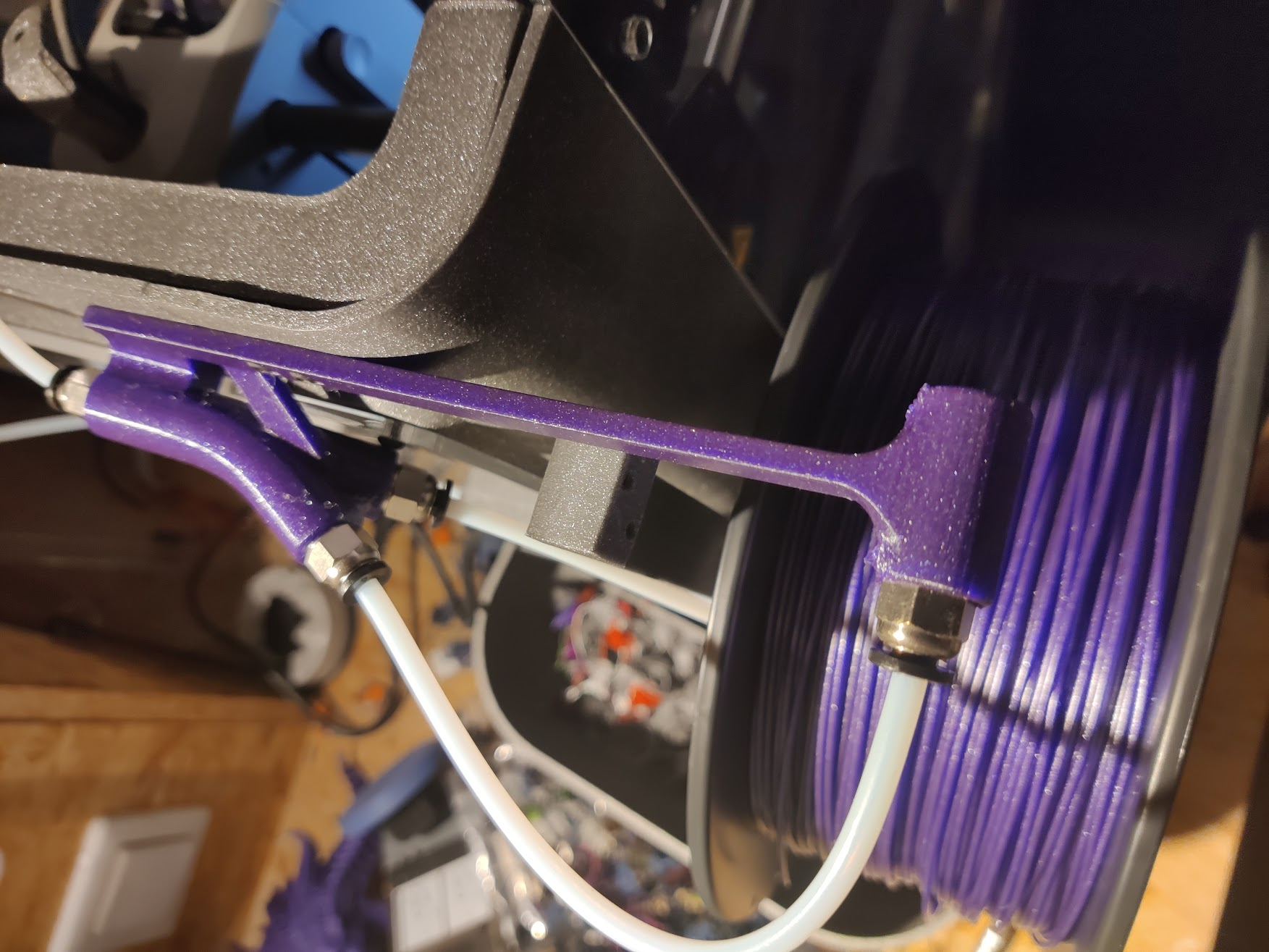

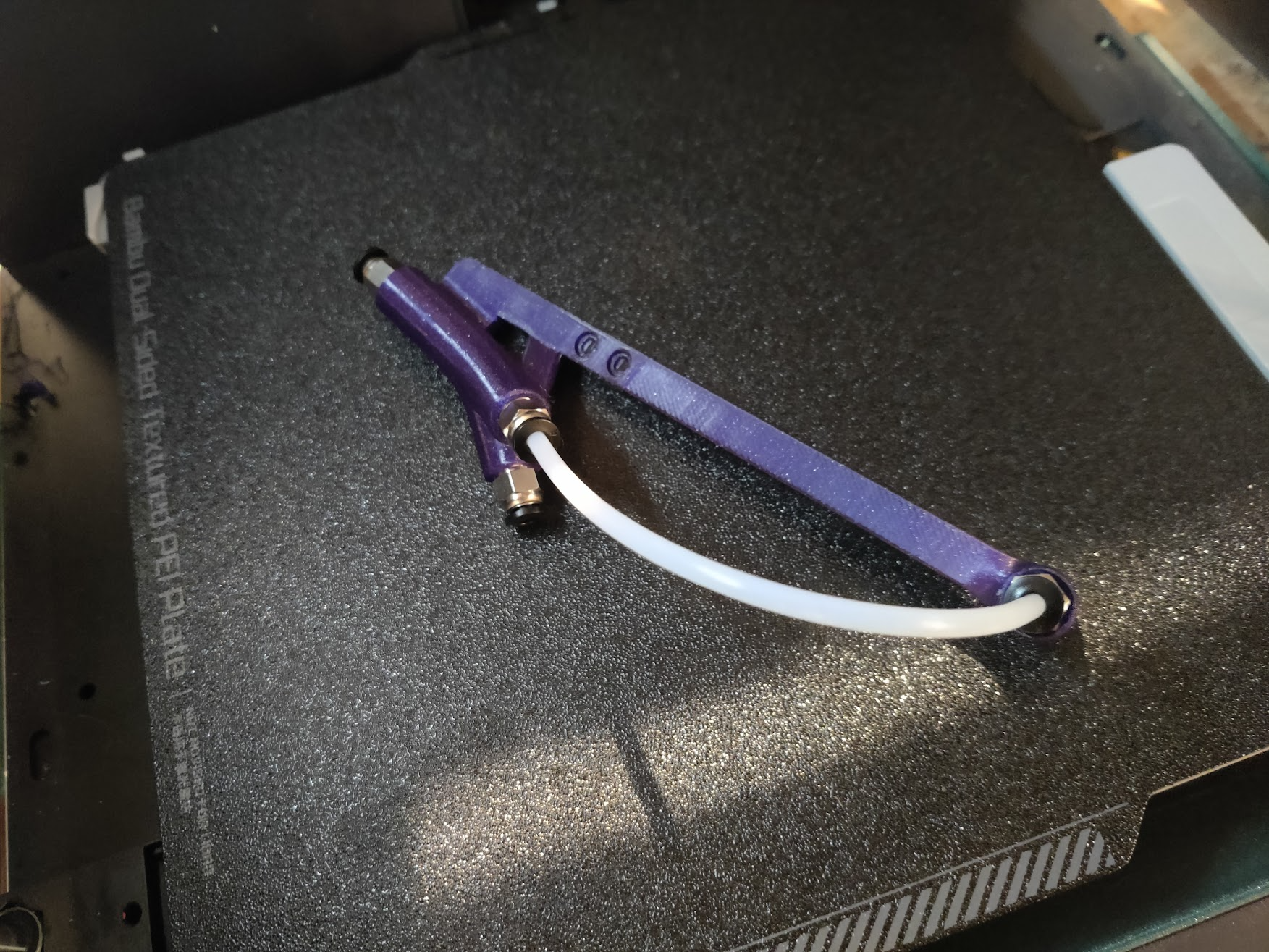

To connect just use a 18cm to 20cm long PTFE Tube and place him between the upper connector from the splitter and the end at the bar.

Its still/again based on Harald Geisler Splitter, which I liked most of all others.

If you need only a Y-Splitter which is more inner but no sideload, check my Y-Splitter.

Design by Dice & Dragons on MakerWorld (license: BY).
