Simmons Titan 20 Bass Drum Pedal

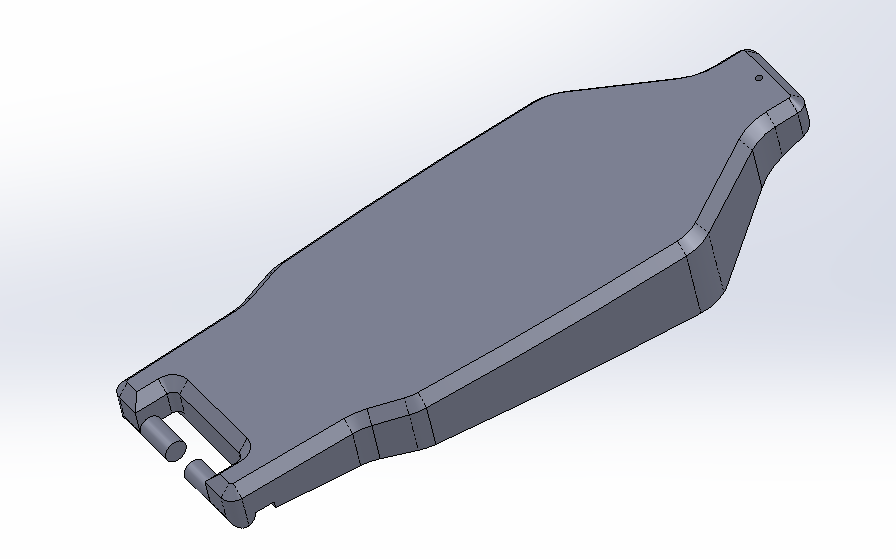

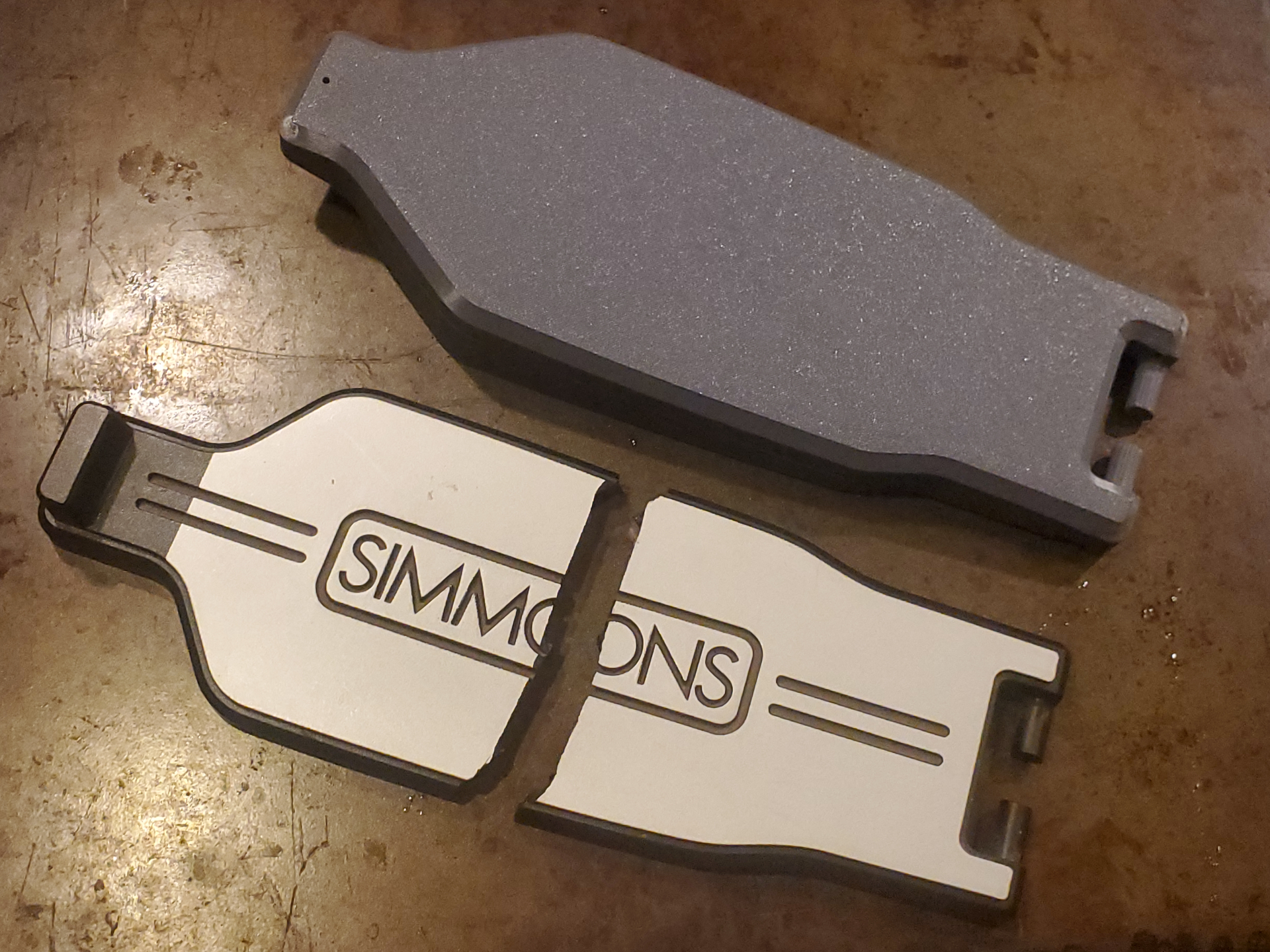

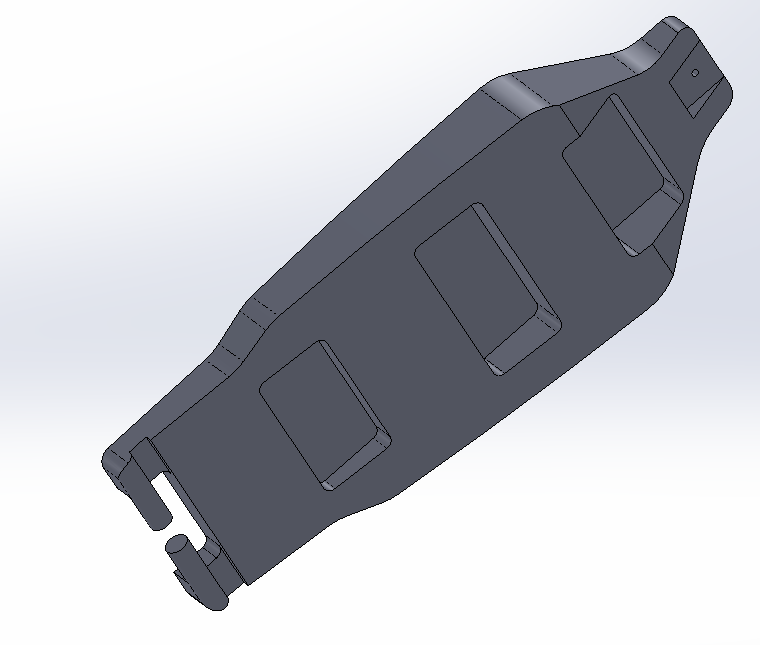

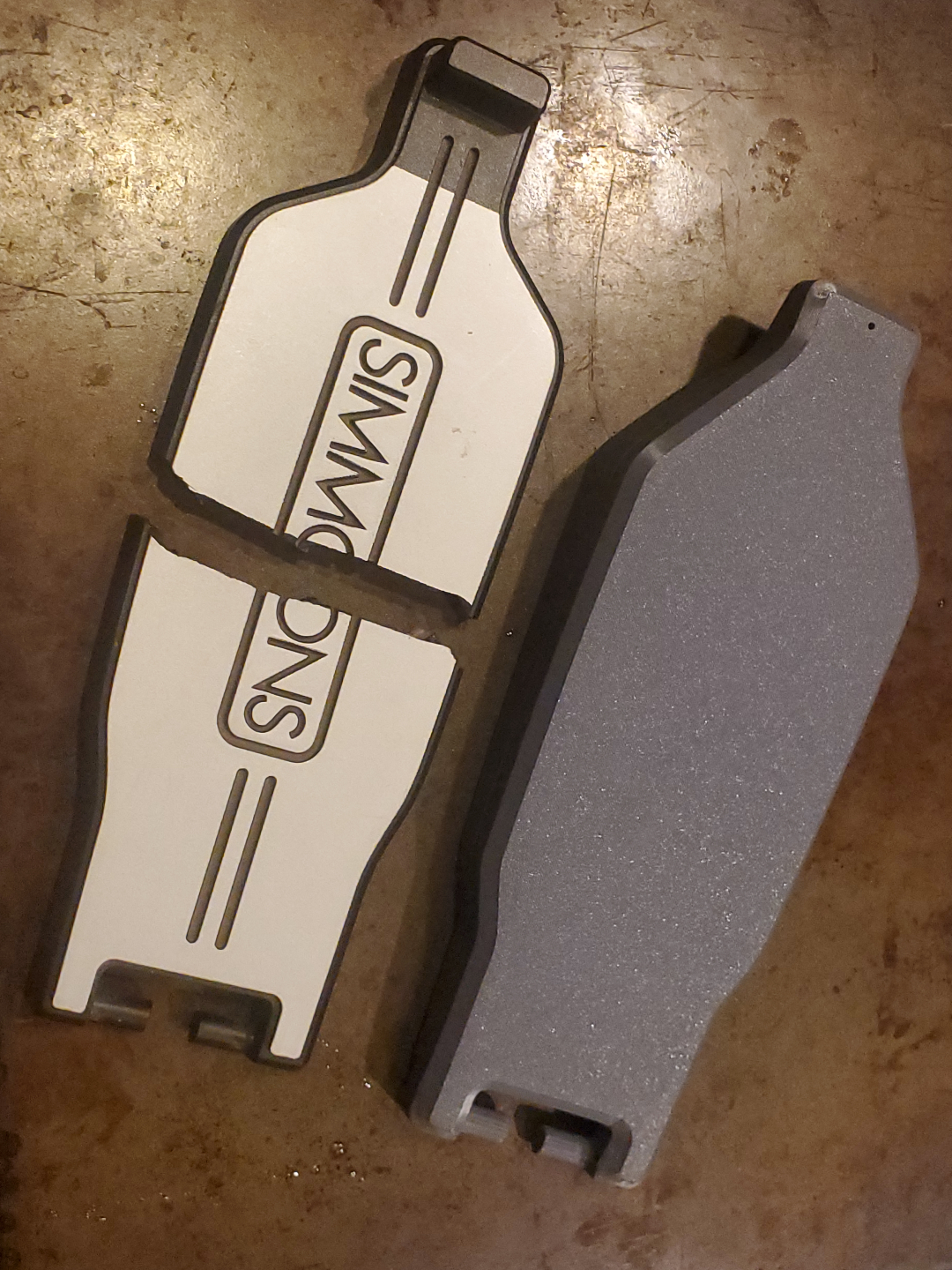

This is a drop in replacement for the pedal that comes with a Simmons Titan 20 drumset. It could be modified to fit the High-Hat pedal. The model is designed to fit around the standoffs on the pedal base and provide a stiff and durable pedal. The high hat has different standoffs in the bottom and the pockets in the bottom would need to be changed.

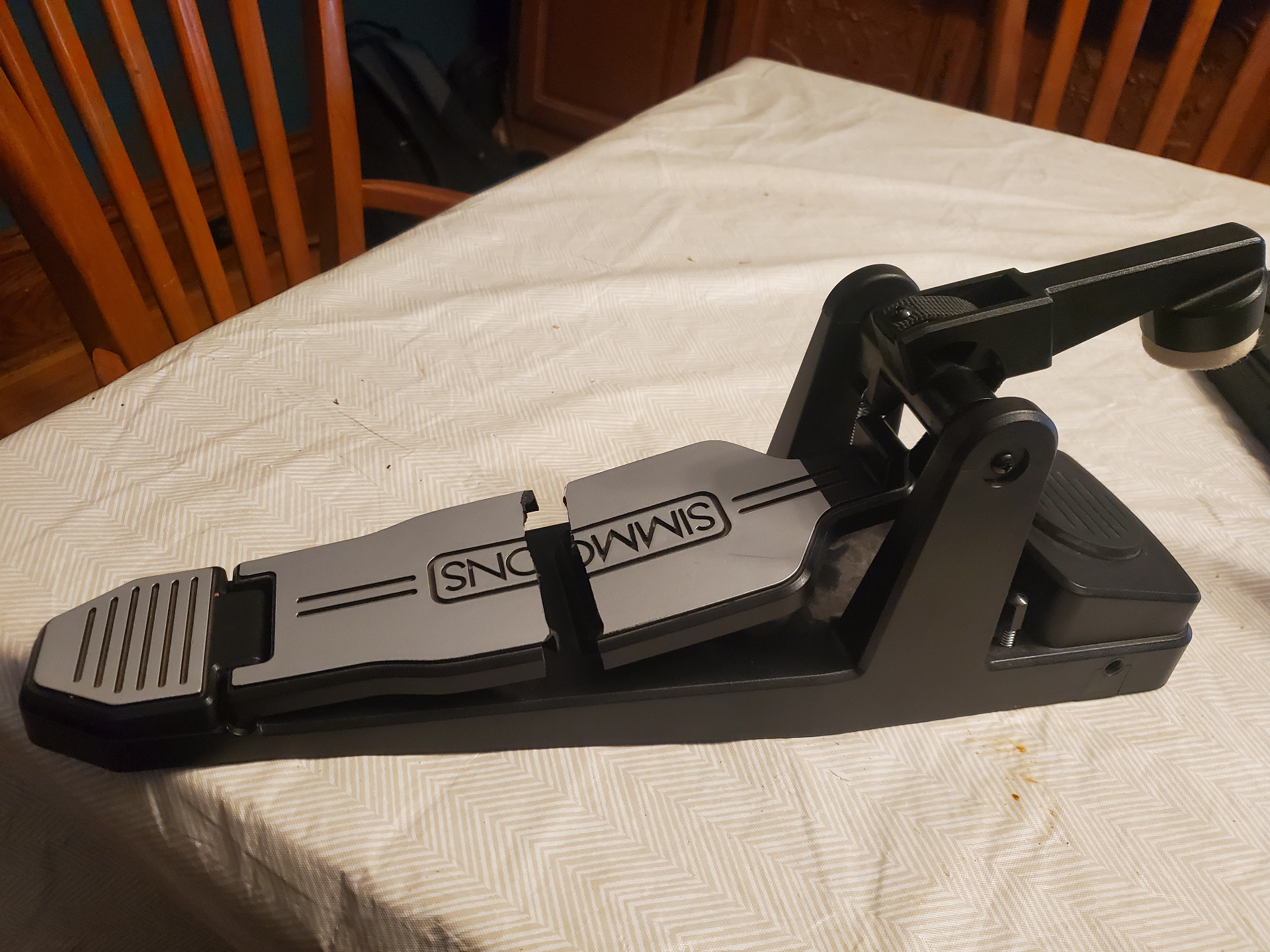

I printed with PLA Tough (discontinued) on an A1 with a 0.6 nozzle, with 4 wall loops, and 5 top and bottom layers, with supports on for the hinge pins, and used Support for PLA interface. This has been on my son's drumset for 3 months now without issue. Print took 3 hrs.

Design by larry.shaver on MakerWorld (license: BY).
