SJ-Cam Mount Bracket Go-Pro DJi Snap-IN adapter

Hello! If you like my project, please leave a print rating and a comment  it will really help me and motivate me to keep working on new projects.

I designed a camera mount for SJ-CAM (tested), GoPro, and DJI cameras (GoPro/DJI versions have not been tested yet).

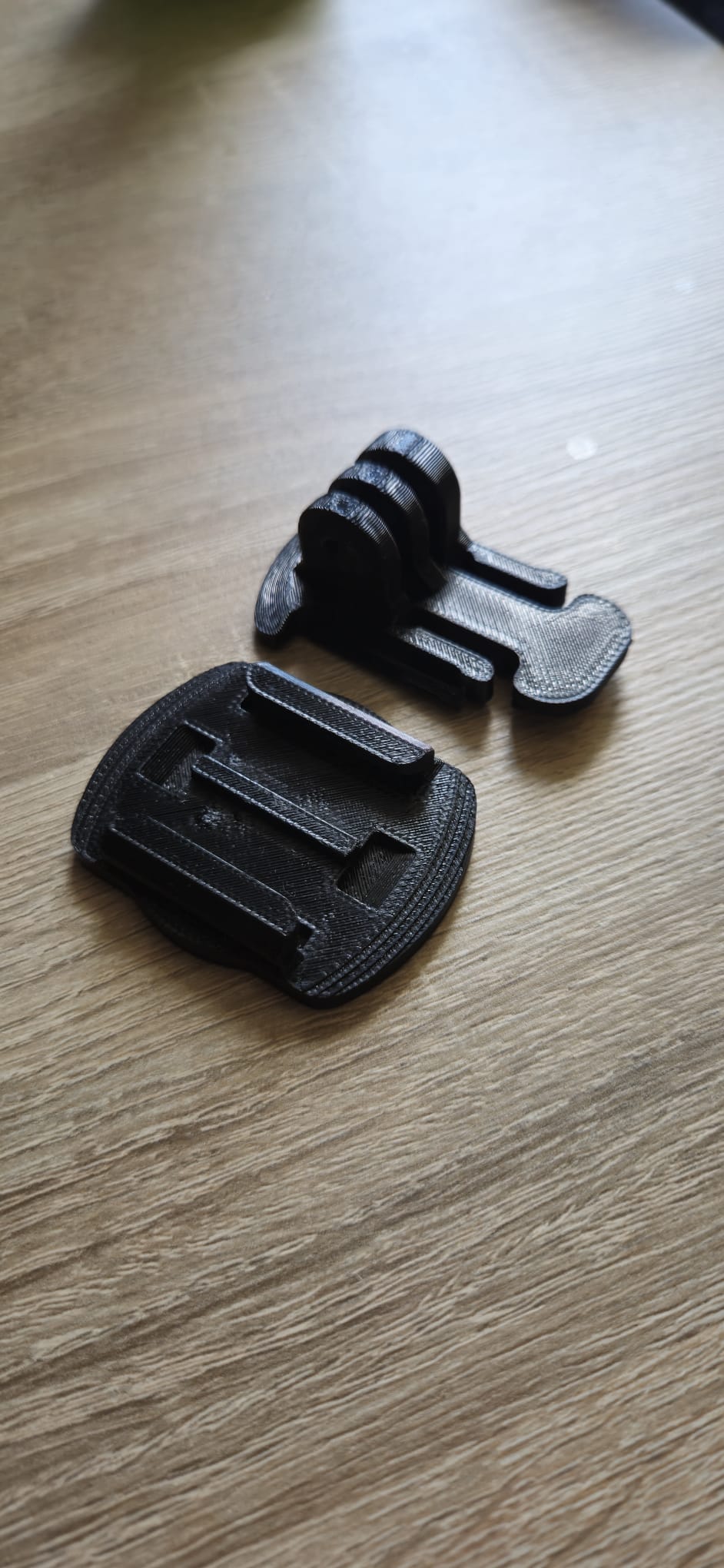

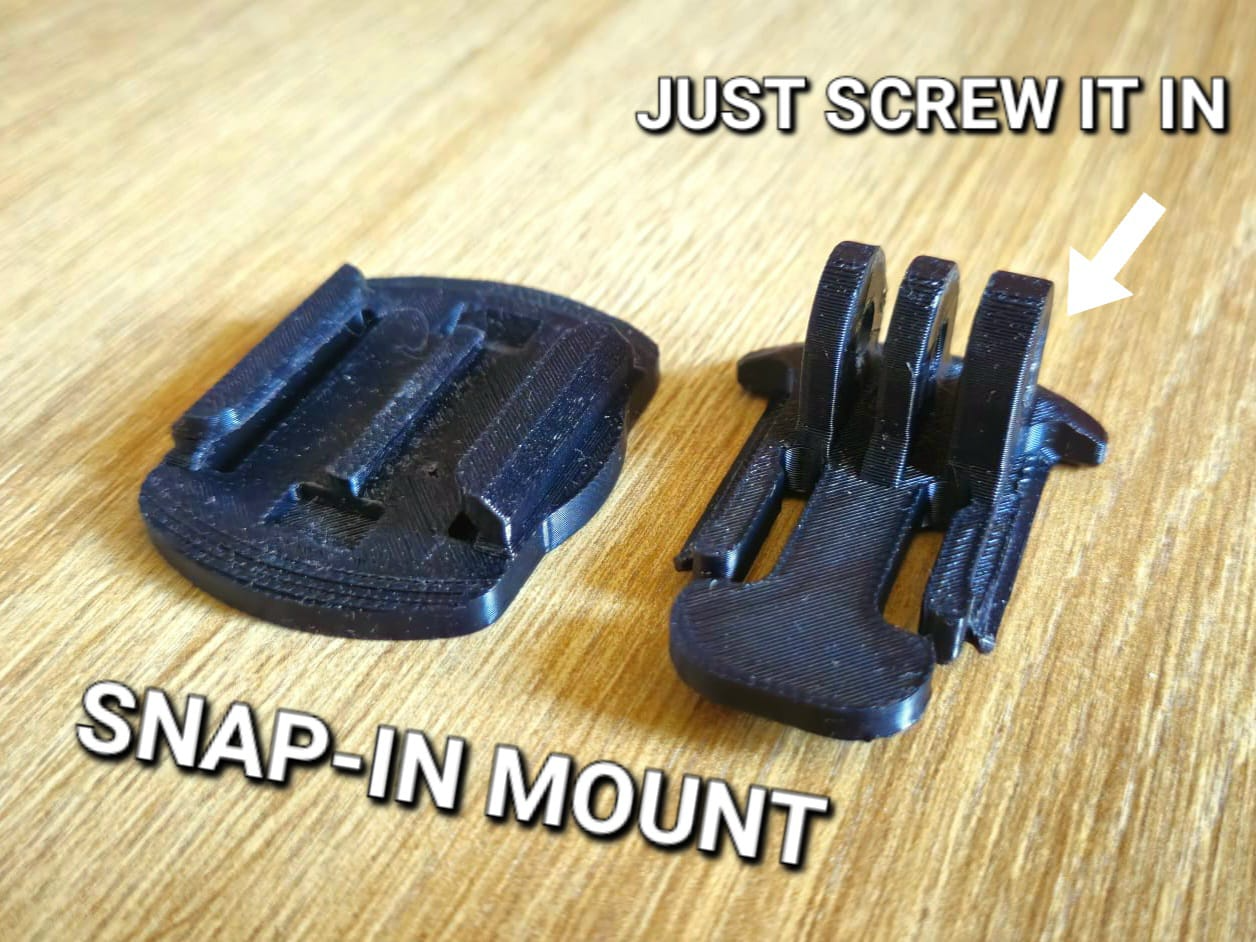

The model consists of two parts:

1. Base mount – an adhesive-mounted component that can be attached to a chosen surface.

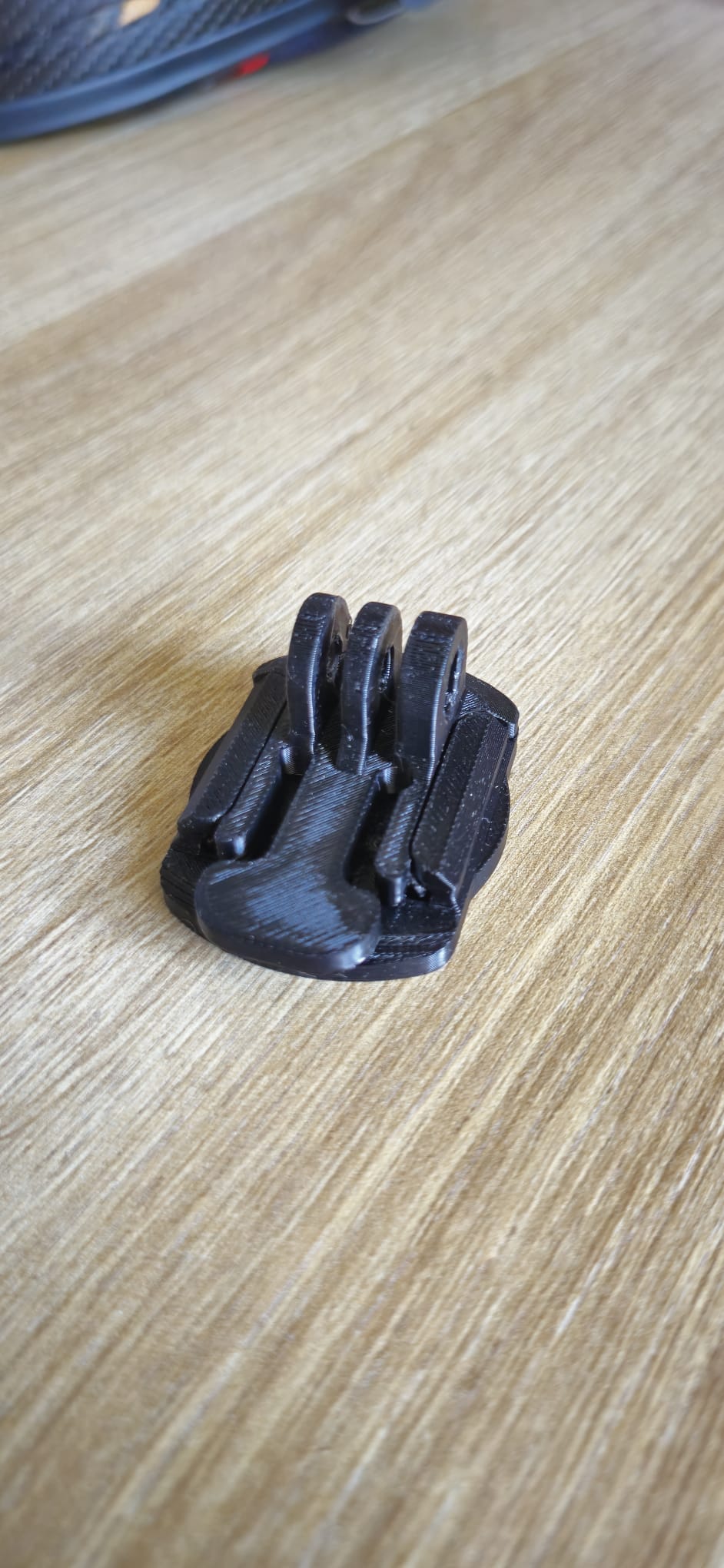

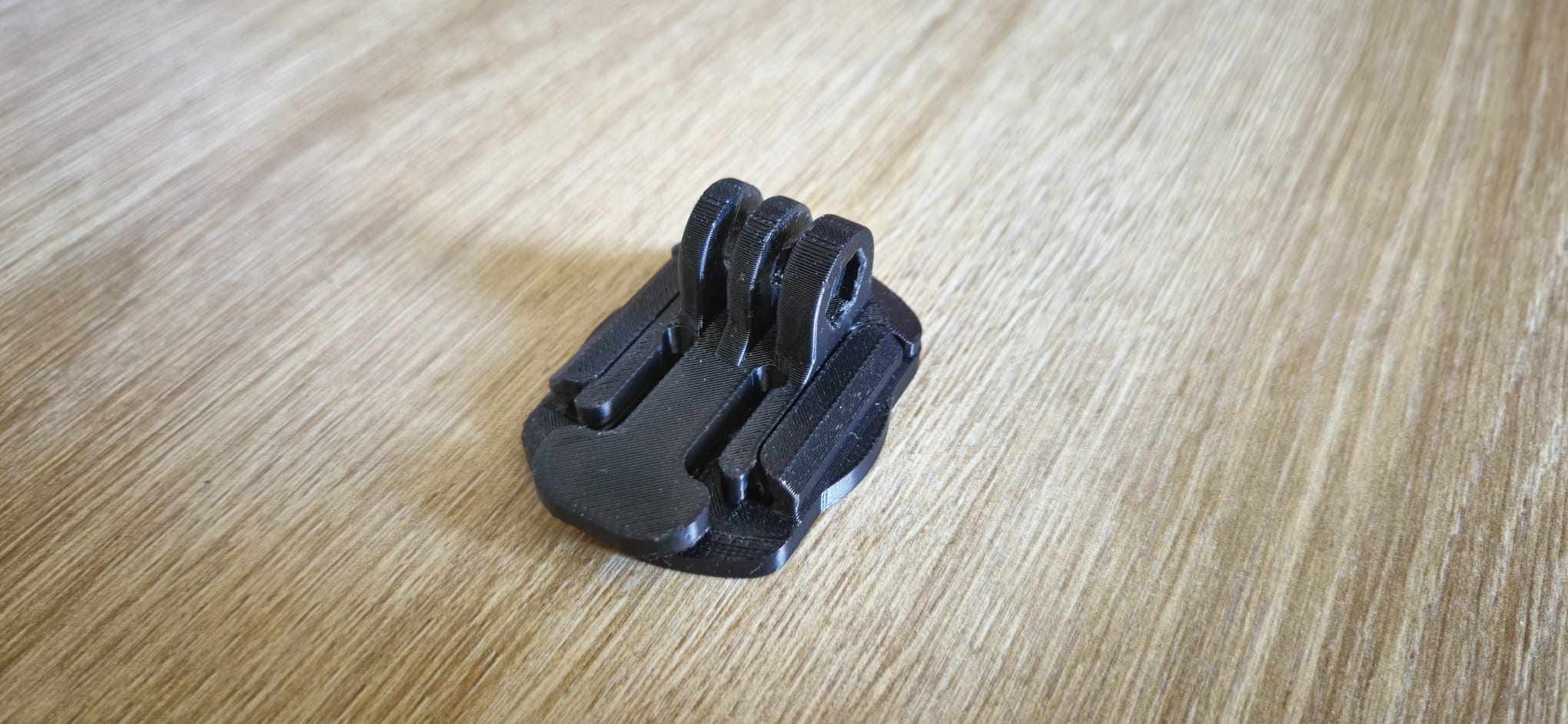

2. Camera insert / adapter – a part that snaps into the base and provides a mounting point for the camera.

The mounting holes are designed so that a screw can be directly threaded into the printed material. Additionally, there is space предусмотрed for a nut, allowing for a stronger and more repeatable fastening option.

Printing recommendations:

• Print in the provided orientation (as in the file/profile),
• Minimum 5 walls (perimeters),
• 15% infill,

• Gyroid infill pattern.

  For improved surface quality and appearance, the layer height can be reduced from 0.20 mm to 0.12 mm.

Recommended materials:

• ASA / ABS (preferred due to higher durability and environmental resistance),
• PETG should also perform adequately in most use cases.

Design by Siteg on MakerWorld (license: CC0).
