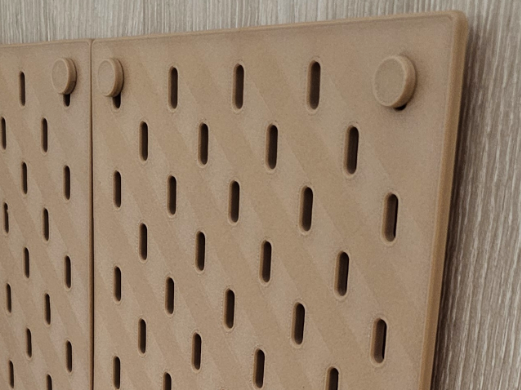

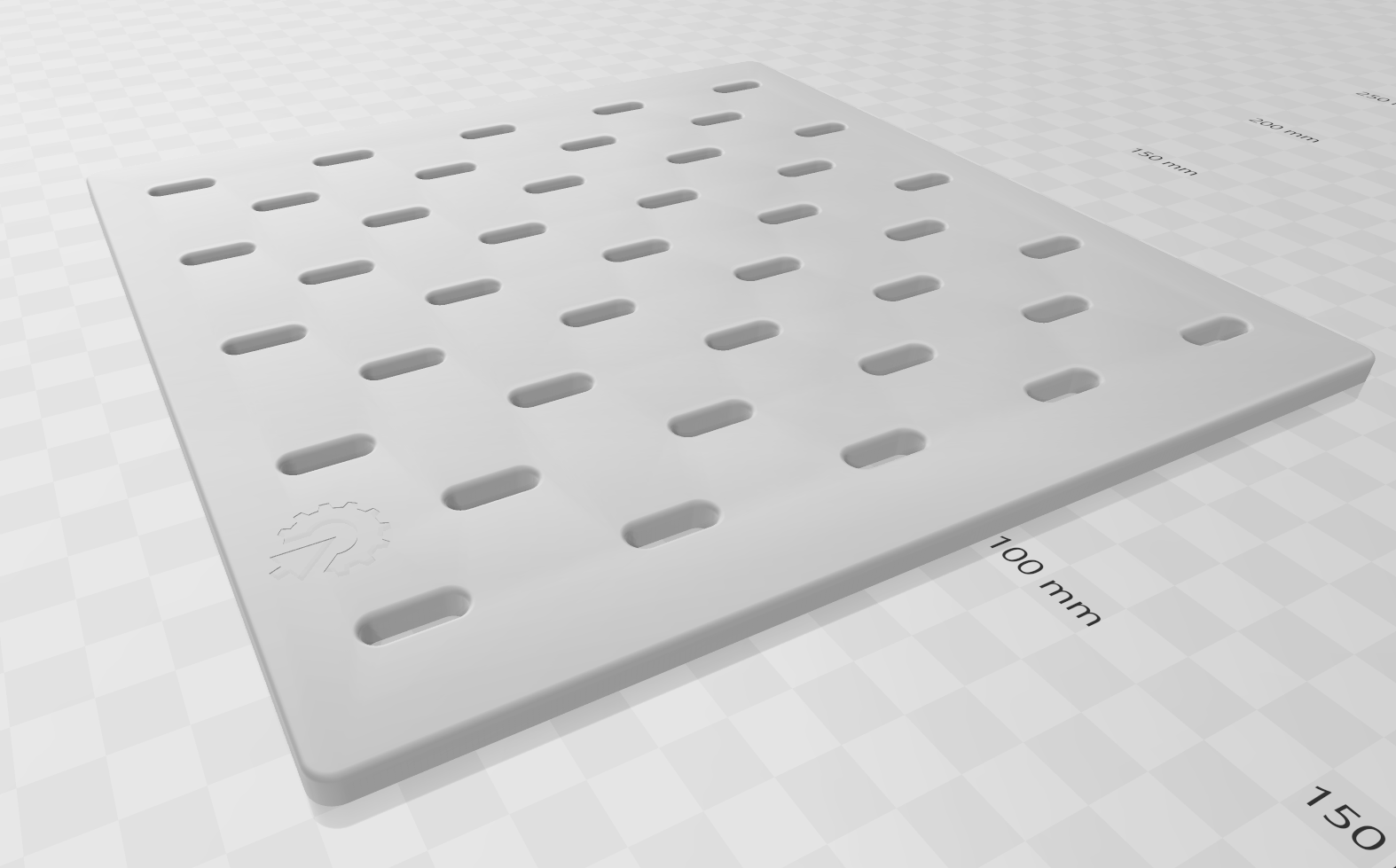

SKADIS board in size of 200x200 [mm] - compatible with IKEA serie and all accessories.

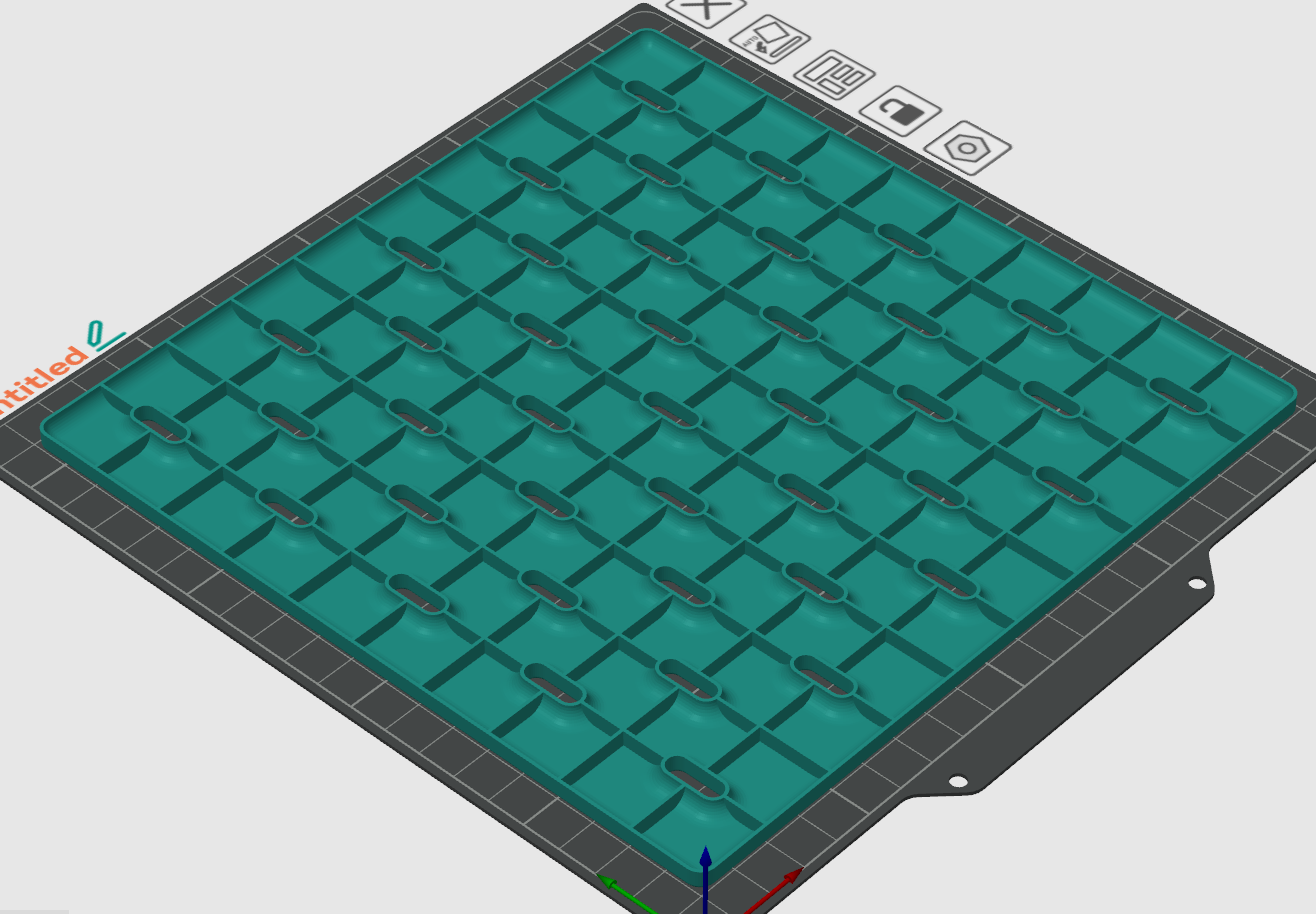

In opposition to other models that are mostly solid 5mm - I've designed thin version with grid of reinforcements and round fillets inside.
Thickness of walls and main surface is 0,825 - slicers will easily create two walls there with 0,4 nozzle (sometimes when design 0,8mm slicer can create only single wall if You are not using Arachne) - and if 4 layers if using 0,2 height.
Weight should fit in 70grams.
SUPPORTS: If you have no problem with bridges over 2cm gap - then this model can be printed without supports.
RAFT/BRIM: it's all up to You
NOZZLE/LAYER: - designed for 0,4 nozzle and max 0,2 layer height
WALLS/INFILL: - use 4 or 5 walls - ZERO infill
Design by Hecato Craft on MakerWorld (license: BY).
