Snap Fit diagonal axial bearing

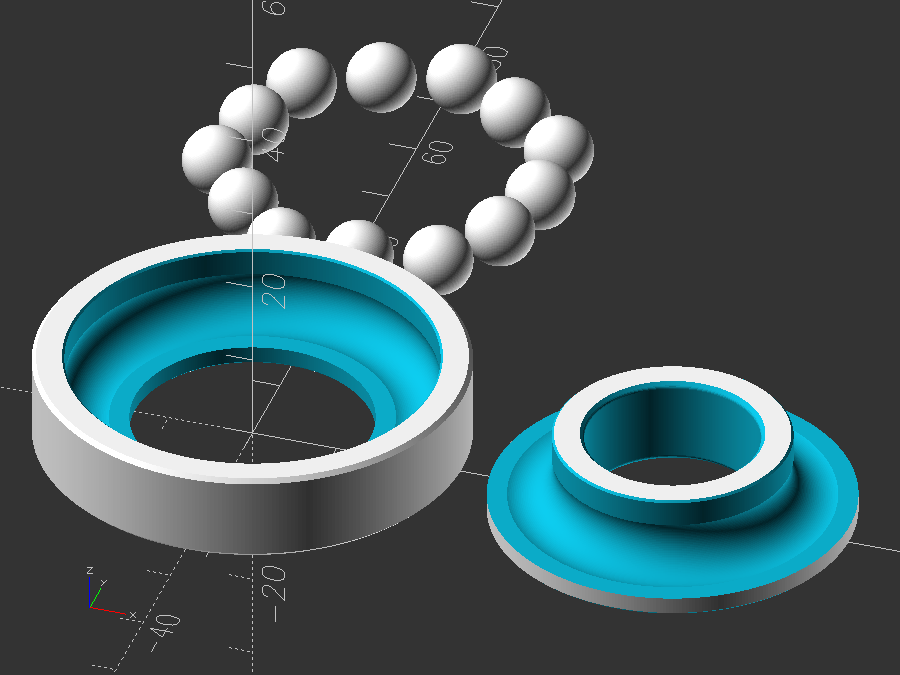

Assembly

1. make sure all supports are removed and surfaces are smooth - nothing has warped
2. Put the outer ring on a level surface - adding a bit grease will help to make the balls stick

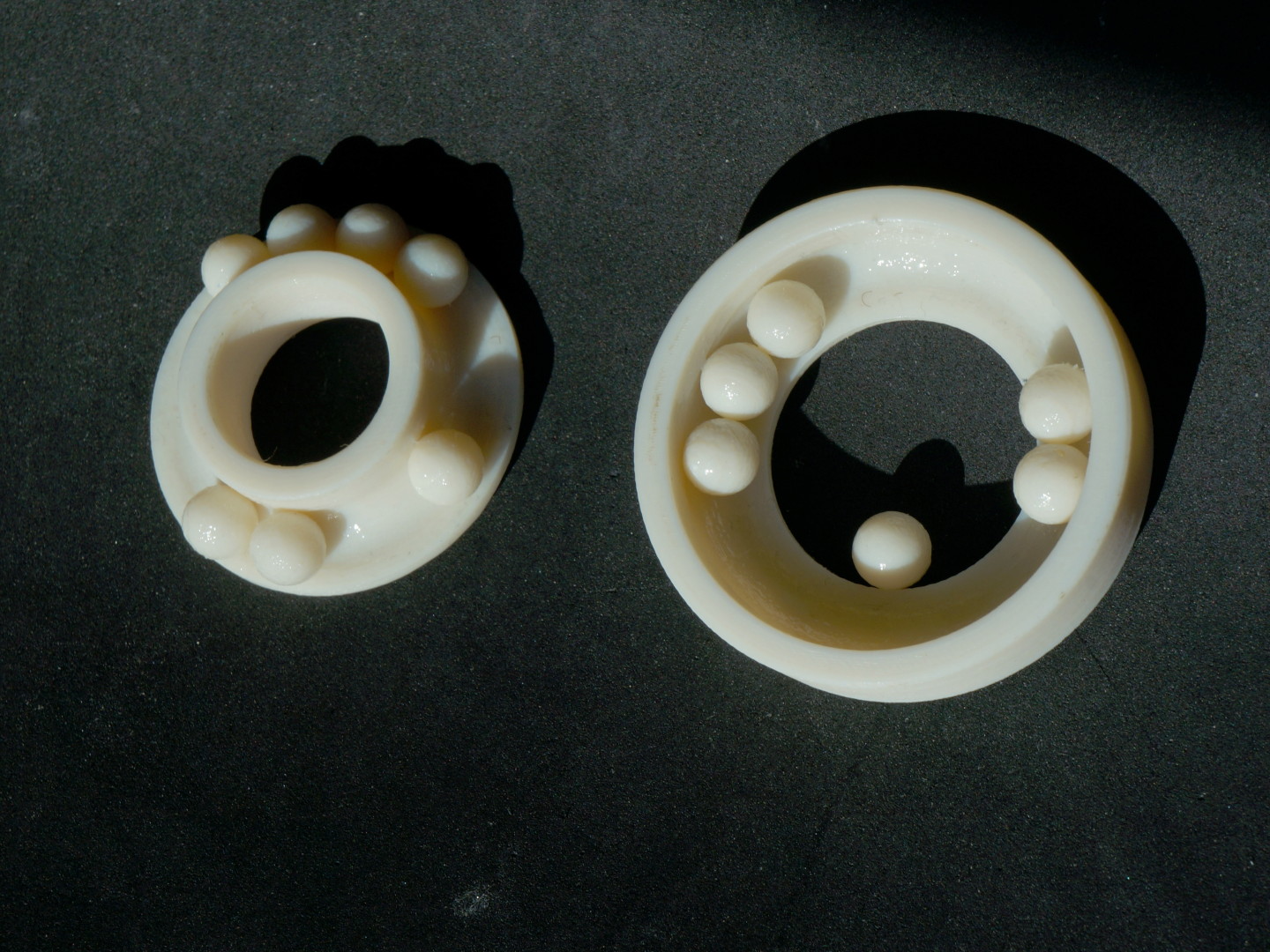

3. adding the balls - if some roll away in the center - push them back so the ring is filled

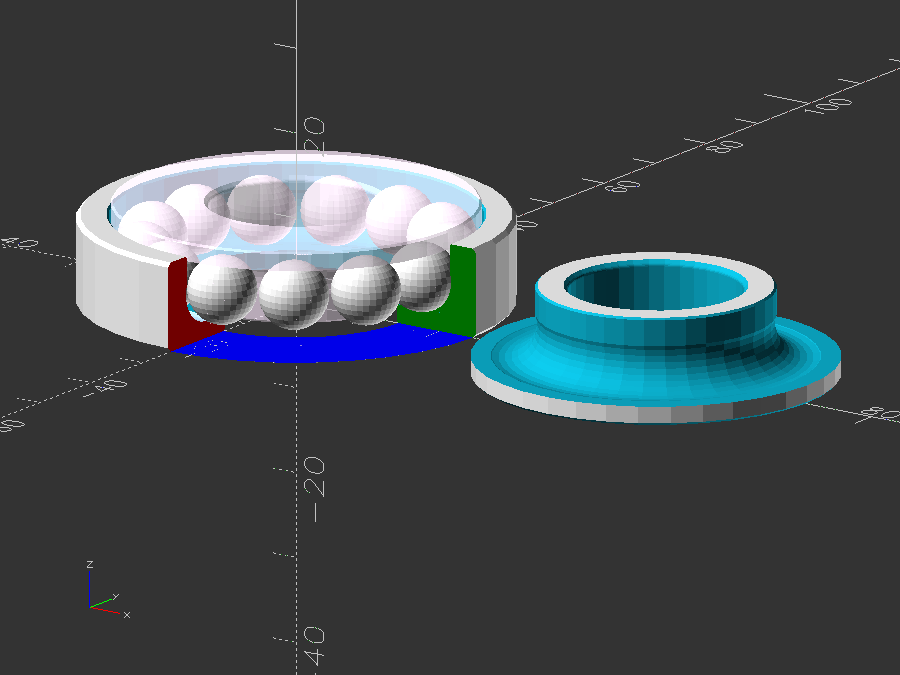

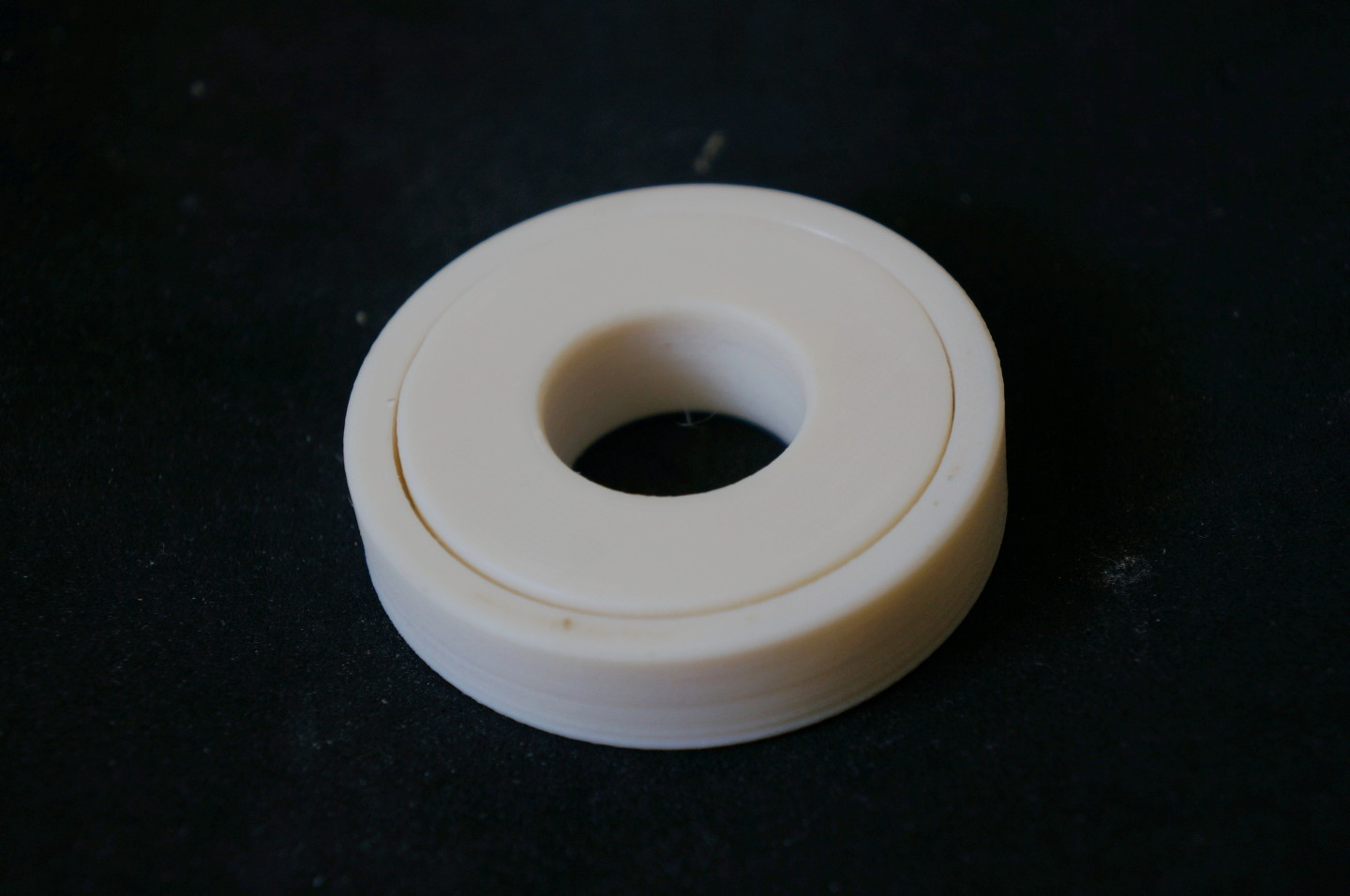

4. Press the inner Ring (upside down) into to snap the bearing together.

This can't take any load in the other axial direction (pull) - the snap fit just helps it will not disassemble by itself when liftet.

If you need both directions, just add a second bearing 180° against (face to face or back to back).

Design by Jack on MakerWorld (license: CC0).
