Solder Smoke Extractor

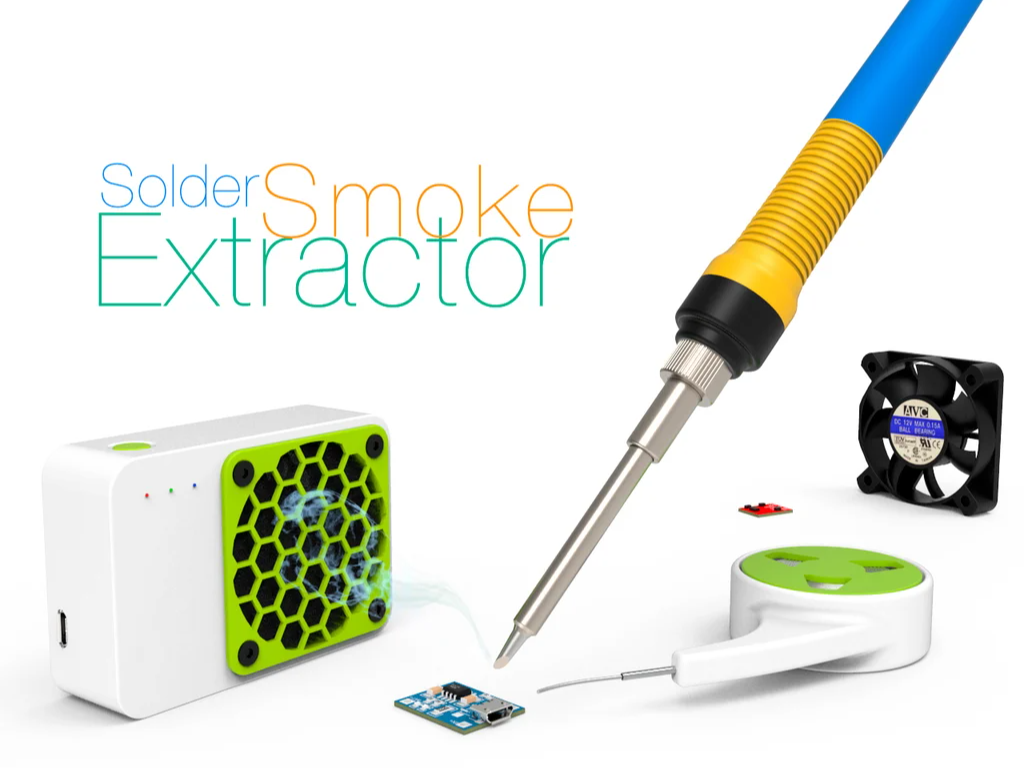

Compact Solder Smoke Extractor Model: Efficiency and Compactness in One Device

Today, we take a look at the Solder Smoke Extractor model designed to purify the air during soldering. This model demonstrates how modern technology can combine compactness and high performance, meeting the needs of both hobbyists and professional solderers.


Key Points:

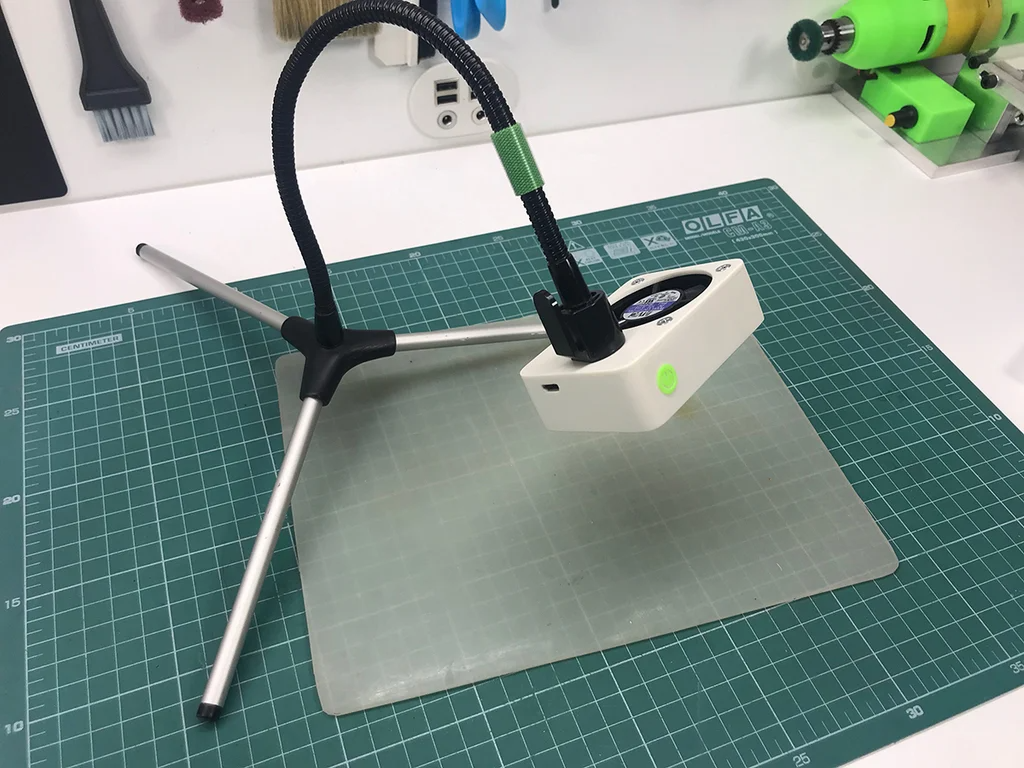

1. Compact Design: One of the most impressive features of the Solder Smoke Extractor is its ultra-compact design. Despite its small size, the device fits easily on a workbench without taking up much space while effectively performing its main function.
2. Powered by LIPO Battery: The device operates on a removable LIPO battery, providing additional convenience and mobility. This allows the Solder Smoke Extractor to be used in various locations without reliance on outlets.

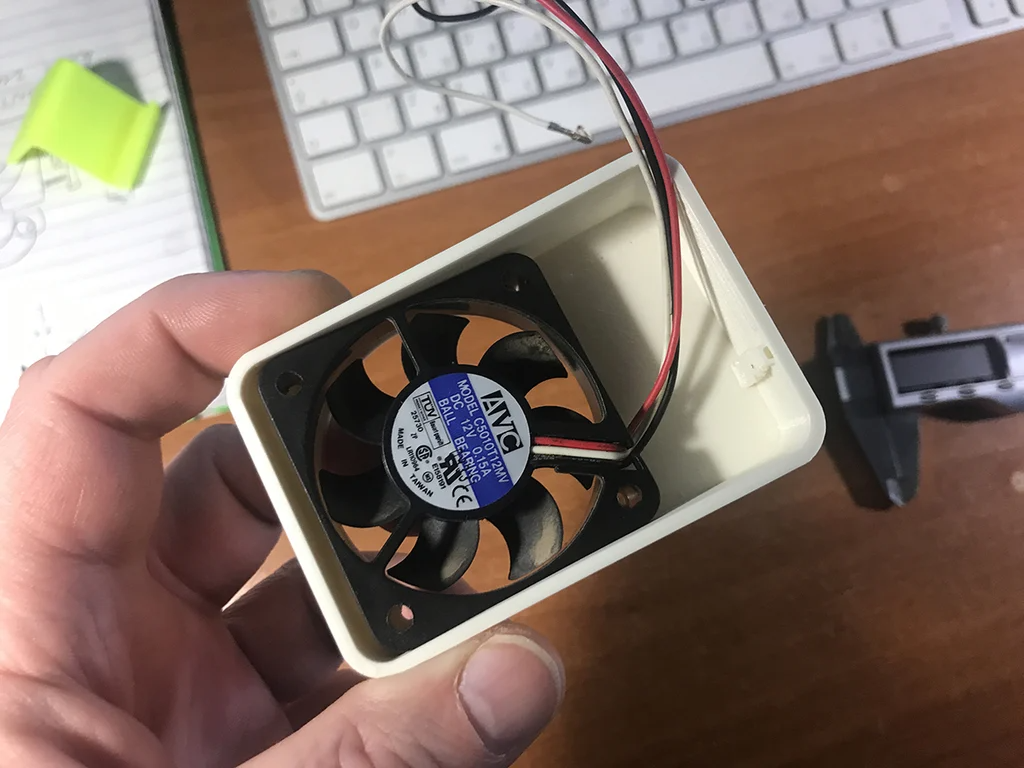

3. Powerful Fan: The model uses a highly efficient fan that, despite its small size, excels at drawing smoke away from the soldering area. This is a significant advantage, especially during extended tasks that require high concentration and quality execution.

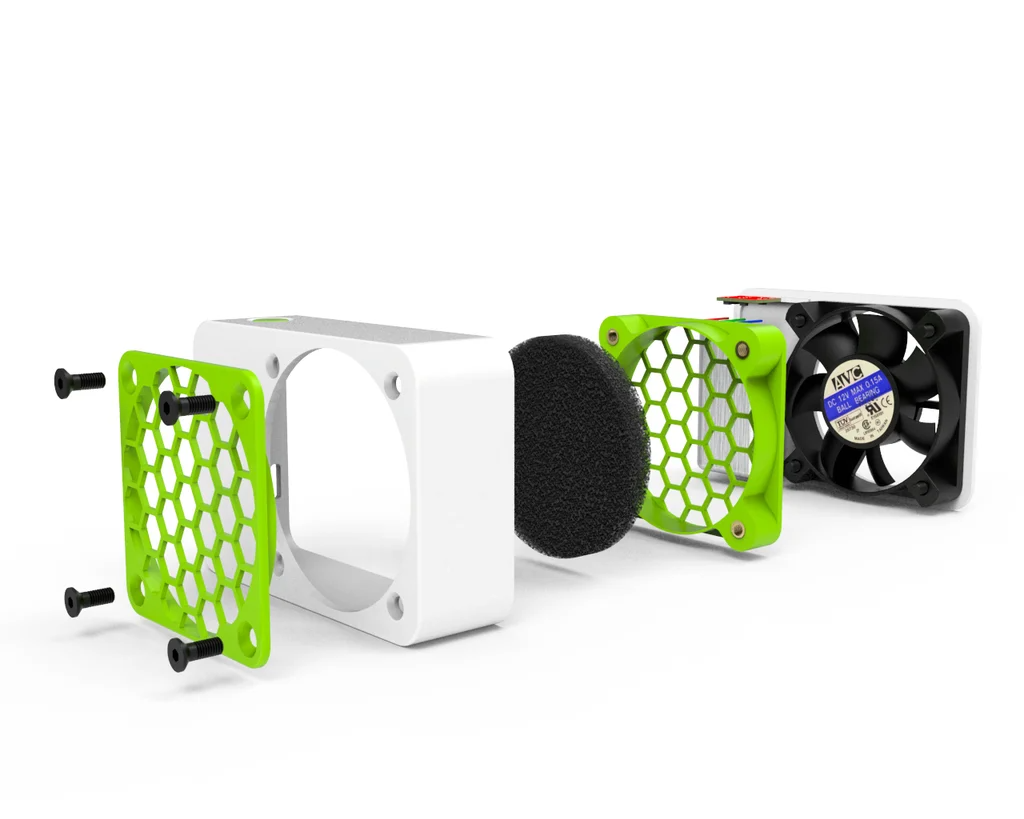

4. Activated Carbon Filtration: The extracted smoke passes through a special filtering sponge impregnated with activated carbon. This filter not only captures harmful particles but also prevents them from re-entering the air, ensuring a clean and safe work environment.

In summary, the new Solder Smoke Extractor model offers users a compact, mobile solution for effective air filtration at the workspace. The use of a LIPO battery and powerful fan in conjunction with activated carbon filtration makes this model an ideal choice for anyone concerned with their health and maintaining a clean work environment.

See the video for details:

If you liked this thing - let me know by putting like!


Parts links below:

• 5010 Cooling Fan
• Activated Carbon Filter

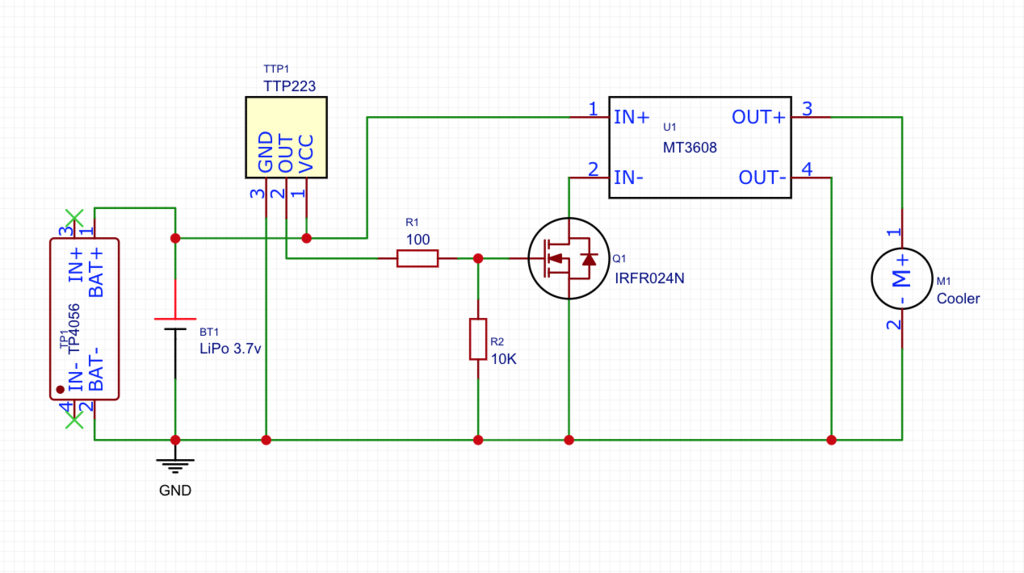

• MT3608 2A DC-DC Step Up Converter
• TP4056 Charger Module
• Touch button Module TTP223
• Mosfet IRFR024N
• Li-Po Battery 852540
• Head Flat Screw M3
• Insert Nut M2-M3
• Insert Knurled Nuts M2-M3
• Crystal Fishing Wire
• AB-Glue Epoxy
• UV Glue
• eSUN eABS+HS

Links to used tools:

• LAOA Mini Hand Tools
• NOGA deburring tool and Blades
• Mini Electric Belt Sander
• Mini Wireless Grinder
• Polishers Buffers Abrasive
• Reamers Small
• Reamer Tool Set
• Carbide Machine Reamer
• Micro HSS Steel Twist Drill Bit
• UV Glue Repair Lamp
