Spool Pin for Janome Sewing Machines (659067005)

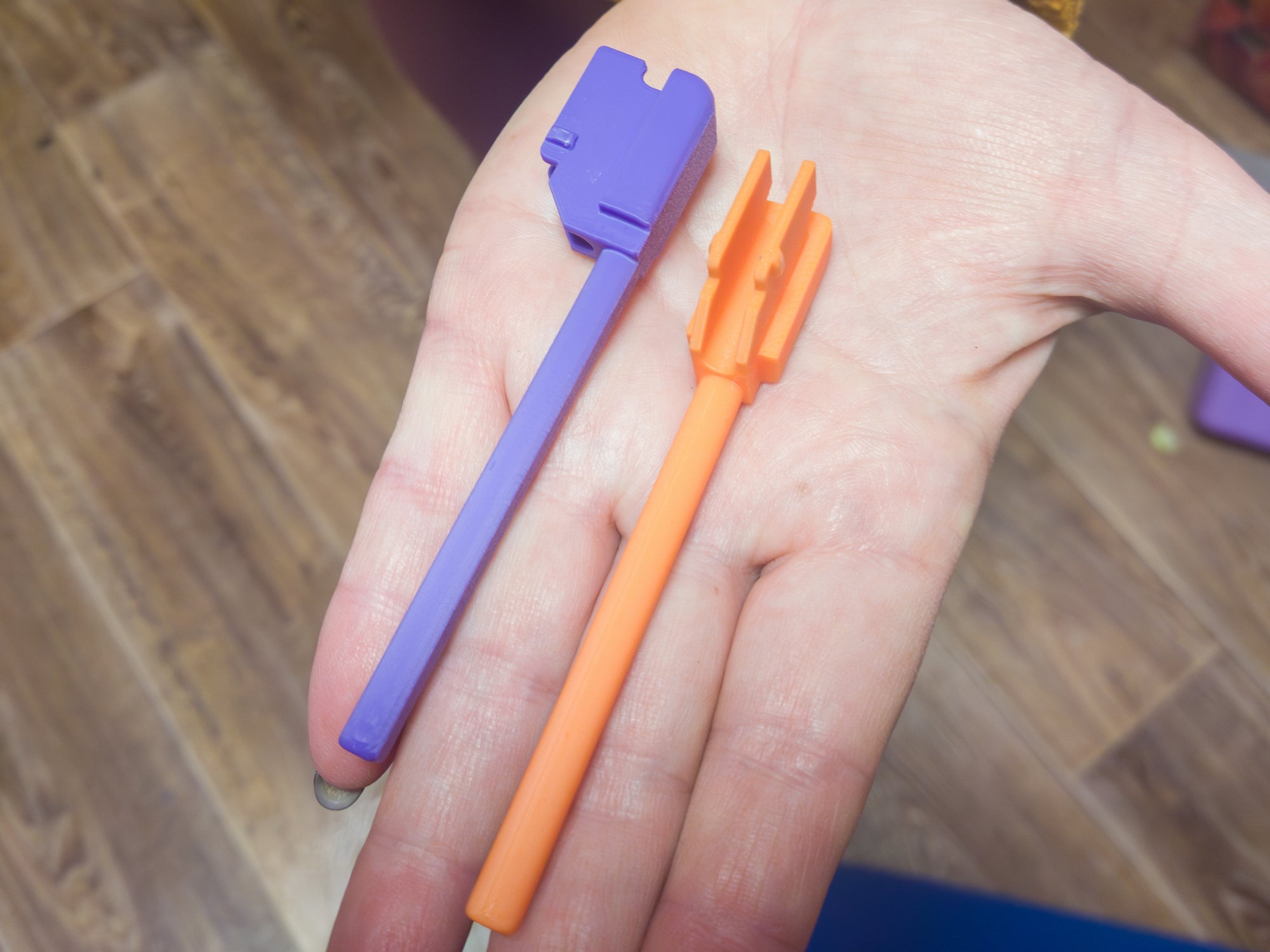

This is a replacement spool pin for Janome sewing machines, specifically designed and tested for the Janome 625SE. It replaces the original part (Art. 659067005).

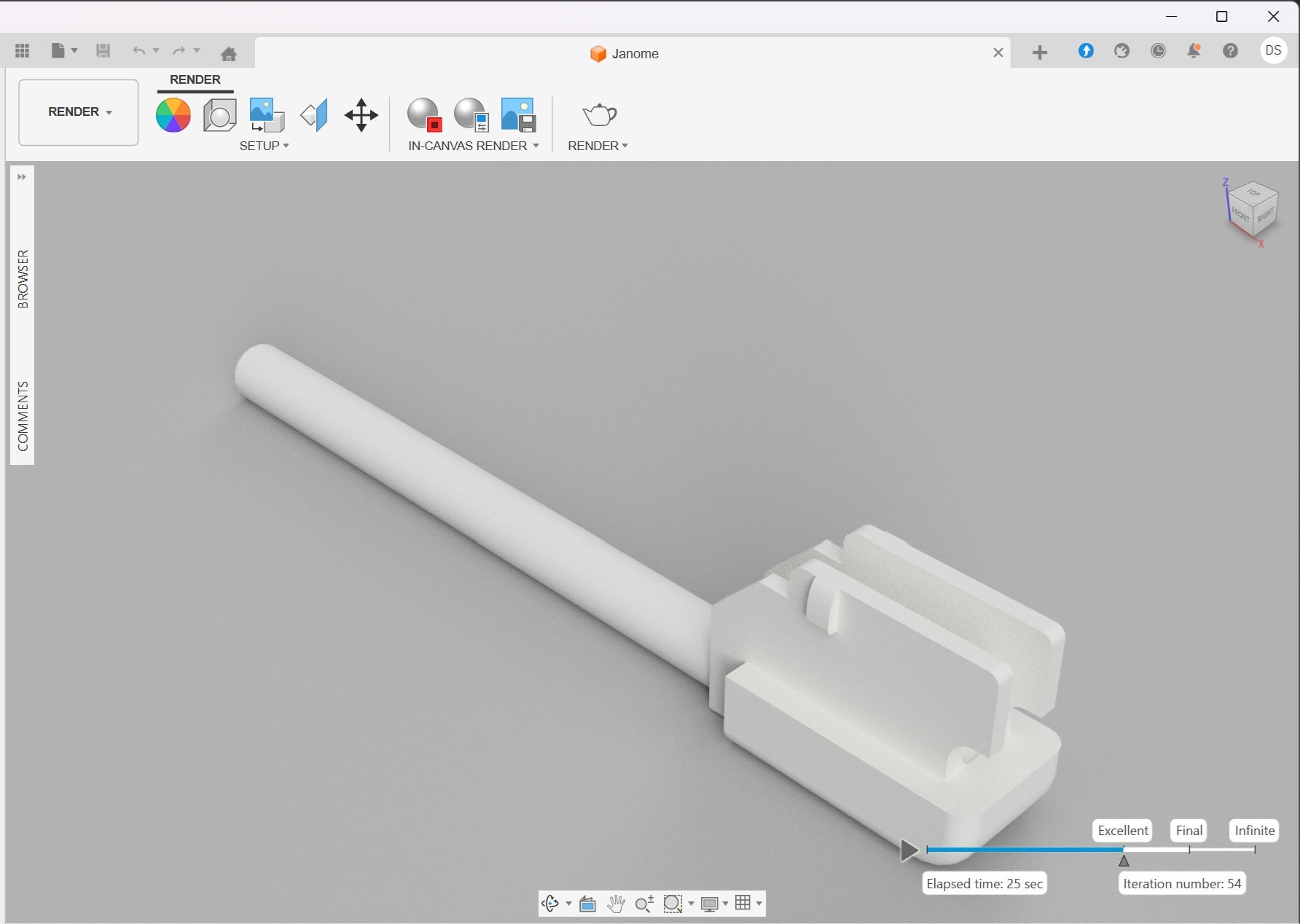

I have optimized this model for 3D printing by adjusting the geometry for horizontal orientation. This ensures maximum strength along the shaft and makes the printing process much easier.

Important Note on Materials:

Please use PLA for this print. Based on my tests, PETG is NOT recommended as it may fail or break during use. PLA provides the necessary rigidity and strength for this specific part.

Features:

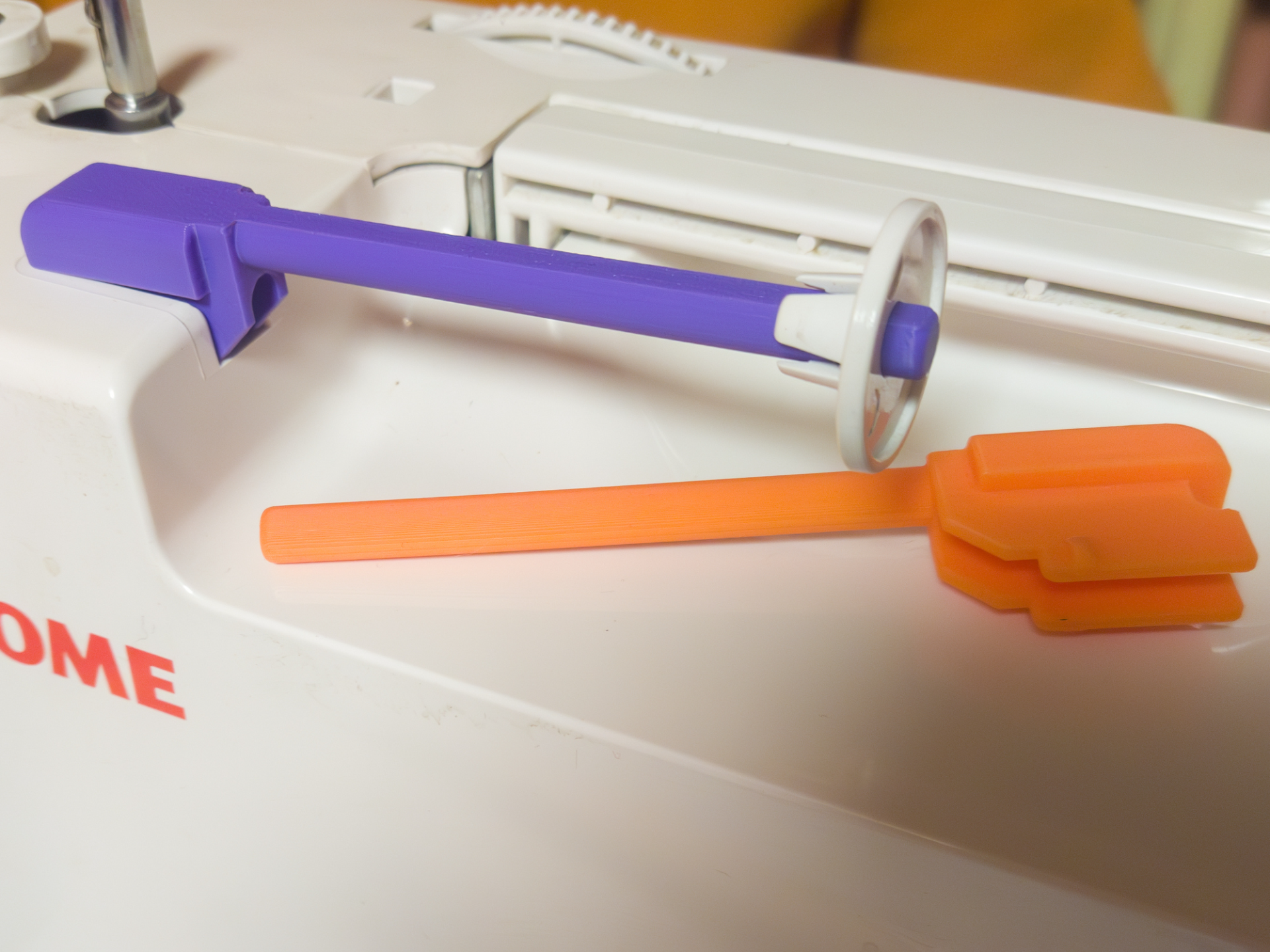

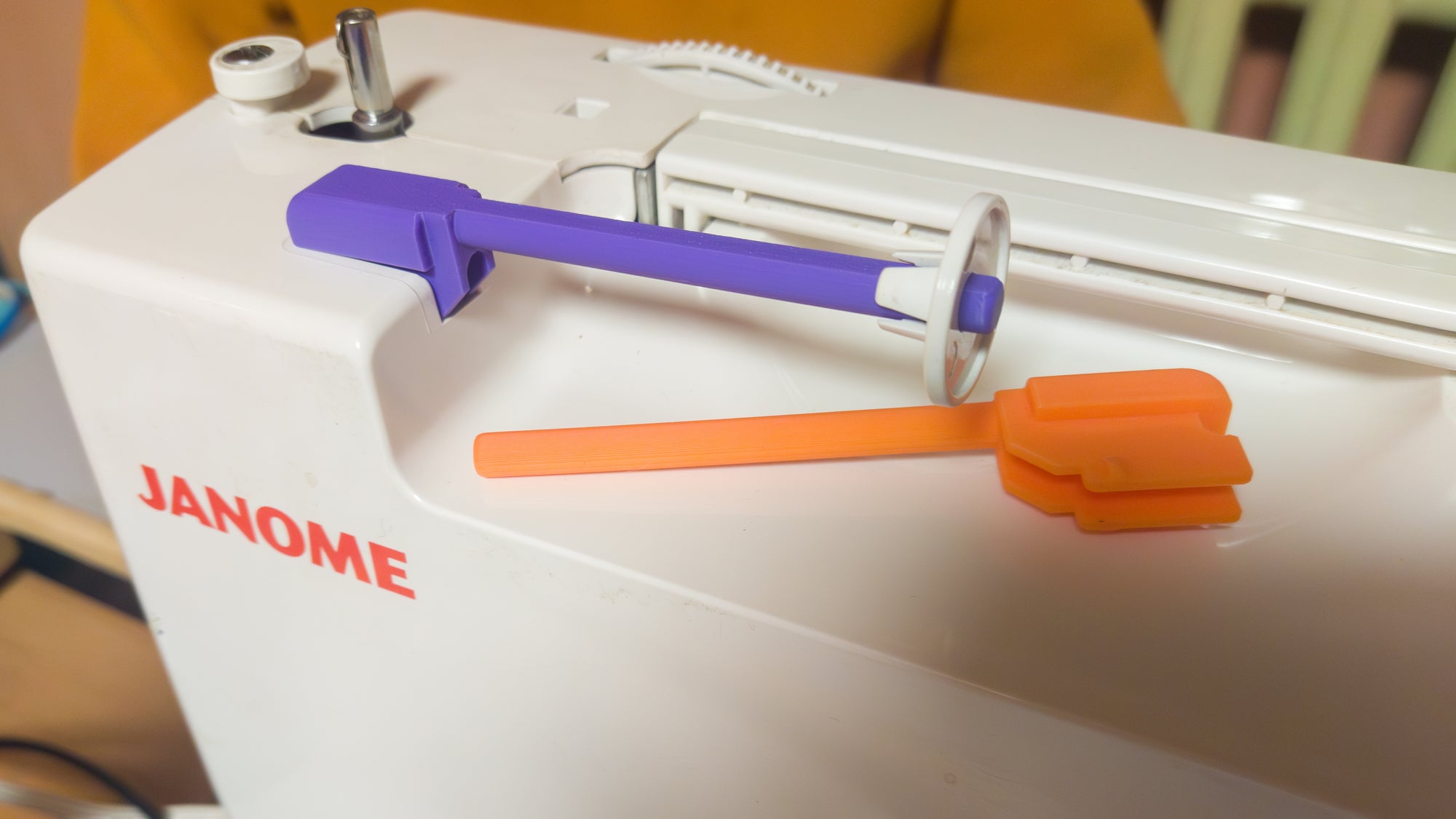

• Perfect Fit: Modeled specifically for the Janome 625SE and compatible models.
• No Supports Needed: Thanks to the optimized design, it prints cleanly without any support material.
• Fast Print: Total print time is approximately 40 minutes on a Bambu Lab A1.

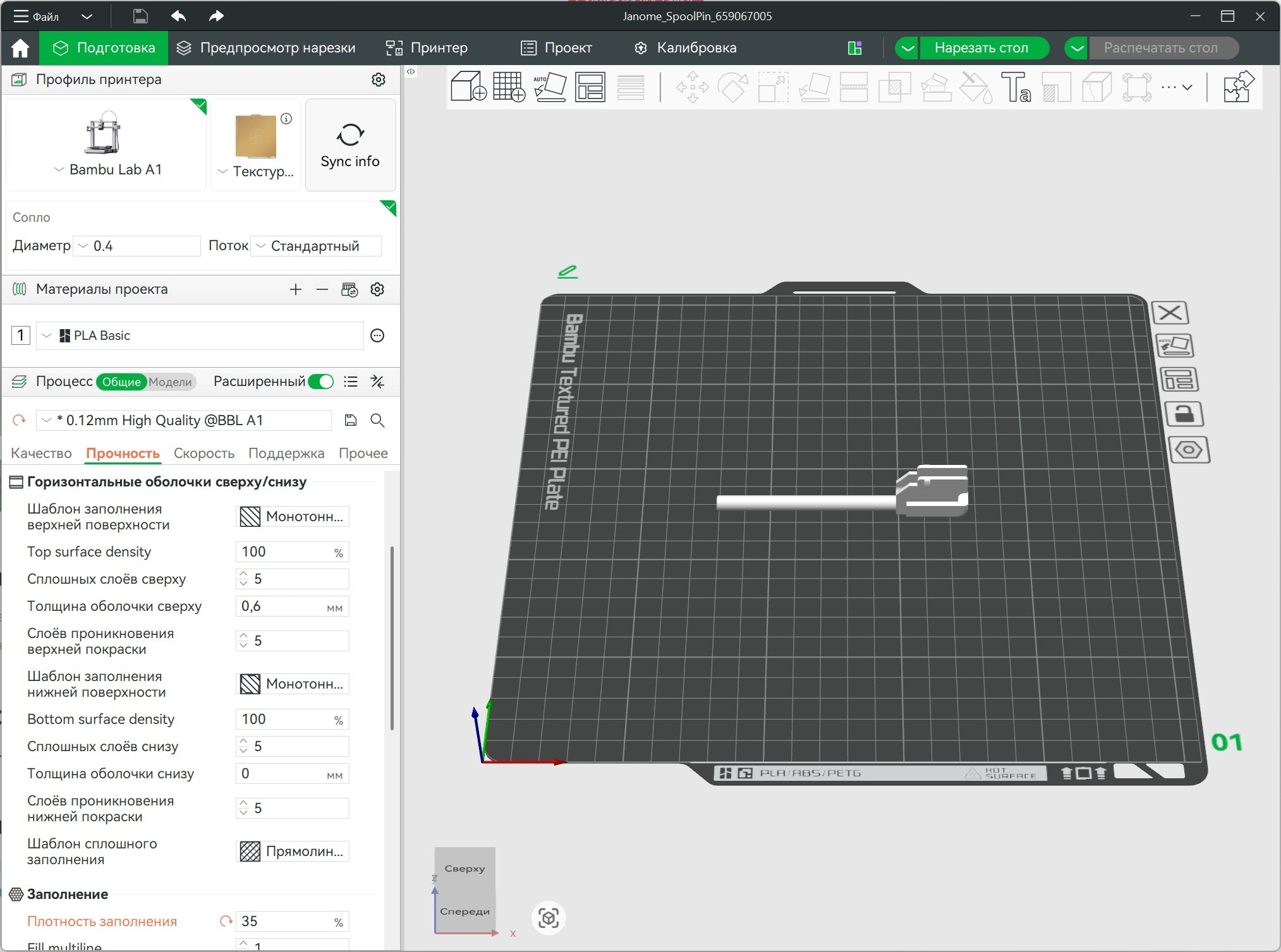

Recommended Print Settings:

• Material: PLA
• Orientation: Lay it flat (horizontally) on the heatbed for the best strength.
• Layer Height: 0.12mm or 0.16mm for a smooth finish.
• Supports: None.

If you find this model helpful, please give it a boost or share your makes!

Design by Dmitry Sekaev on MakerWorld (license: BY).
