Stable floating Benchy w. Cargo Smoke & Flag (AMS)

Summary
Do you love Benchys but are frustrated because they don't float in water?
Do you want to print your child a cool Benchy for the bathtub?

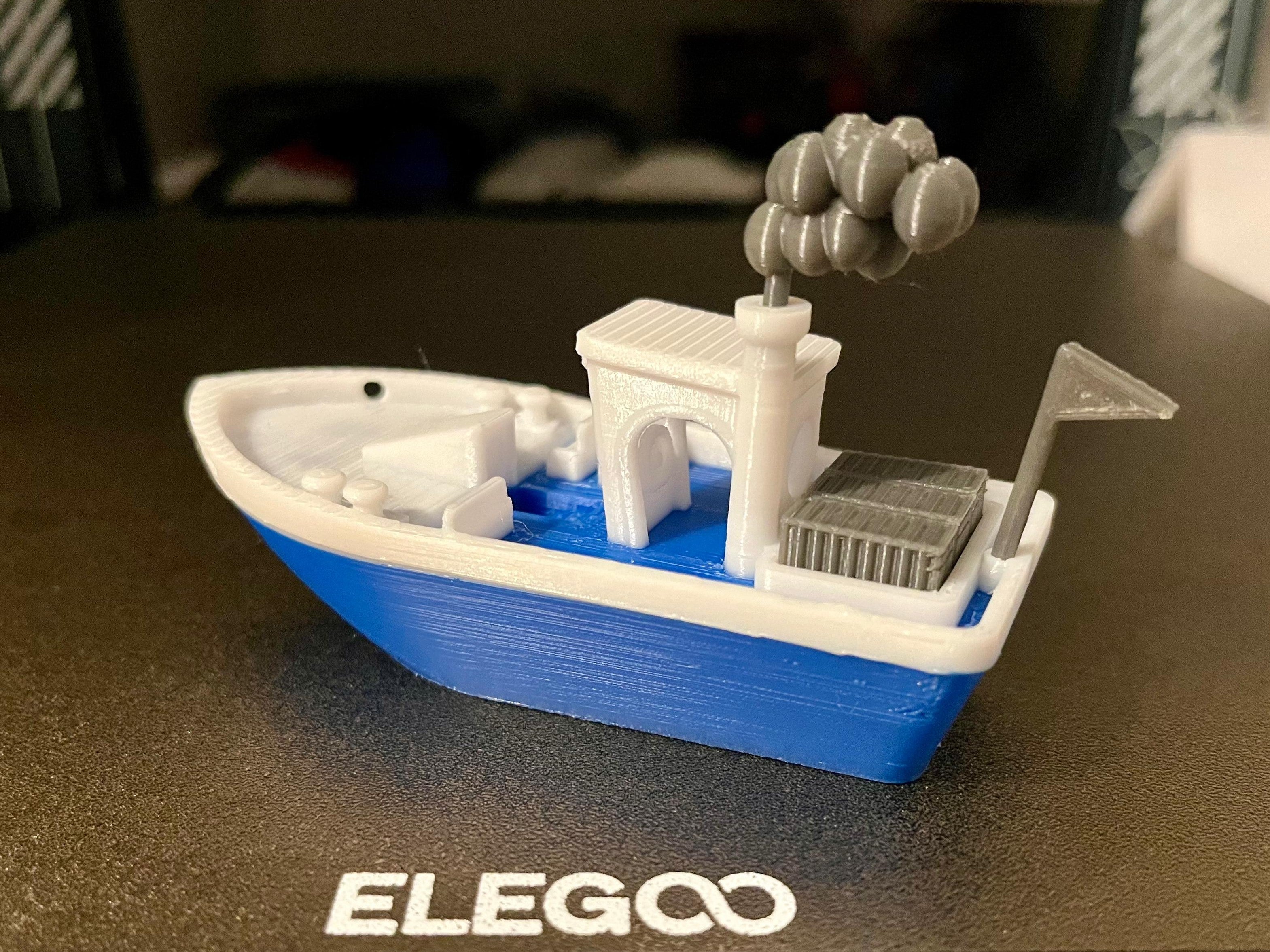

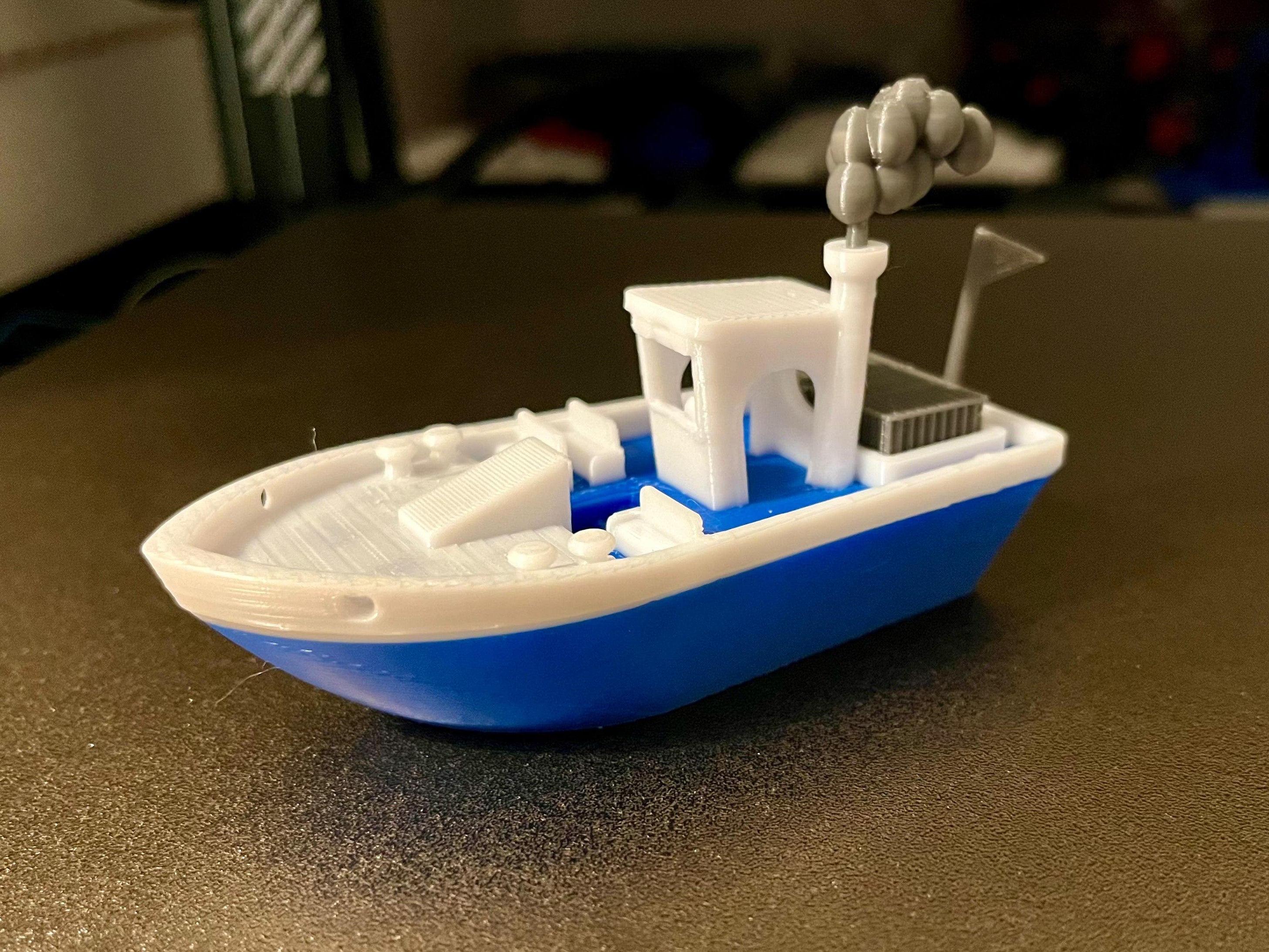

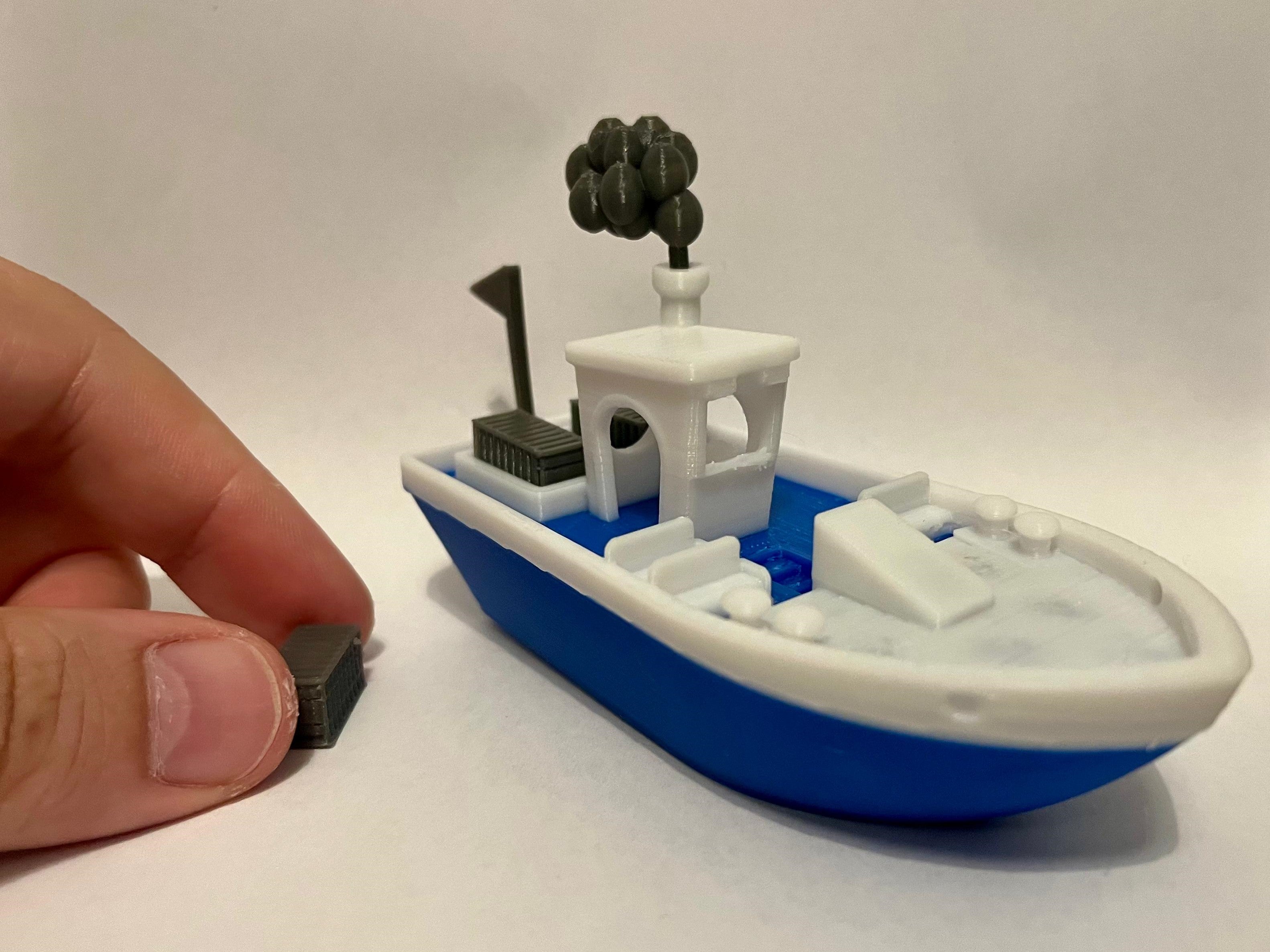

Here is the stable floating Benchy with cargo containers, smoke and flag in a multicolor version!

Key features
- Very stable floating benchy with good water holding (significantly better than some other "floating" boats)

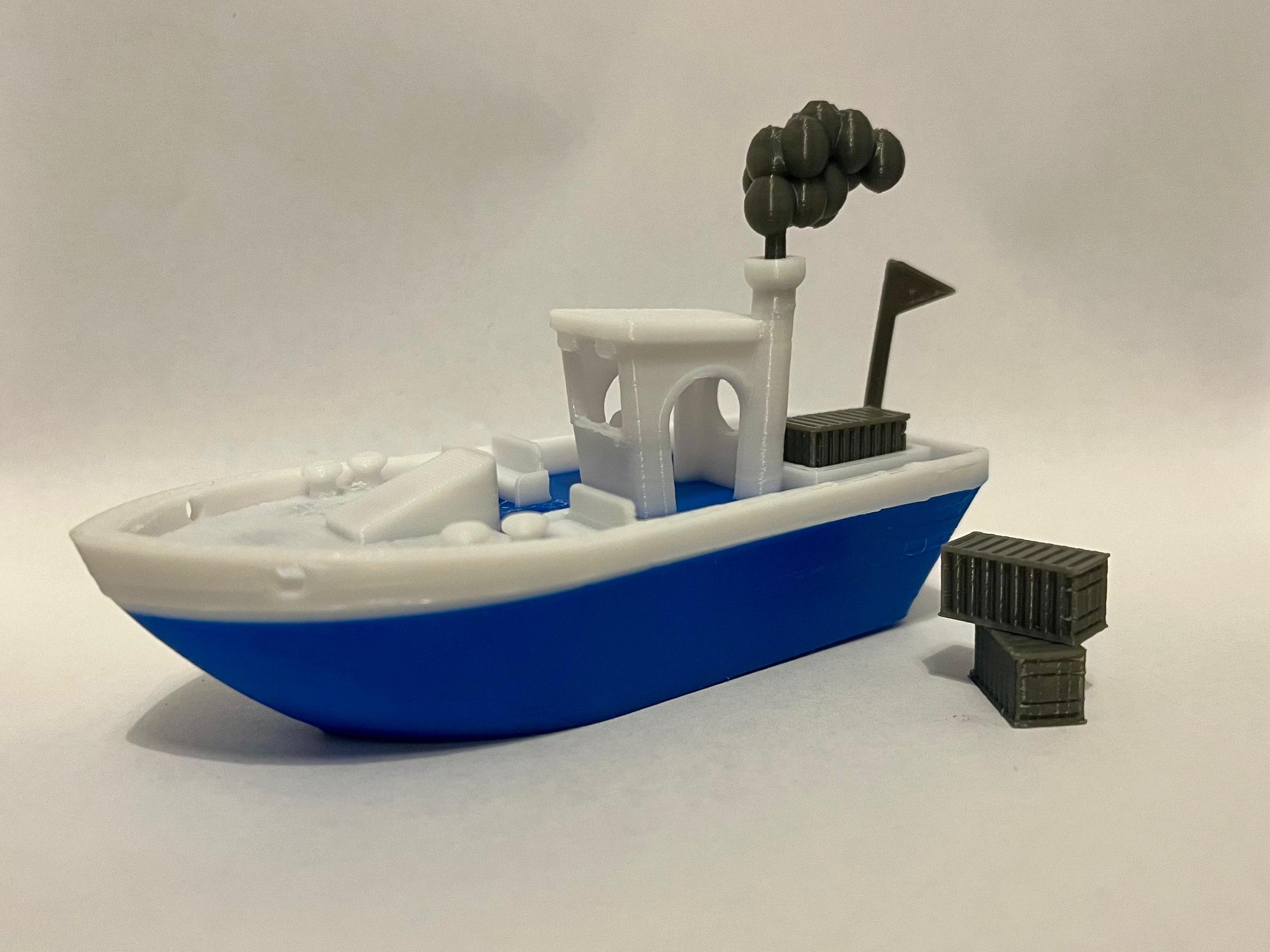

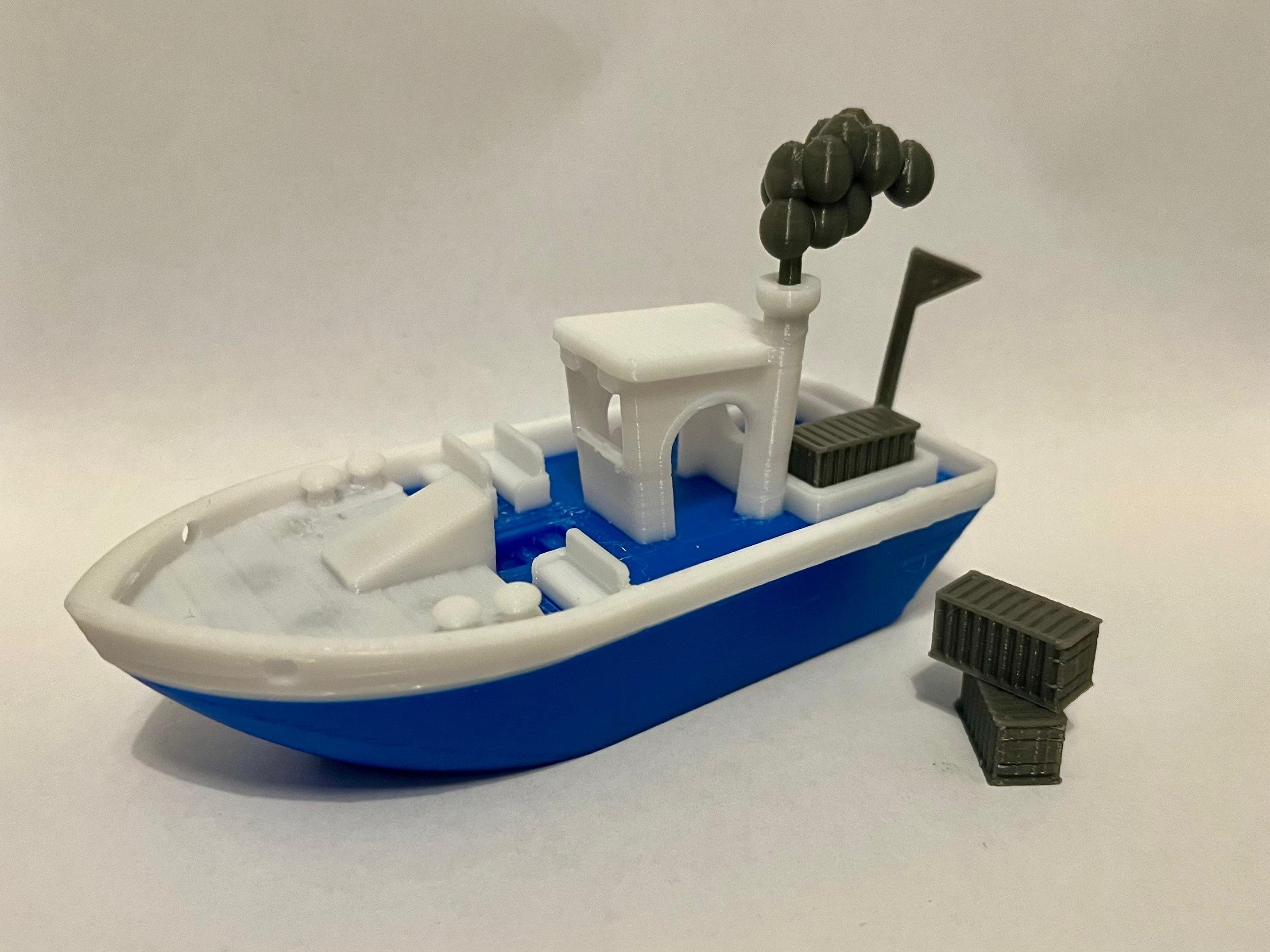

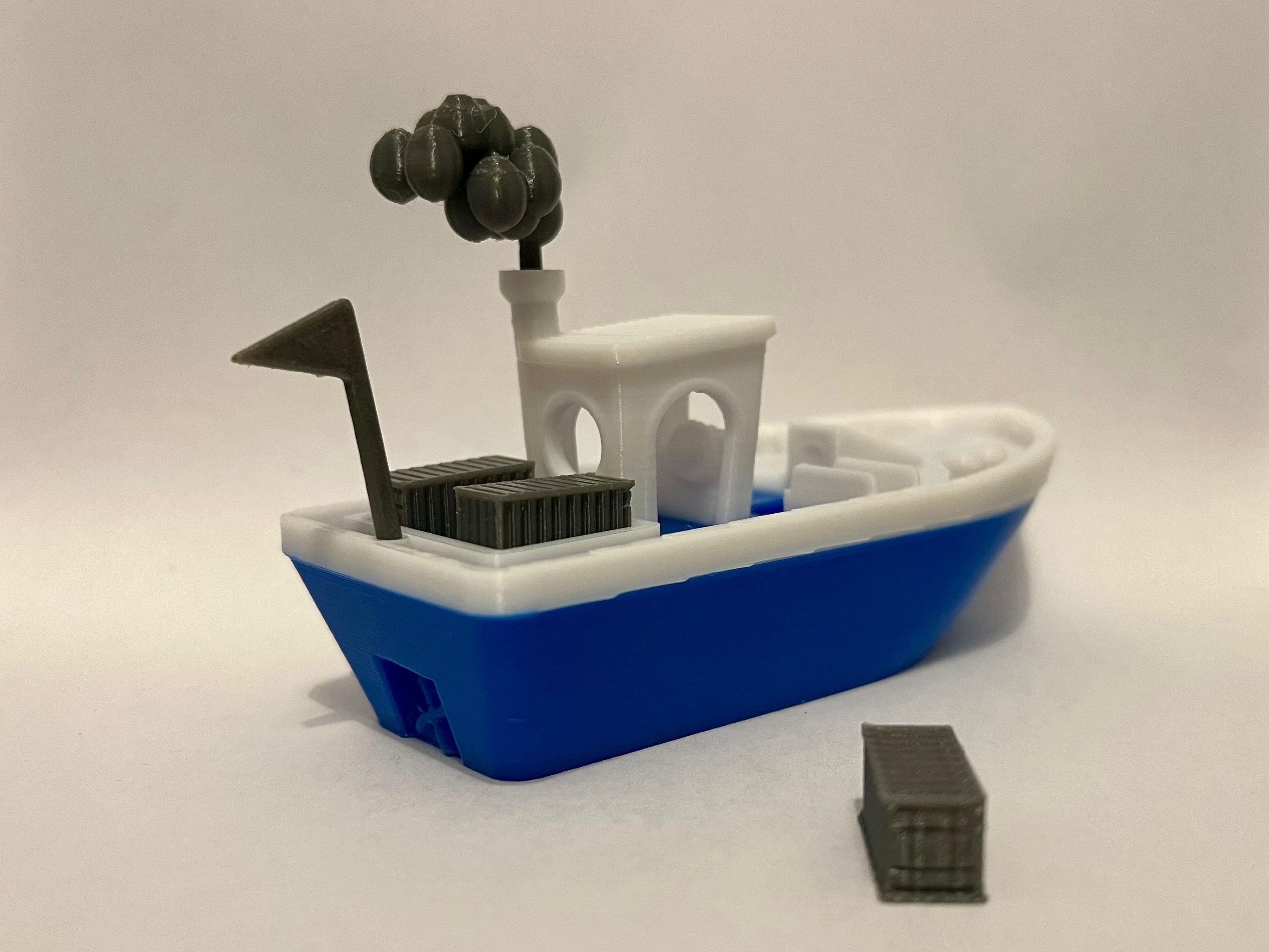

- 3 cargo containers which can be loaded onto the benchy
- Smoke that can be put into the chimney
- A flag for the stern of the ship

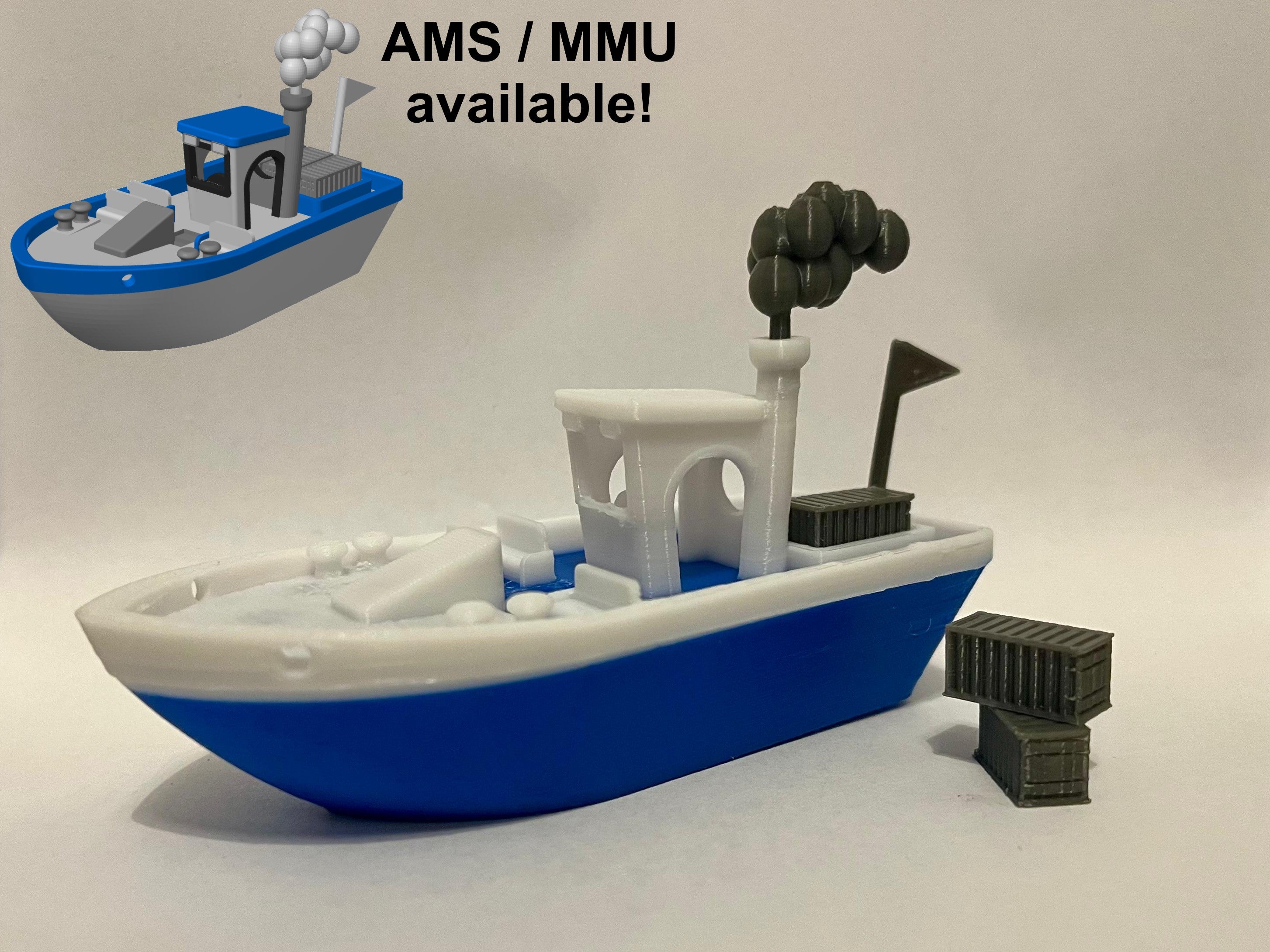

- AMS / MMU multicolor (3 colors) version available

Tip if you don't have a multicolor printer: Use the "pause print" or M600 gcode ("filament change") command in your slicer to incorporate one or more color changes.

Print the Benchy
Use 12% Tri-Hexagon infill or other closed infills (in case of leakage. Titanic and all that ;-) )
Keep the Benchy under 30g (100% scale & accessories excluded) to float stable.

Walls
1st Layer 0.2mm
3 perimeters / outer walls
4 bottom layers
5 top layers
8 bottom solid layers @ 0.3mm layer height or
16 bottom solid layers @ 0.15 layer height

No supports (except the smoke: Print this in shown direction WITH supports and 0.1mm layer height!)

Waterproofness
I printed mine in PETG with a low overextrusion (+4%) and got it absolutely tight.
I have read that printing with a layer height of 0.15 results in better watertightness.

The Benchy itself is childproof.
WARNING: The accessories are not suitable for children under 3 years of age (risk of swallowing).

Do you like my work? I would be very happy if you would support my work on Ko-fi.

Differences of the remix compared to the original

• 1:1 taken over: Smoke for benchy von KN16
• Idea adapted, but self-designed: Benchy Flag (Attachement) von Felix and 3D BENCHY (2 COLORS) von Prusa Research
• reworked: Nicos Benchy Bath Toy Floating! von Asiak
  - chimney moved to the side
  - added benches for Benchy ;)
  - added these double docking things
  - door has been given a porthole

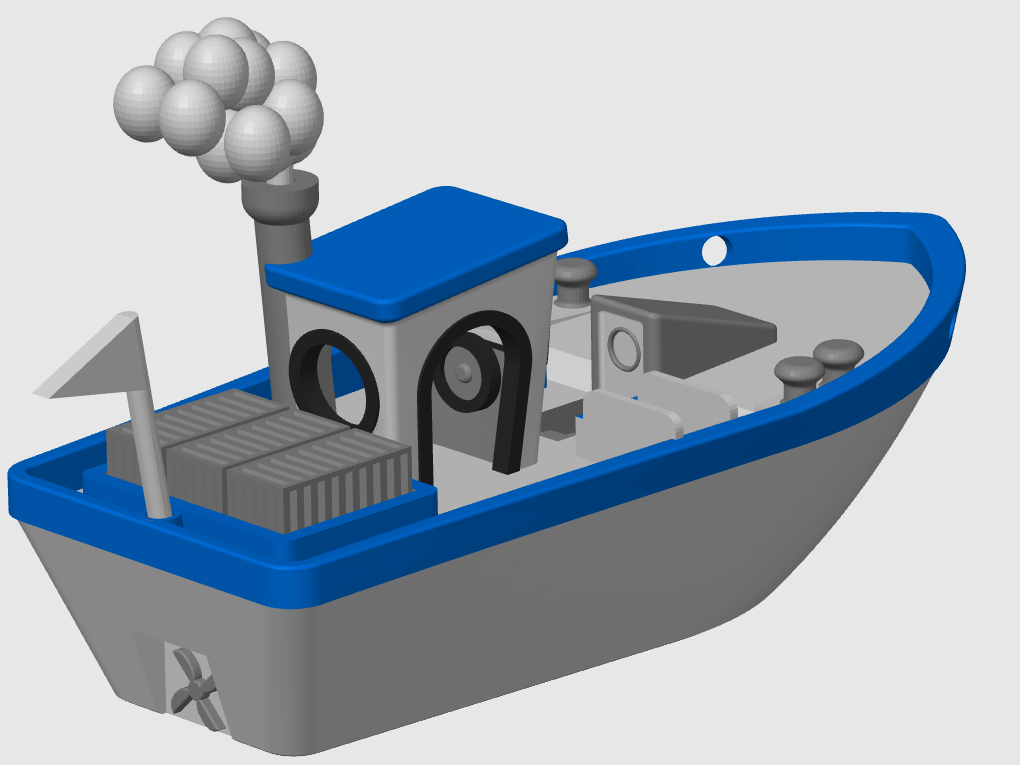

  - propeller added
  - username added to bottom side
  - headlights added to cabin
  - loading area enlarged and matching cargo container designed
  - easy to print flag designed and fitted

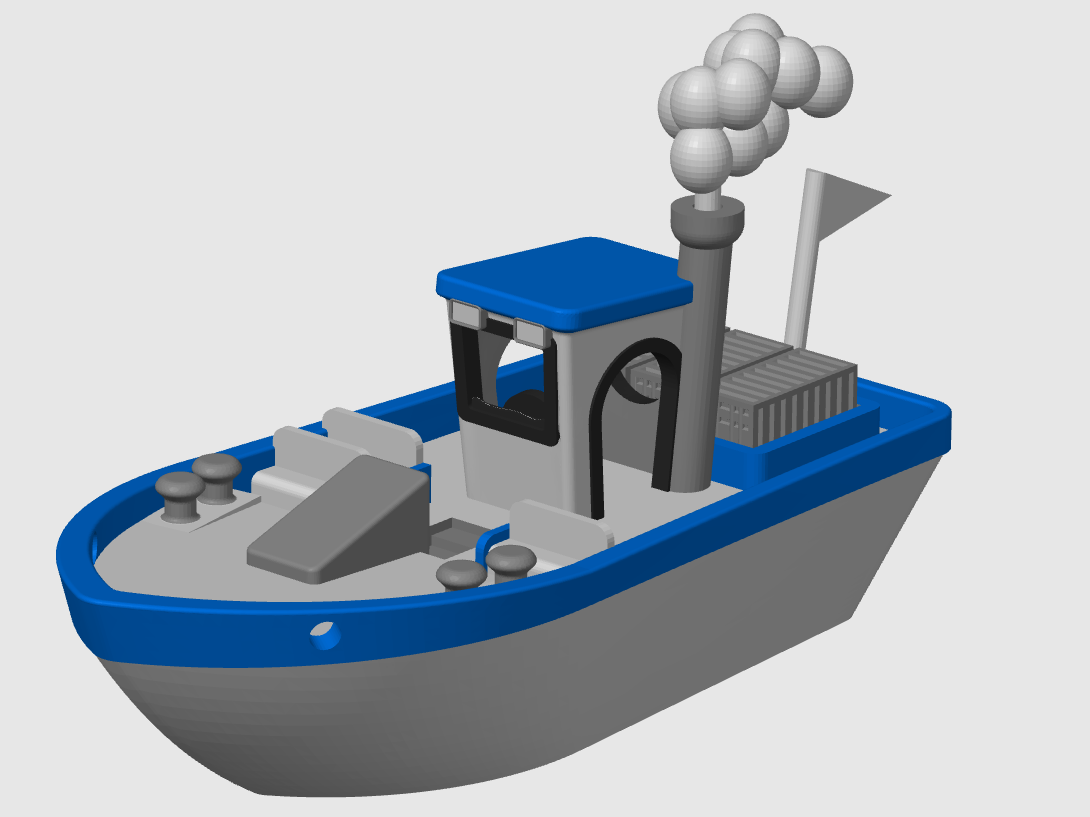

  - painted for MMU / AMS (3 color)

Design by The Kit Card Guy on MakerWorld (license: BY-SA).
