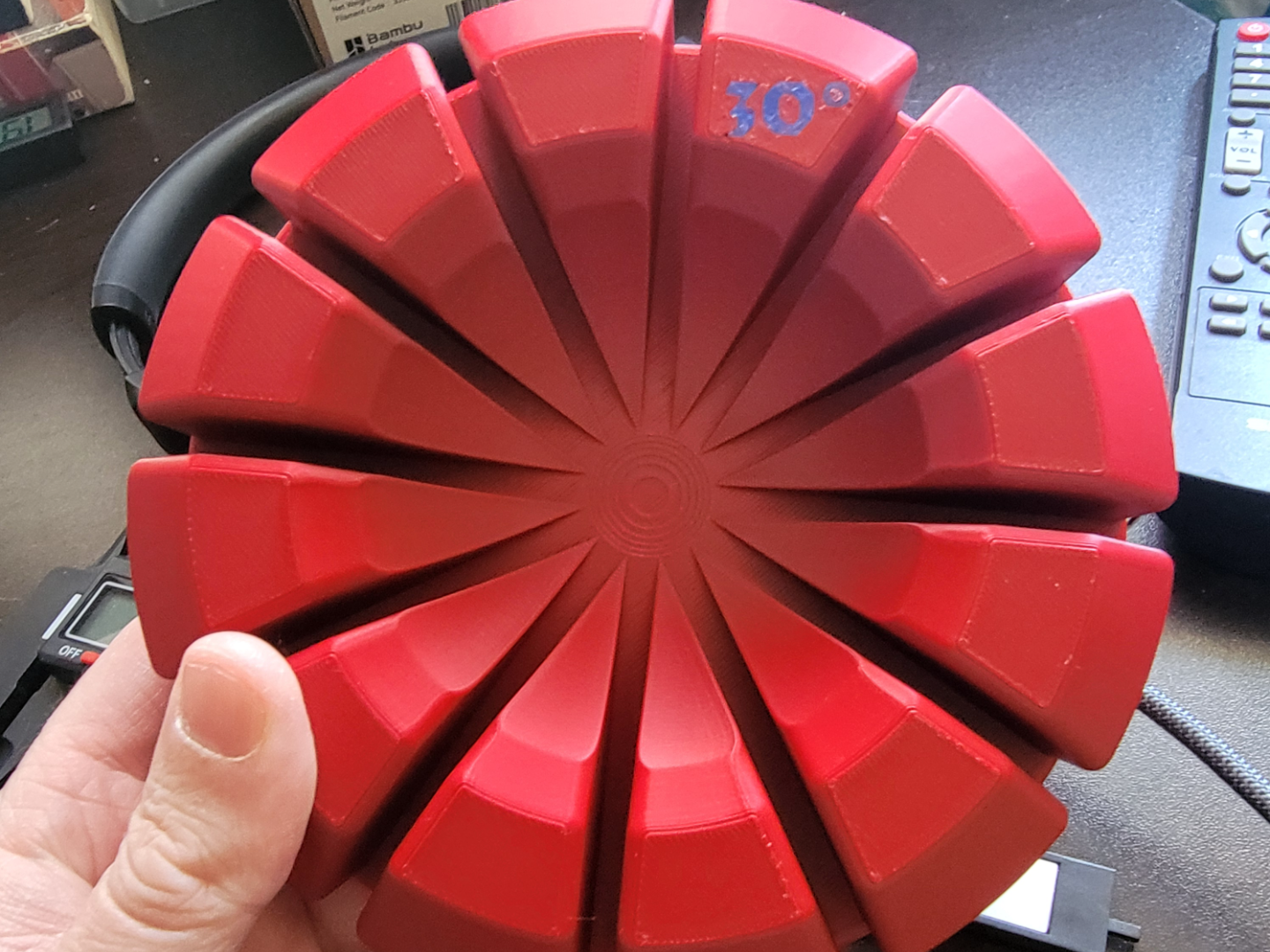

Stained Glass - Circle Jig - 30°

This jig has been superseded by it's more subdivided brother. Print this 15° jig instead: Glass Circle Jig - 15°

The Jig this was remixed from was a great idea, but the slots were too narrow for thicker or uneven pieces of glass and the cutout in the center was a bit tight for soldering. I remodeled this with the gaps widened to 5mm and the center cut out made much larger for easy soldering. I also rounded off the edges of the slats and simplified the legend to a single notification of 30° flush with the surface rather than recessed.

Design by DocNougat on MakerWorld (license: BY-SA).
