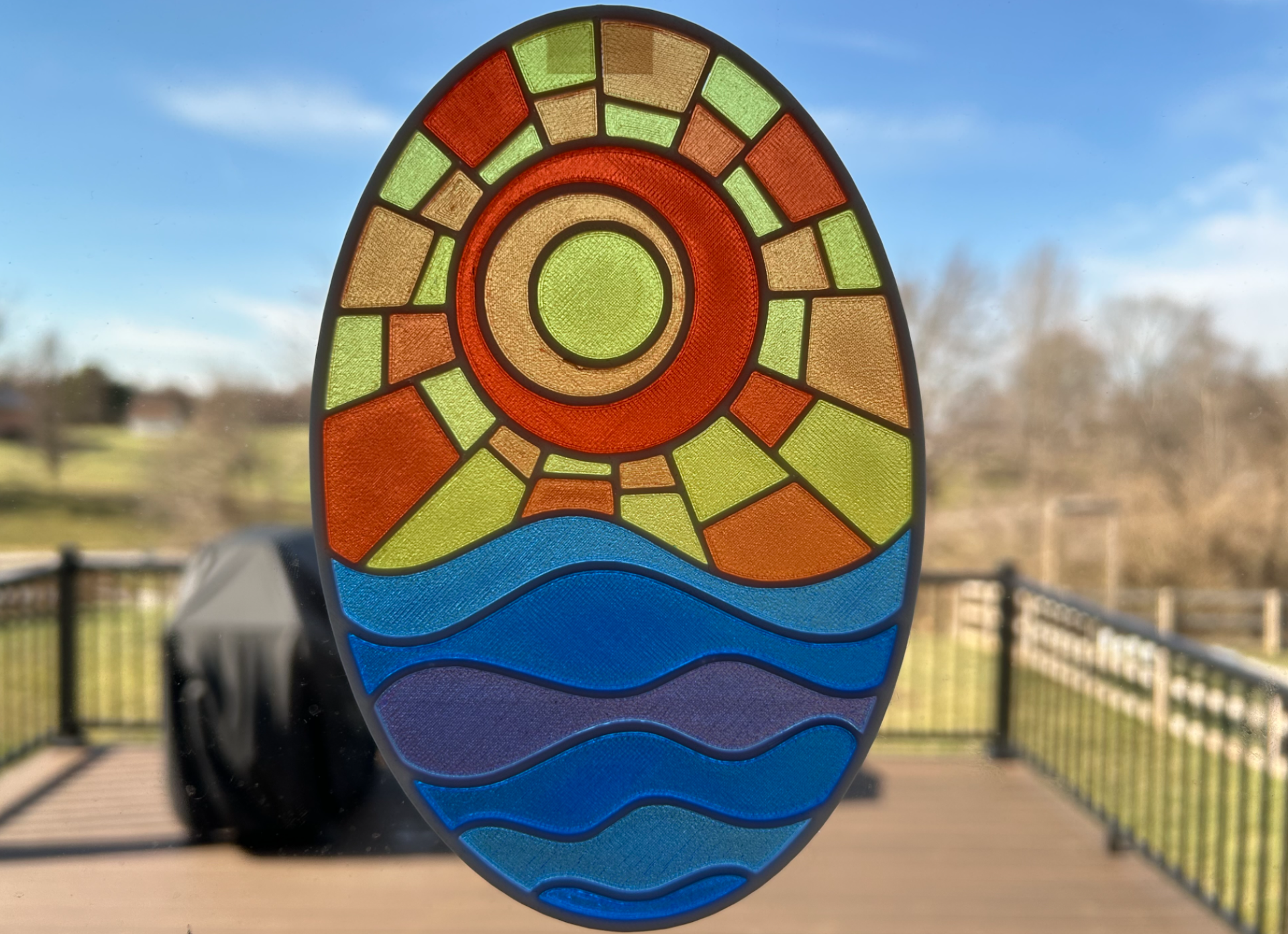

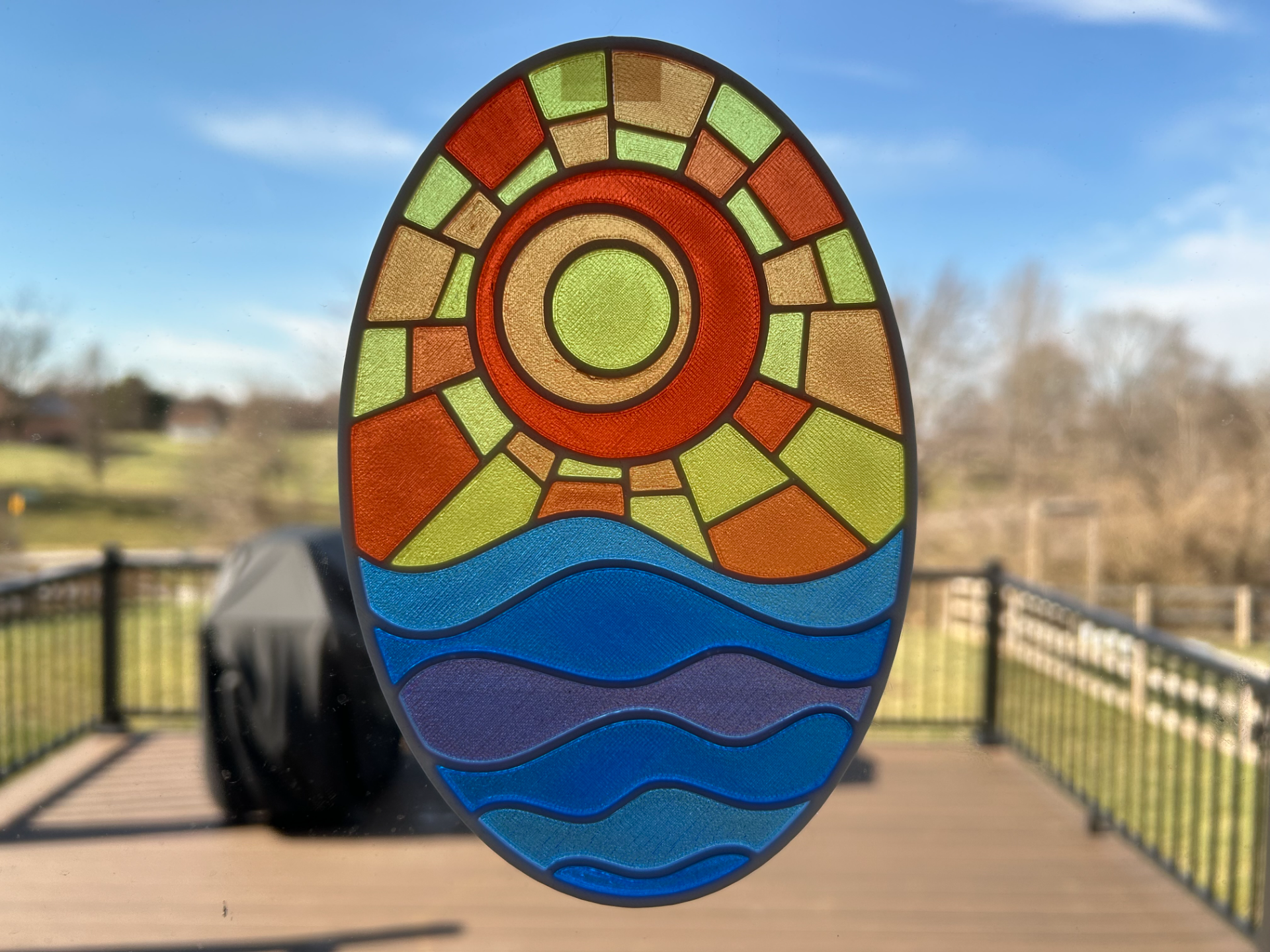

Stained Glass Sun

This is another in a series of color mix experiments with translucent filament. This uses red, yellow, and blue translucent colors to build up the layers to make all the color variations.

I used Inkscape to convert the line drawing to a dxf and imported it to Solidworks. Each section was independently extruded and layered to make the color composition.

• All of these mixed layer prints will give a warning about floating objects. It is because the various layers are supported by other colors underneath them, but all the layers have floating objects.



• I had to add a small red pillar to bypass the error thrown from having no red between several layers.

I used Sunlu Red and Blue Translucent PLA and JAYO Yellow translucent for this print.

Design by brimstone326 on MakerWorld (license: BY-SA).
