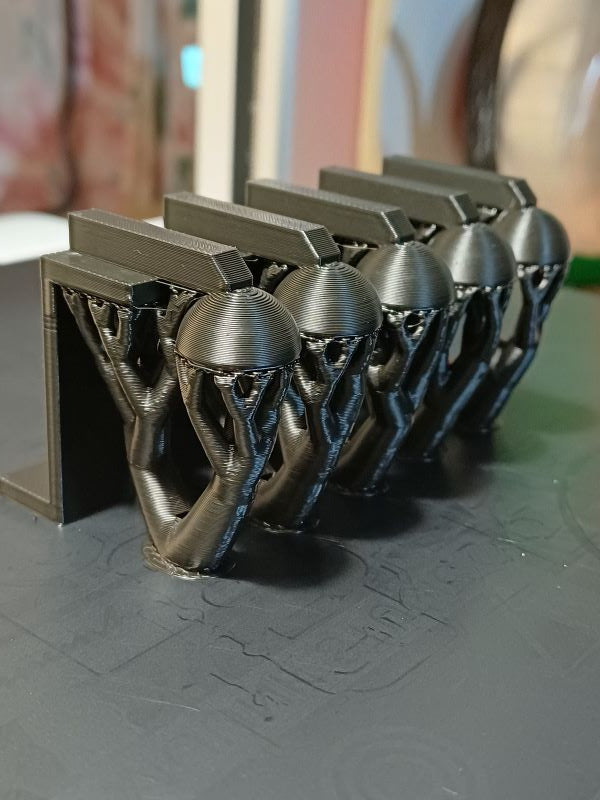

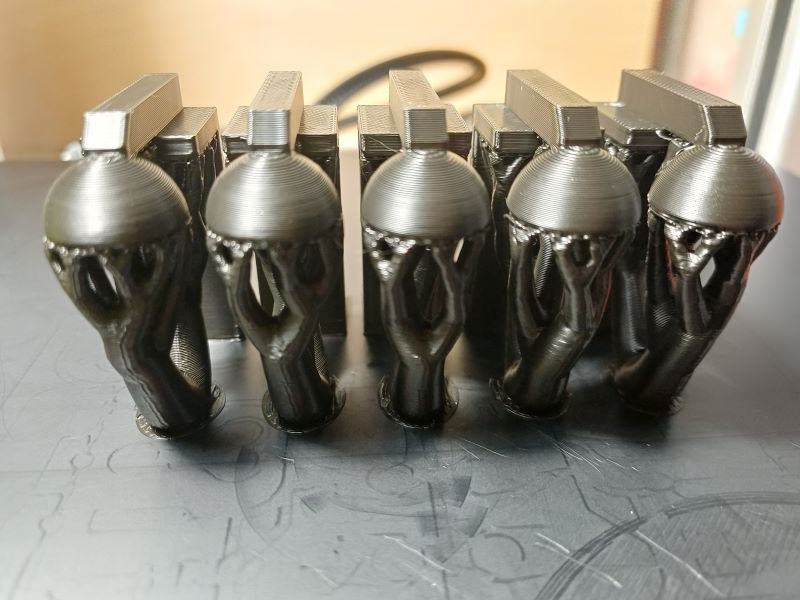

I recently had a new user comment after printing one of my models, that when removing supports it damaged the model. So, I thought I would create a simple calibration test for defining what support settings would be best for your printer.
This test comprises 6 print files with differing layer heights of 0.08, 0.12, 0.16, 0.20, 0.24, and 0.28.
Each print file contains 6 plates, each with a different style of support, being: Tree organic, Tree slim, Tree strong, Tree hybrid, Snug and Grid. (Tree Organic and Grid are also called Default)
Each plate contains 5 identical models, each with a different Top Z distance of: 0.2, 0.225, 0.25, 0.275 and 0.3
Simply select the layer height you want to test against, then the type of support you want to test.

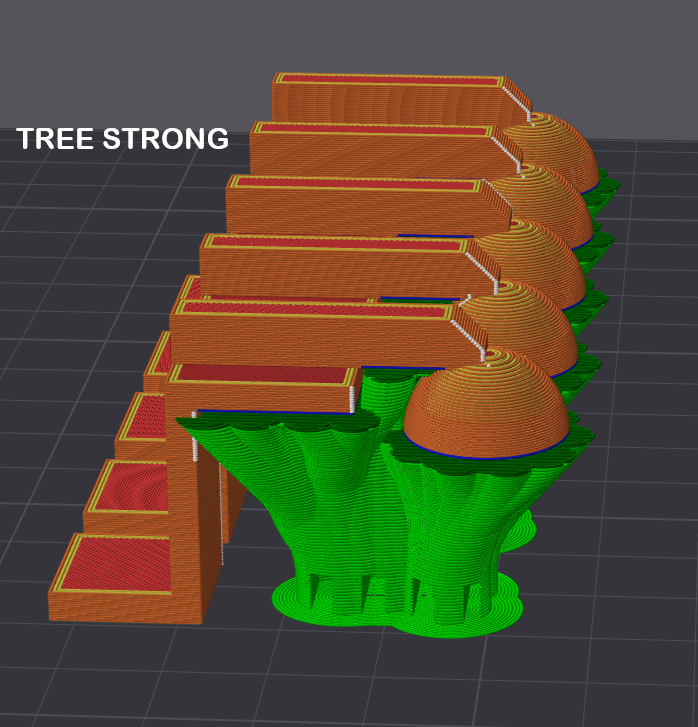

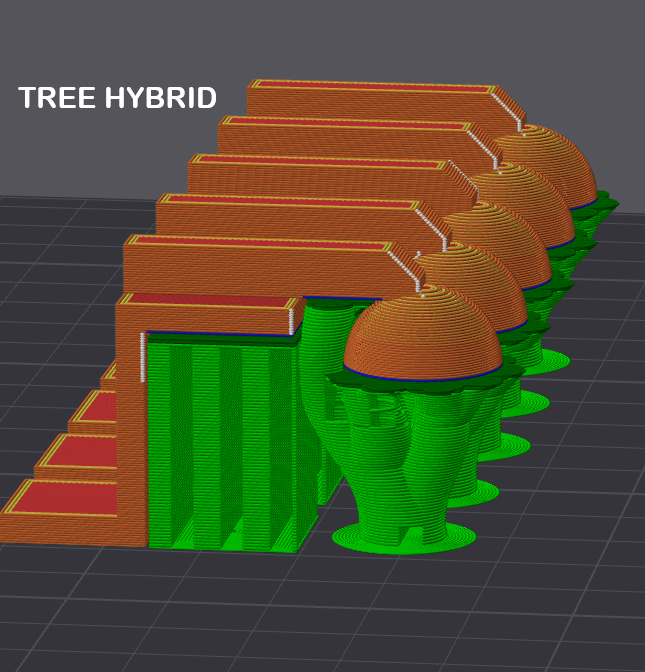

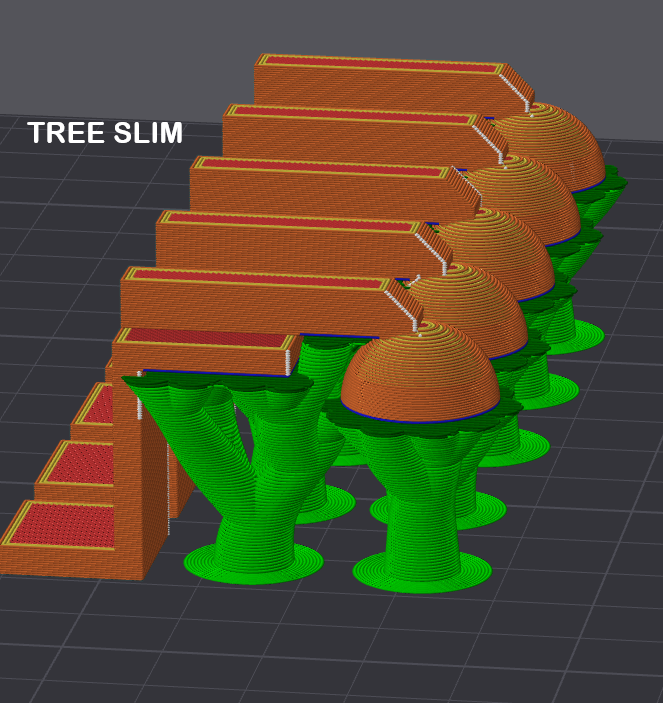

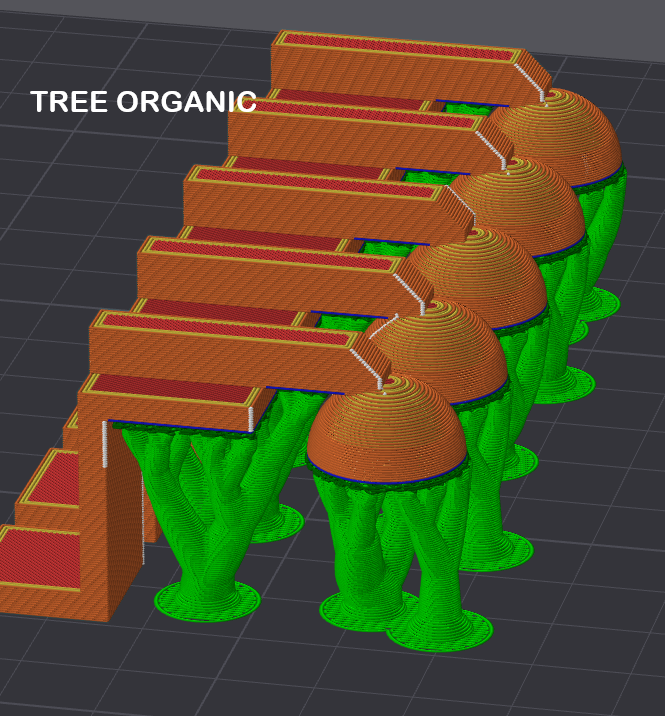

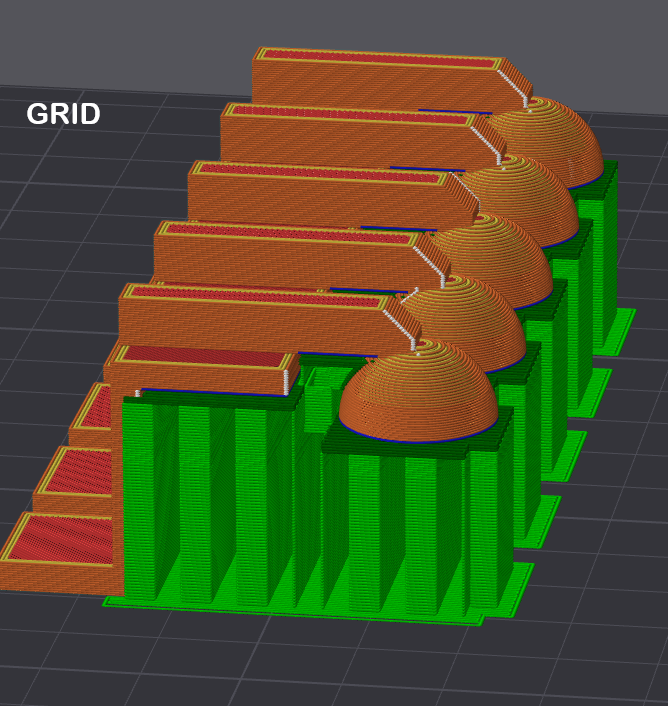

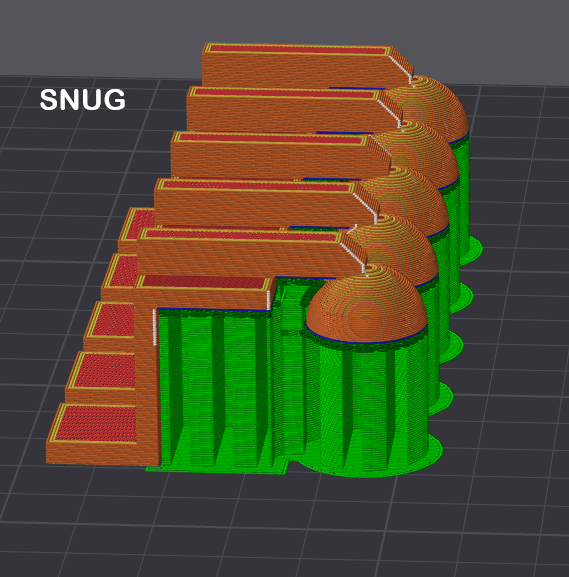

I have added an image for each type support, so you can see what they look like.
Hopefully this helps you get the best out of your prints.
Design by KayessGuitars on MakerWorld (license: BY).
