At last I was able to get something here. Lots of plans designs and redesigns as I wanted to make something different. So what do I have here?

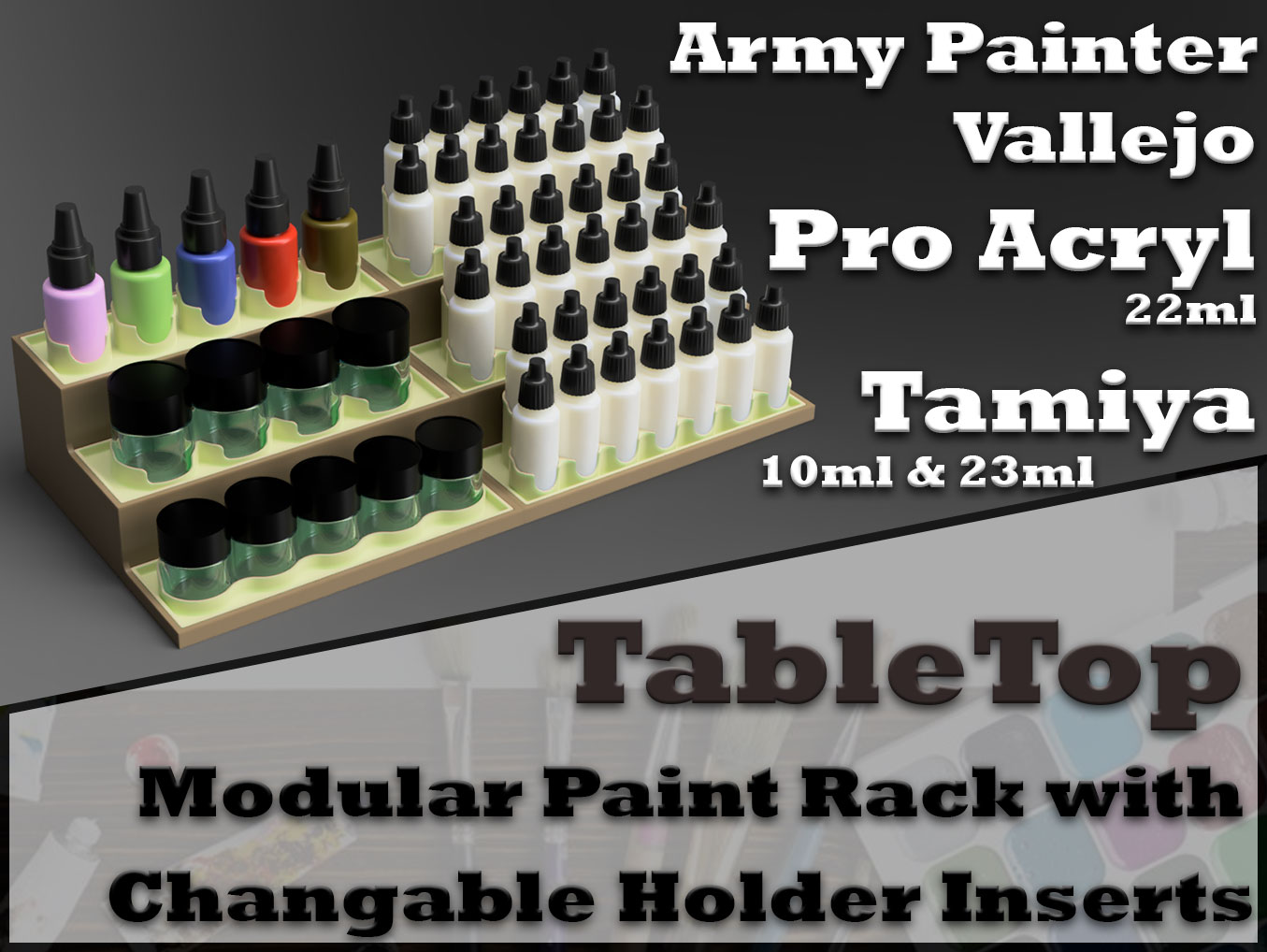

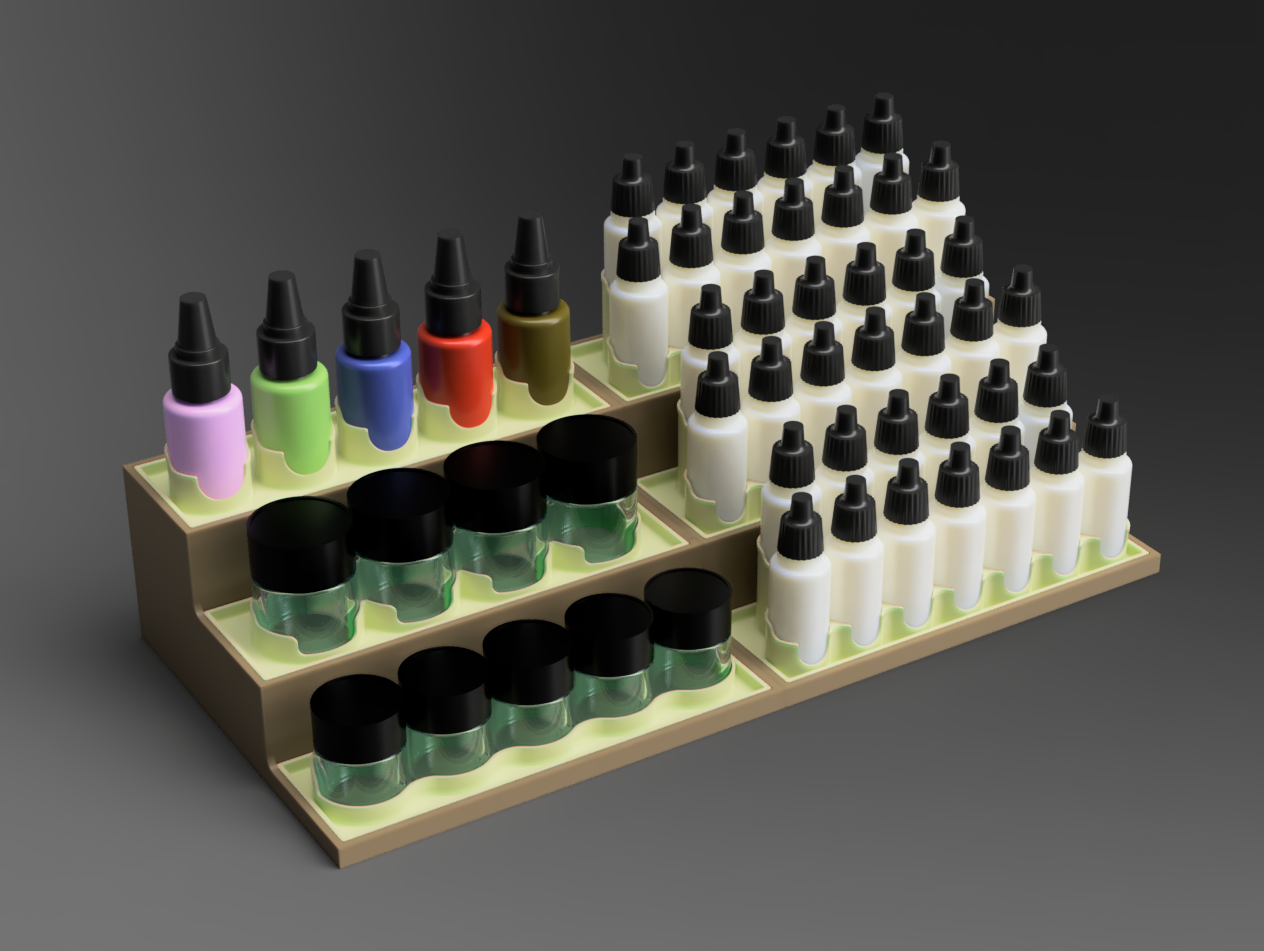

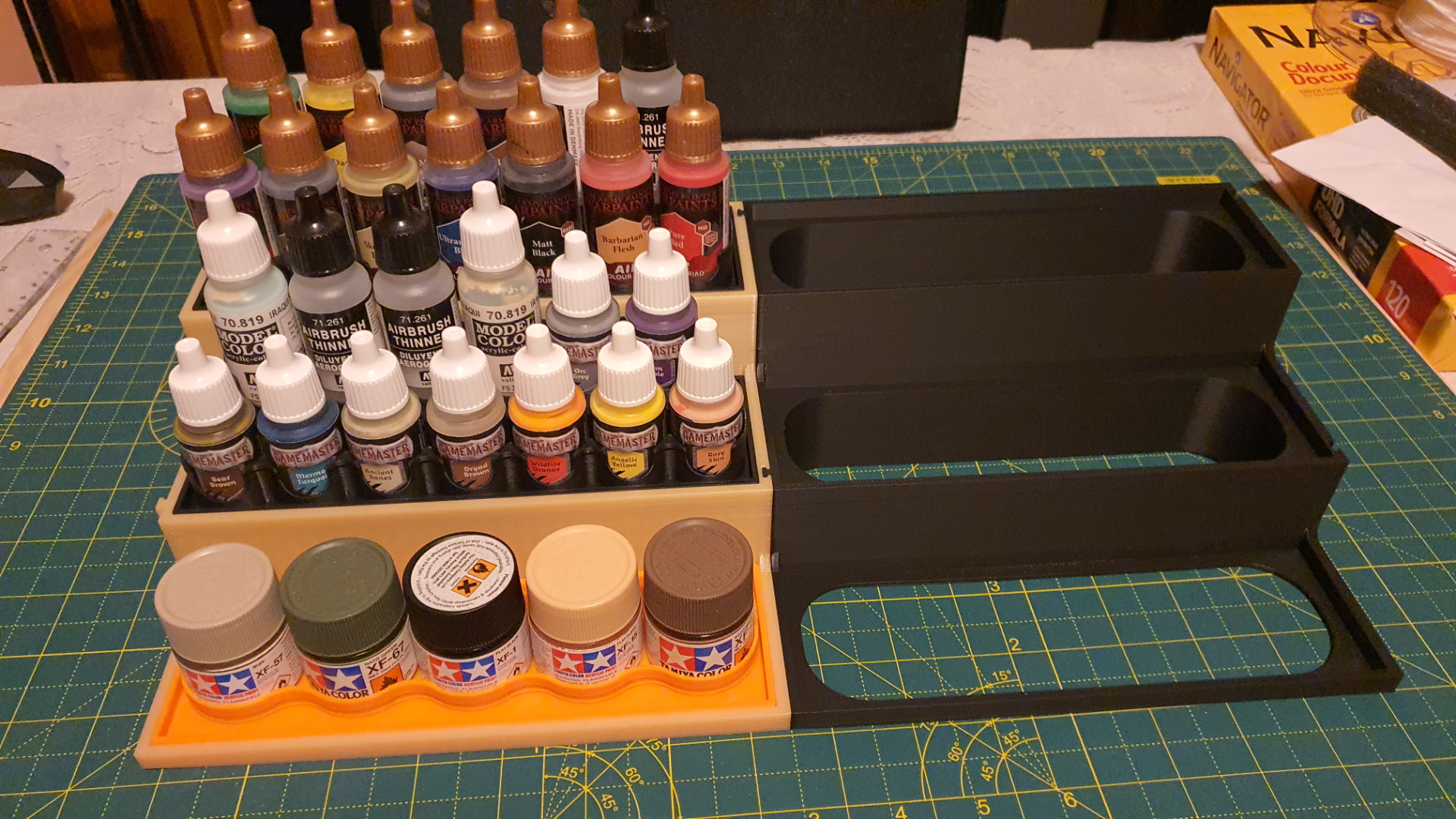

A Tabletop Stackable Paint Rack with changeable Holder inserts. So You can play between different Bottle types. At a moment they are done for: Vallejo, Army Painter bottles, Tamiya 10ml & 23ml jars and Pro Acryl 23ml bottles and/or any other brand bottles/jars if they are the same sizes. Soon I will add more as well. However as this rack is designed mainly  for Vallejo/Army Painter paints, it works best for them.

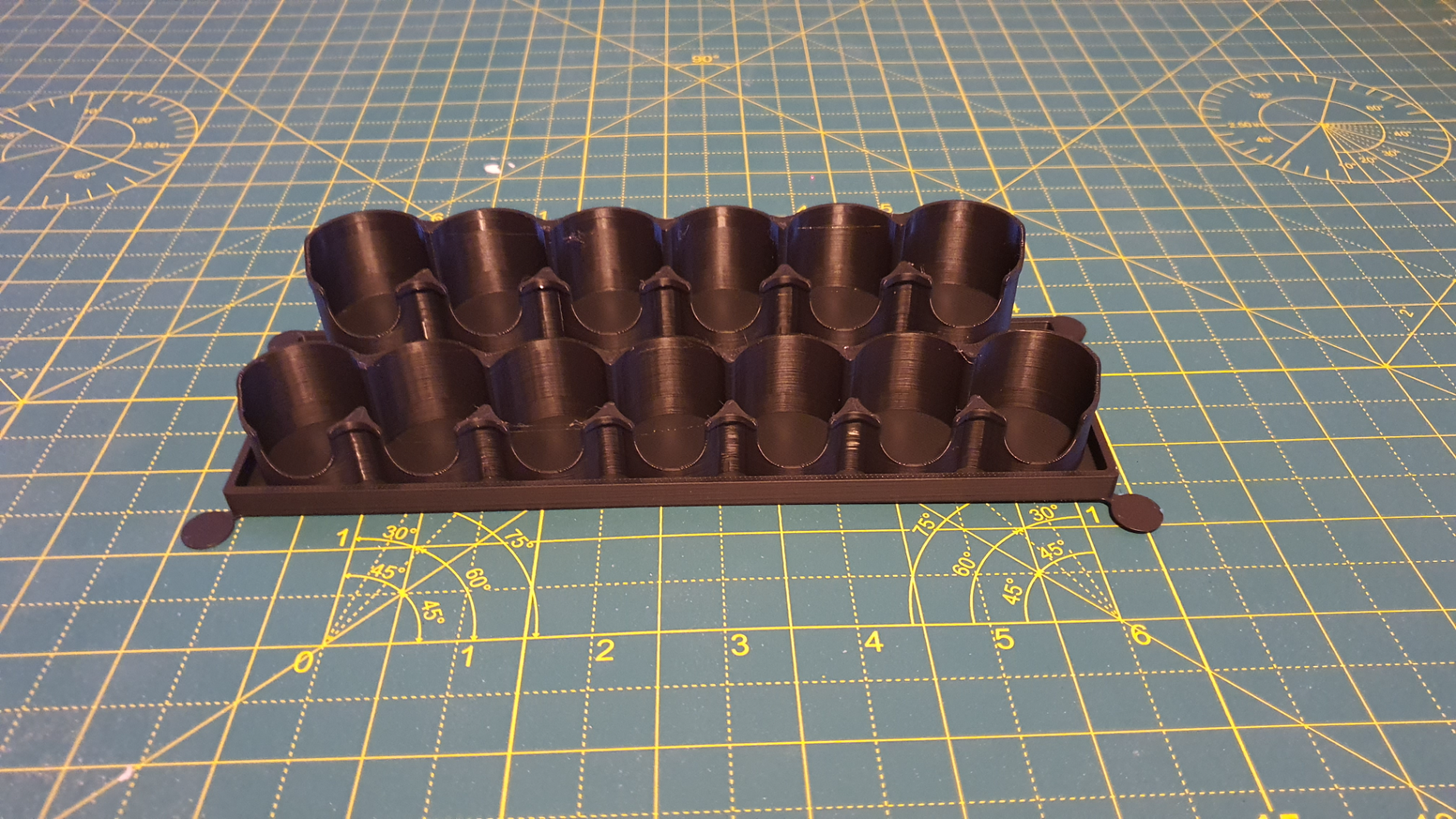

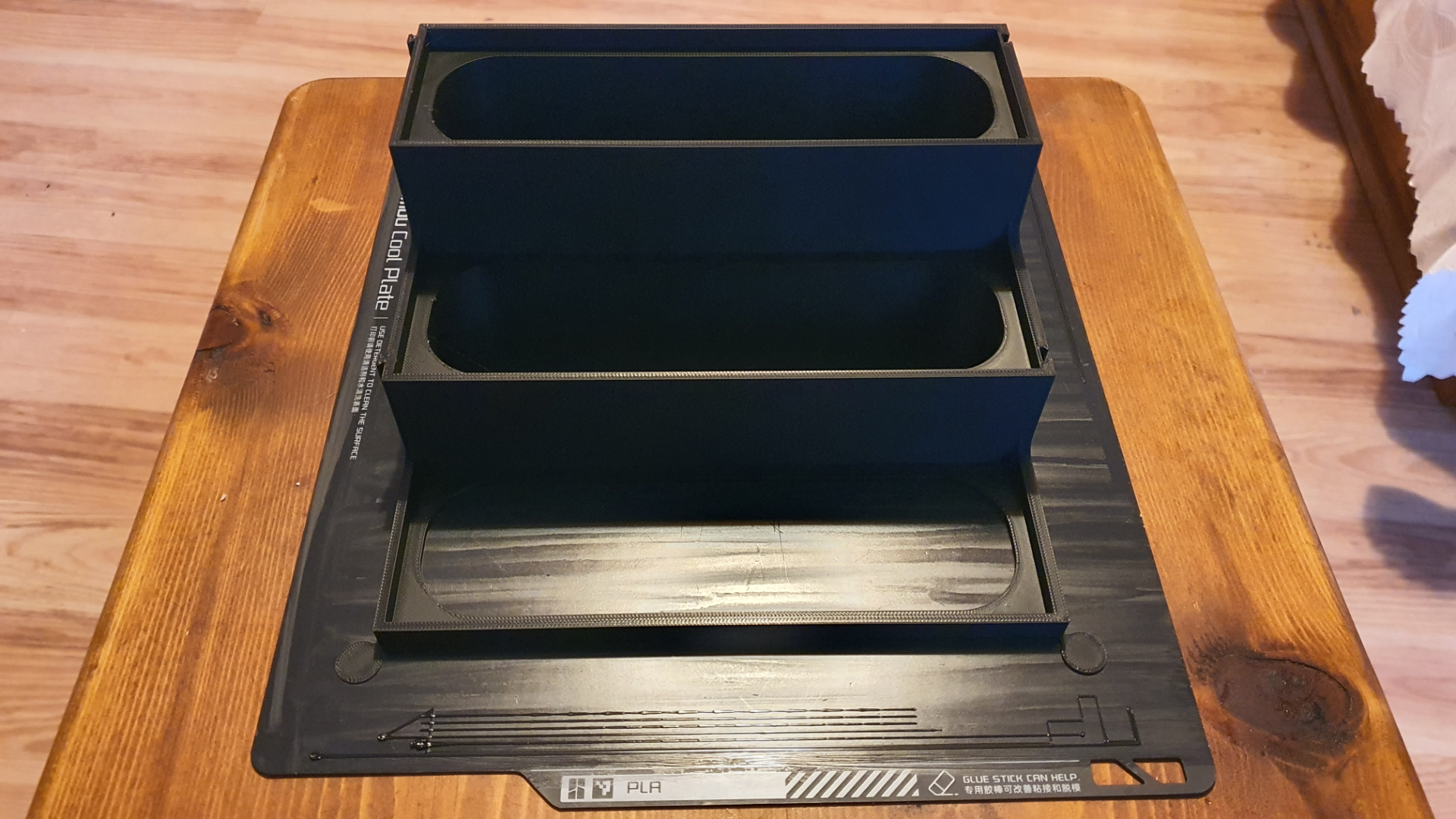

No supports needed to print any of components. One little postprocessing job needed. You will  need to remove Mouse Ears from corners which are made to prevent warping.

List of Components:

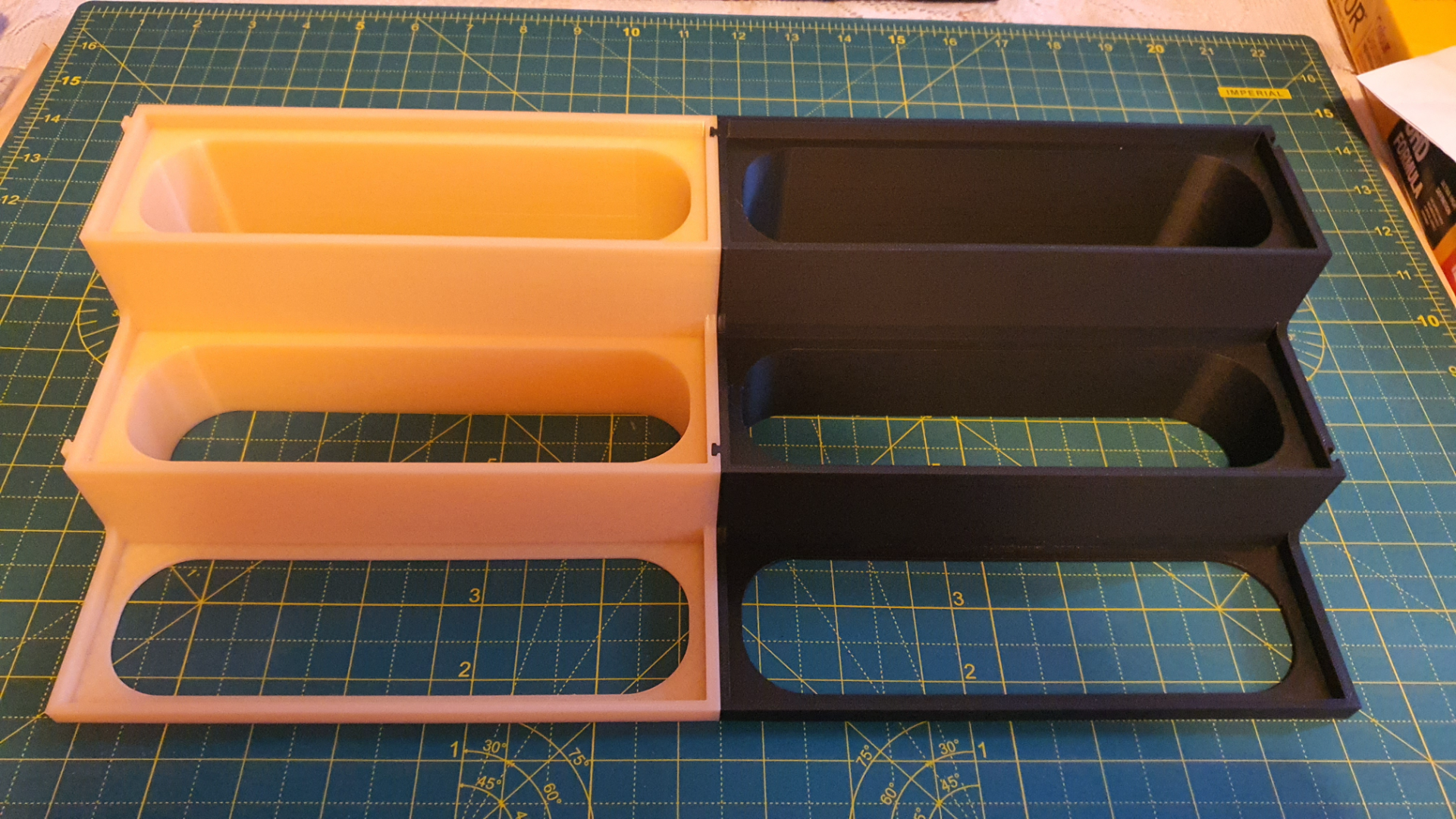

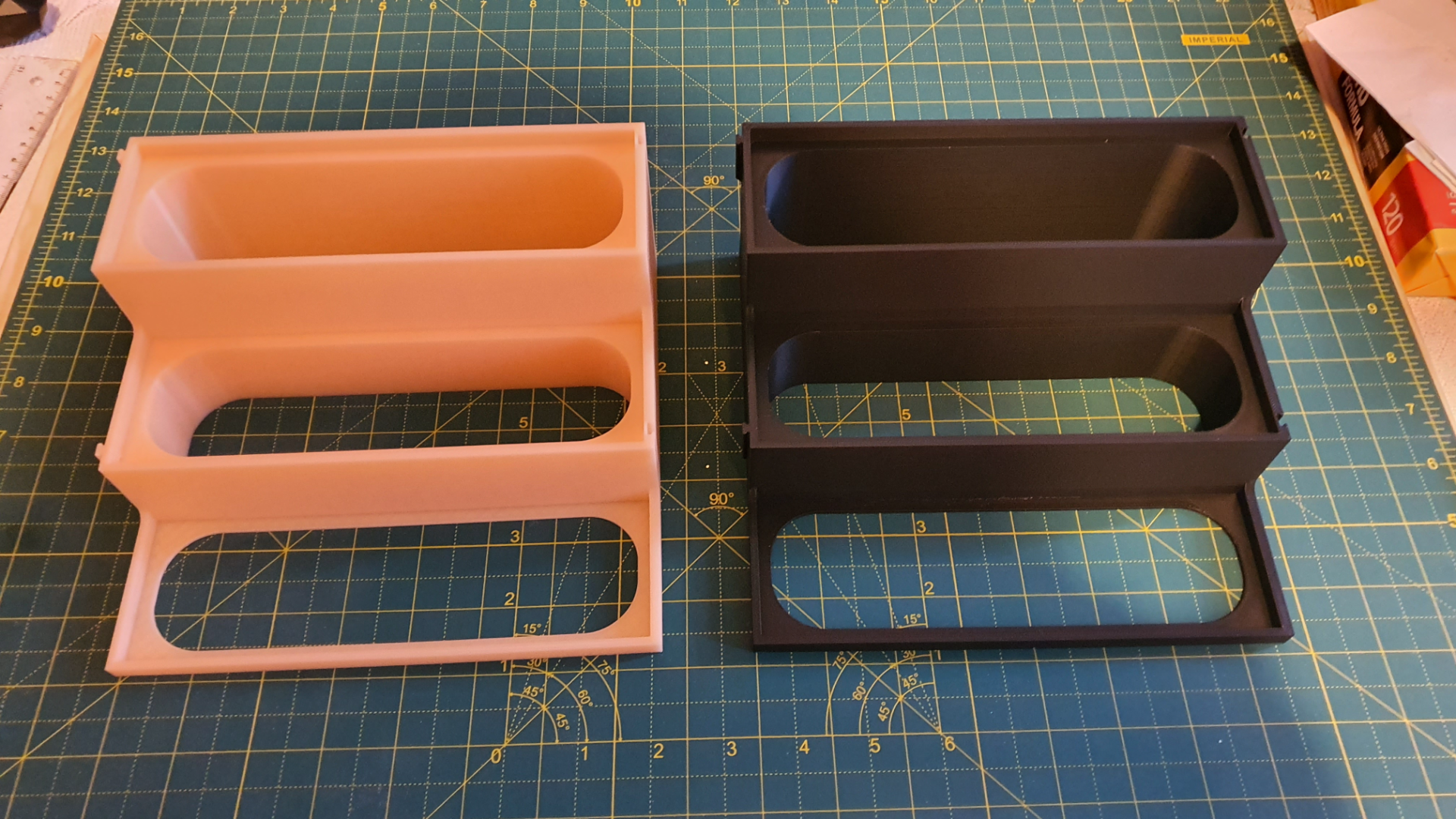

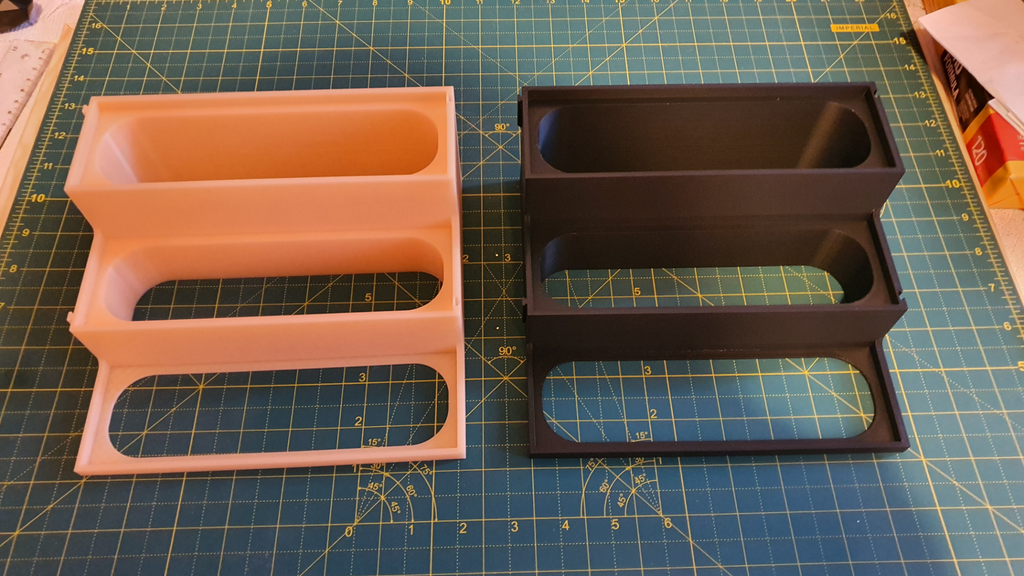

• Main Bodies of the Rack. 2 and 3 stage ones. Each version have 3 Sections. Left Side, Middle and Right side. Means exactly what is say. Use middle ones as much as you want and use Left/Right ones as last ones of respectful sides of your built rack for clean ends. But if you want, you can use only middle ones.

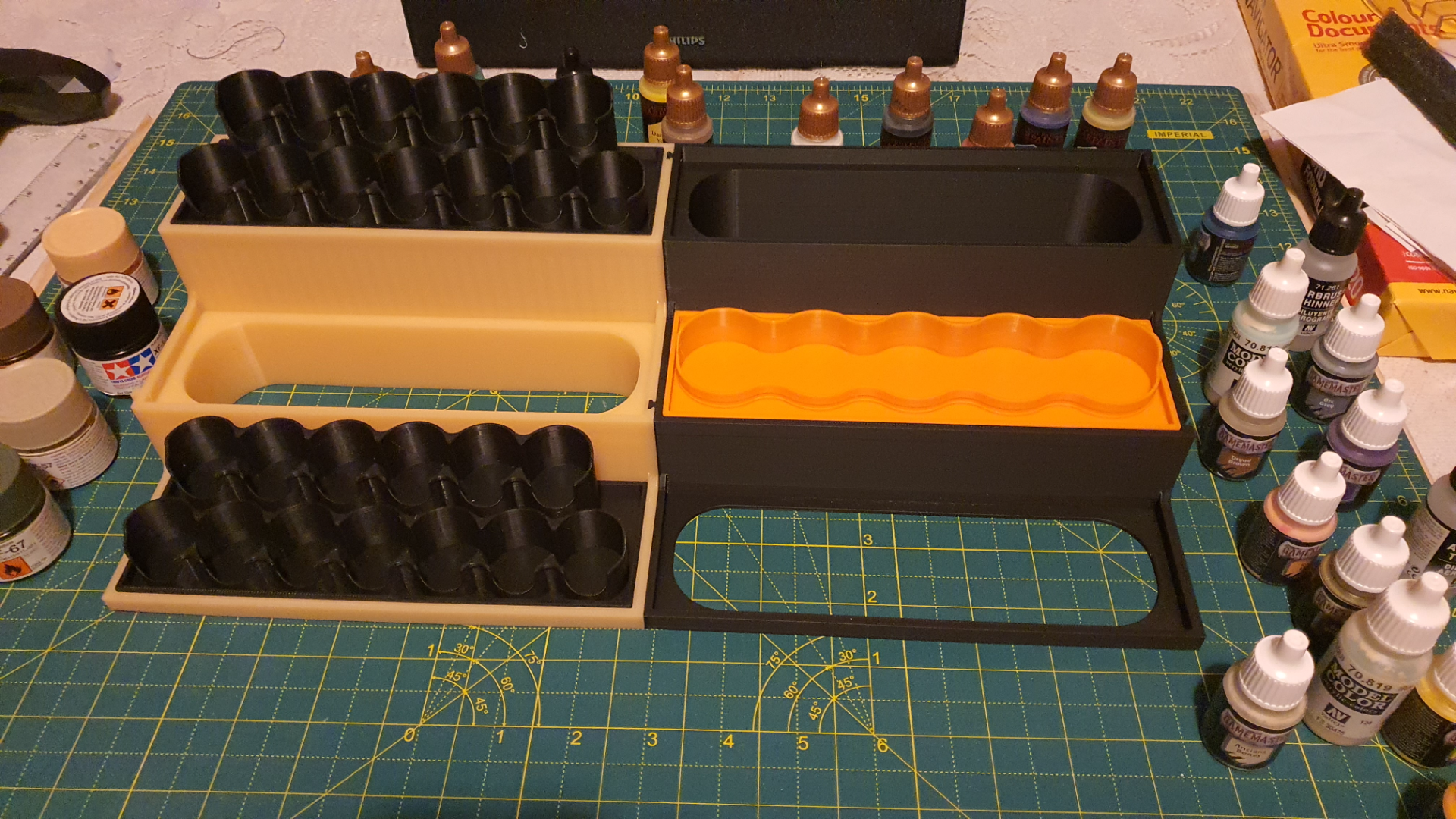

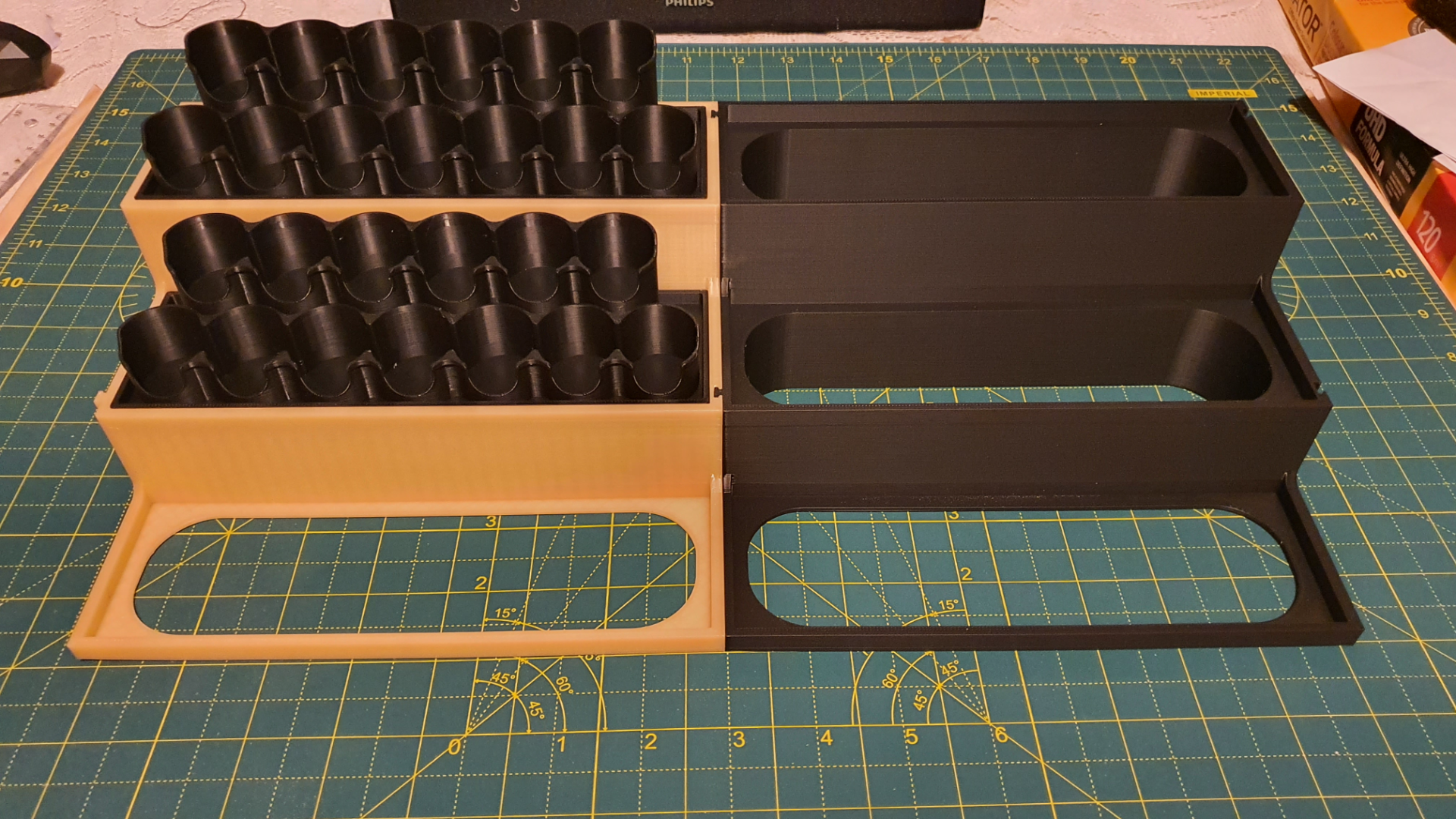

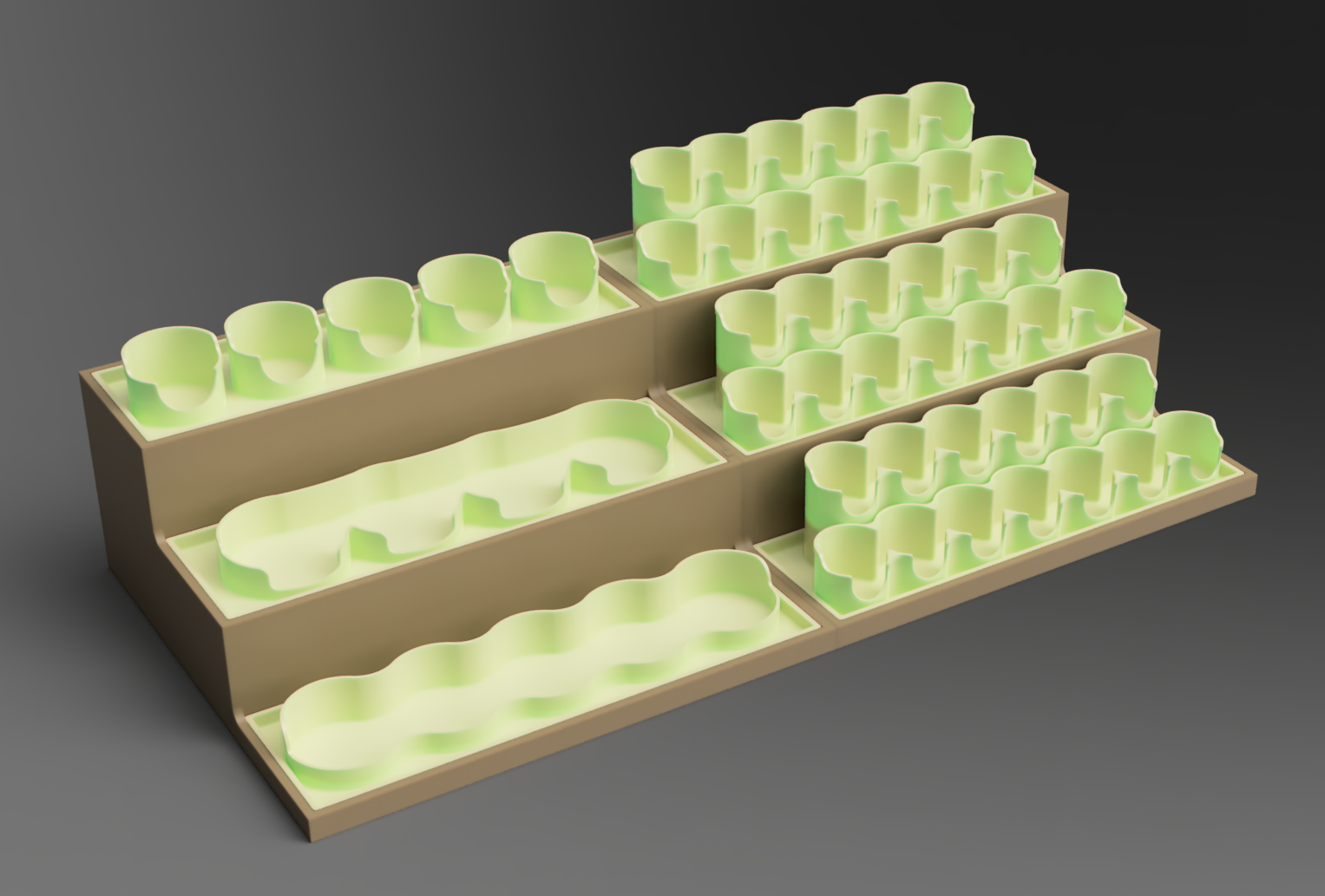

• Paint Holder inserts. You can place them in any order You need and if  You want to relace them after you can do it any time as they are made with a possibility to replace them at any time. Like in this little presentation here:

ADVICE

If in Your case holder inserts are a bit loose and won't hold in place when you take out a bottle or jar, You can use a double sided Sellotape to fix it in place.
