Tablet Mount for Contour Next Link 2.4

This is a tablet mount for a Contour Next Link 2.4 glucometer. As a Nightscout user, I use the Countour Next Link 2.4, an Amazon Fire 8 HD Plus, the tablet's wireless charging dock, and a 90 degree USB C to USB A 3.0 adapter to read my continuous glucose monitoring (CGM) data and upload it to my own Nightscout site.

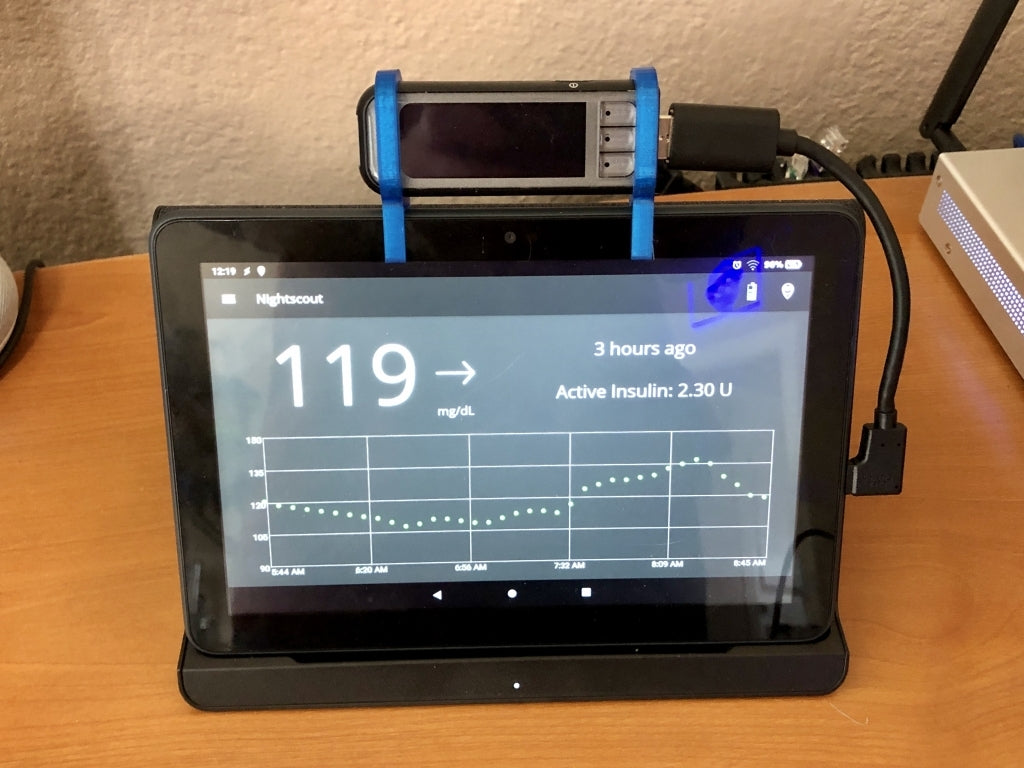

The glucometer squeezes into the mount and the two fingers gently squeeze it onto the tablet and hold the glucometer in place nicely.

With the glucometer mounted the tablet is able to charge and publish the data to my Nightscout site.

I've uploaded three files:

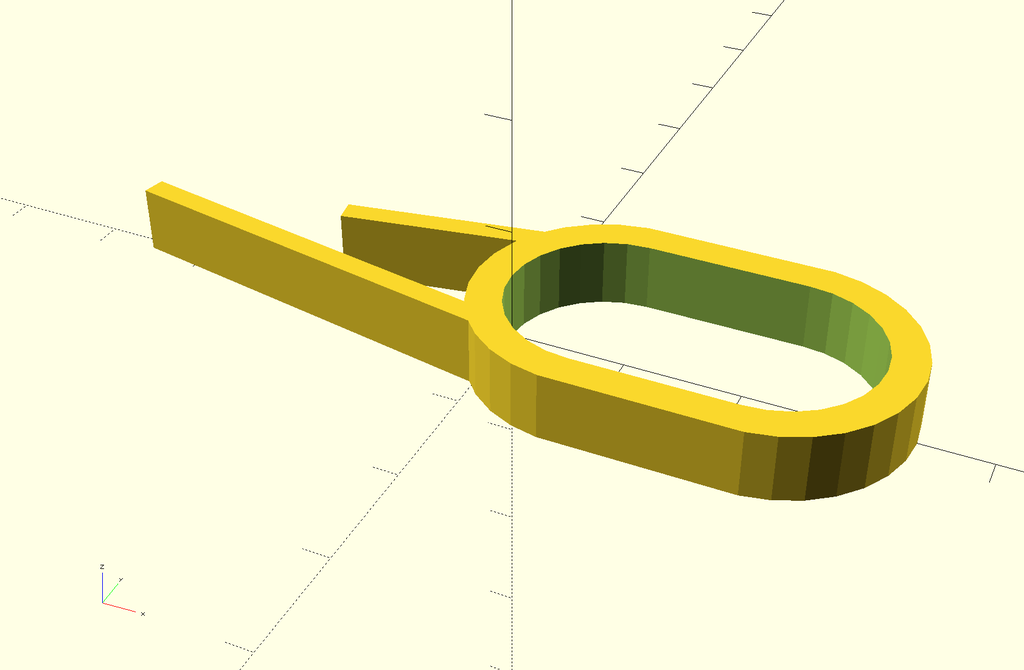

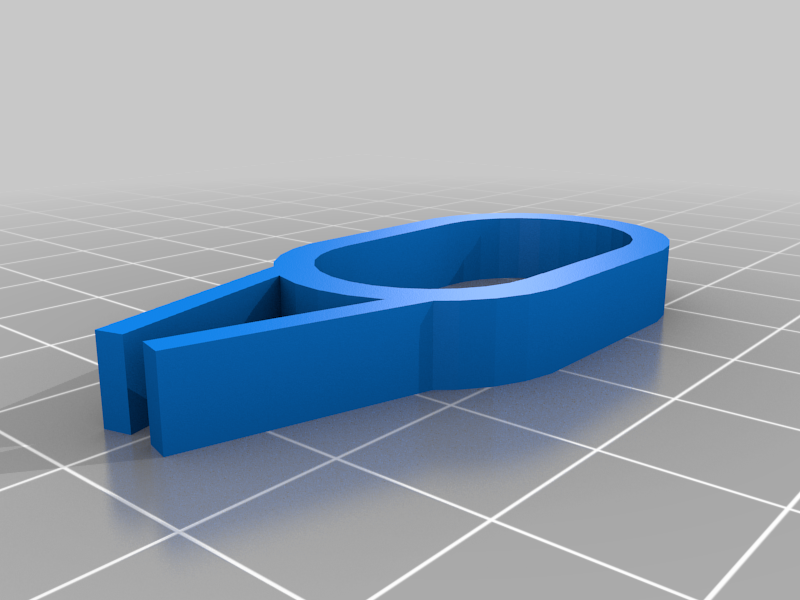

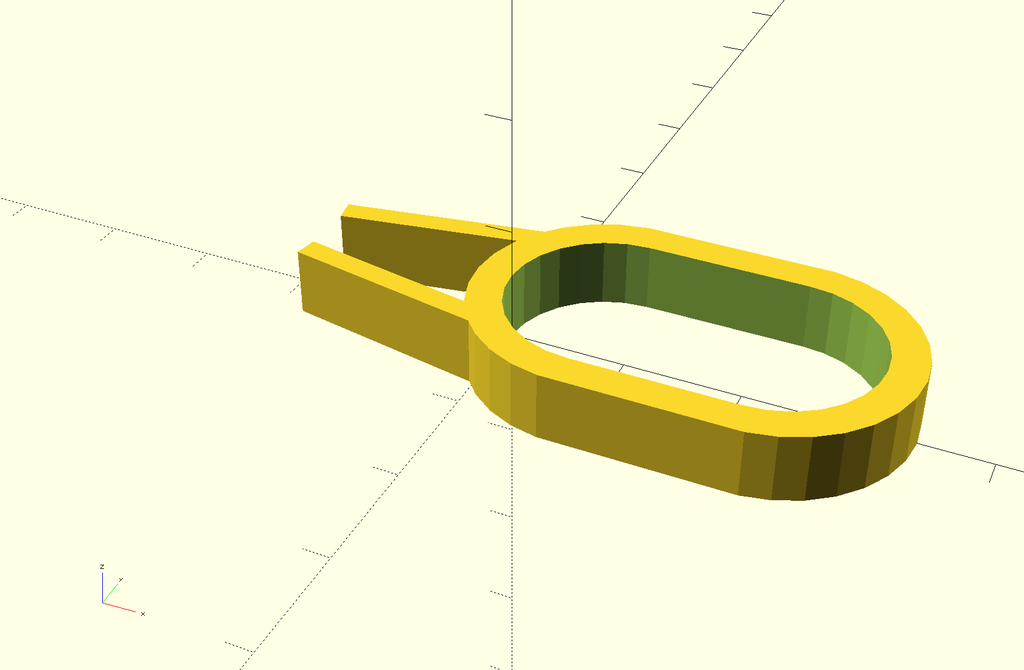

*CNL Tablet Mount v1 -- normal.stl: The fingers that grip the tablet are the same length (the size of the bezel around the tablet's display)*CNL Tablet Mount v1 -- long.stl: The rear finger that grips the tablet is twice as long as the front. This helps alittle with making the grip on the tablet tighter.*CNL Tablet Mount.scad: The OpenSCAD source file. It'smostly parameterized and you can customize this to meet your own needs, if desired. Things in picture:

1. Contour Next Link 2.4
2. Amazon Fire 8 HD Plus
3. Amazon Fire 8 HD Plus Wireless Charging Dock
4. CableCreation USB-C to USB 3.0 Adapter, 90 Degree

   Print Settings

Printer Brand:

Prusa

Printer:

No

Supports:

Design by briancmoses on MakerWorld (license: BY).
