Hello !
If you like my work, please rate it.

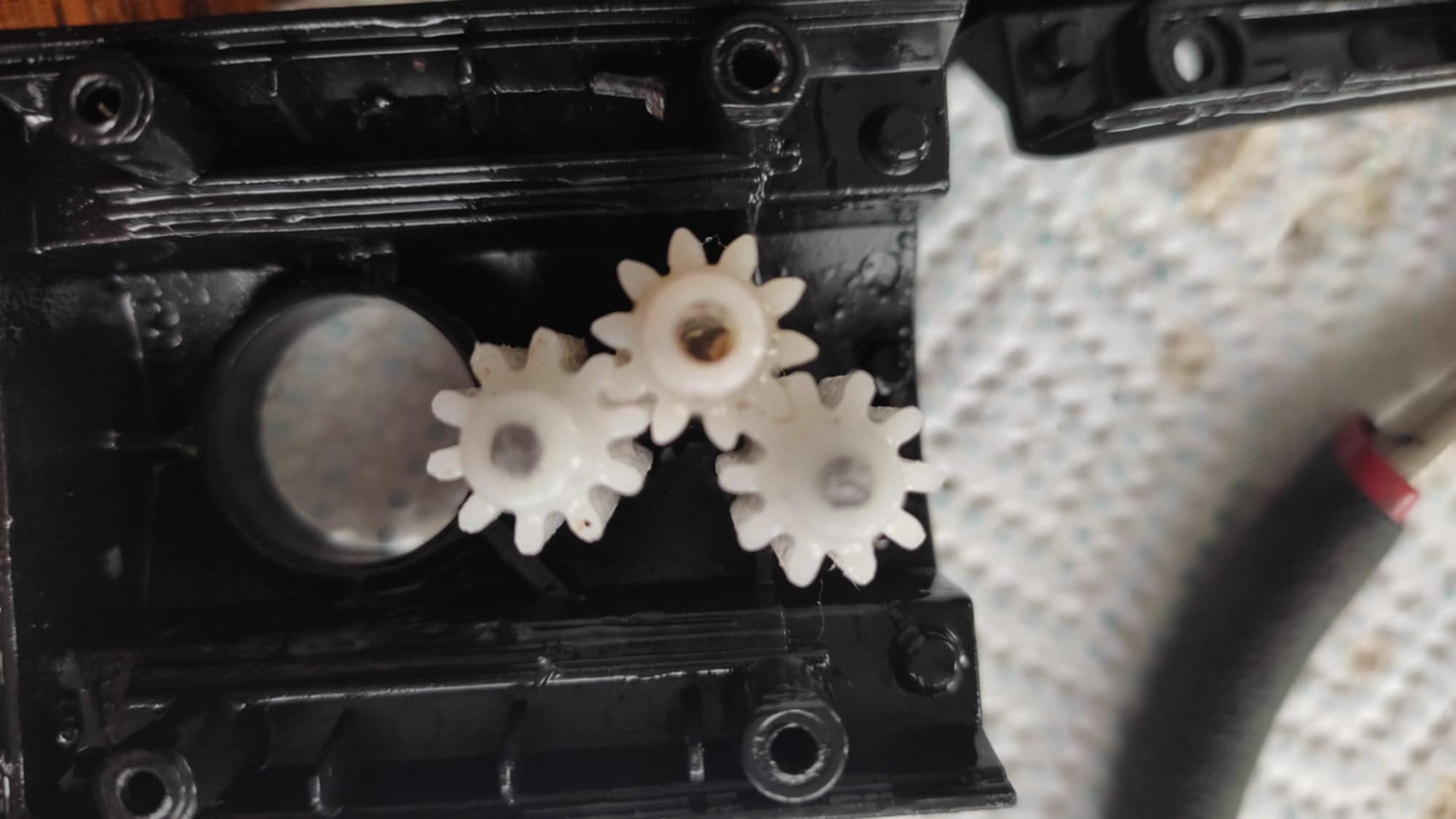

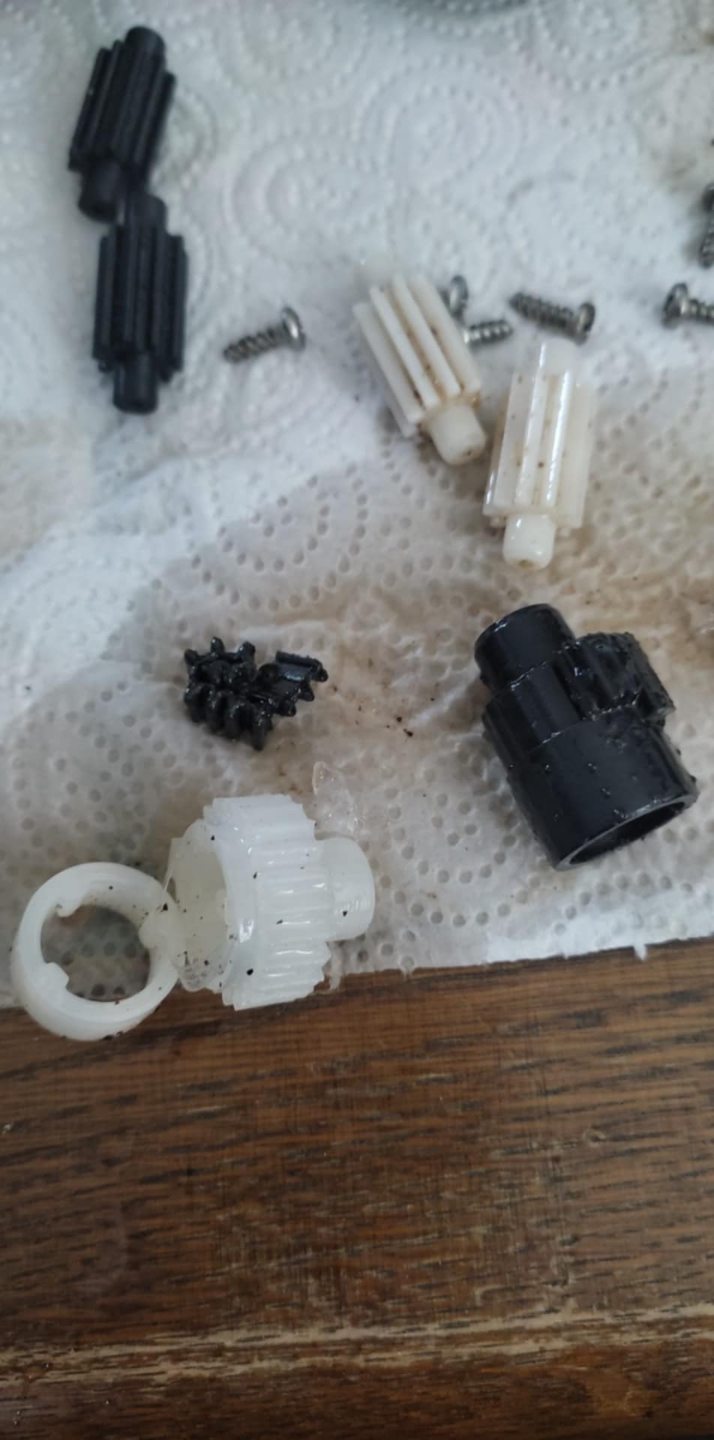

My brother repairs coffee makers as a hobby. A regular problem in a Tchibo Esperto coffee machine is that these gears break.
Often, aftermarket gears don't last long either. That's why when he ordered it, I drew it for him.
As it turned out, these gears also occur in other coffee makers:
-Tchibo Esperto Series
-Beko CEG 5301
-Grundig KVA 4830
-SMEG BCC01, BCC02
-Severin KV 8090
-Oster BVSTEM8100
I haven't tried it with a resin printer, only with FDM.

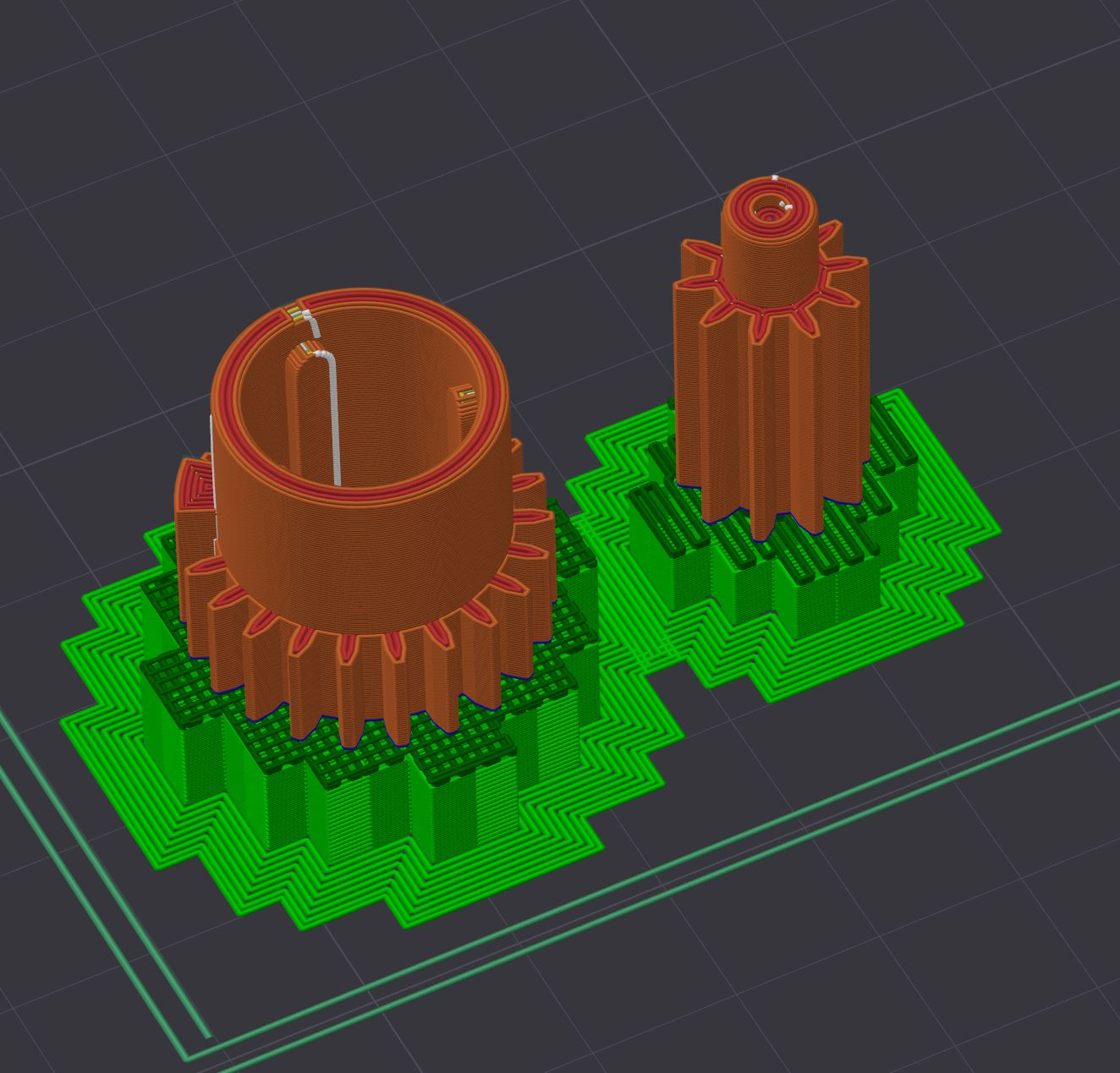

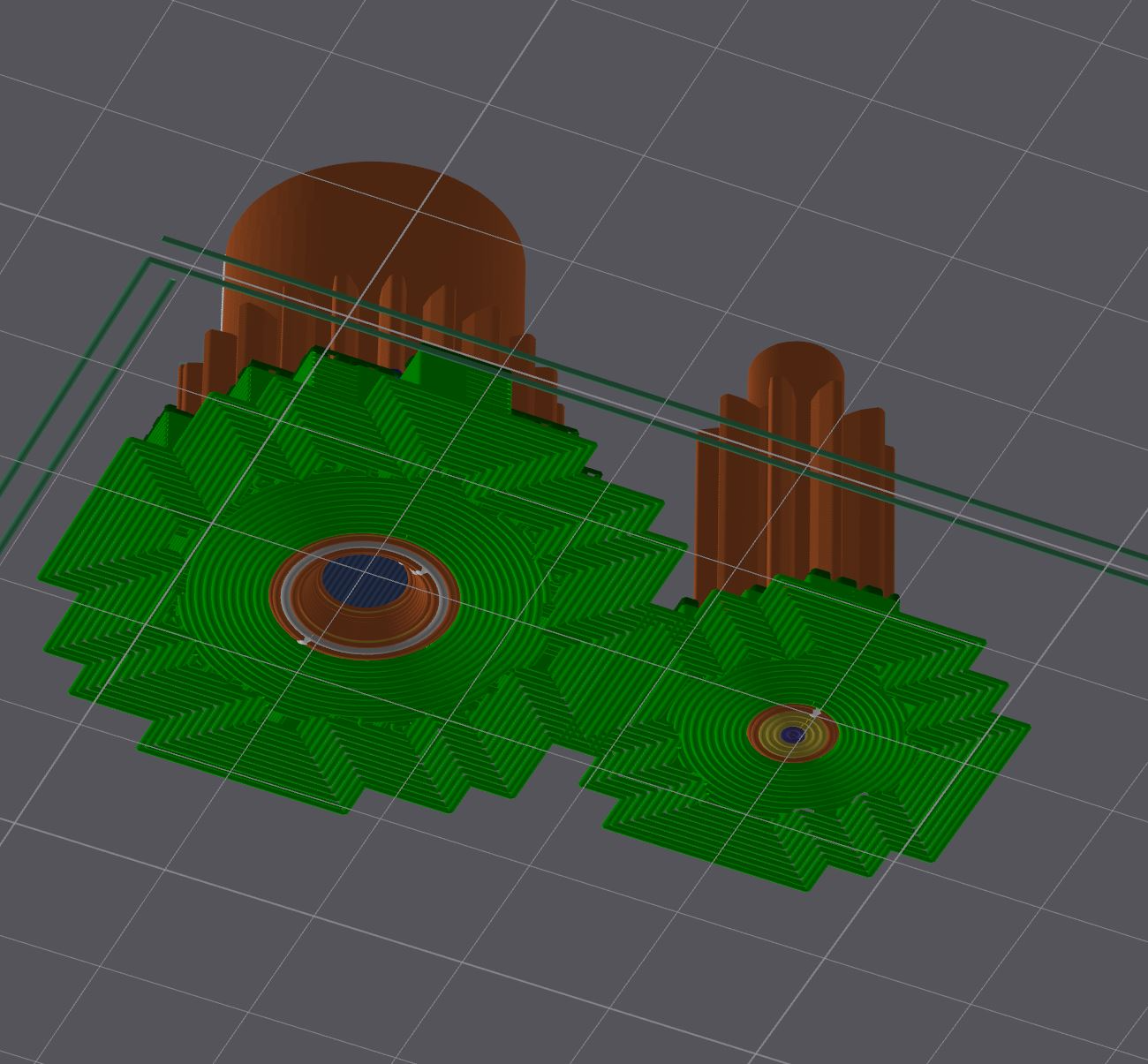

PETG and CF PLA broke quickly. I haven't tried ABS. Nylon filament holds up well. The support shown in the pictures worked for me.
4-wall thickness, 0.2mm layer height, 100% infill.
Slower printing and lower layer height increases layer adhesion.

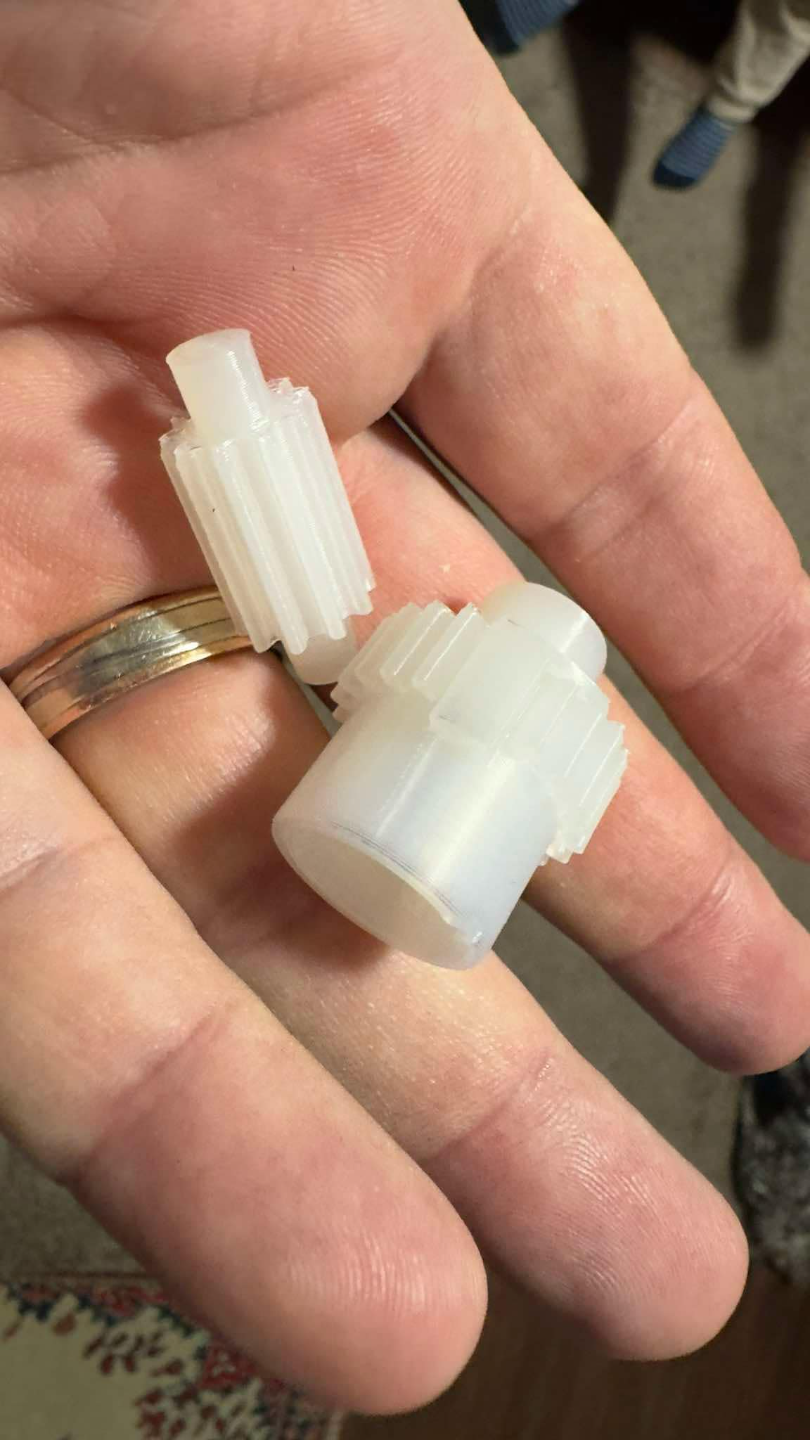

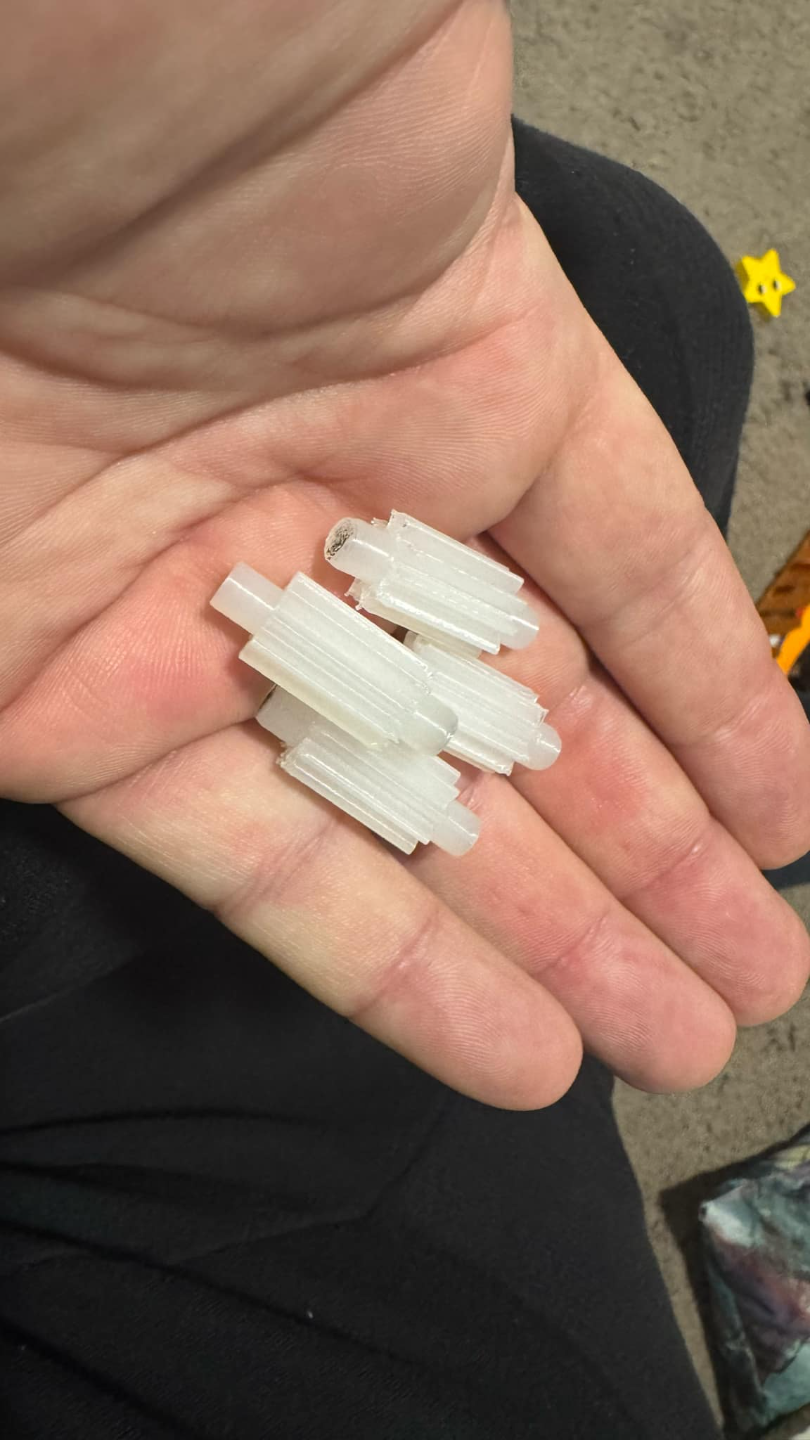

I printed the nylon material at 245 degrees on a Buildtak Nylon+ surface with a bed temperature of 60 degrees.

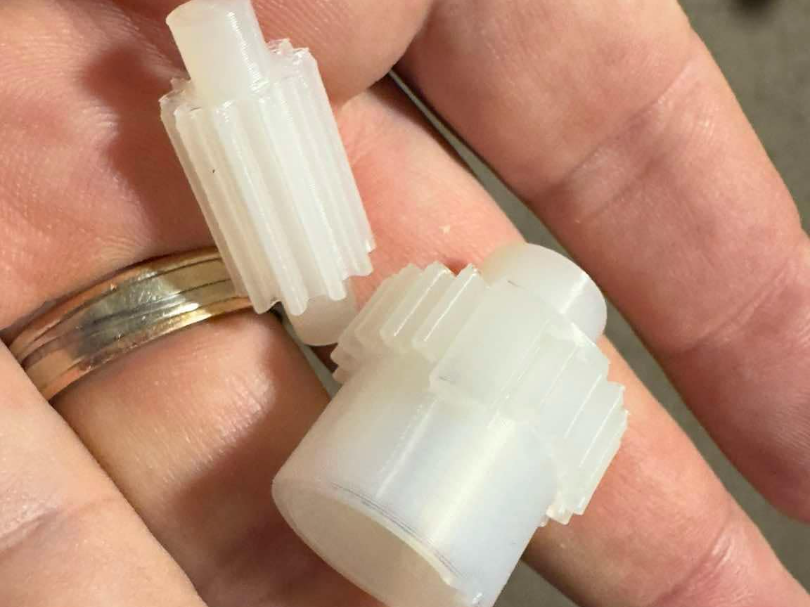

There is a pin inside the larger gear. It is necessary because it presses a switch.
Bb.
Design by Adorján Krisztián on MakerWorld (license: BY-SA).
