Tile and Paver Spacer - Parametric

Need some tile or paver spacers? Can't find the right size or shape? Customize your own to fit your specific needs!

Customization options:

• Choose from 4 different shapes:

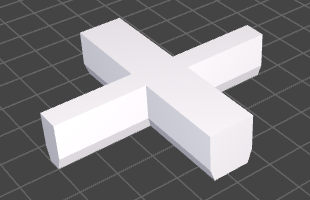

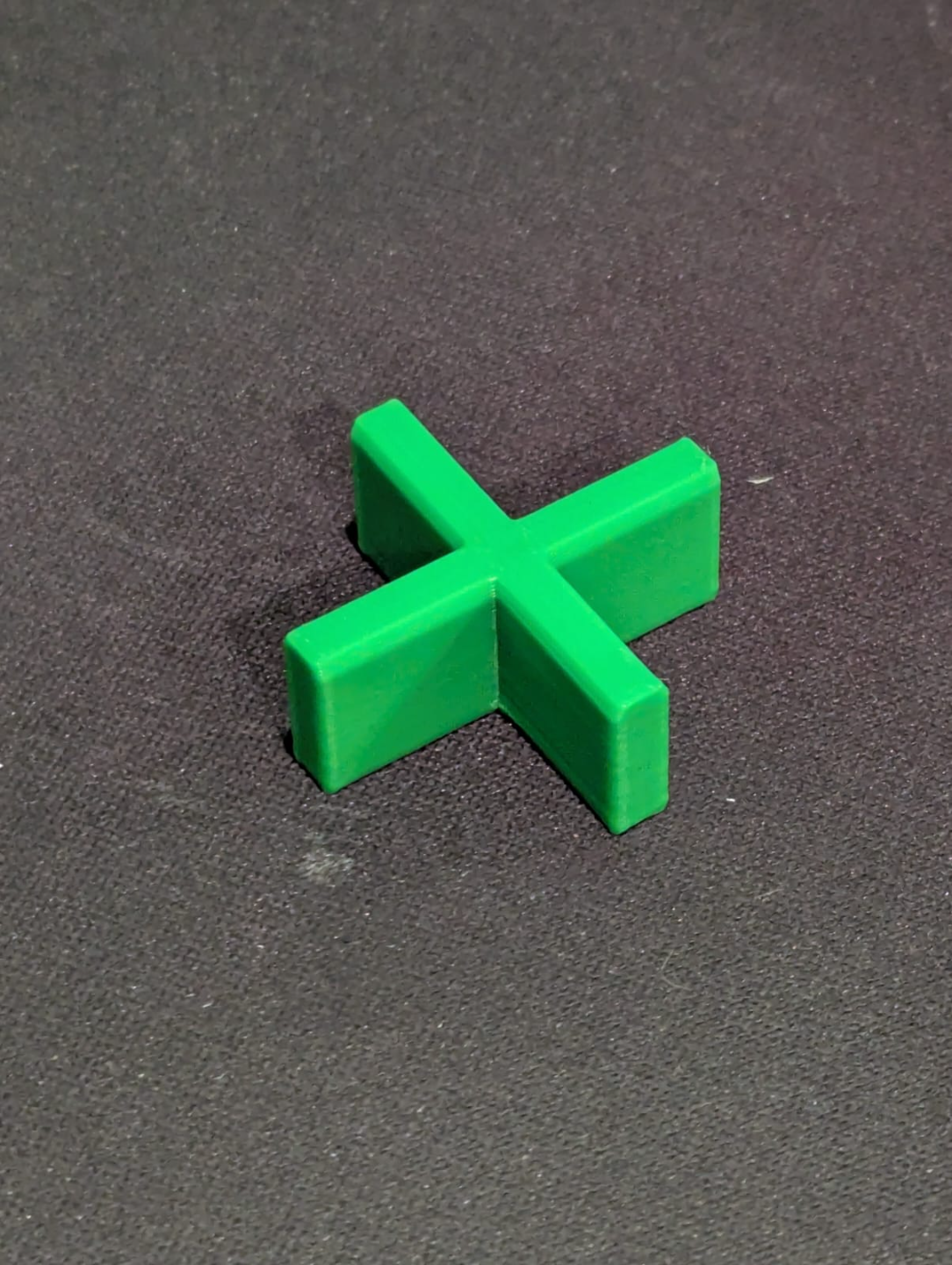

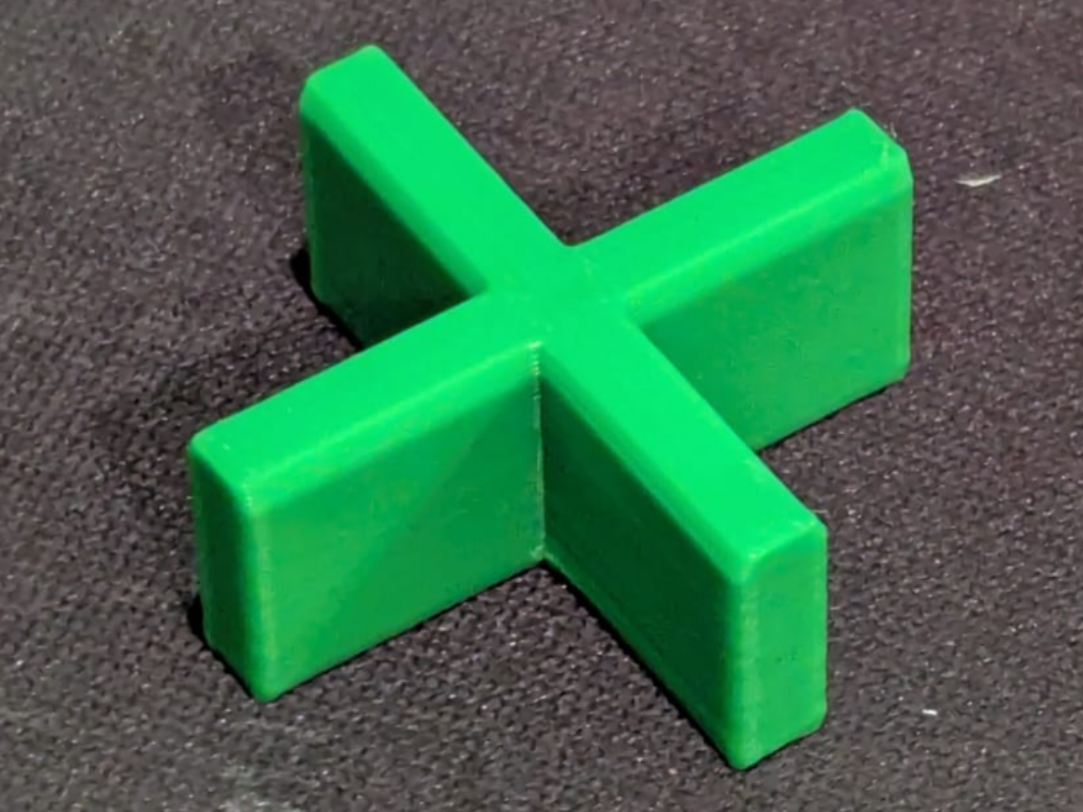

  • 4 corners => ┼
  • 2 corners => ┬

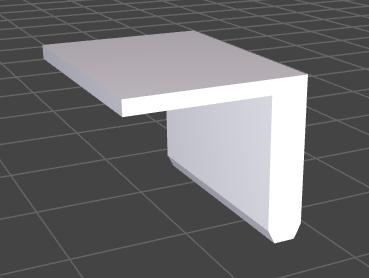

  • 1 corner => ┌
  • 0 corners => ─
• Independent spacing widths on the X & Y axis
• Height of the spacer
• Spacer wingspan
• Chamfer for the bottom to help guide the spacer in

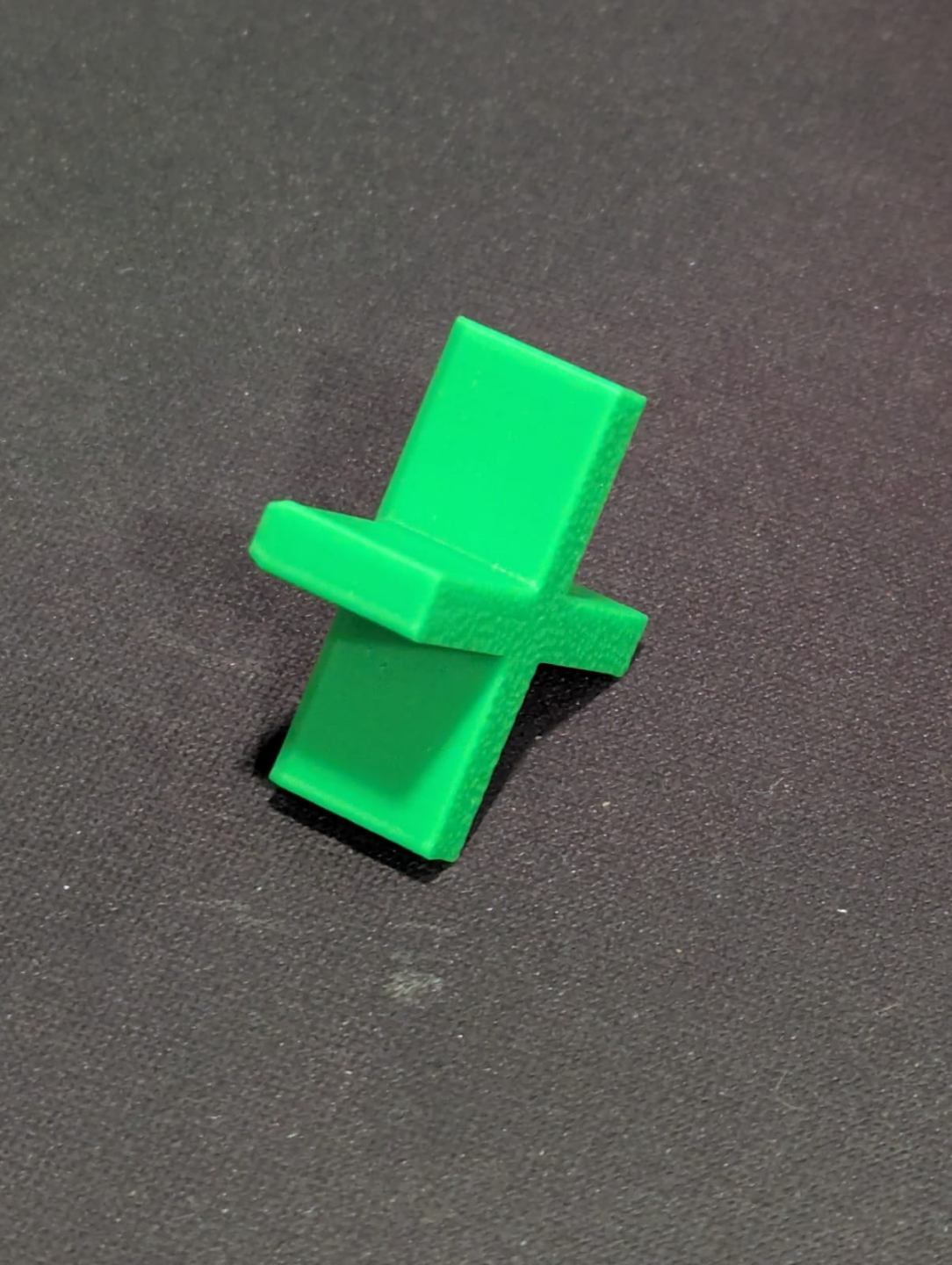

• Optional cap on top to prevent the spacer from dropping down or just for convenience

Print notes:

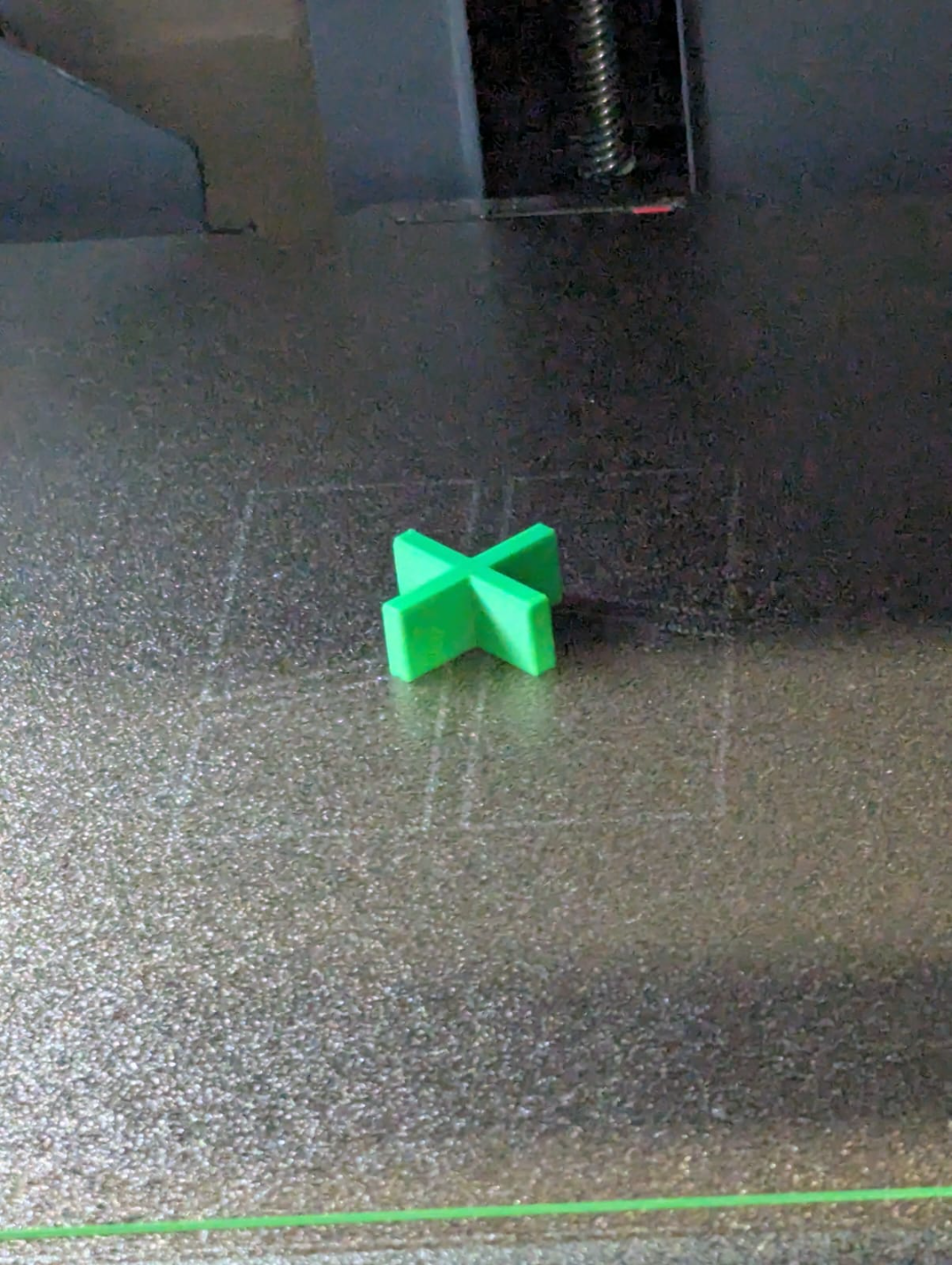

• Make sure to flip the part upside down to eliminate any need for supports.

Design by RevolverValera on MakerWorld (license: CC0).
