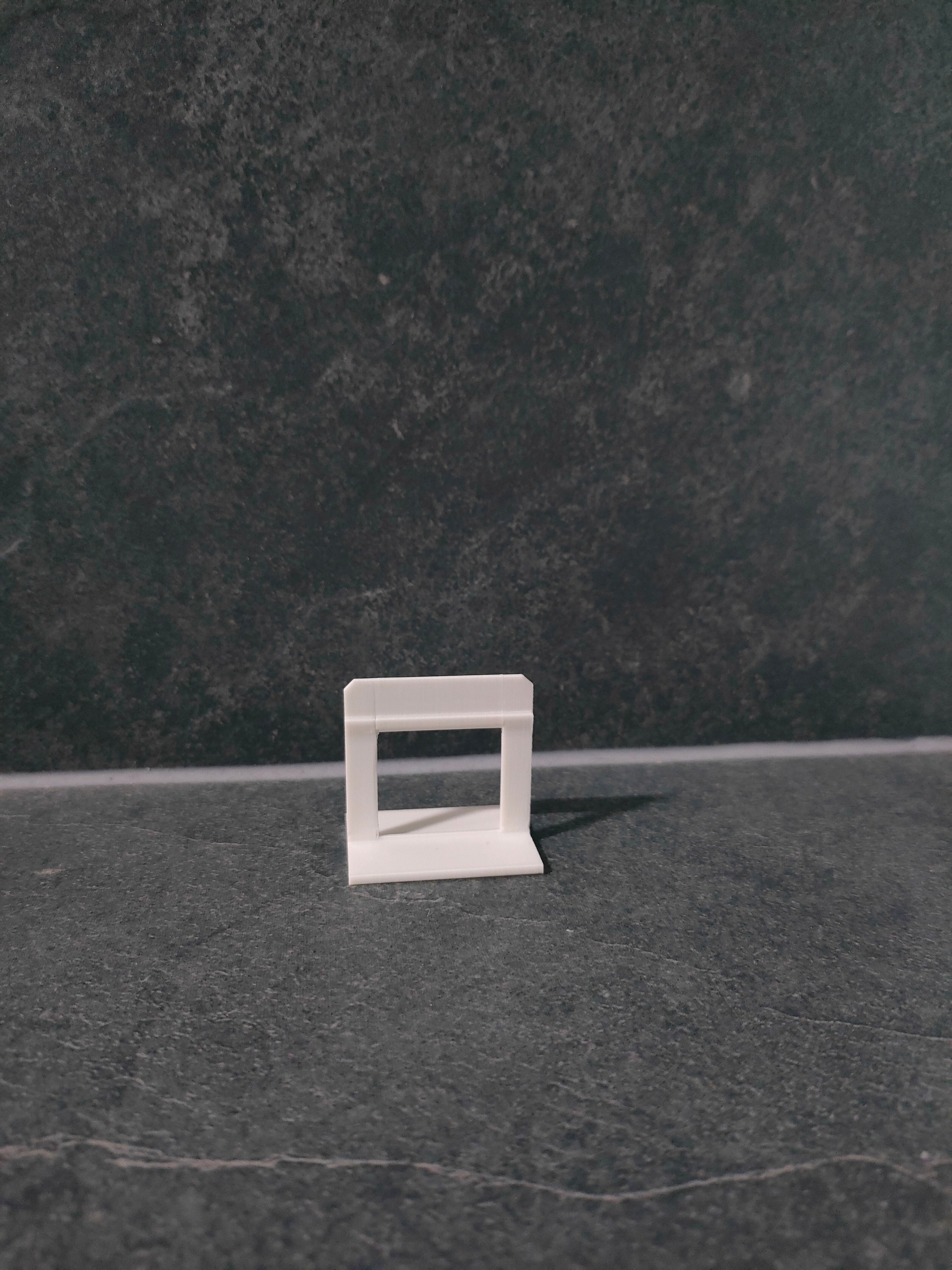

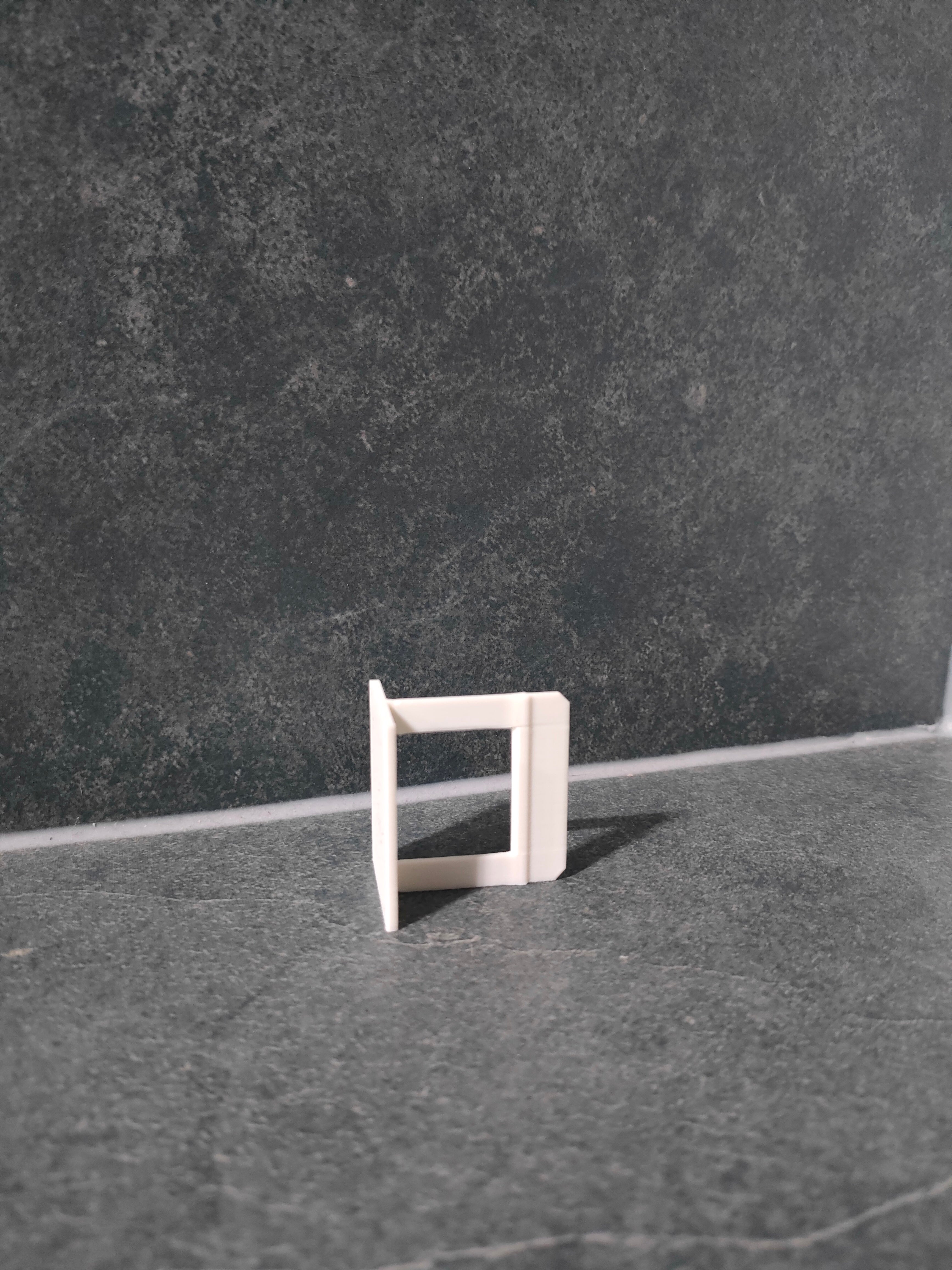

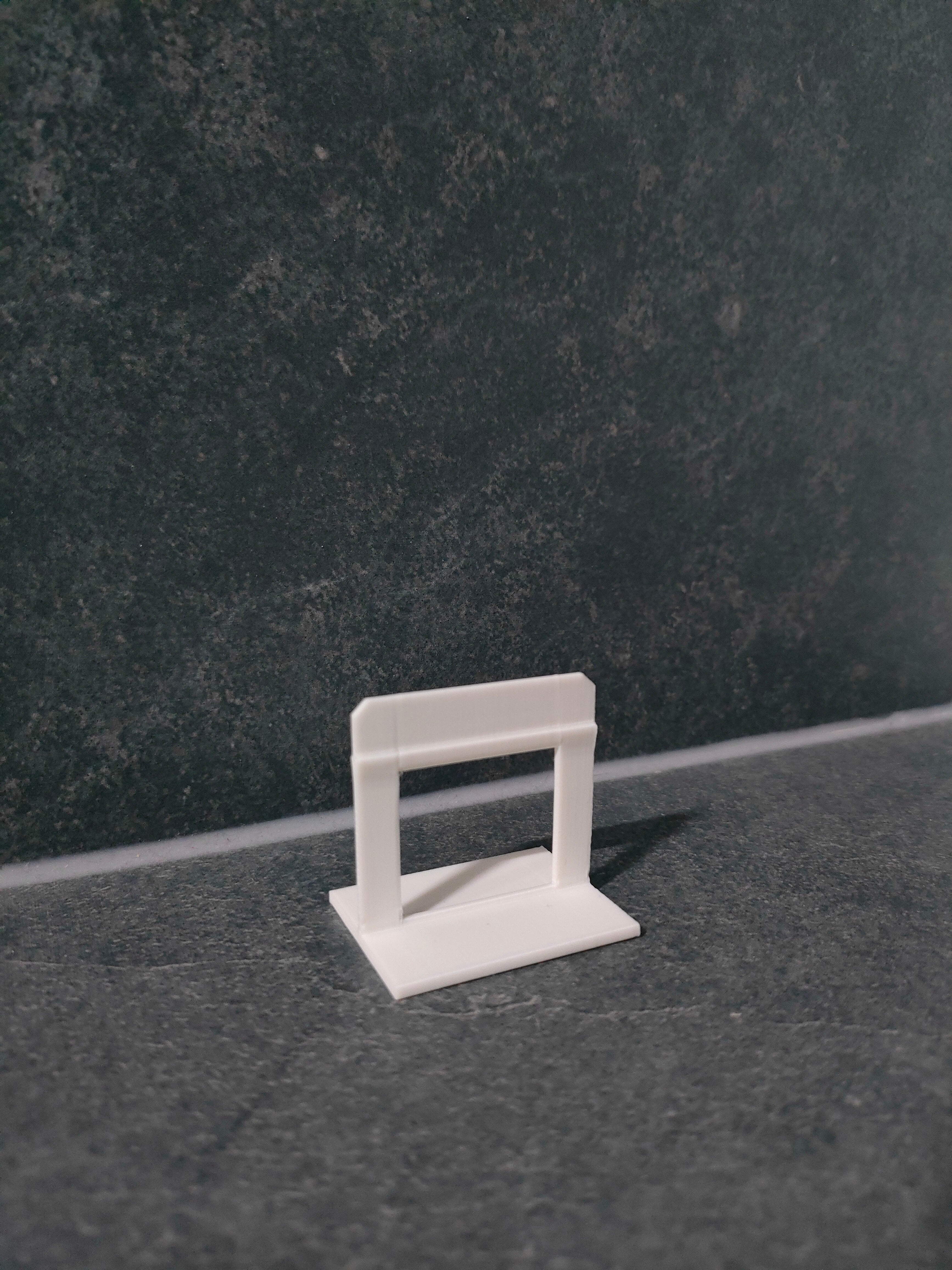

Tile Leveling System Clip 1.5mm

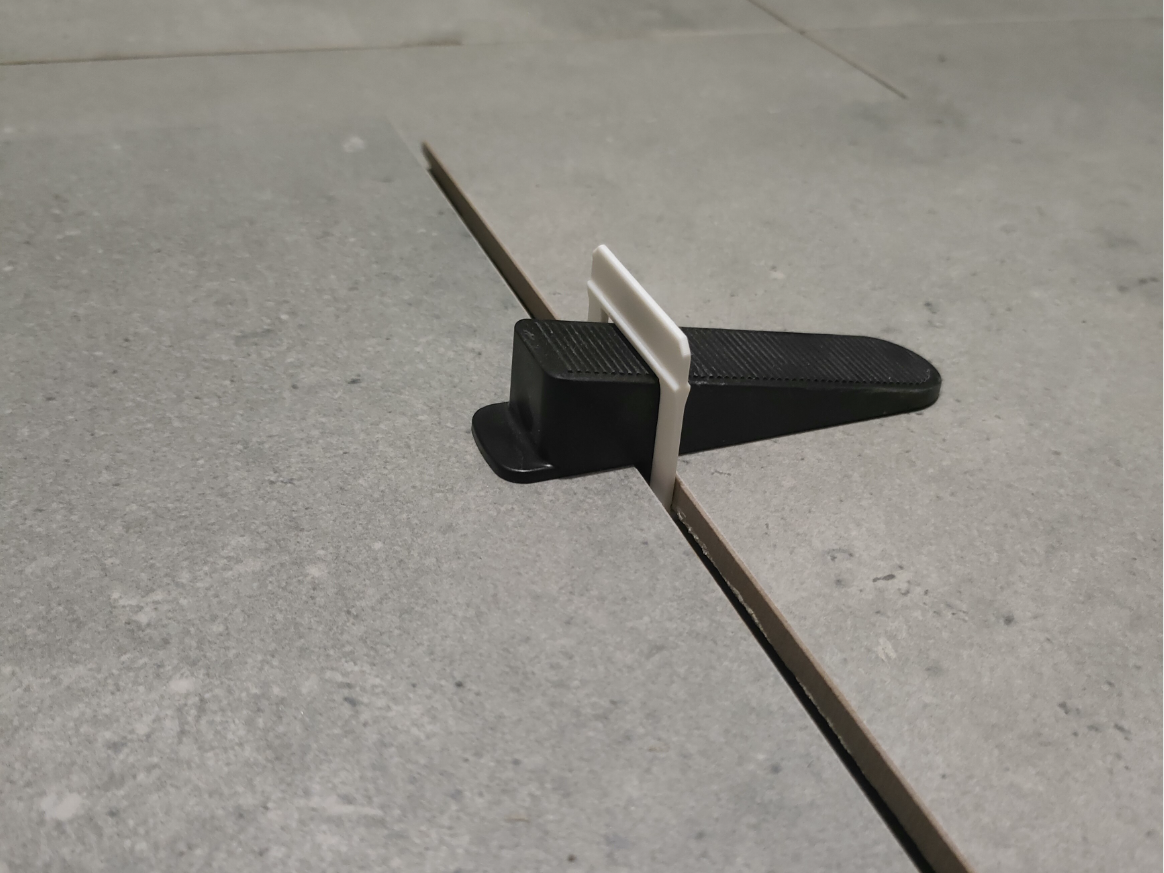

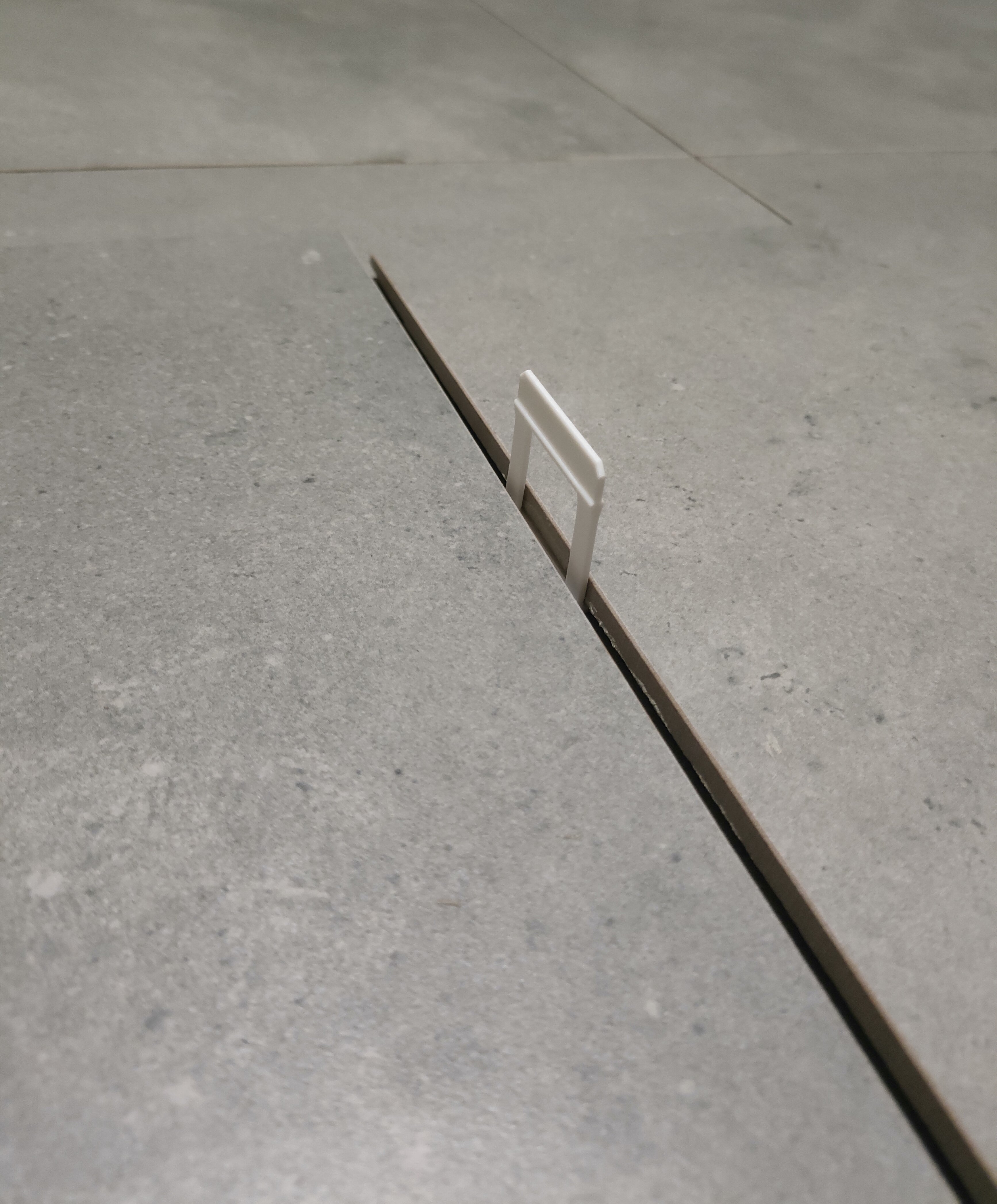

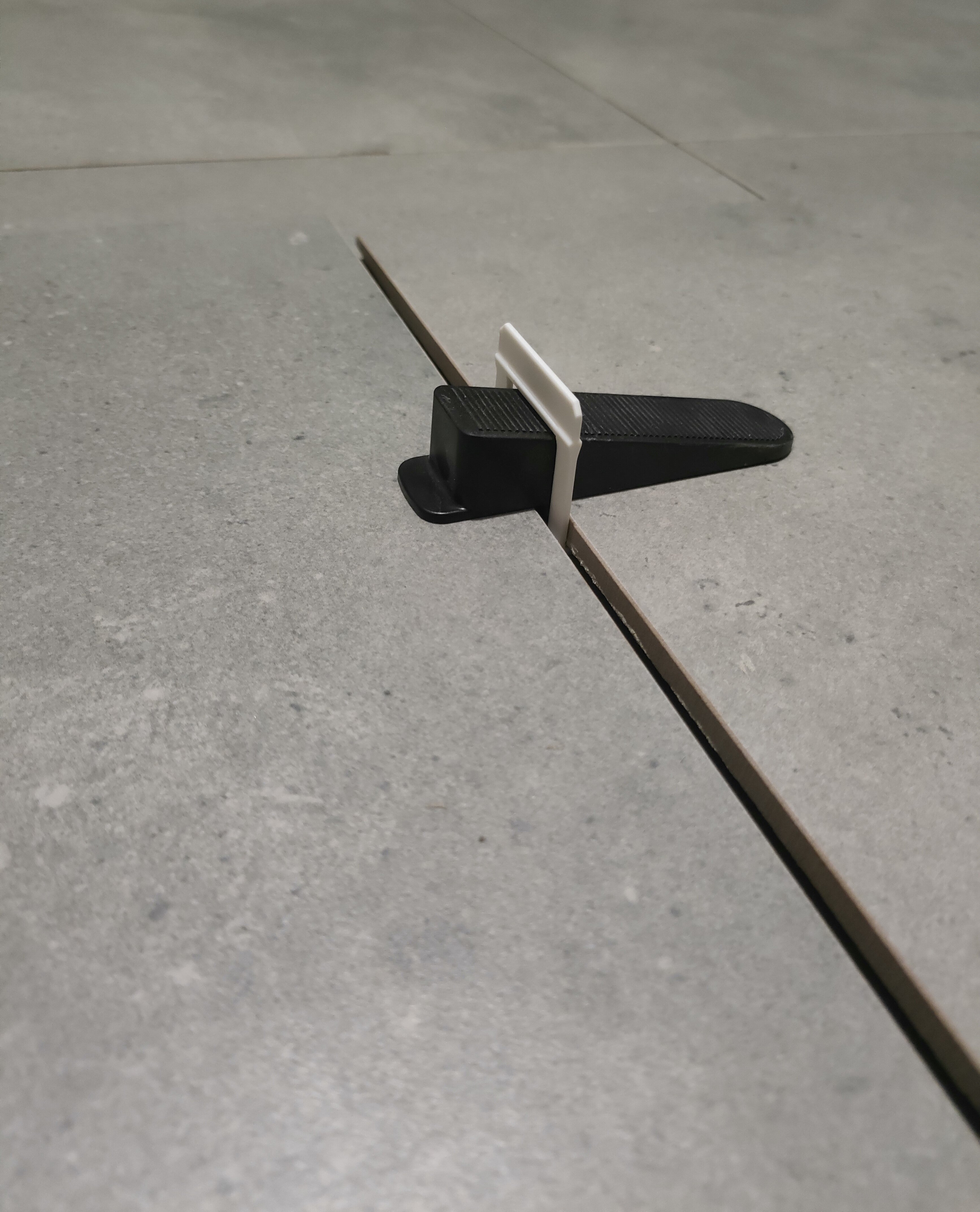

The model has been tested during actual tile installation - it is fully functional and works as intended.
It is important to print it on its side to prevent the clip from cracking when inserting the wedge!
The model includes small notches at the bottom to make snapping it off easier once the adhesive has cured.
Printing with PETG is recommended, as it provides better durability.
It can be printed in PLA as well, but it may be more brittle.
Dimensions: 32 × 29 × 37 mm
Grout width: 1.5mm
Wedge slot: 25 x 17.8 mm
Recommended Settings
- 0.2 mm layer
- Infill: 15% grid
- Support: tree (auto)
- Brim: Outer only * It's important that the model does not detach during printing.
Draw the supports as shown in the picture below.
Design by Pitrus3D on MakerWorld (license: BY-ND).
